High-Purity Isostatic Graphite Round Boats U-Shaped Semicircular Sintered Graphite Boats Custom-Made High-Temperature Graphite Boats for Vacuum Furnaces

▍Product Description

What is a graphite round boat?

Graphite round boats (also known as semicircular graphite boats or U-shaped graphite boats) are precision high-temperature process carriers widely used in various vacuum resistance furnaces, induction furnaces, sintering furnaces, brazing furnaces, ion nitriding furnaces, and vacuum quenching furnaces. Unlike standard square boats, the circular boat is designed to perfectly match the inner wall contours of horizontal tube furnaces and circular tube heating chambers, maximizing the use of space within the furnace’s temperature-controlled zone and ensuring uniform heating of materials during sintering or annealing processes.

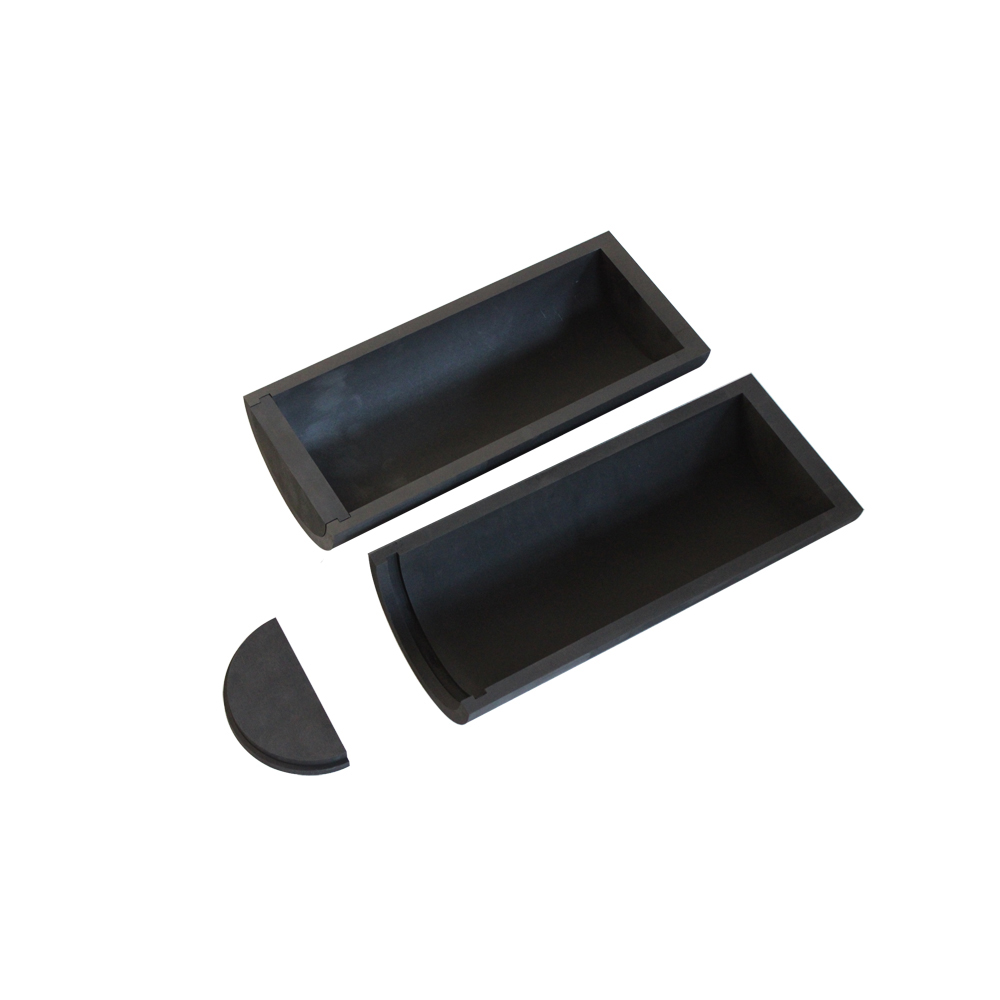

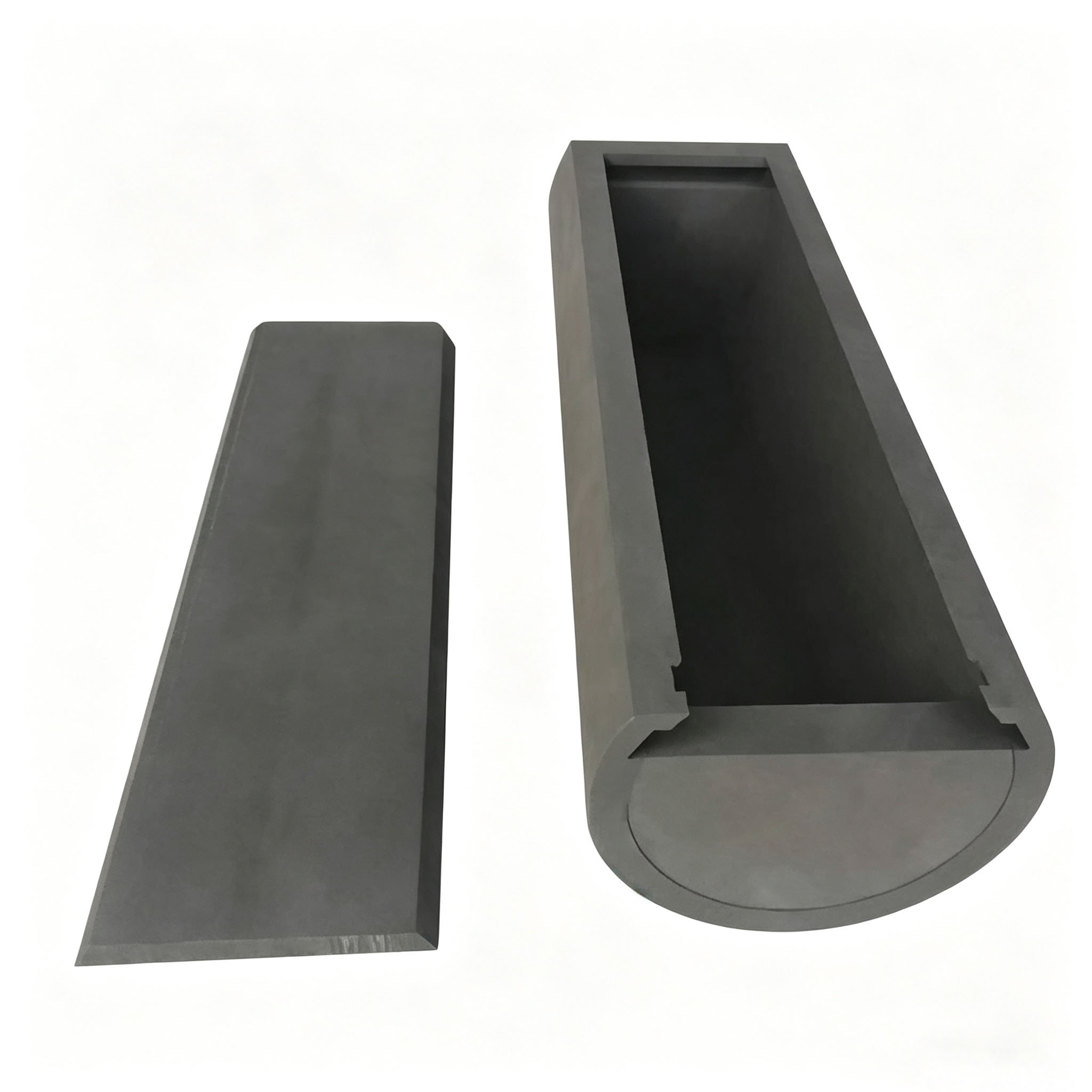

Semicircular Graphite Boat with Cover

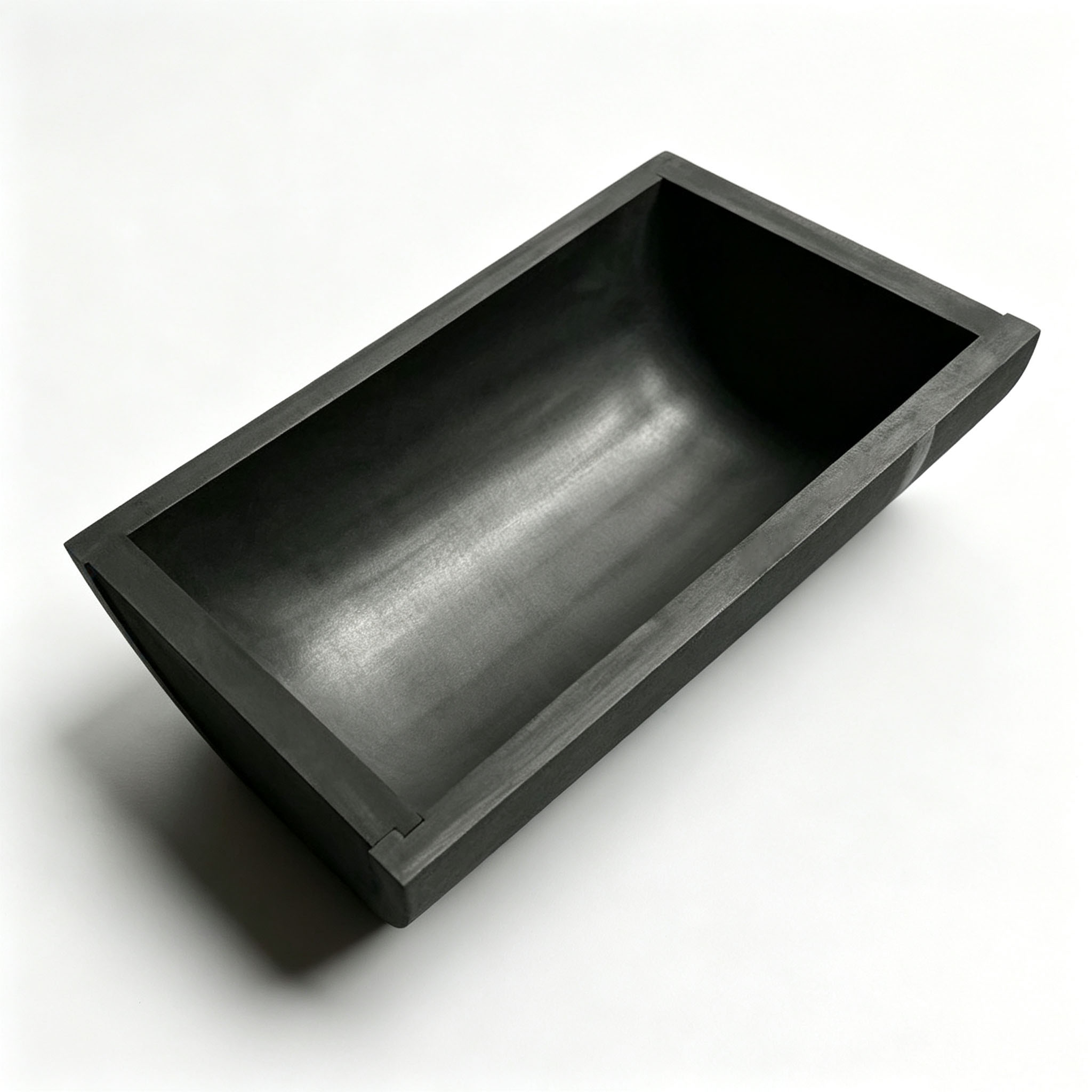

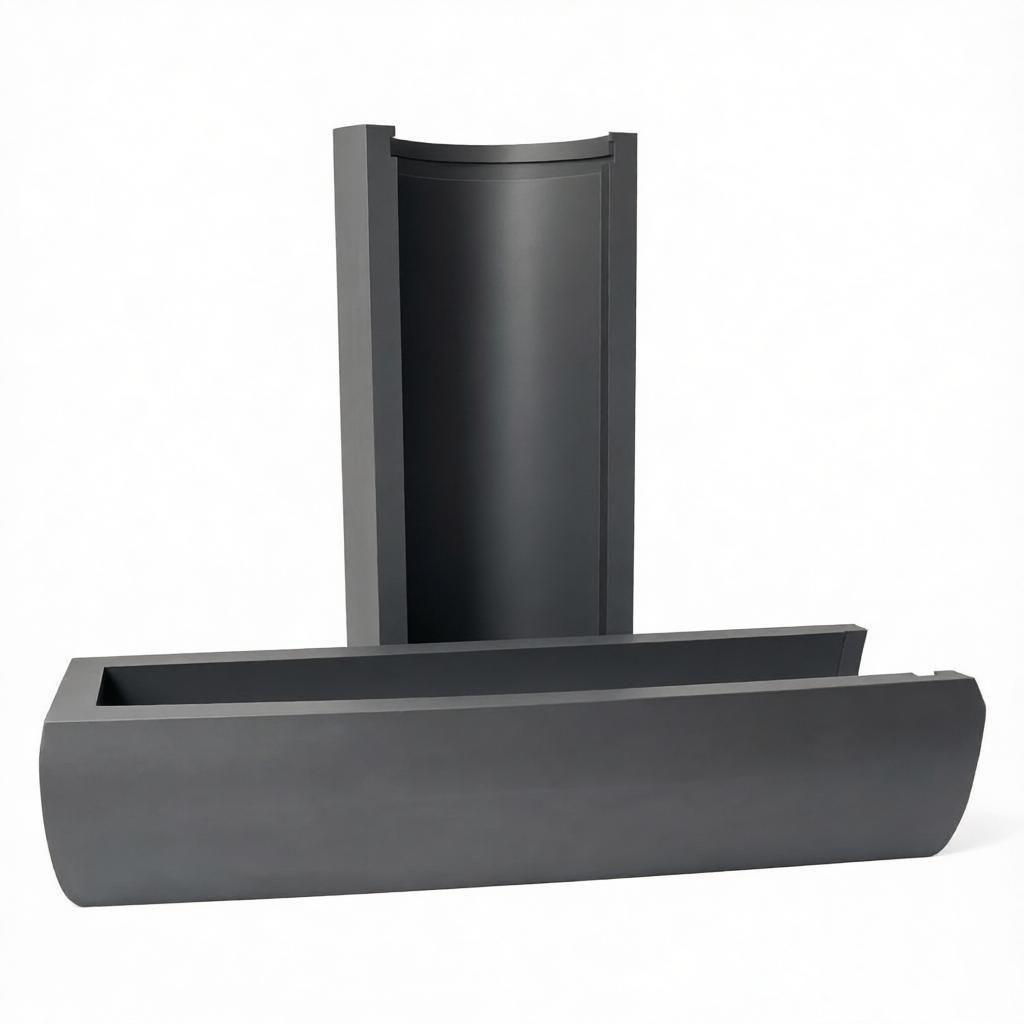

Large CNC Machined Graphite Boat

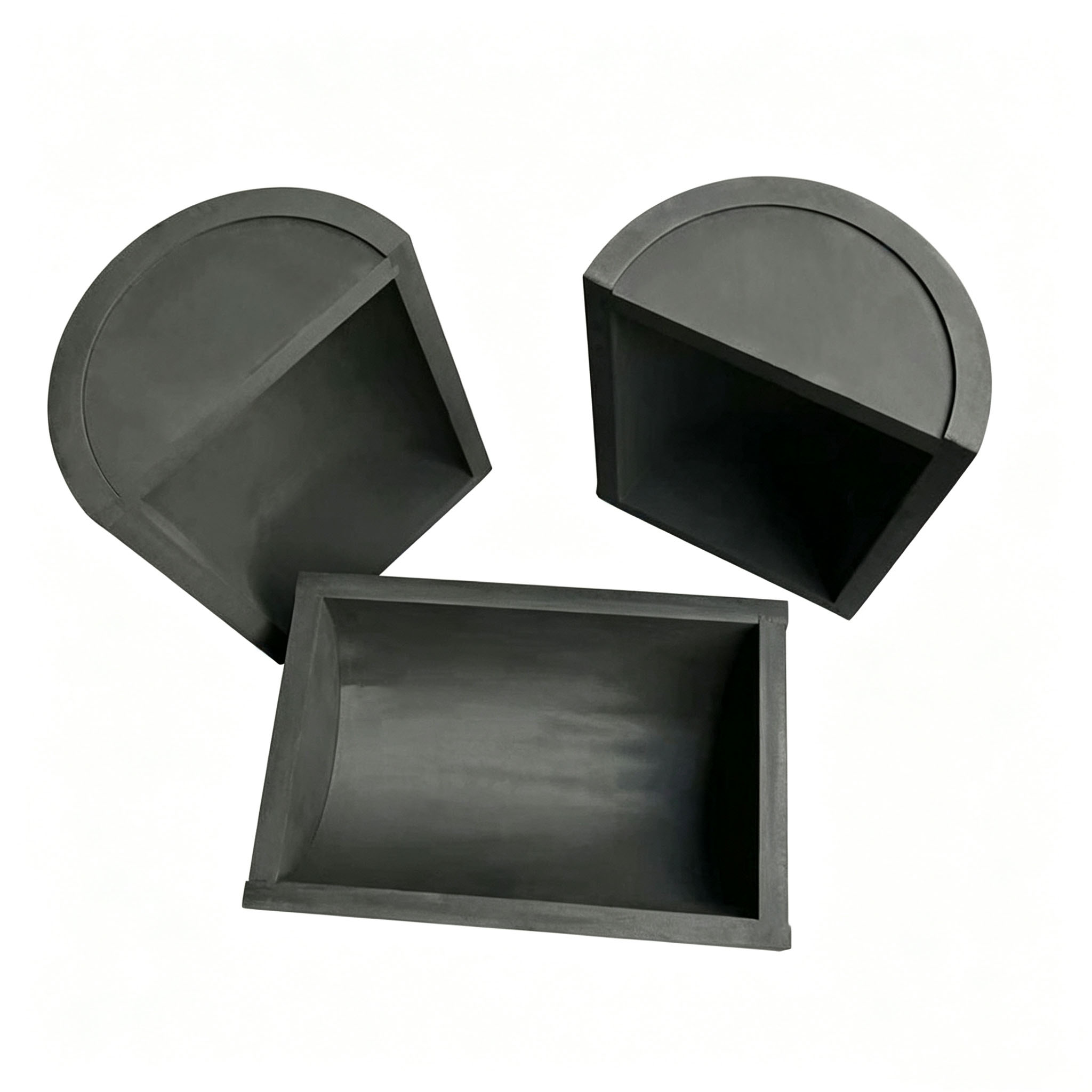

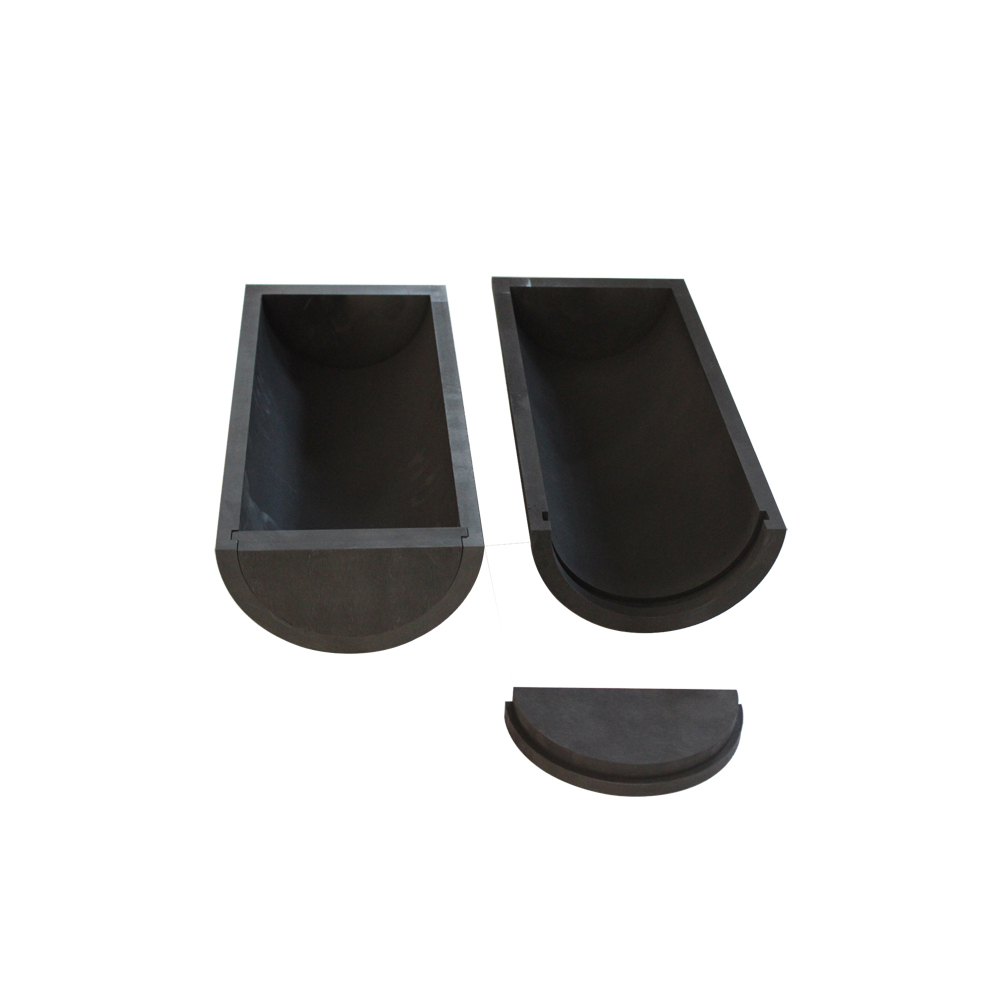

Detachable High Purity Graphite Boat

The Art of Craftsmanship: How Do We Build High-Quality Round Boats?

Standard graphite boats are prone to deformation or fracture at high temperatures, whereas our round boats are made from high-purity isotropic (isostatic) graphite. This material features extremely fine particles and a highly uniform texture. During the machining process, we use high-precision CNC machines to precision-mill graphite blocks into a semi-cylindrical shape. Both the inner wall and the curved surface undergo mirror-finish polishing to eliminate burrs and stress concentrations, ensuring that the boat maintains its perfect geometric dimensions even during high-temperature thermal cycling.

▍Product Features

• Material: Isostatic-pressed, fine-grained, high-purity graphite

• Structure: U-shaped semicircular boat body + removable semicircular end cap

• Properties: High-temperature resistance, chemical corrosion resistance, thermal shock resistance, wear resistance, and excellent thermal conductivity

• Manufacturing Process: Precision CNC machining; smooth, burr-free interior cavity to minimize material adhesion

• Optional Treatments: Interior cavity polishing, anti-oxidation coating impregnation

• Process Compatibility: For use in high-temperature furnaces under vacuum or inert protective atmospheres

Graphite Boat & Graphite Material Set

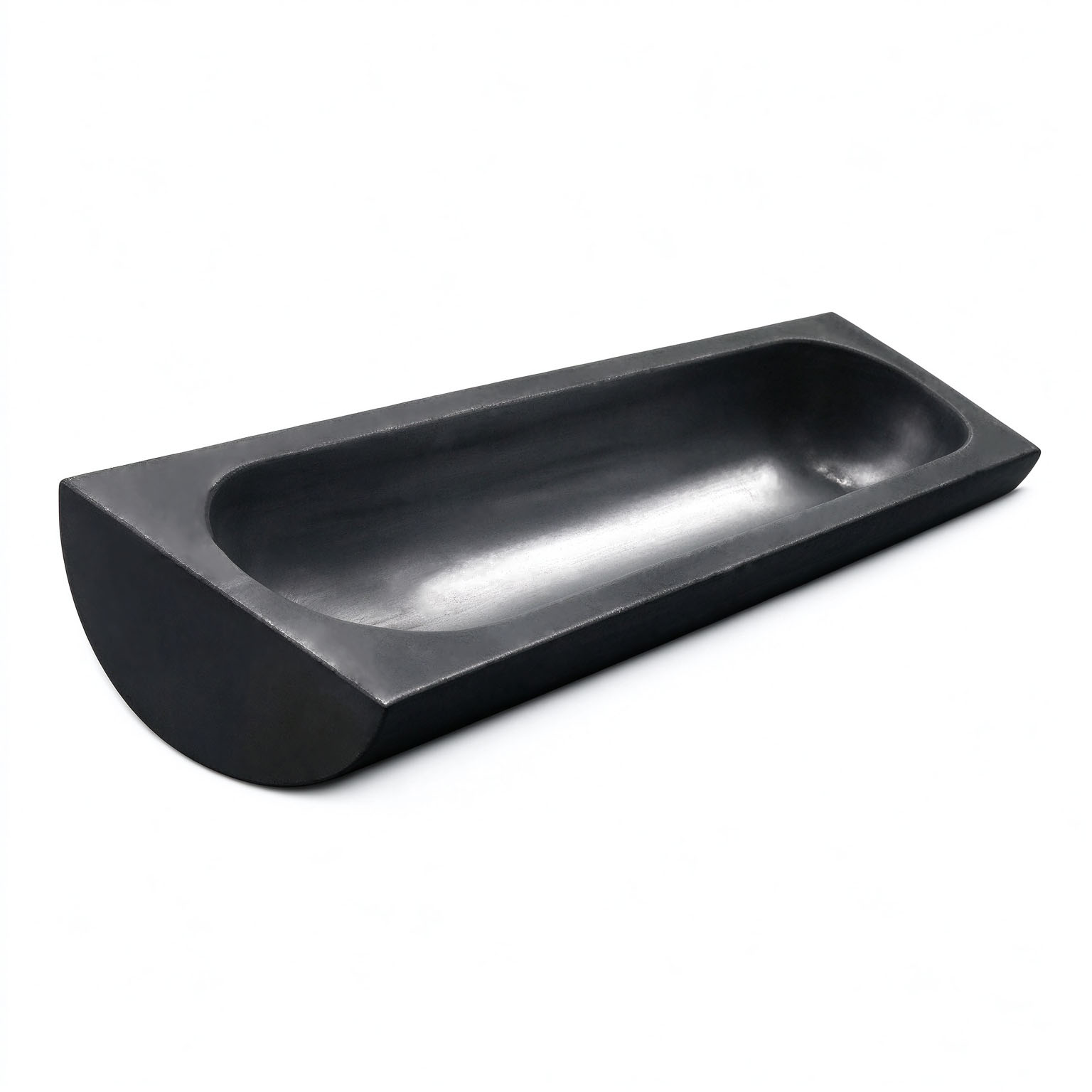

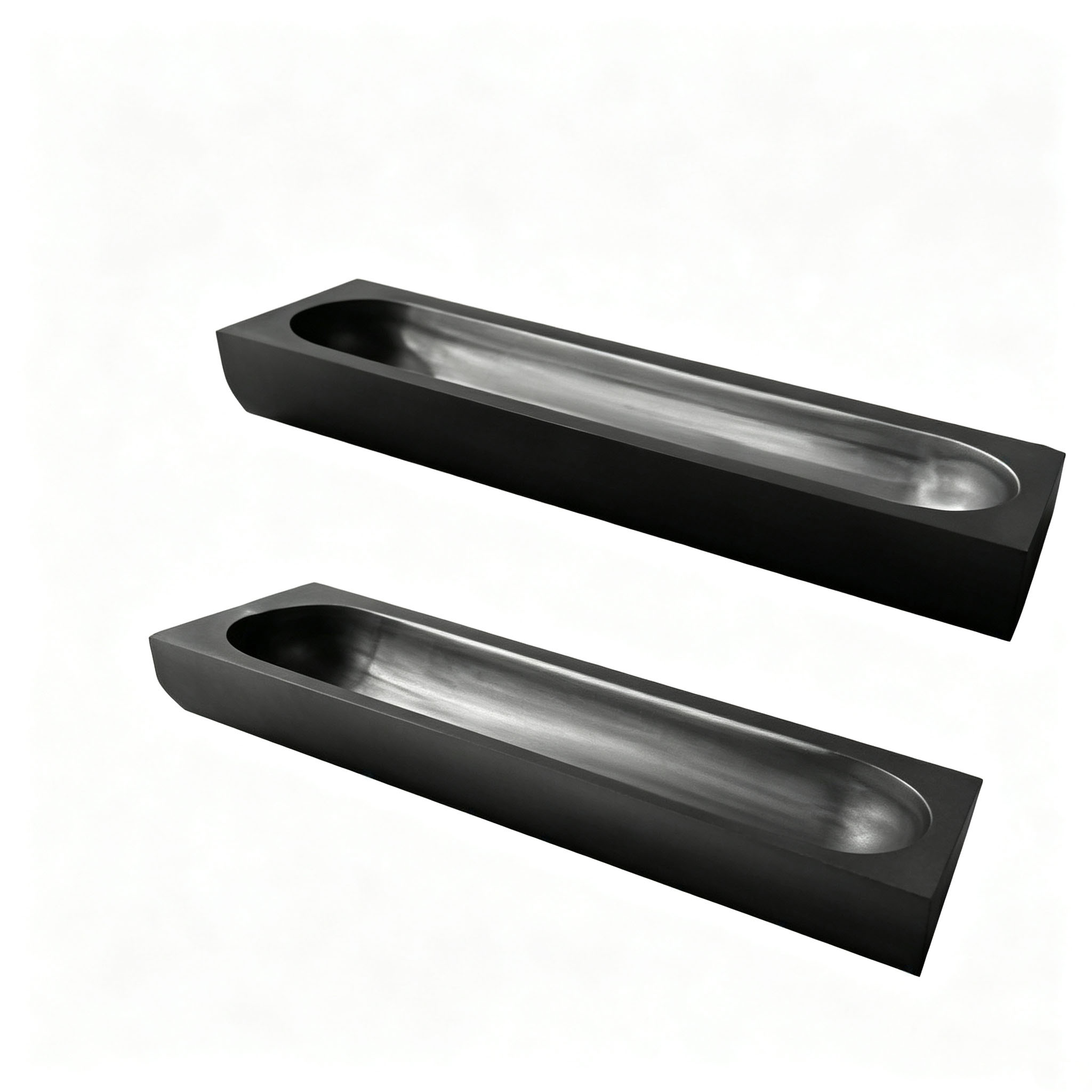

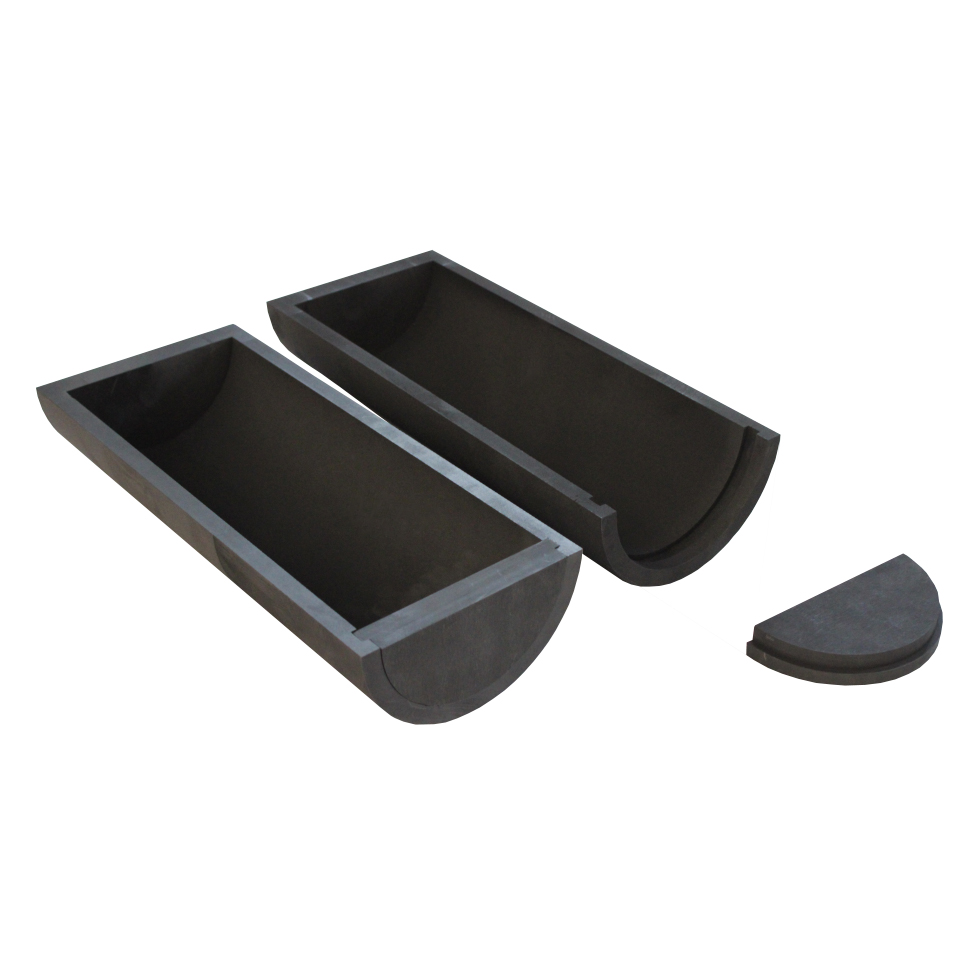

Long Semicircular

Sintering Graphite Boat

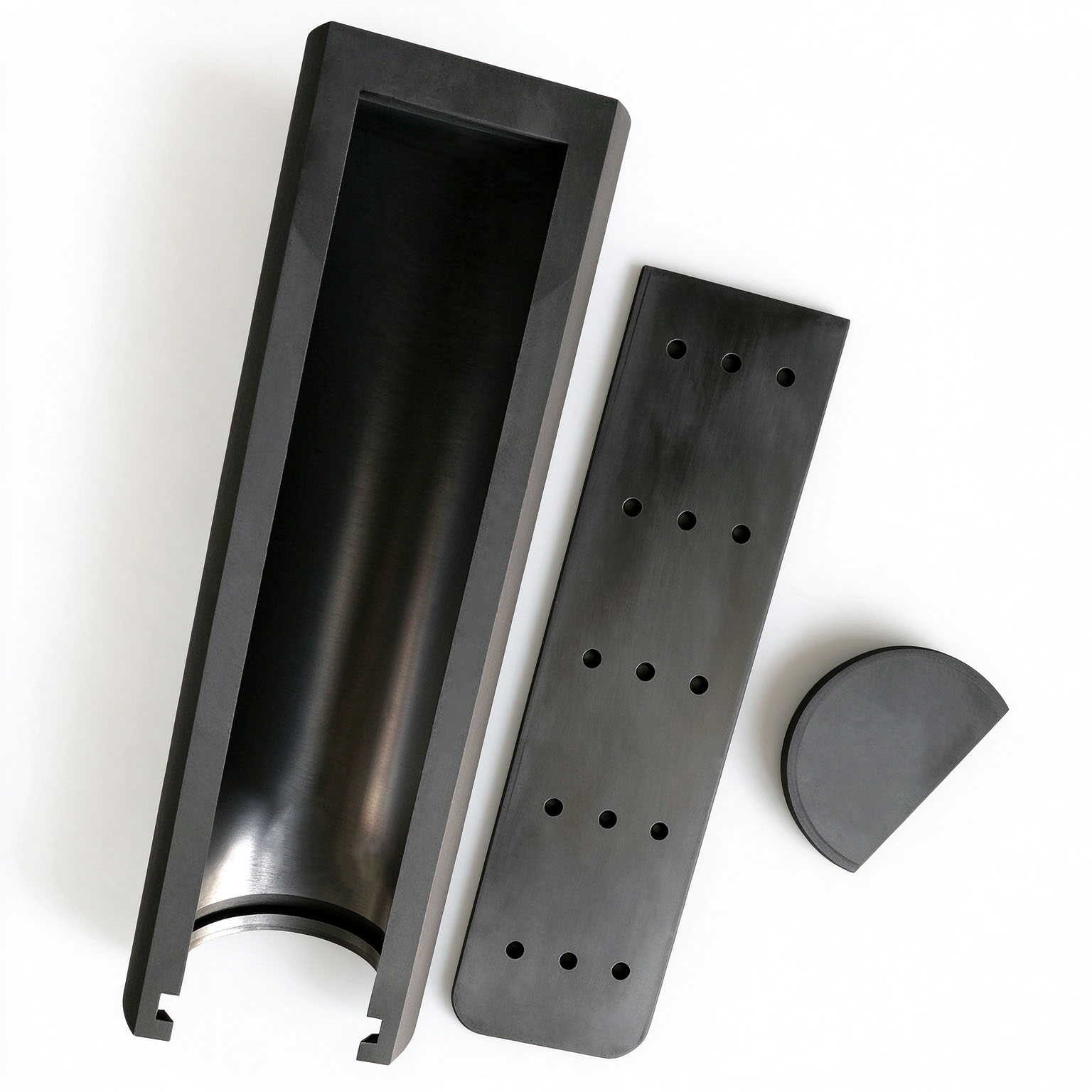

Graphite Boat with Locating Hole

▍Product Advantages

1. Uniform heat distribution in the curved chamber: The U-shaped semicircular interior allows heat to reflect uniformly along the curved walls, reducing localized hot spots within the boat. This ensures more consistent powder sintering and improves the yield of finished products, making it the preferred material boat for tube furnaces and vacuum sintering furnaces.

2. Detachable End Caps: The semicircular end caps can be removed for convenient loading and unloading of powder, making it easy for customers to clean residual material from the crucible and ensuring compatibility with continuous industrial production.

3. High Purity and Low Impurities: Made from isostatic-pressed fine-grained graphite raw materials with low ash content, it does not release impurities under high-temperature conditions, making it suitable for high-purity processes such as lithium-ion battery manufacturing, semiconductor production, and the smelting of rare and precious metals.

4. Excellent thermal shock resistance: With a low coefficient of thermal expansion, these boats are resistant to cracking during repeated heating and cooling cycles, withstand high-temperature shocks, and endure prolonged high-temperature operation.

5. End-to-End Customization Services: No size restrictions; we can manufacture parts based on furnace chamber drawings or through reverse engineering of samples; surface treatments such as polishing and anti-oxidation impregnation are available.

6. Comprehensive Usage and Maintenance Solutions: We provide standardized operating procedures for drying, storage, and periodic maintenance to reduce material waste and lower customers’ production costs.

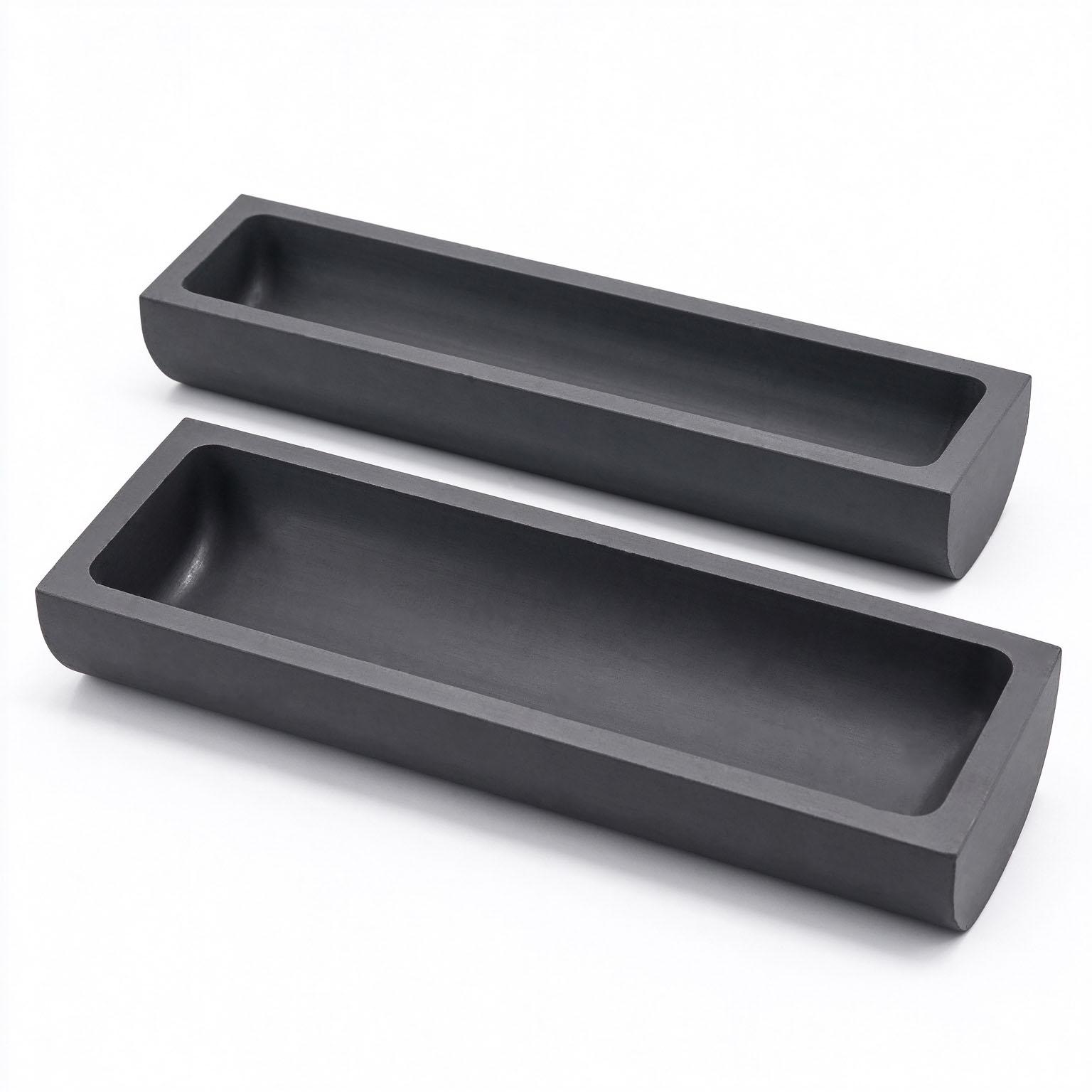

Long High Purity Graphite Boat

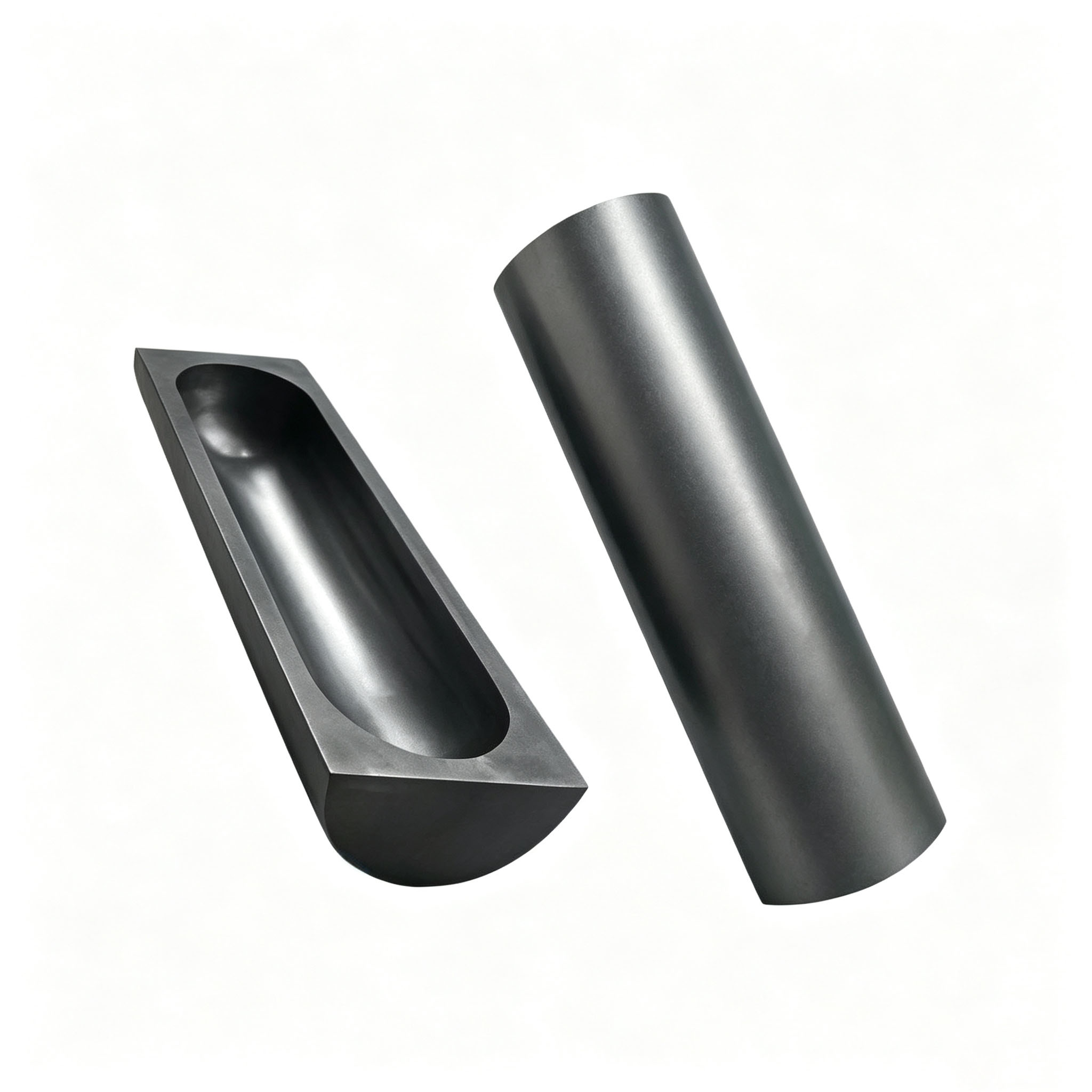

Graphite Boat with Graphite Cylinder

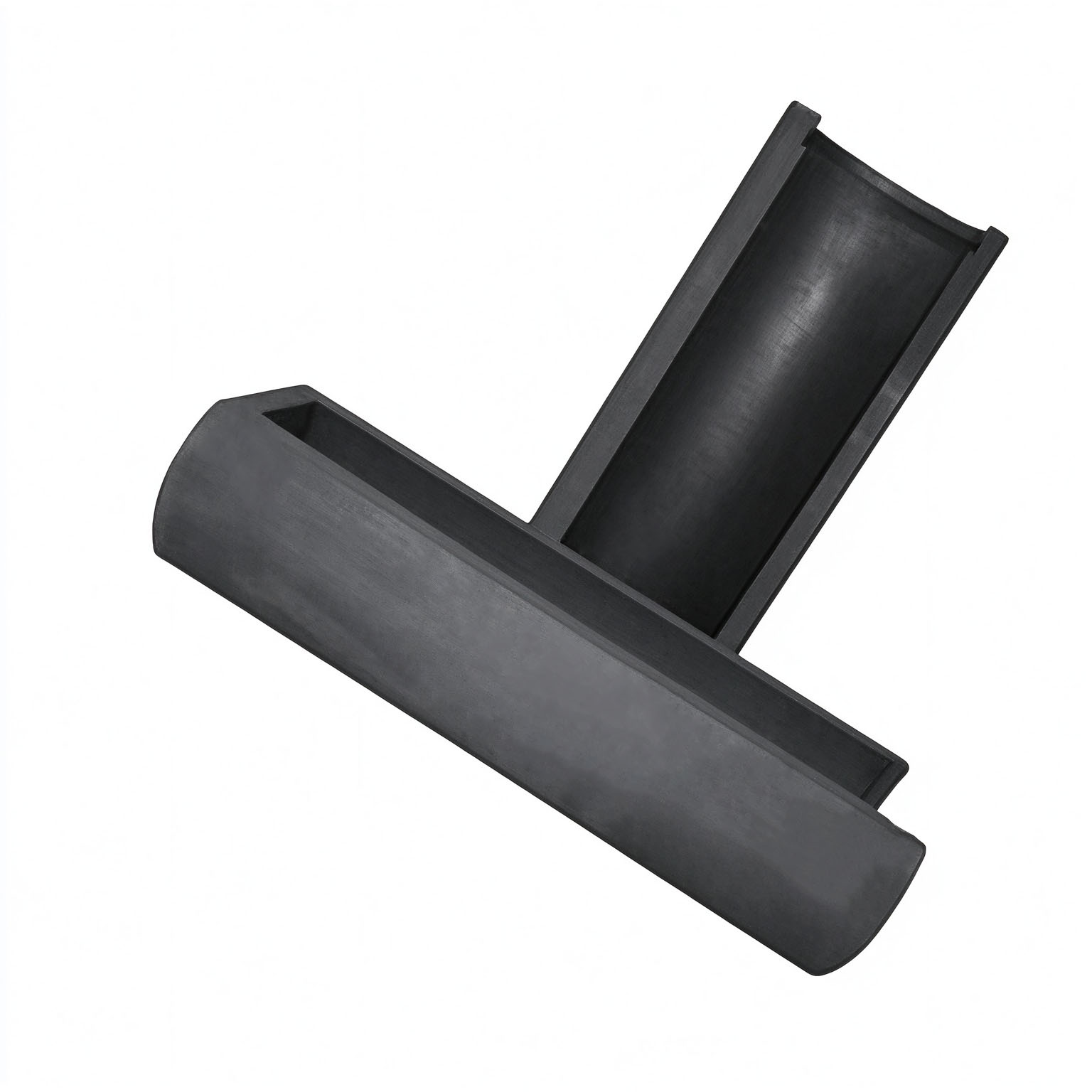

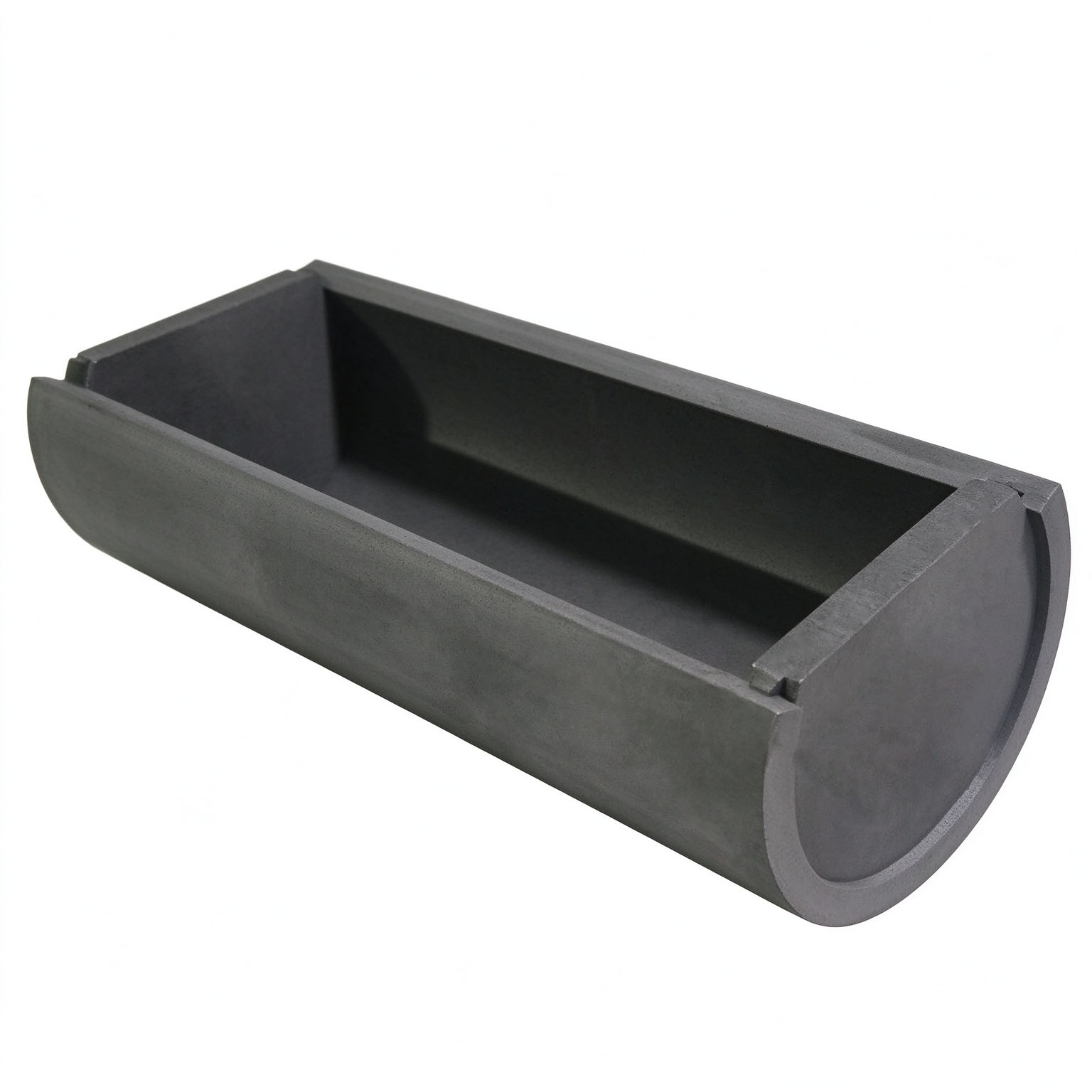

U-shape Industrial Graphite Boat

▍Product Specifications, Customization Services, and Shipping

Product Specifications:

All dimensional parameters are customizable; the following are basic reference specifications

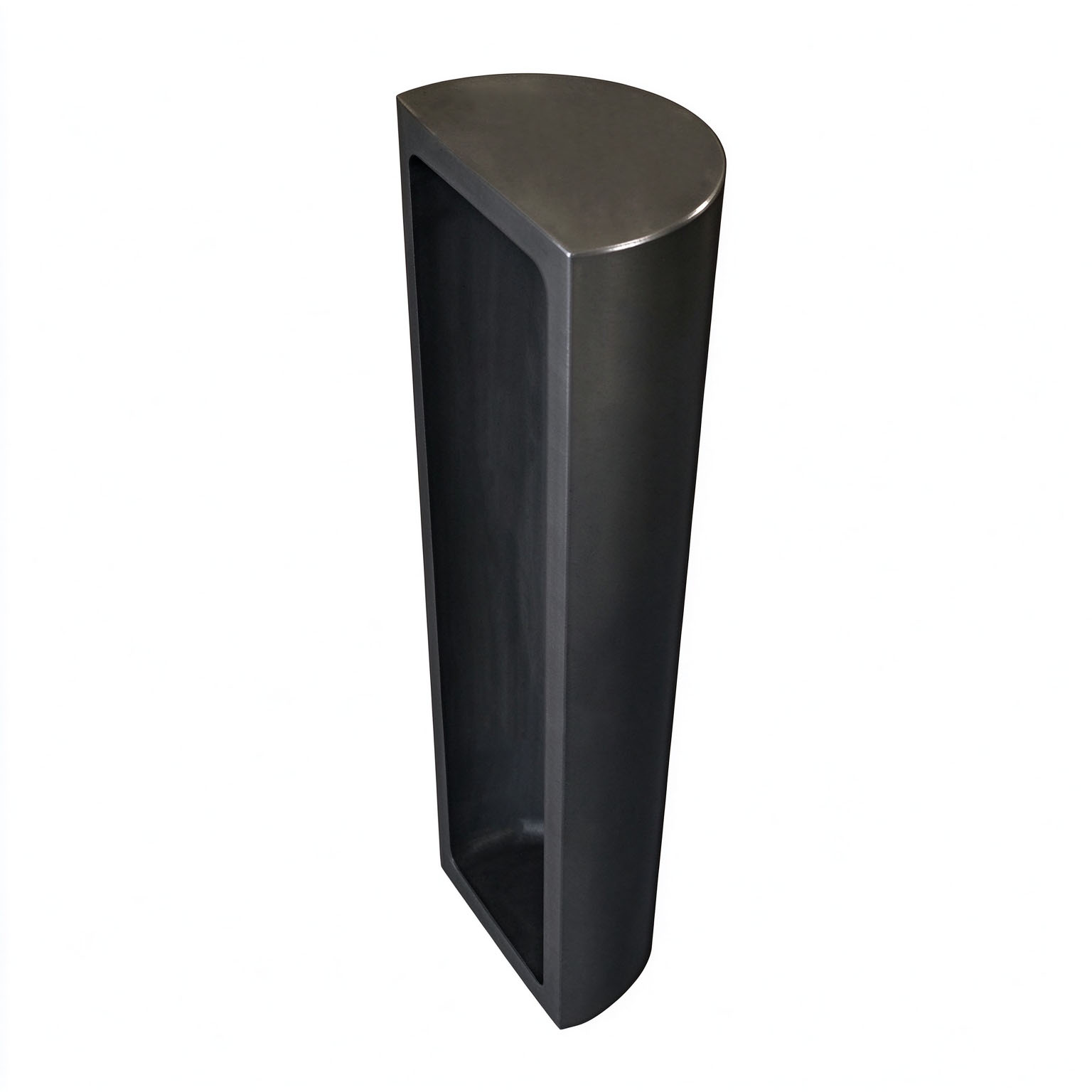

Vertical Semicircular Graphite Boat

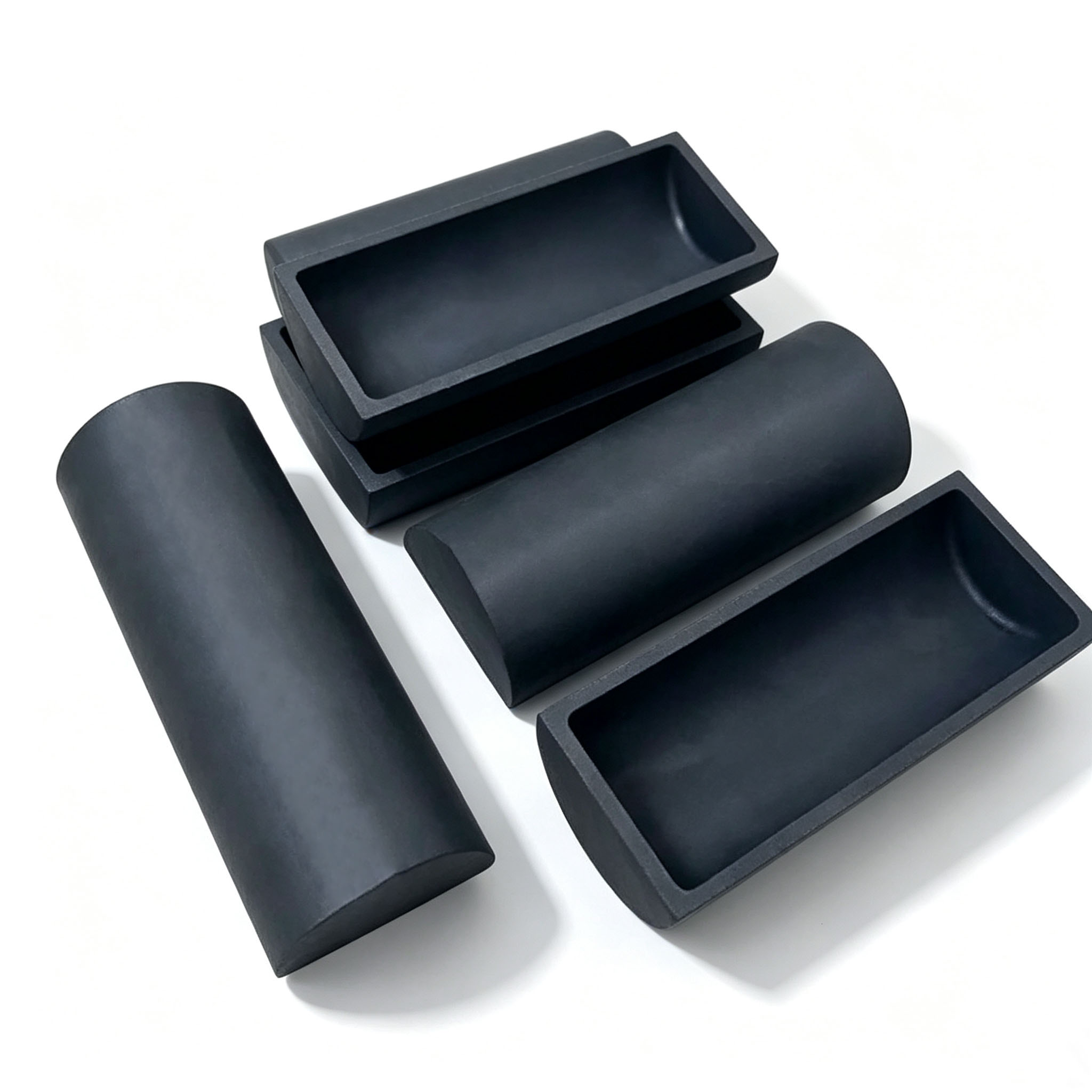

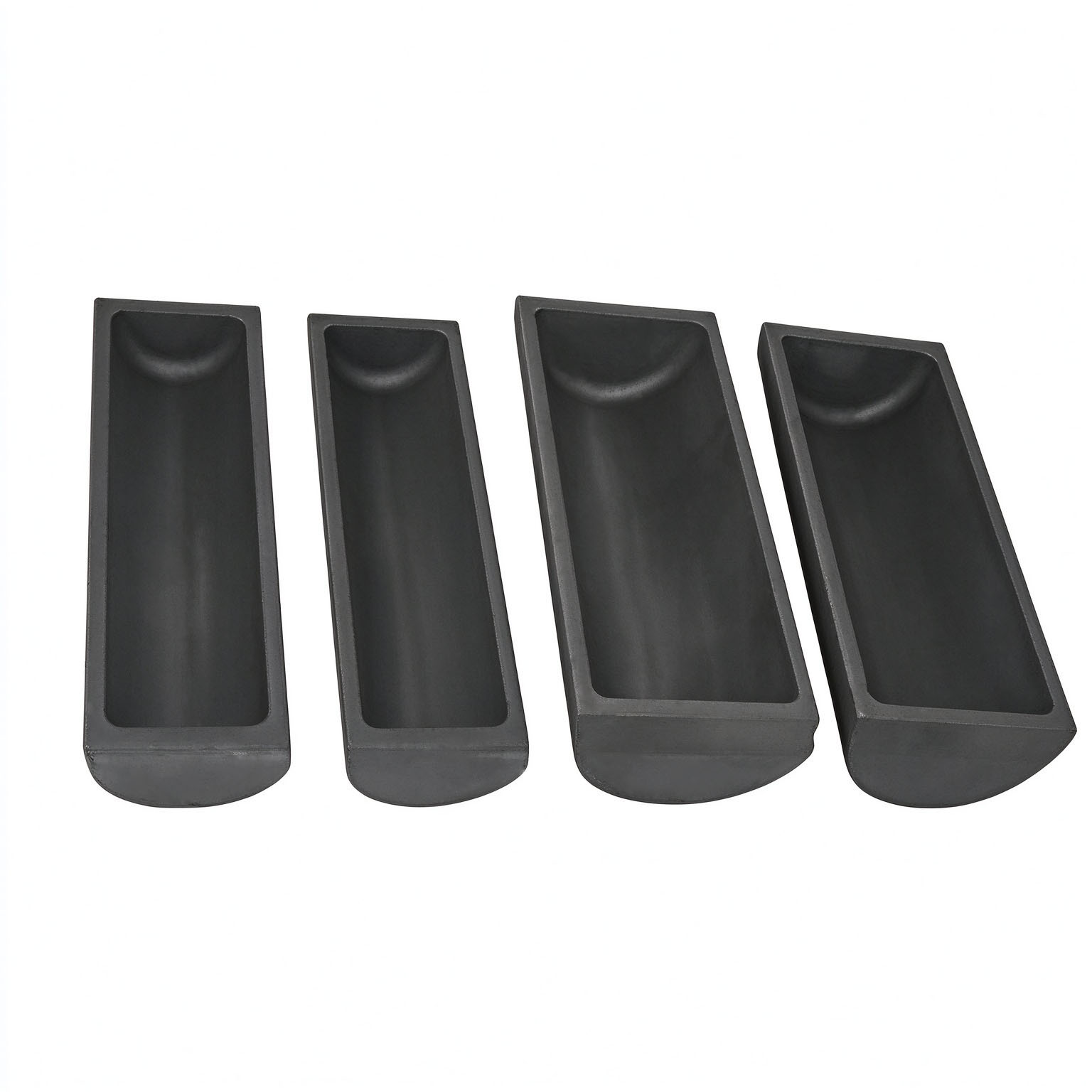

Multi-size Series Graphite Boat

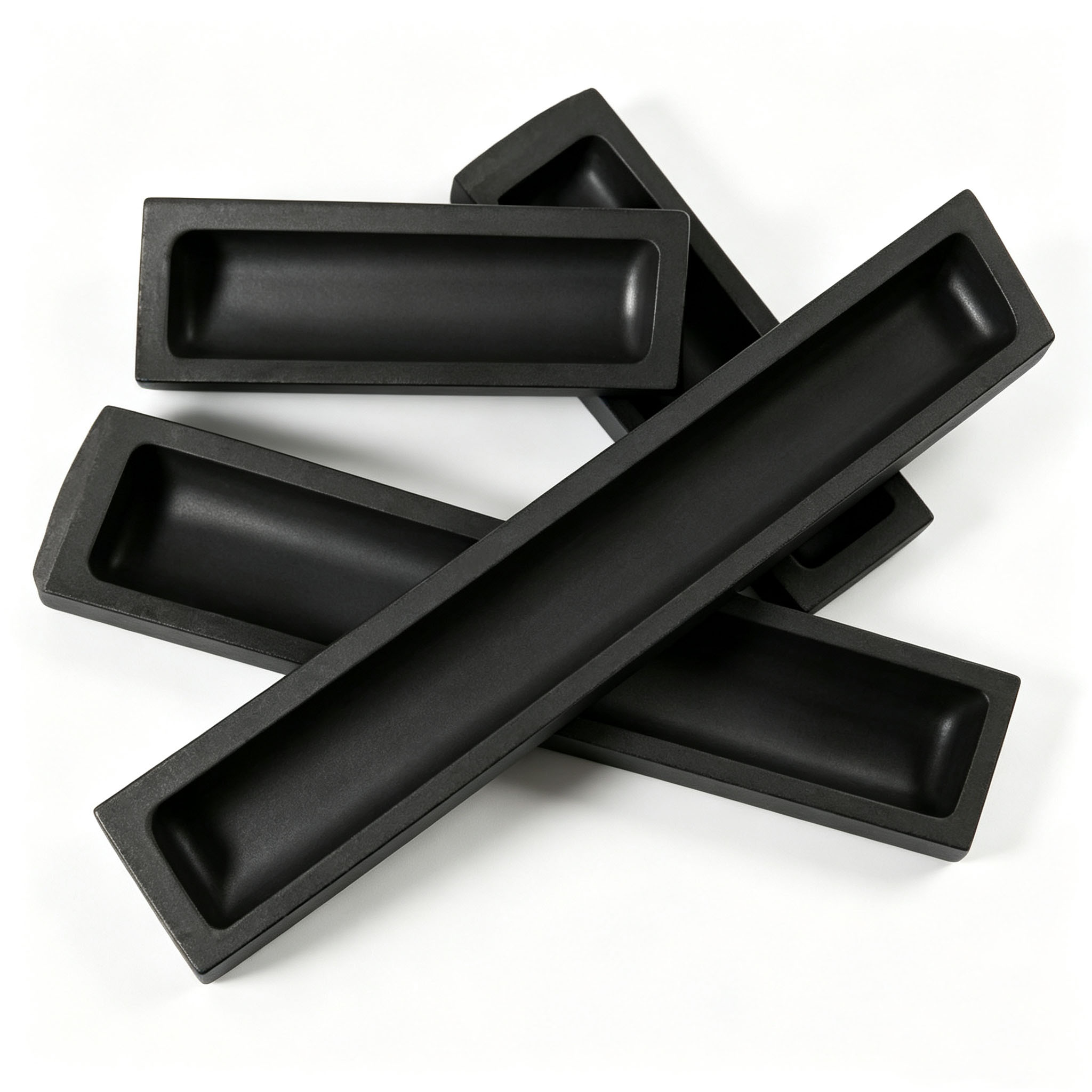

Stacked Industrial Graphite Boat

Customization Services:

We fully understand the differences among various furnace types. We offer “Made to Your Drawing” customization. You can provide drawings, dimensional specifications (outer diameter, length, radius of curvature), and even surface roughness requirements—we can achieve precision machining for all of them. In addition, we can machine components such as porous base plates and end caps to complement the round boats.

Shipping and Packaging:

Given the precision and fragility of graphite products, we use thickened bubble wrap or custom foam to secure them on all sides during packaging. The packages are then enclosed in sturdy wooden crates and labeled with “Fragile” and “Keep Dry” to ensure the products arrive intact at our global customers’ locations after long-distance transport.

▍Product Applications and Benefits

Lithium Battery Sintering

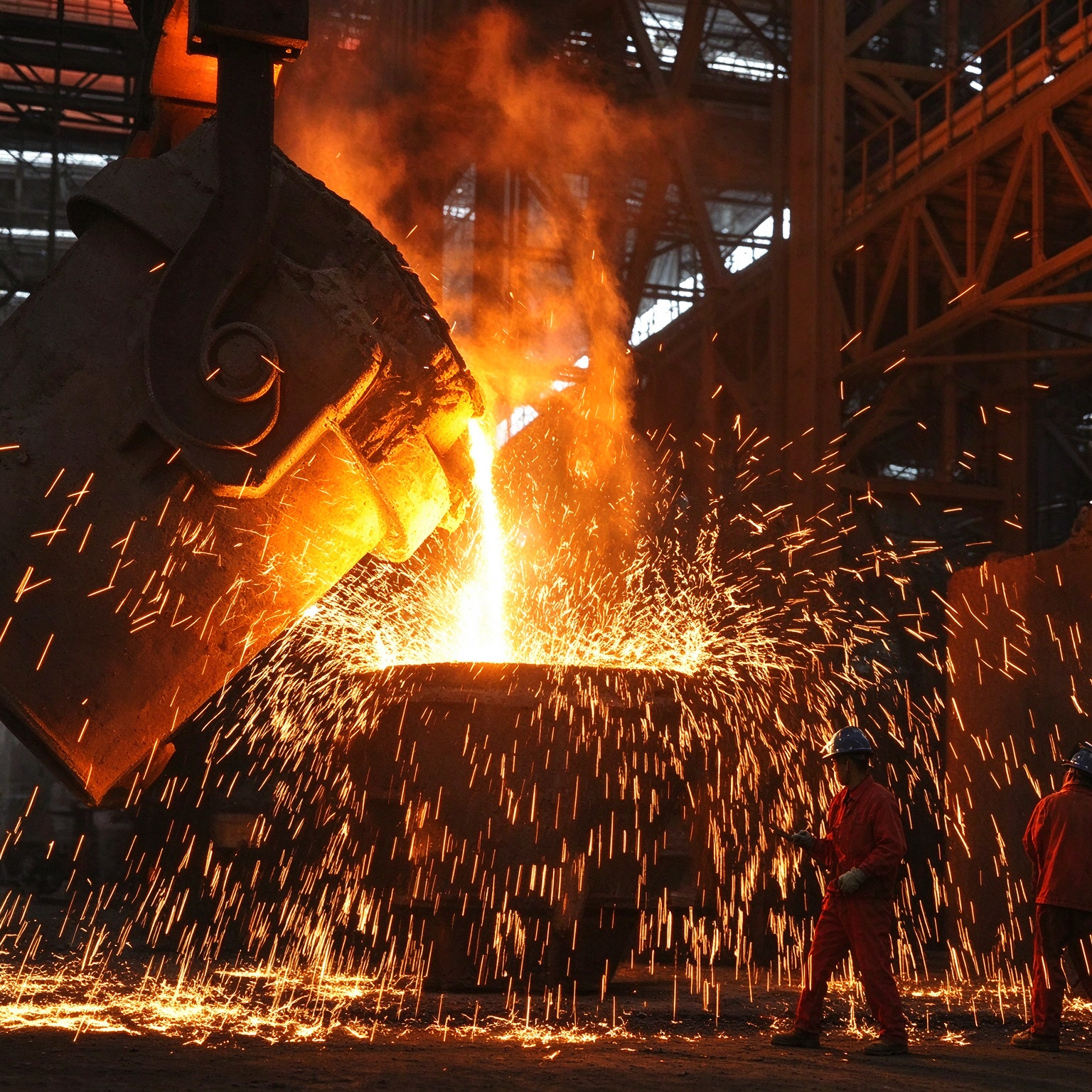

Metallurgy Melting

Semiconductor Sintering

High Temperature Vacuum Heat Treatment

• Lithium-ion Battery Industry: Sintering of Anode and Cathode Materials

  Advantages: Low impurity content prevents contamination of powder; the arched chamber ensures uniform heating, guaranteeing consistent sintering quality across batches; compatible with roller hearth furnaces and vacuum sintering furnaces.

• Rare Metals / Metallurgy Industry: Smelting and Calcination of Tantalum, Niobium, Rare Earth Elements, and Precious Metals

  Advantages: High chemical stability at high temperatures; does not react with molten metals; resistant to corrosion by molten metal.

• Semiconductors and Advanced Powder Materials Heat Treatment:

  Advantages: High-purity material with extremely low ash content, preventing trace impurities from contaminating electronic powder materials.

• Heat Treatment Industry: Vacuum Quenching, Brazing, and Ion Nitriding Processes

  Advantages: Compatible with various vacuum furnace types; structurally stable; provides stable and reliable support for solid workpieces.

▍Use and Maintenance

Drying Recommendations

1. Use an oven equipped with a timer and a recirculating exhaust system to promptly remove moisture.

2. After cleaning, first use an air shower or blow-dry the parts; ensure there are no water droplets or streaks before placing them in the oven.

3. Recommended oven temperature: 100–120 °C. Maintain this temperature for 10–12 hours; the drying cycle can be adjusted to align with production rhythms.

Maintenance Guidelines

1. Store in a dry, clean environment to prevent moisture absorption or secondary contamination.

2. Avoid impacts during handling and use; replace any damaged, cracked, or loose components immediately.

3. Replace process checkpoints regularly based on frequency of use.

4. Implement a numbered management system; ensure regular cleaning, drying, and inspection, with a designated person in charge.

5. It is recommended that replacement parts be sourced from the original supplier to ensure fitting precision.

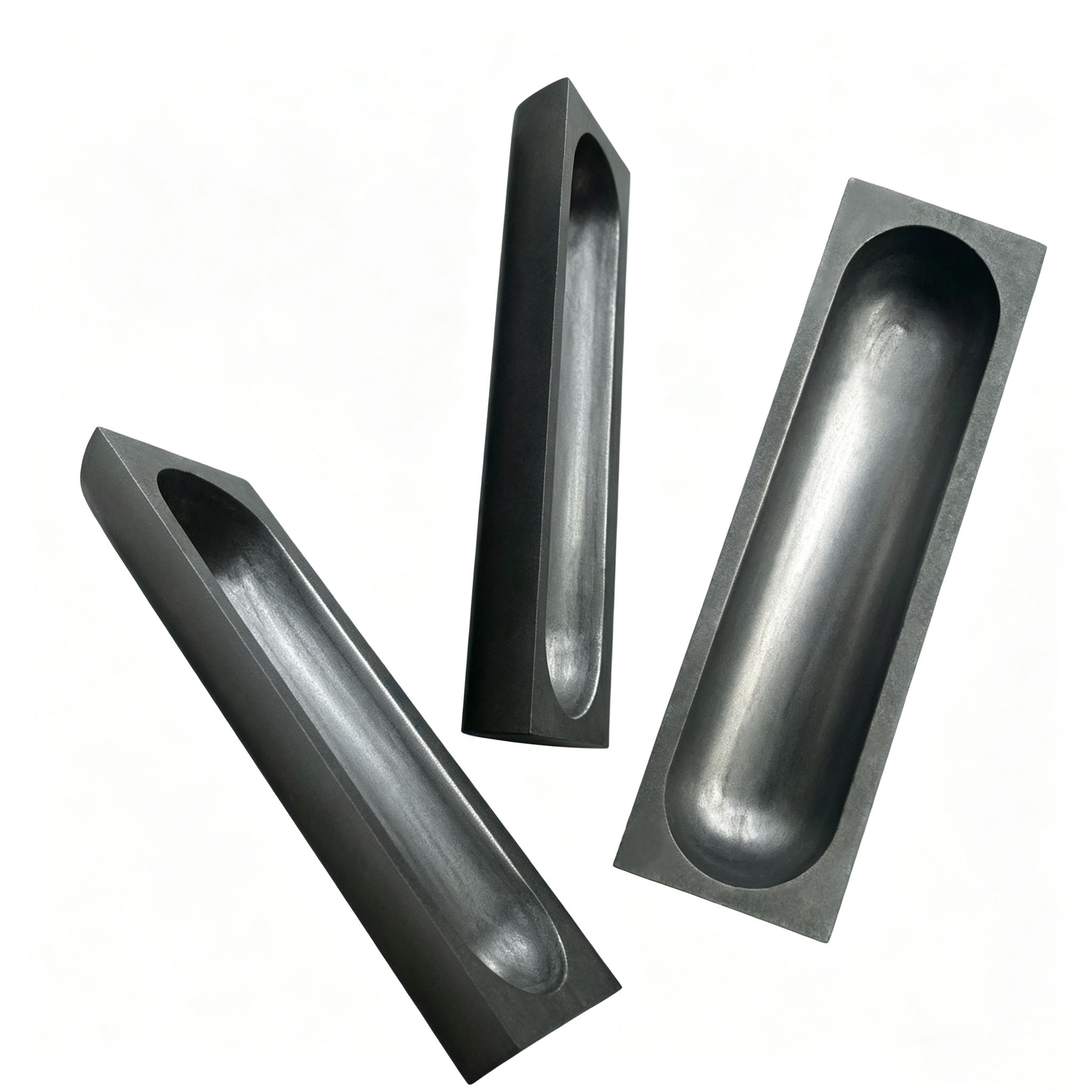

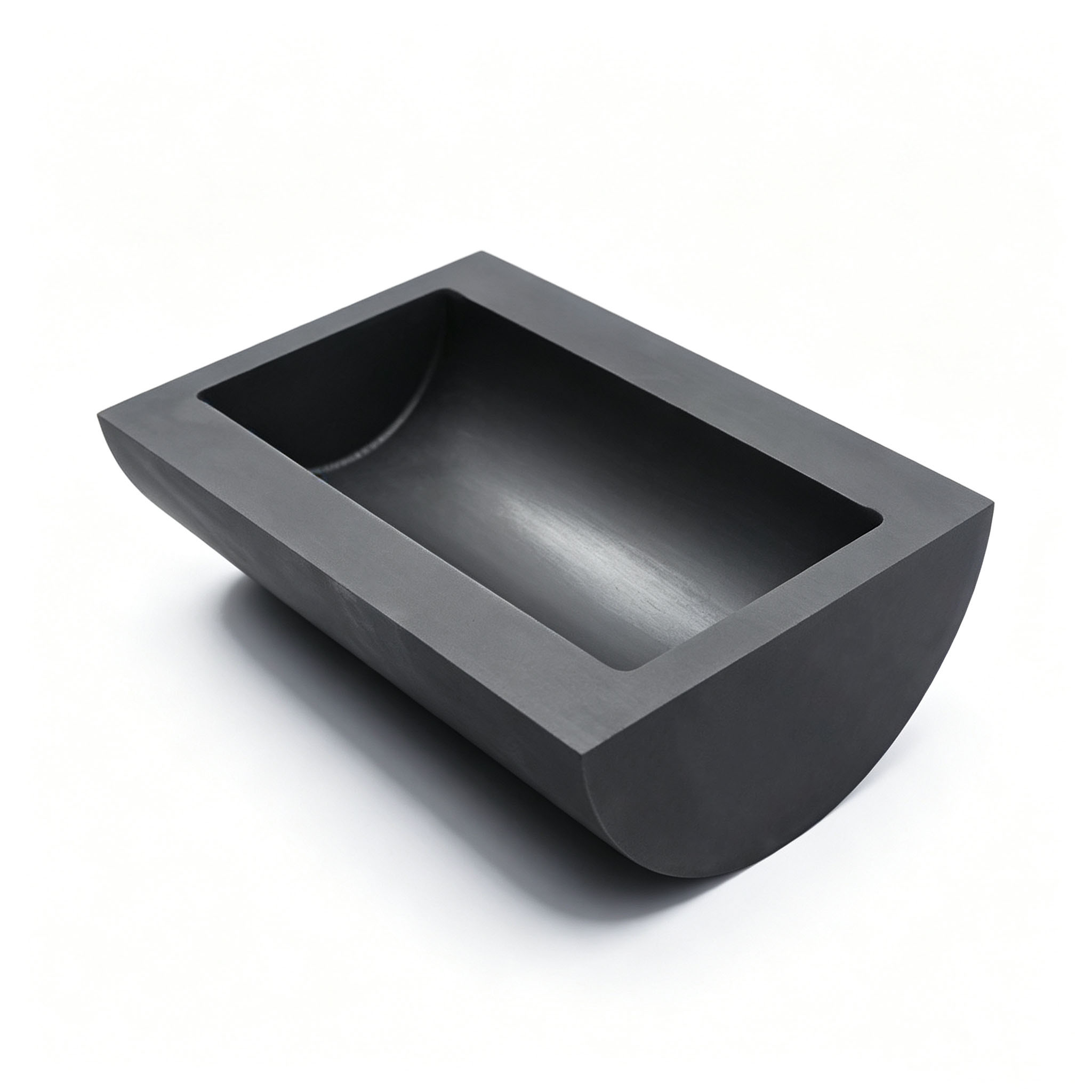

Polished Long Graphite Boat

Large Cavity Precision Graphite Boat

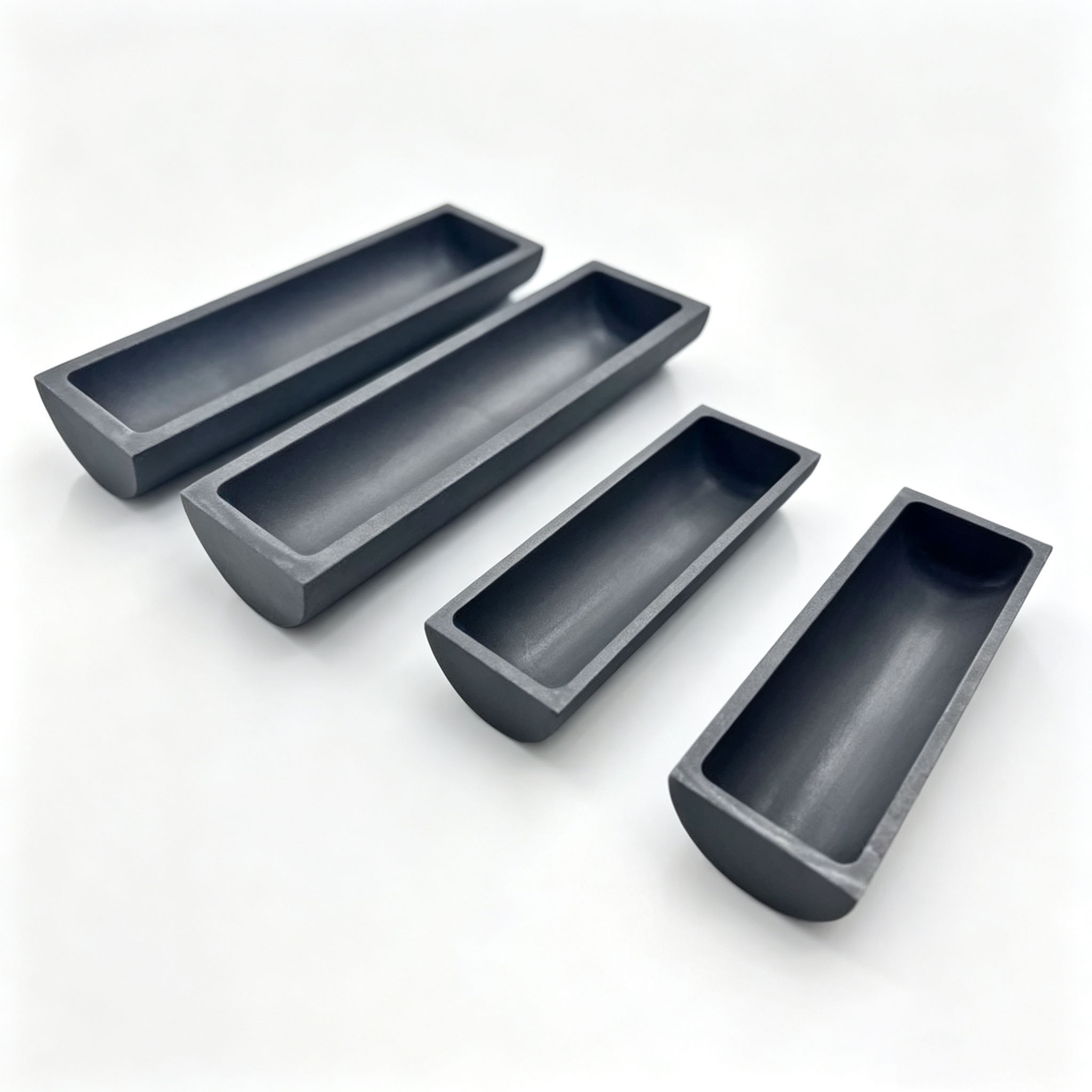

Small Semicircular Graphite Boat

▍FAQ

• Q1: What is the difference between a round graphite boat and a standard square graphite boat?

  A1: The round graphite boat features a U-shaped, semicircular inner cavity. Heat is reflected along the curved surface, resulting in a more uniform temperature distribution inside the boat, making it suitable for sintering powdered materials. The square graphite boat is better suited for the heat treatment of lumpy solid workpieces. The round graphite boat is equipped with removable semicircular end caps, which make loading, unloading, and cleaning of powdered materials more convenient.

• Q2: Can round graphite boats be customized to fit the dimensions of our existing furnace chamber?

  A2: They can be fully customized. You can provide the internal dimensions of the furnace chamber, required chamber volume, 2D drawings, or a physical sample. Our engineering team will review the drawings, confirm the manufacturing plan, and provide you with manufacturing drawings for approval before arranging production.

• Q3: Can graphite round boats be used at high temperatures in an air environment?

  A3: Under inert protective atmospheres such as vacuum or argon, they can withstand temperatures up to 2,800°C. Without an anti-oxidation coating, the recommended operating temperature in an air environment should not exceed 600°C; for use in medium-temperature air environments, an anti-oxidation impregnation coating is available.

• Q4: Do graphite boats require regular maintenance? What are the key maintenance points?

  A4: Graphite boats are high-temperature consumables and require regular maintenance. Key tasks include: storing them in a dry environment, periodic cleaning and drying, visual inspections for cracks, and regular replacement of ceramic components and process-critical parts. Managing them through a numbered inventory system handled by a designated person can effectively extend their service life.

• Q5: Can you provide samples for testing?

  A5: We can provide small samples for on-site process validation testing in the customer’s furnace.

• Q6: Are graphite boats prone to breaking during shipping?

  A6: We use shock-absorbing packaging consisting of foam padding and a solid wood export crate, with each graphite boat individually isolated and protected. We conduct dimensional and visual inspections before shipment to minimize the risk of damage during transit. In the event of shipping damage, we will handle the matter in accordance with our agreement.

• Q7: What should I do if I discover that a graphite boat is damaged or has loose latches?

  A7: Please stop using them immediately and replace them! Graphite boats and their components are made of brittle materials. A damaged boat not only contaminates your valuable materials but may also cause a furnace jam at high temperatures. We recommend purchasing original manufacturer replacement parts directly from us to ensure dimensional accuracy and operational safety.
