▍Product Description

What Is a Graphite Support Rod?

A graphite support rod, also known as a graphite support bar, graphite push rod, or graphite column, is a rod-shaped structural component made from high-purity graphite through isostatic pressing and precision machining. It is not merely a “support component”—in modern industrial thermal field systems, graphite support rods perform multiple critical functions, including load-bearing support, thermal field positioning, atmosphere isolation, and precision transmission.

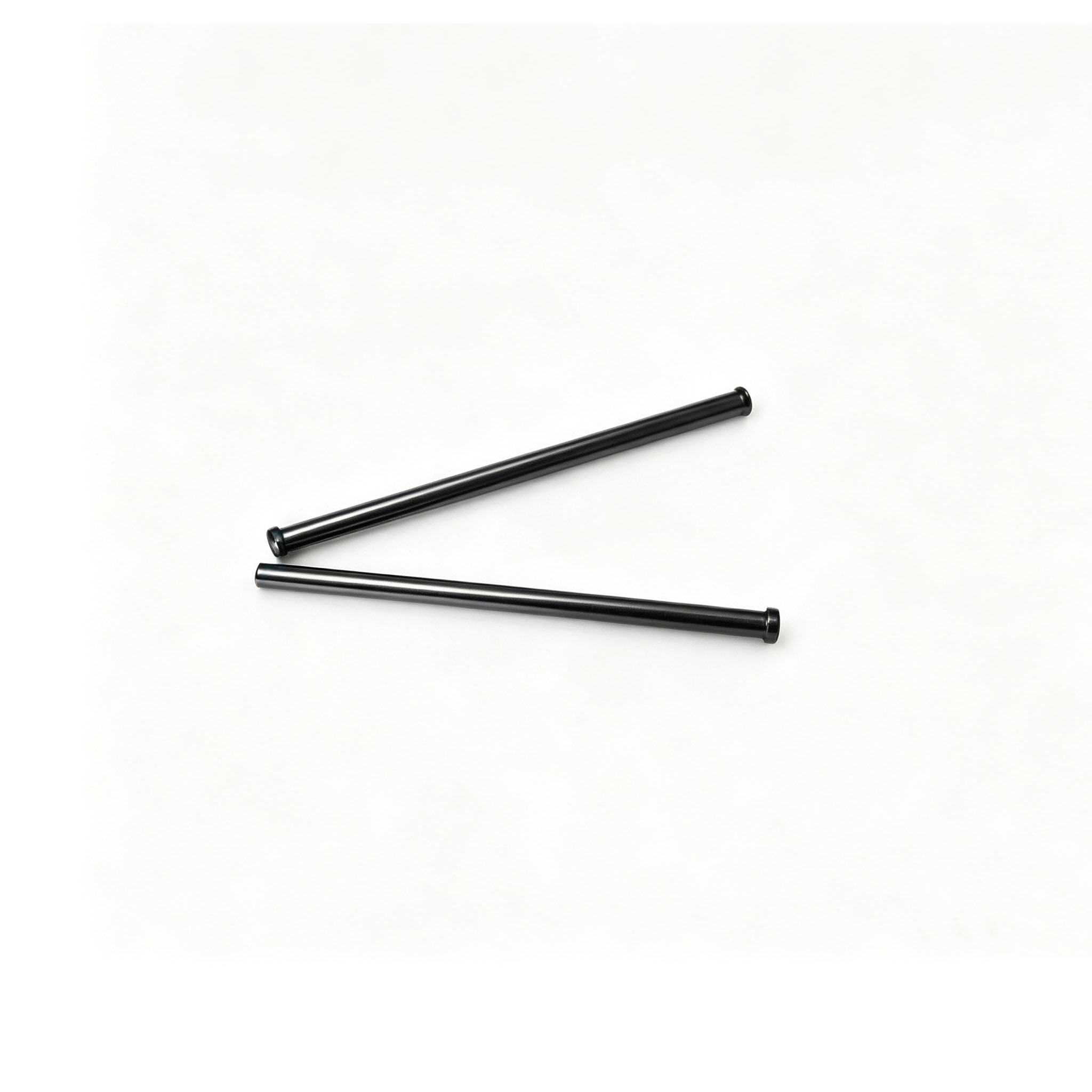

Thin Graphite Support Rod

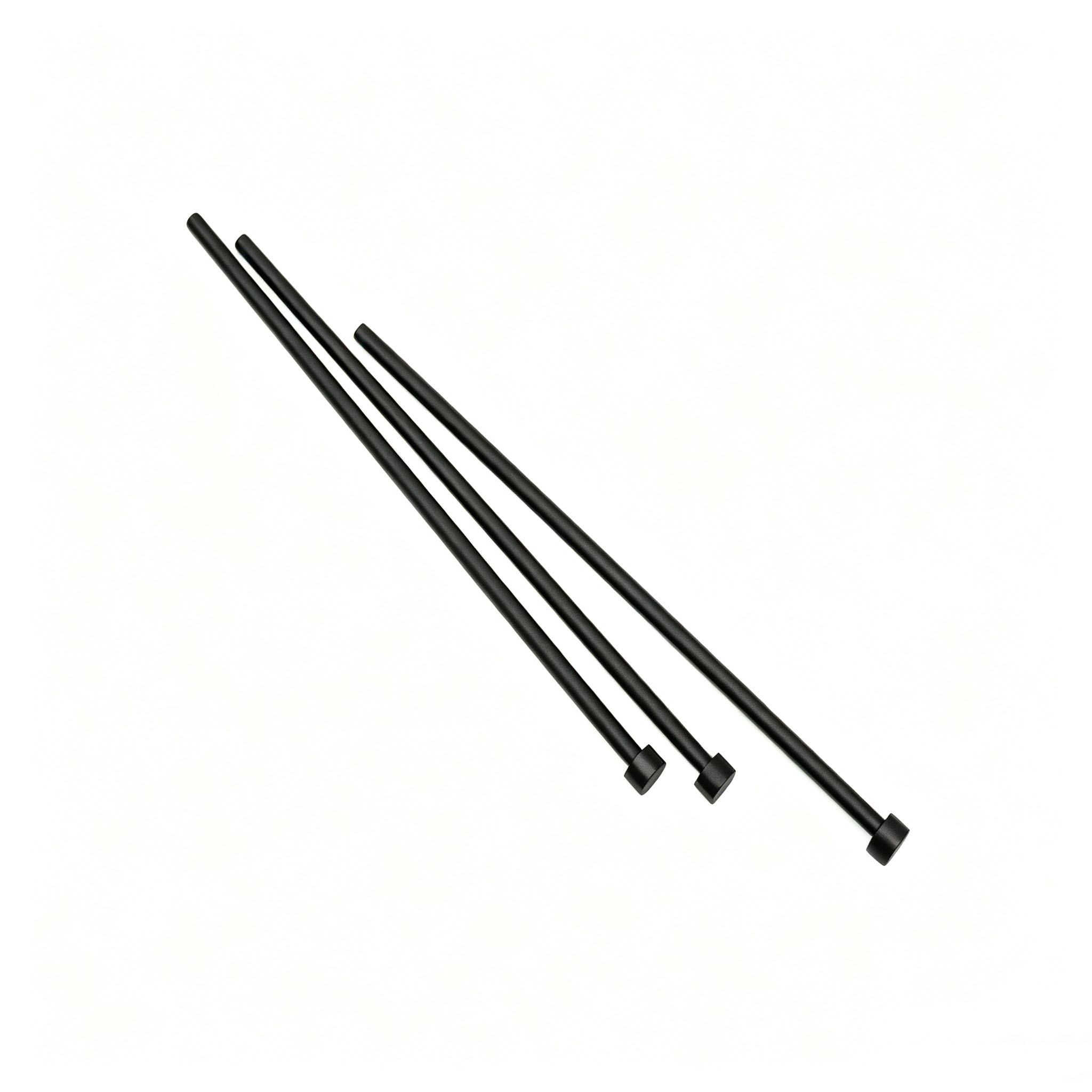

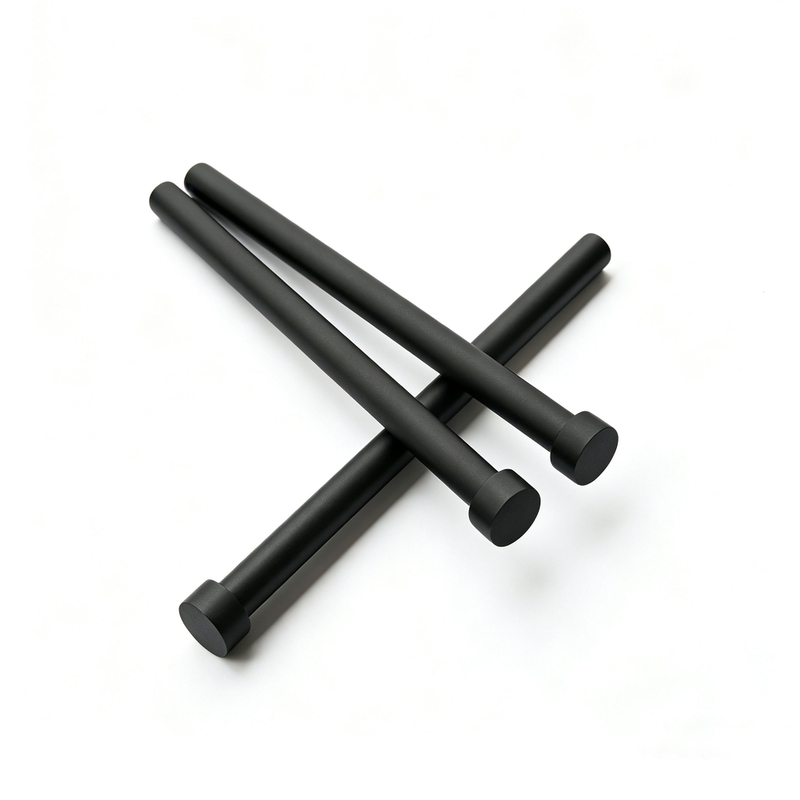

Standard Integrated Head Graphite Rod

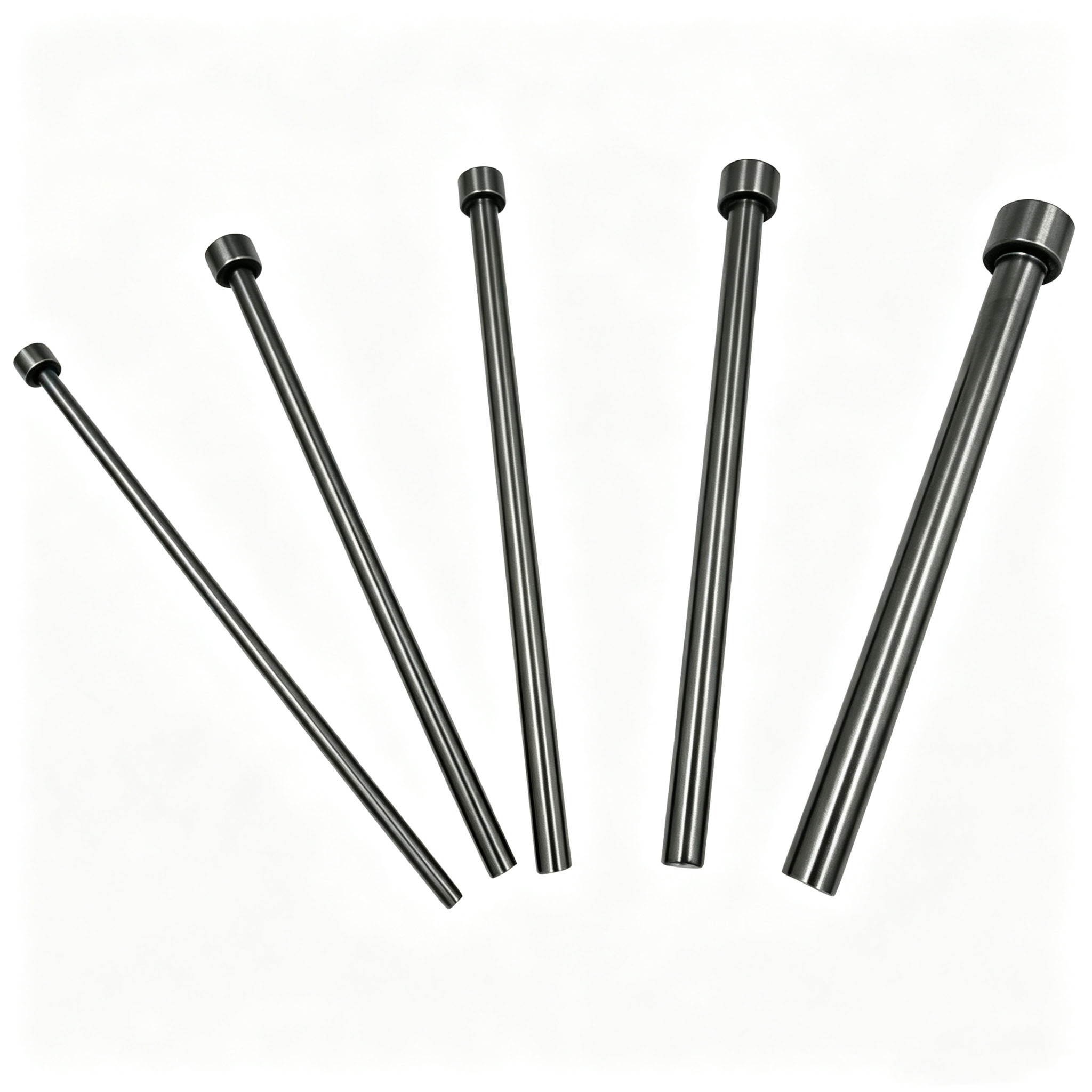

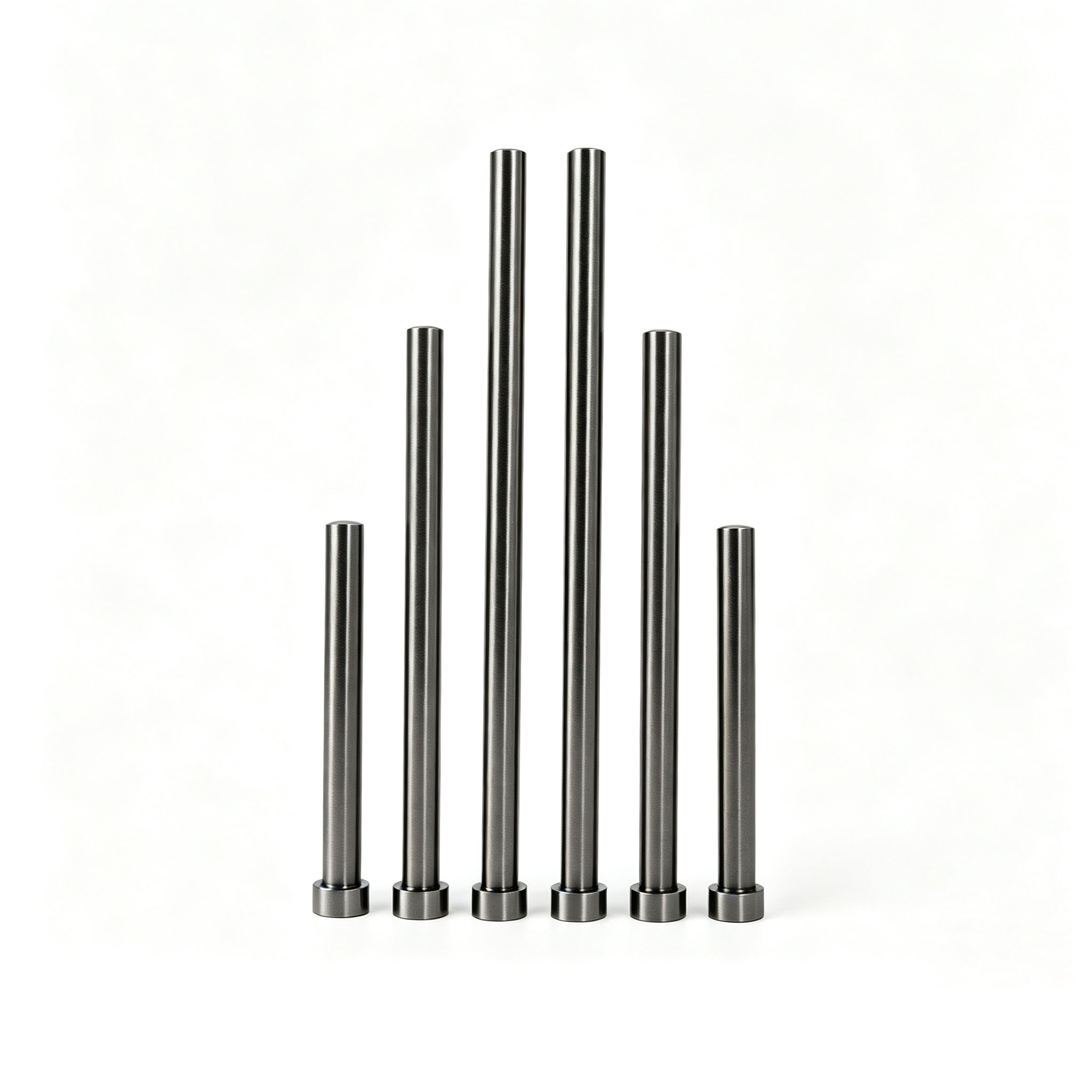

Mixed Size Graphite Carrier Shaft

Compared to metal support components (molybdenum rods, tungsten rods, and heat-resistant alloys), graphite support rods offer extremely significant performance advantages in ultra-high-temperature environments:

Key Insight: During the pulling of monocrystalline silicon for semiconductors, if the support rod contains trace amounts of metal impurities such as iron, nickel, or copper (>10 ppm), these impurities will volatilize at temperatures above 2000°C and deposit in the molten silicon, directly causing crystal dislocations and a decrease in minority carrier lifetime, resulting in the entire batch of silicon material being scrapped. Ningheda’s high-purity graphite support rods undergo high-temperature purification treatment, with ash content controlled to <50 ppm, providing a “zero-contamination” support environment for crystal growth.

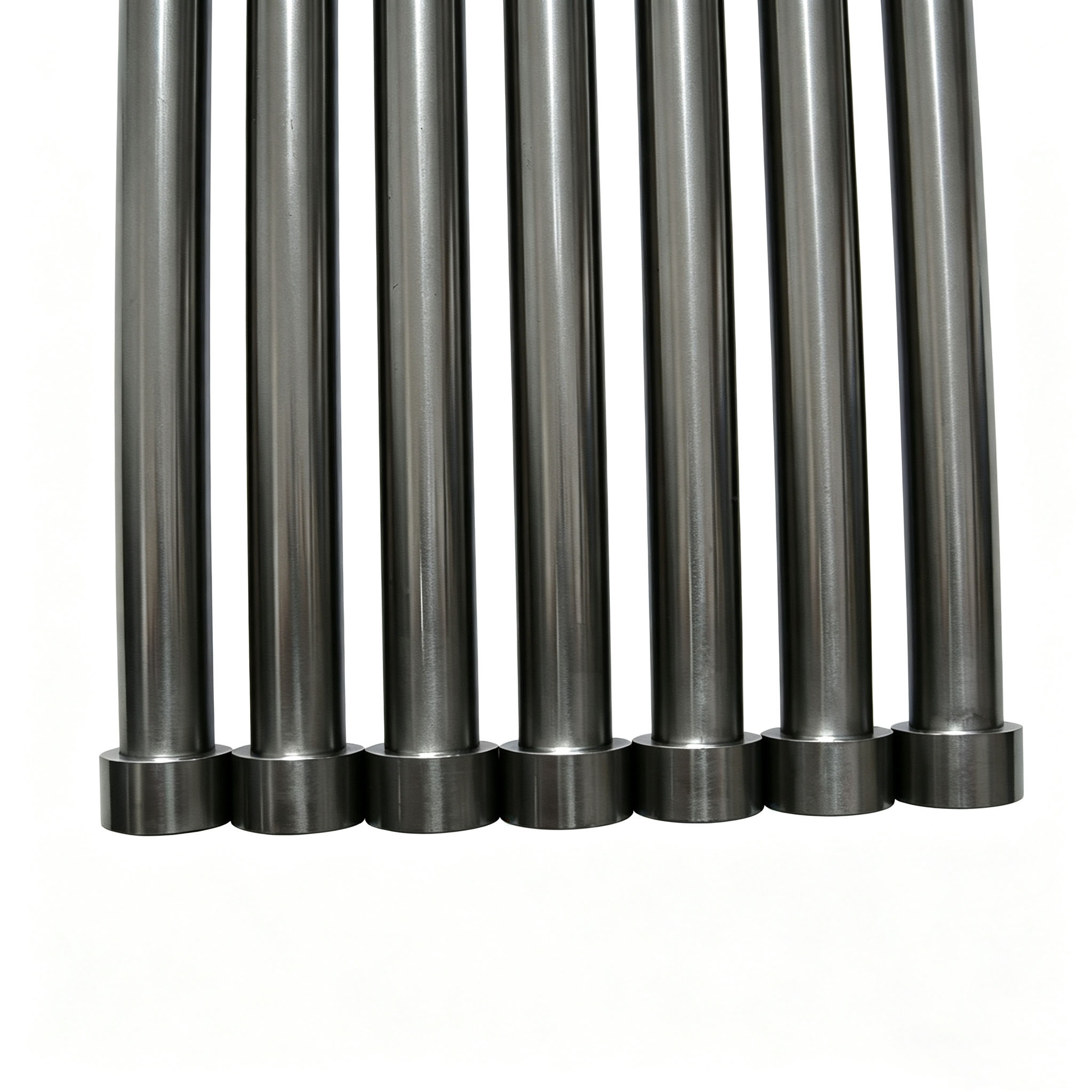

Batch Polished Graphite Support Rod

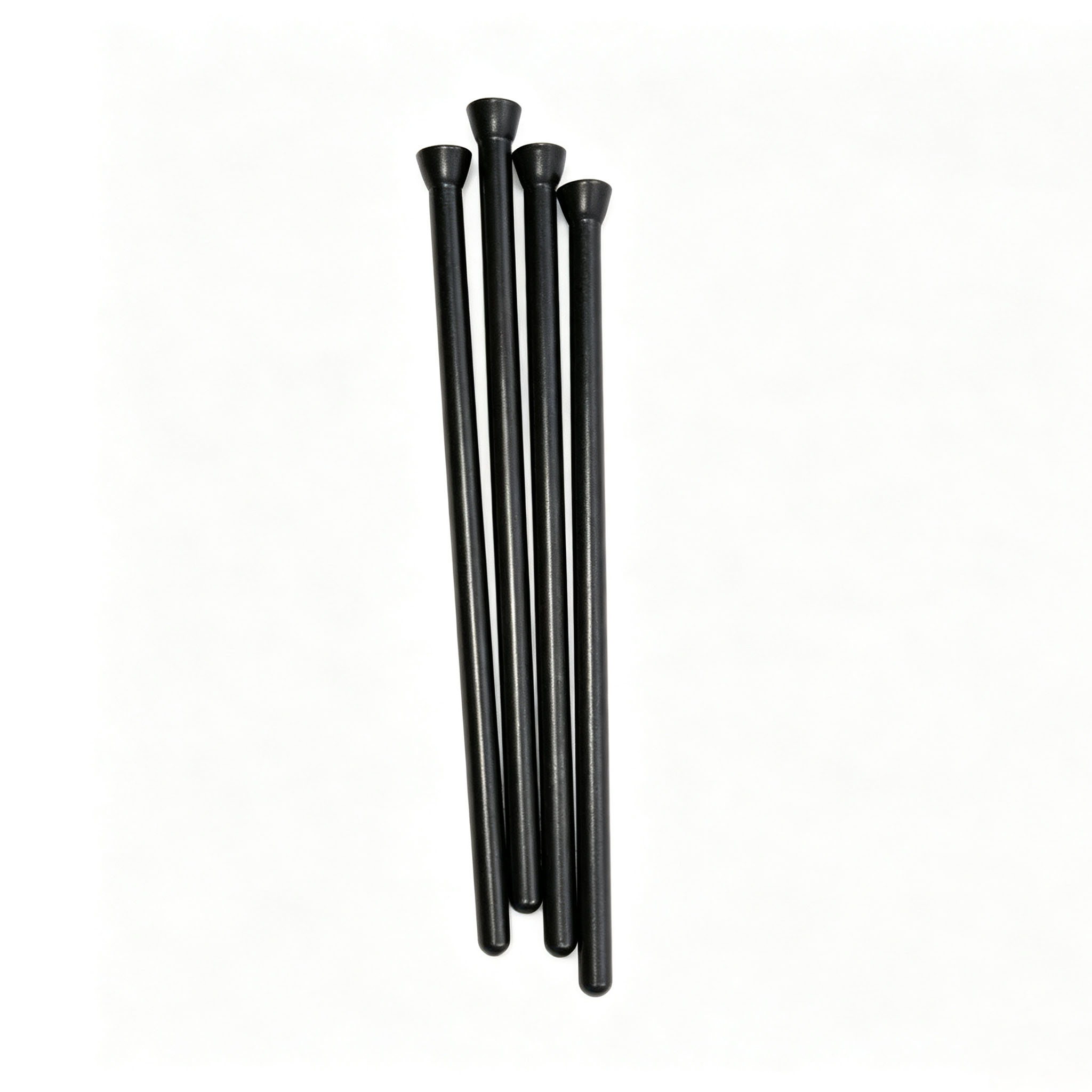

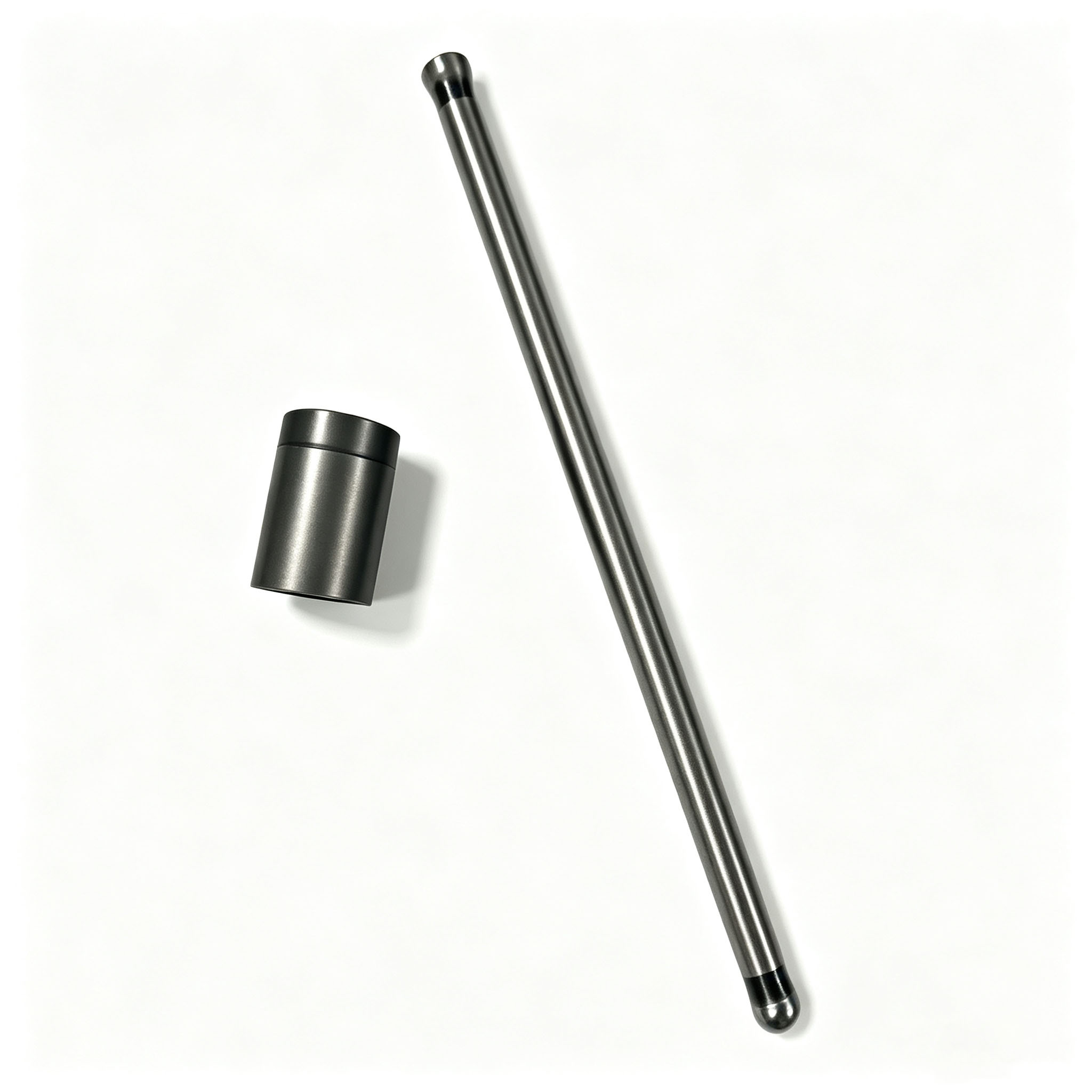

Ball Tip Graphite Rod With Sleeve

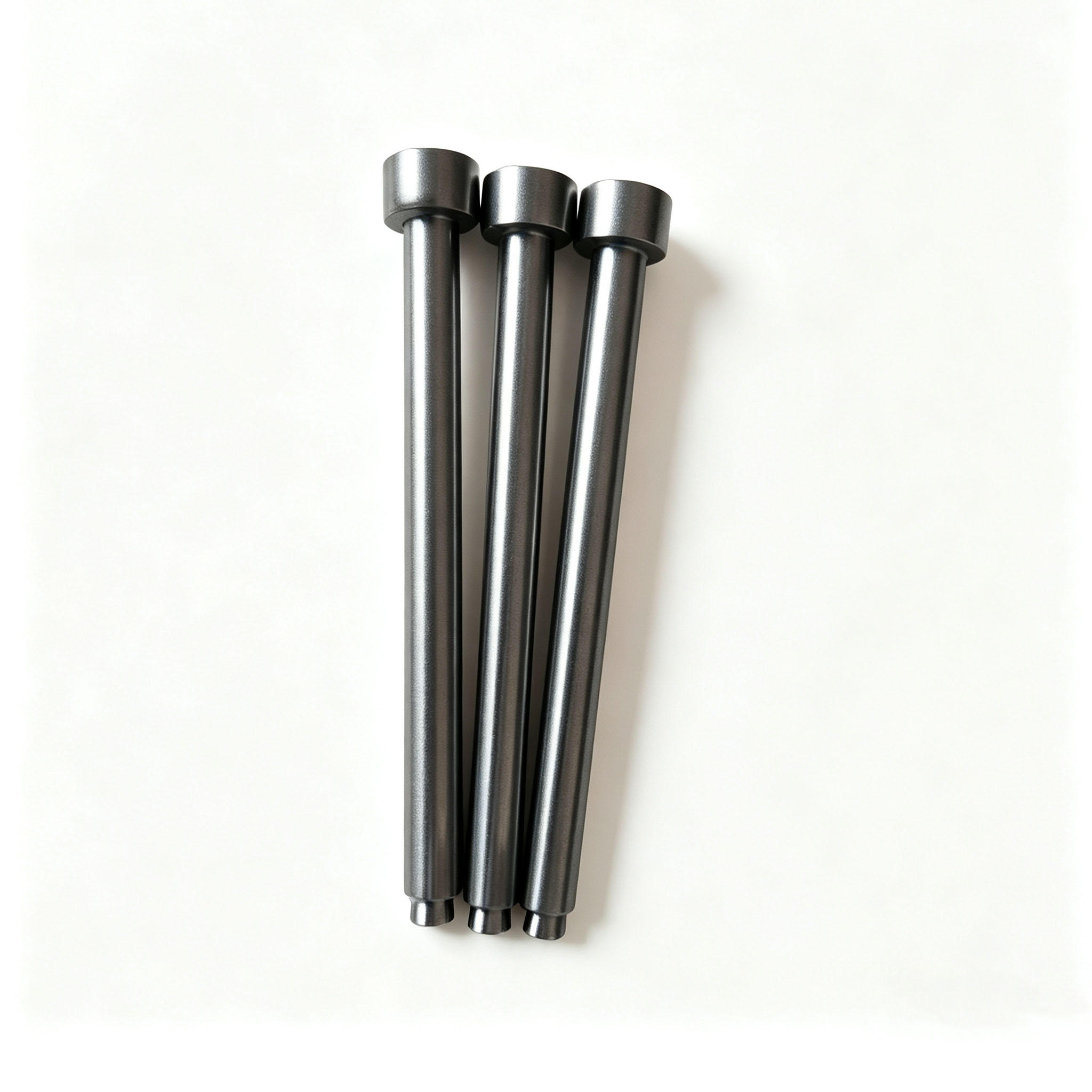

Short High Load Graphite Support Shaft

▍Product Advantages

1. Advantages of the Material’s Properties

① Ultra-High-Temperature Stability

Graphite has a sublimation temperature as high as 3,652°C and maintains stable mechanical strength even at temperatures above 2,000°C in non-oxidizing atmospheres (vacuum, argon, nitrogen).

Its coefficient of thermal expansion is only 1/3 to 1/5 that of metals, resulting in minimal dimensional changes during sudden temperature fluctuations and preventing structural deformation caused by thermal stress.

② Excellent Thermal Shock Resistance

Graphite has a high thermal conductivity (80–150 W/m·K), allowing heat to diffuse rapidly and uniformly.

It can withstand heating and cooling rates of >1,000°C/min, making it suitable for frequent thermal cycling in batch production.

③ The “King of Inertness” in the Chemical World

Except for strong oxidizing acids (concentrated HNO₃, concentrated H₂SO₄) and high-temperature oxidizing atmospheres, graphite is inert toward the vast majority of molten metals, acid, alkali, and salt solutions, as well as organic solvents

It does not wet, react with, or contaminate media such as molten aluminum, copper, silver, and glass

④ Self-lubrication and Machinability

The layered crystal structure gives graphite natural self-lubricating properties, ensuring smooth threaded connections without seizing

Low hardness (Shore hardness 40–70) allows for machining of complex geometries: internal bores, threads, steps, grooves, and irregular cross-sections

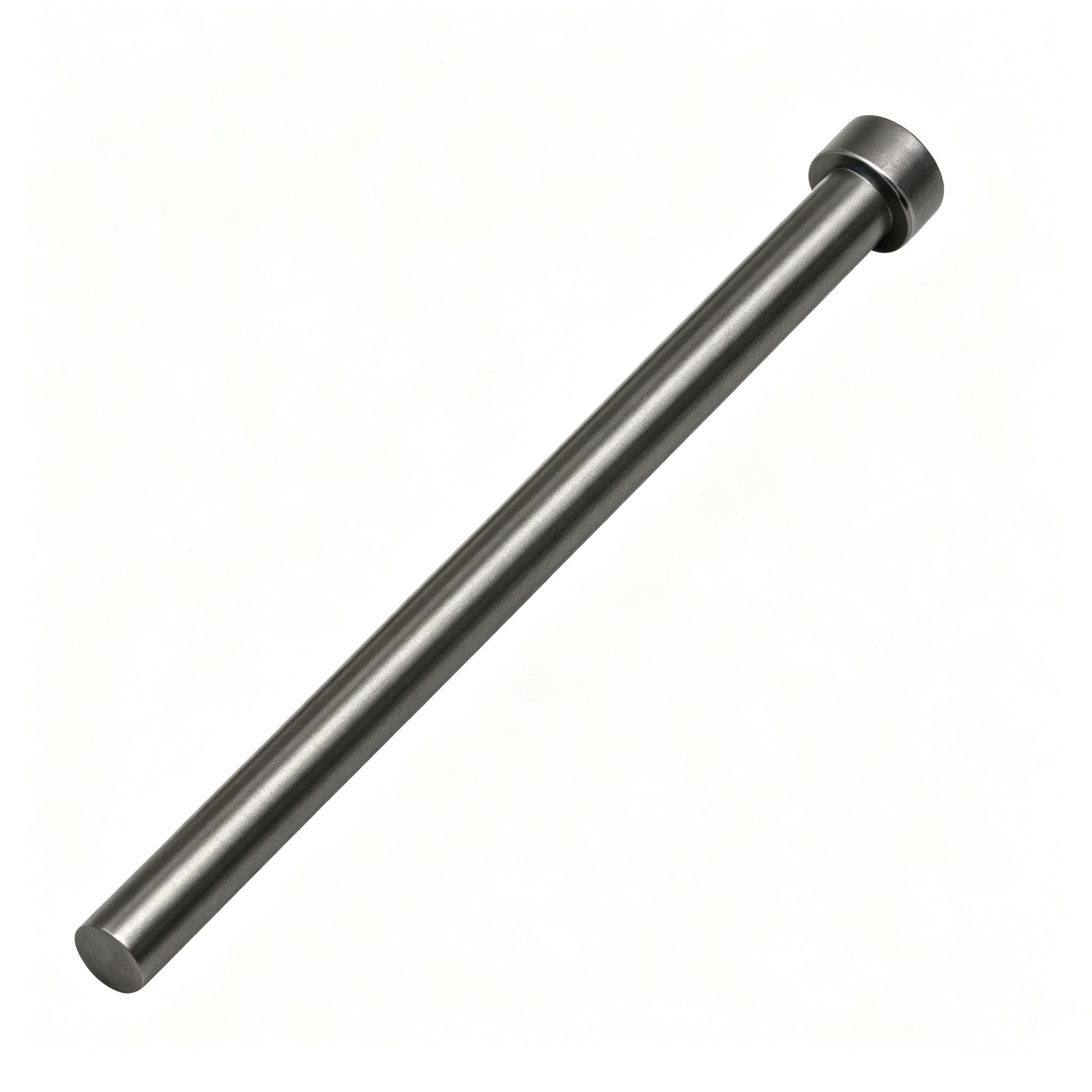

Single Polished Graphite Support Rod

Thin Matte Graphite Carrier Rod

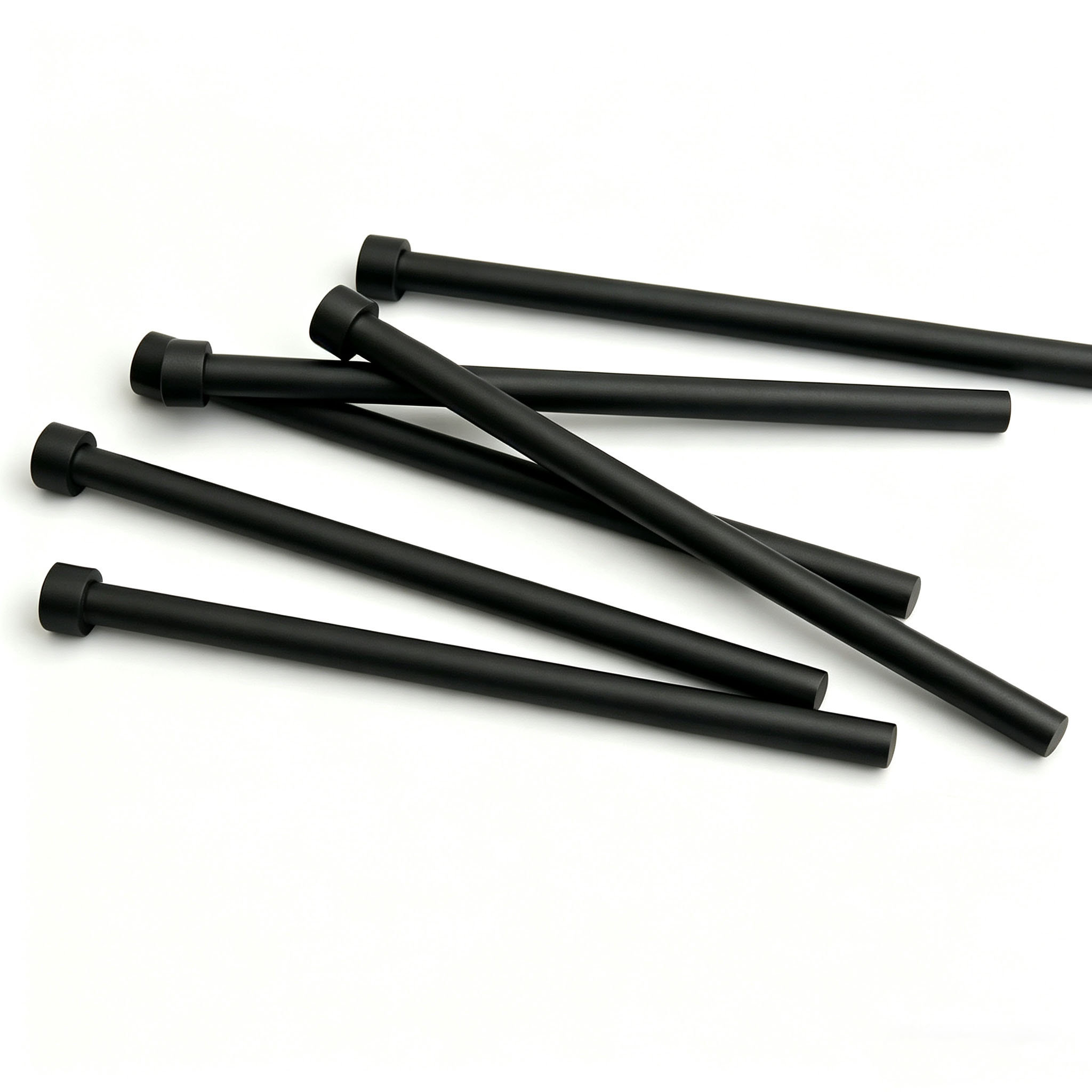

Matte Black Graphite Support Bar Bulk

2. Manufacturing Capability Advantages

Customization Notes: The specifications above are for reference only. Actual products can be customized according to customer drawings, including: reducers, internal bores, external threads, internal threads, annular grooves, locating pin holes, and special cross-sections. Please feel free to provide drawings or technical specifications; we will respond with a feasibility assessment and quote within 24 hours.

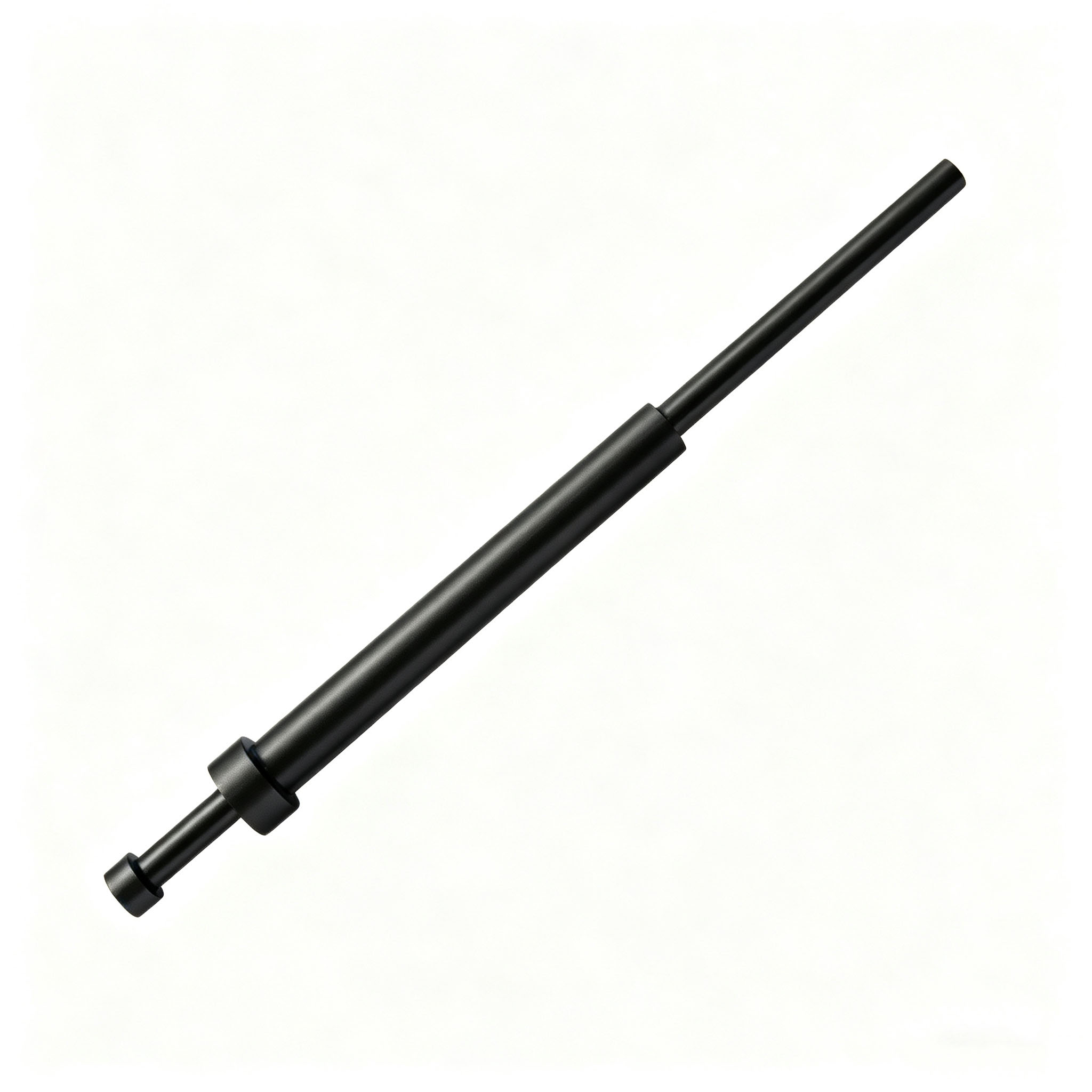

Step Type Custom Graphite Support Rod

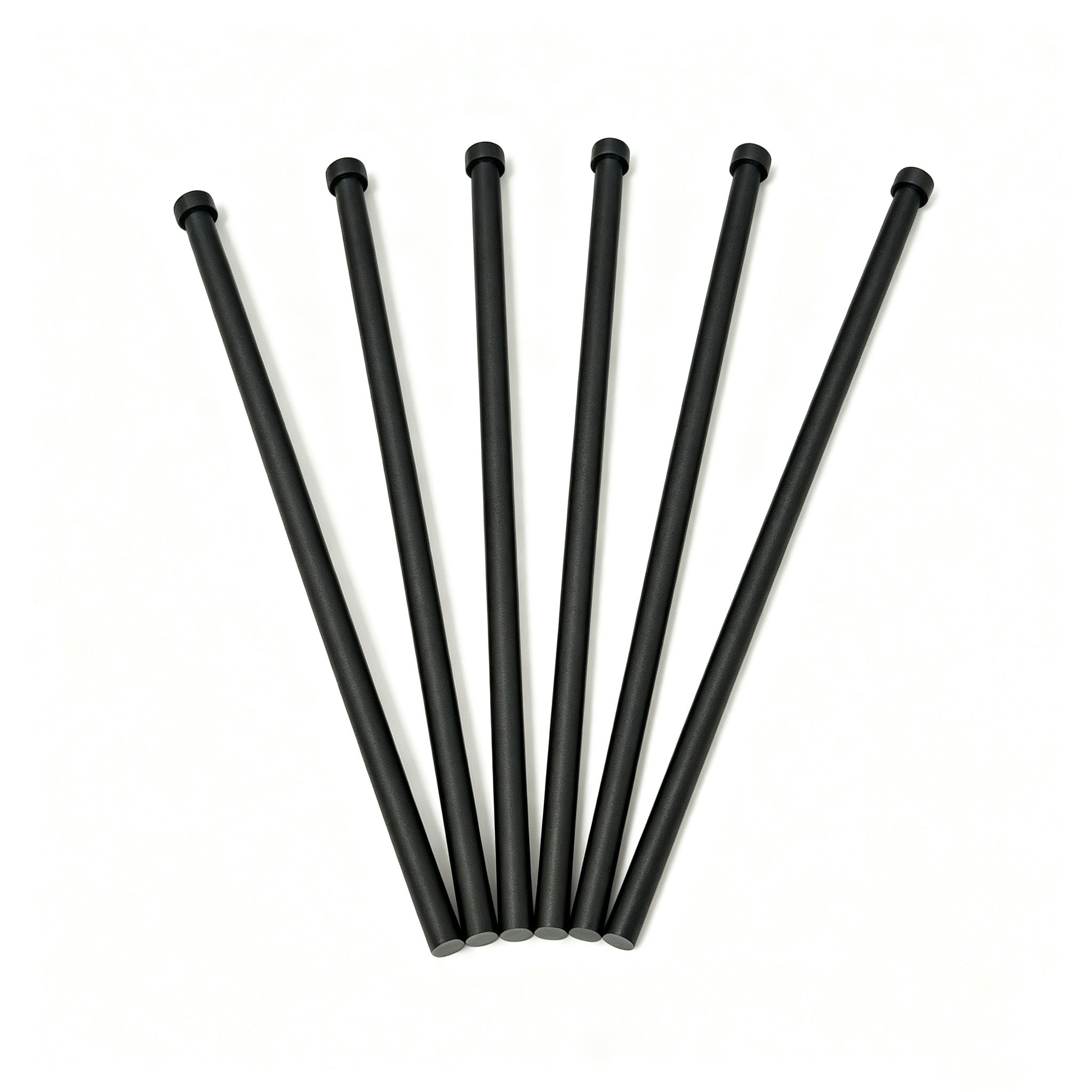

Fan Arranged Standard Graphite Rod

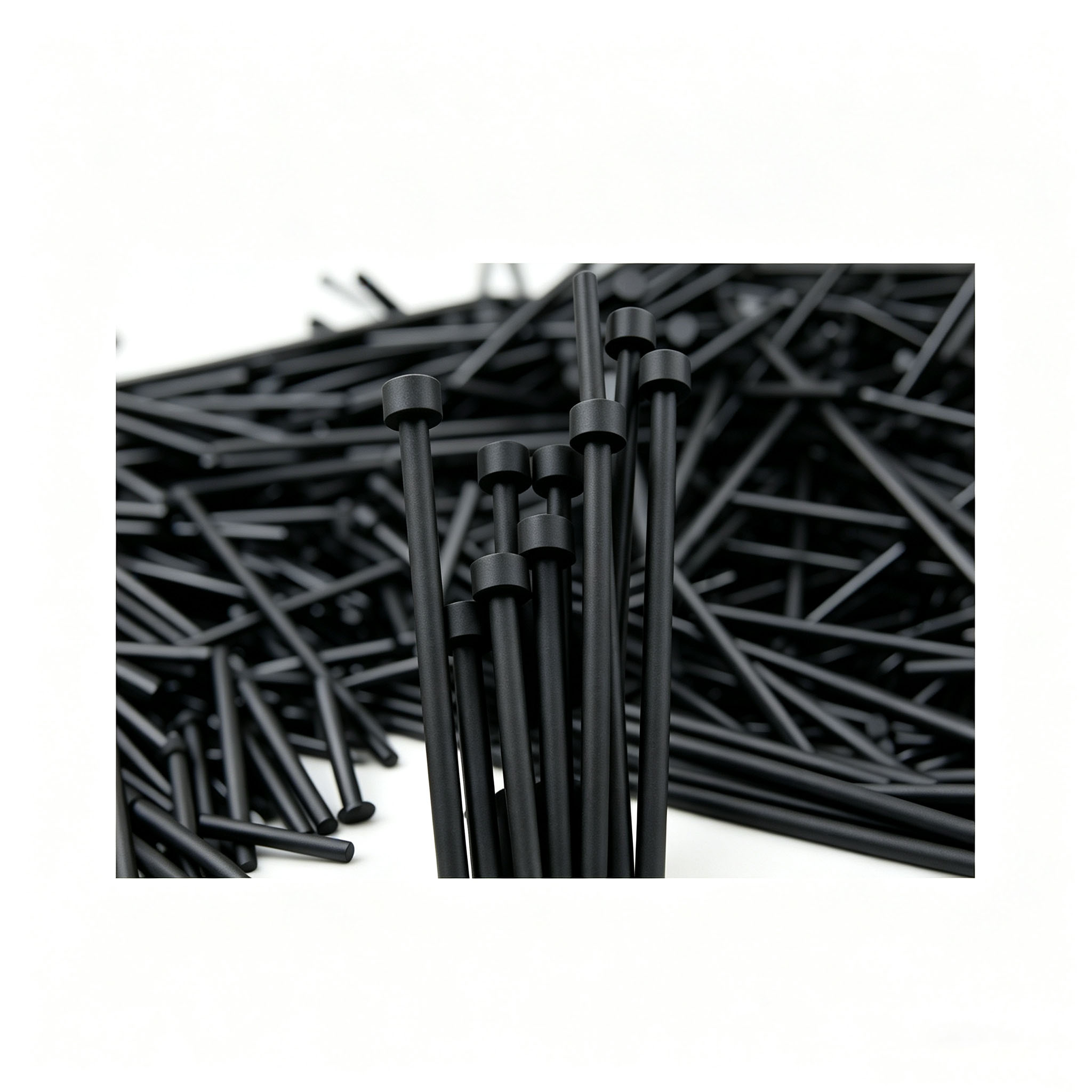

Mass Inventory Graphite Support Rod

▍Product Features

Material Grades and Selection Guide

Ningheda offers three material grades to meet different operating conditions and budget requirements:

• [Grade A] Isostatic-pressed high-purity graphite (semiconductor/photovoltaic grade)

Typical Applications: Thermal field support for single-crystal silicon CZ furnaces, GaAs crystal growth, sapphire LED substrate processing, semiconductor ion implantation equipment

• [Grade B] Compressed High-Density Graphite (Metallurgical/Vacuum Furnace Grade)

Typical Applications: Load-bearing columns for vacuum sintering furnaces, powder metallurgy push rods, vacuum brazing fixtures, heat treatment rack supports

• [Grade C] General-purpose extruded graphite (standard furnace grade)

Typical Applications: General industrial furnace supports, stirring shafts for chemical reactors, non-critical structural components

▍Product Applications and Advantages

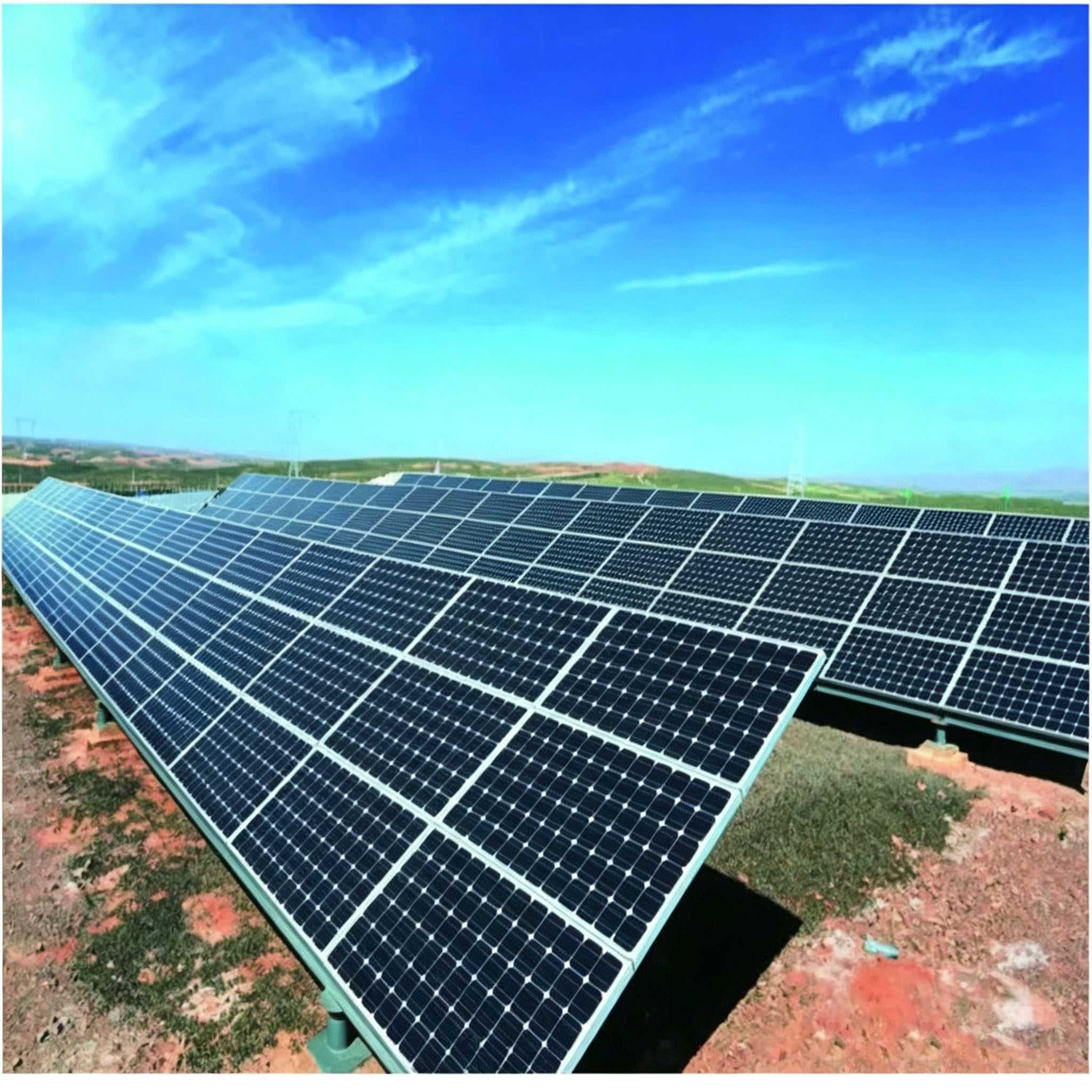

PV Solar Power Industry

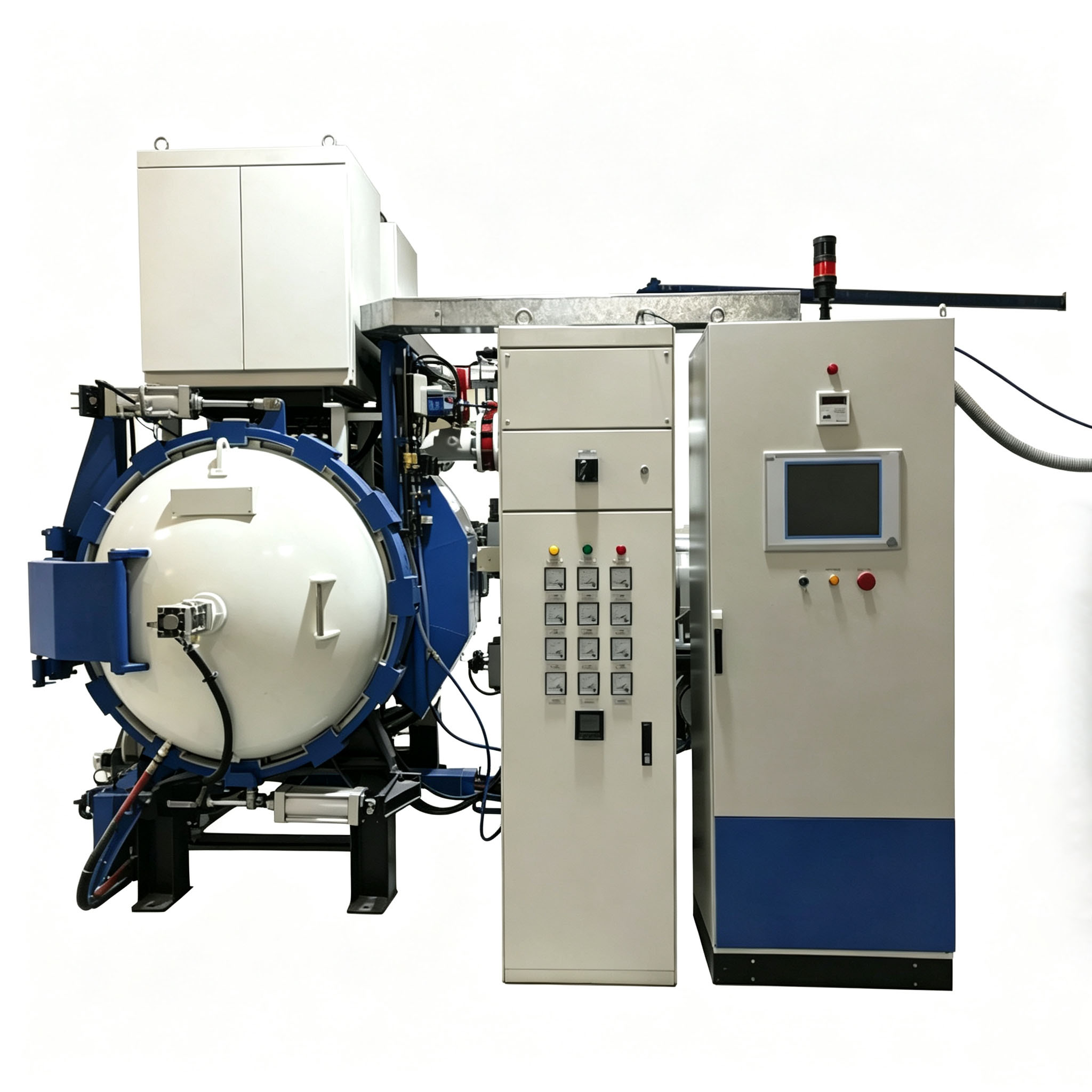

Vacuum Heat Treatment Furnace

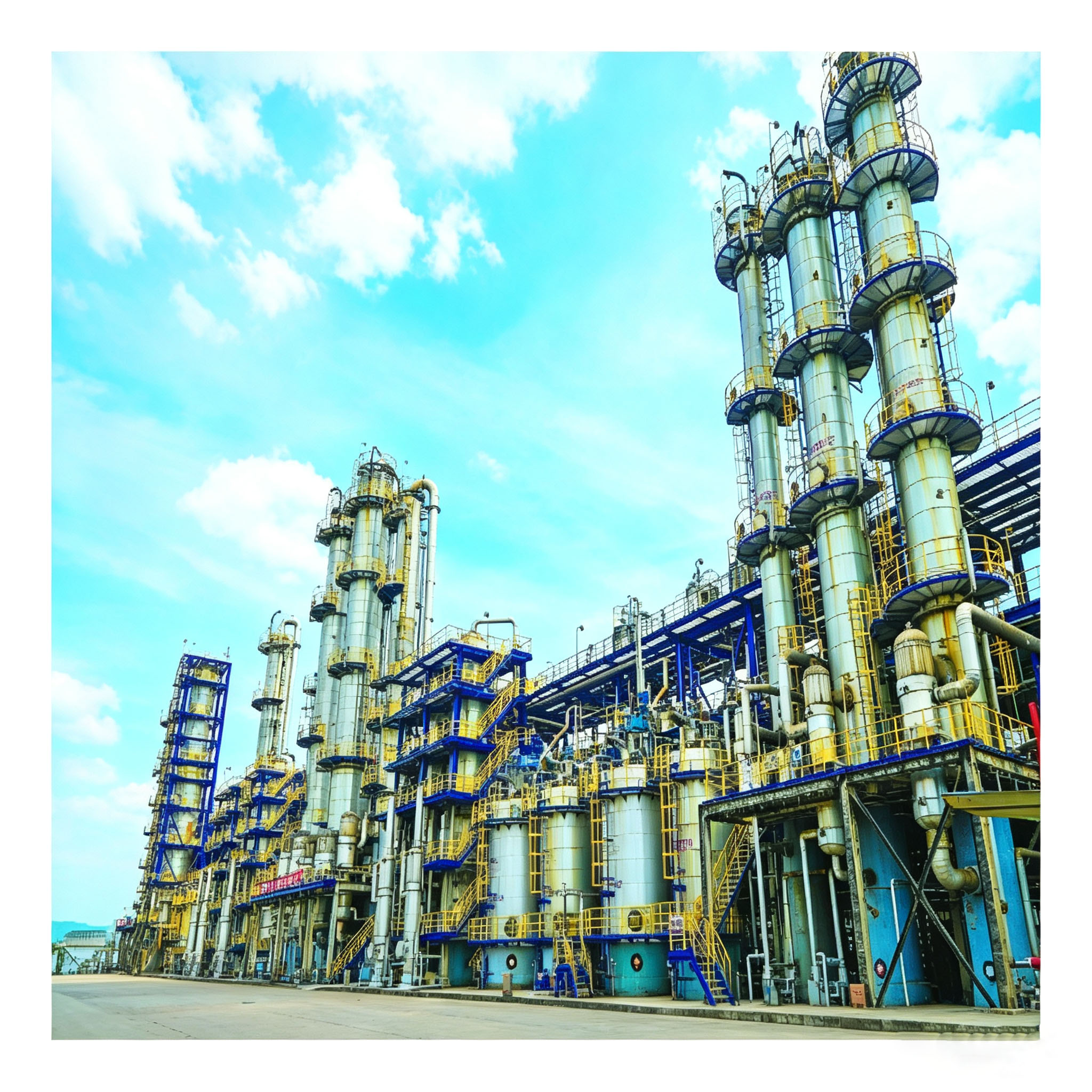

Chemical & Metallurgy Plant

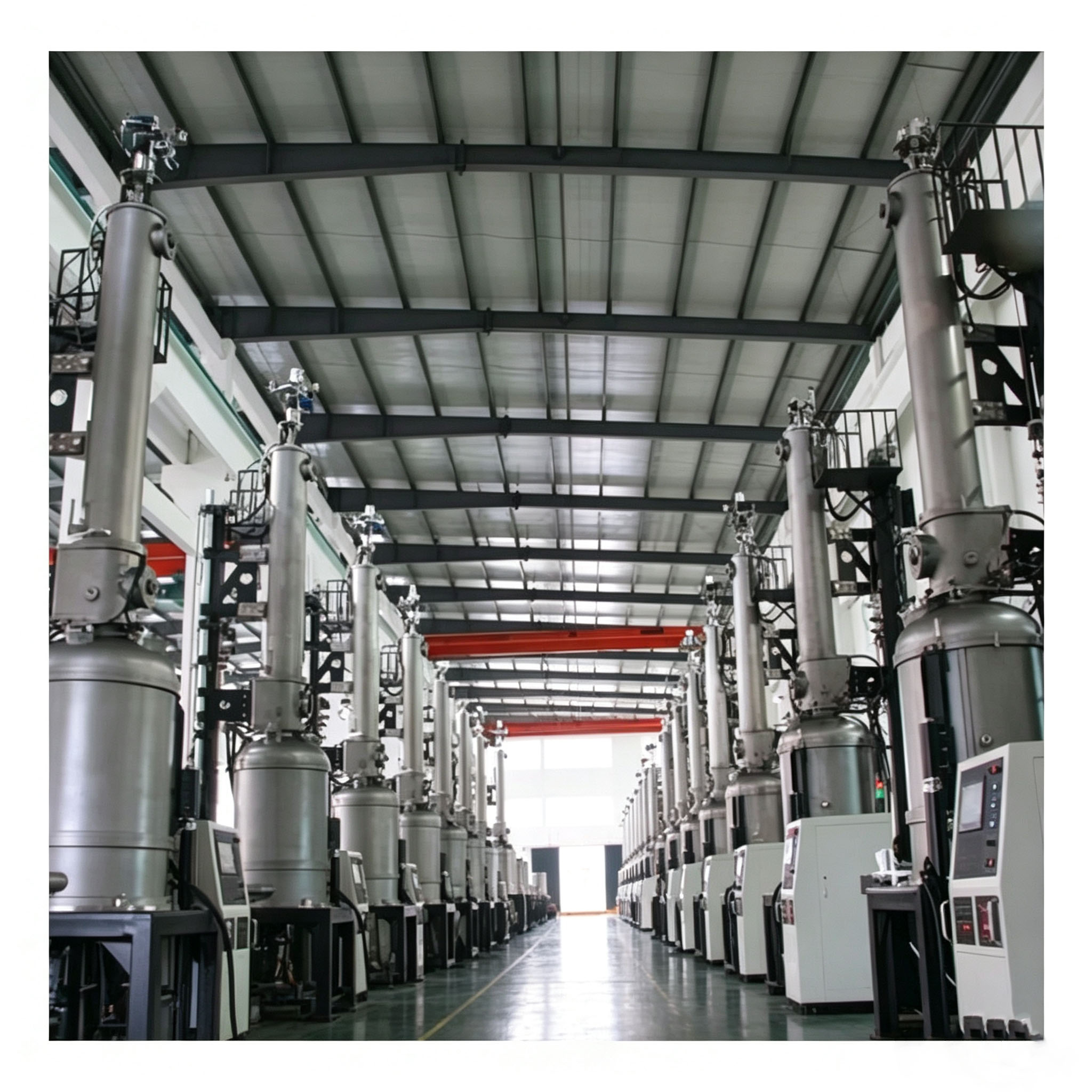

Monocrystalline Silicon Furnace Workshop

Scenario 1: Semiconductor Monocrystalline Silicon Growth (CZ Method/Zone Melting Method)

Application Locations:

• Support columns at the bottom of quartz crucibles (supporting the combined weight of the crucible and silicon feedstock, 50–200 kg)

• Heater assembly positioning rods (to maintain thermal field symmetry)

• Insulation felt clamping rods (to prevent high-temperature gas flow disturbances)

Advantages of Ningheda Rods:

• High Purity Guarantee: <30 ppm ash content, eliminating contamination of the silicon melt by volatilized metallic impurities

• Dimensional Stability: ±0.02 mm machining precision ensures crucible verticality and prevents eccentric crystal growth

• Long Service Life: Excellent thermal shock resistance; withstands >500 thermal cycles without cracking

Scenario 2: Vacuum Heat Treatment and Powder Metallurgy

Application Locations:

• Support columns for sintering furnace charge trays (multi-layer stacking, supporting loads of hundreds of kilograms)

• Drive rods for pusher-type continuous furnaces (propelling workpieces through the heating zone)

• Atmosphere isolation rods for gas-pressure sintering (GPS) furnaces

Advantages of Ningheda Rods:

• High Load-Bearing Capacity: High-density material (1.85 g/cm³), compressive strength >140 MPa, resistant to crushing and deformation

• Non-Sticking: Self-lubricating surface; does not diffuse and bond with metal workpieces at high temperatures

• Maintenance-Free: Unlike molybdenum alloys, no anti-oxidation coating is required, extending service life by 3–5 times

Scenario 3: Photovoltaic Polysilicon Ingot Casting

Application Locations:

• Thermal field support in Directional Solidification (DS) furnaces

• Support columns at the bottom of polycrystalline silicon crucibles

• Connecting rods for graphite heaters




Advantages of Ningheda Rods:

• Cost-Effectiveness: Material formulations optimized for the photovoltaic industry’s bulk production needs, reducing costs by 20–30%

• Consistency: Dimensional tolerances controlled within ±0.05 mm during mass production, ensuring excellent assembly interchangeability

Scenario 4: Chemical and Environmental Engineering

Application Locations:

• Electrode supports for molten salt electrolysis cells

• Internal components of high-temperature incinerators

• Stirring shaft sleeves for strong acid reactors

Advantages of Ningheda Rods:

• Corrosion Resistance: Resistant to highly corrosive media such as HF, HCl, and molten NaOH

• Long Service Life: Service life in acidic gas environments far exceeds that of stainless steel and Hastelloy

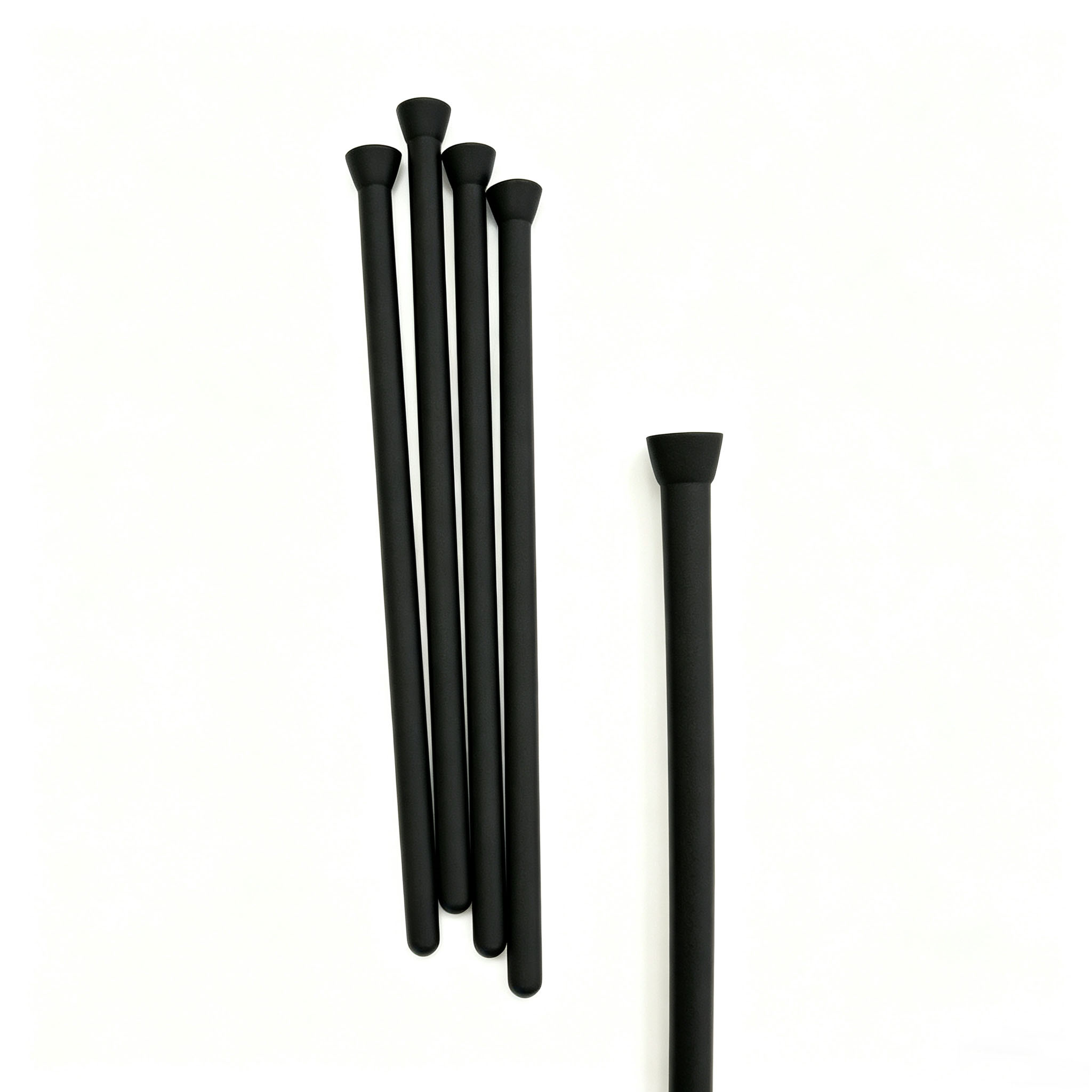

Matte Ball Tip Graphite Support Rod

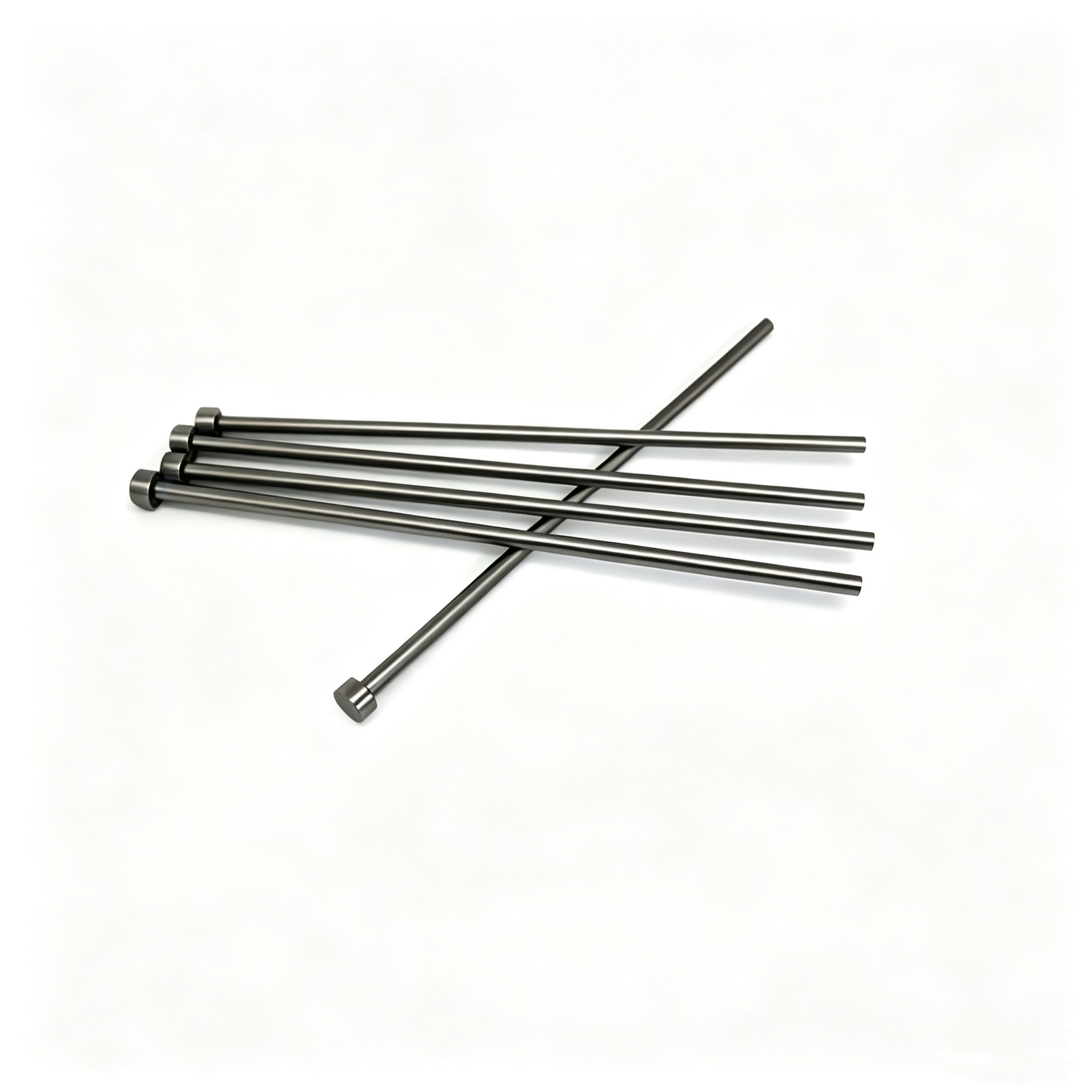

Multi Length Thin Graphite Carrier Shaft

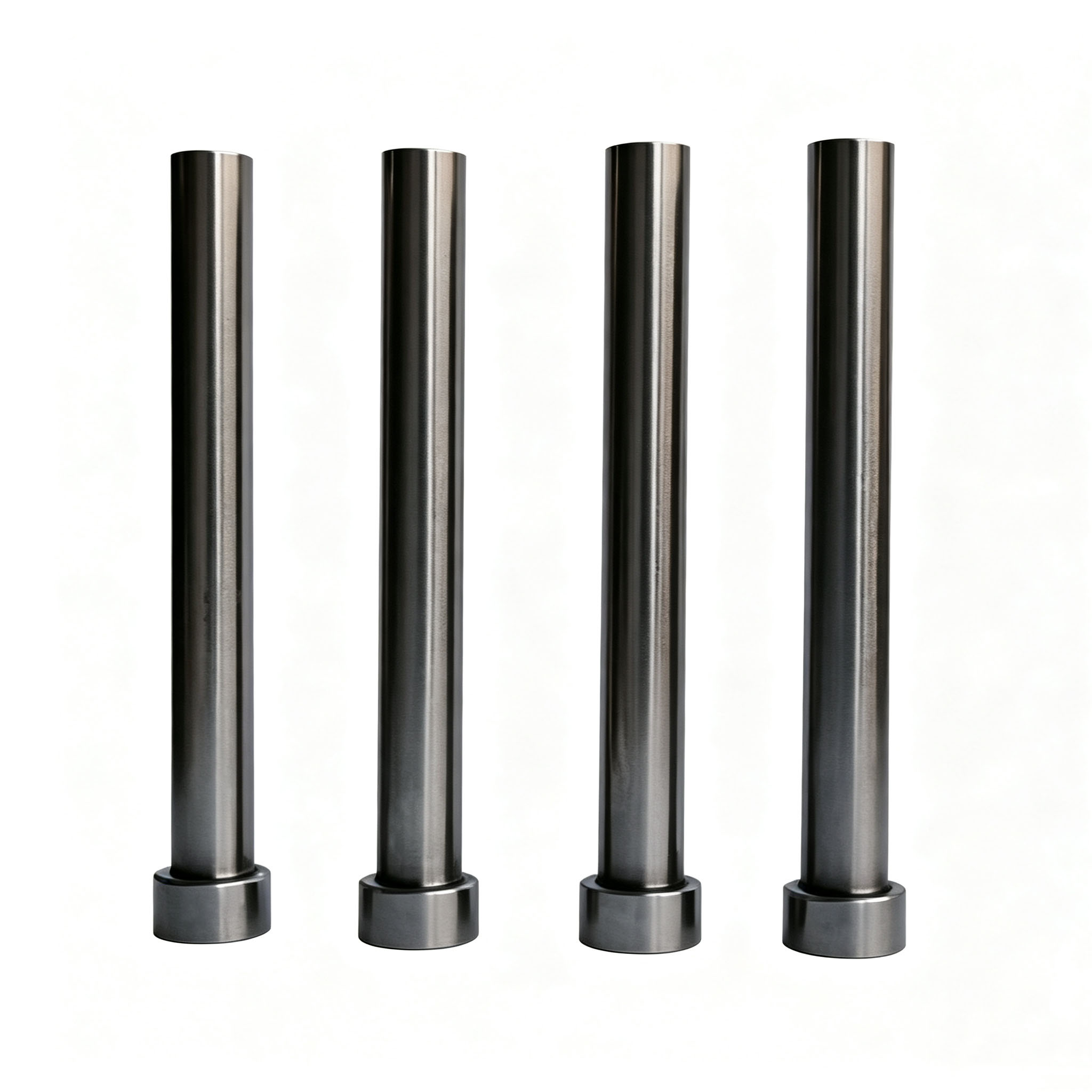

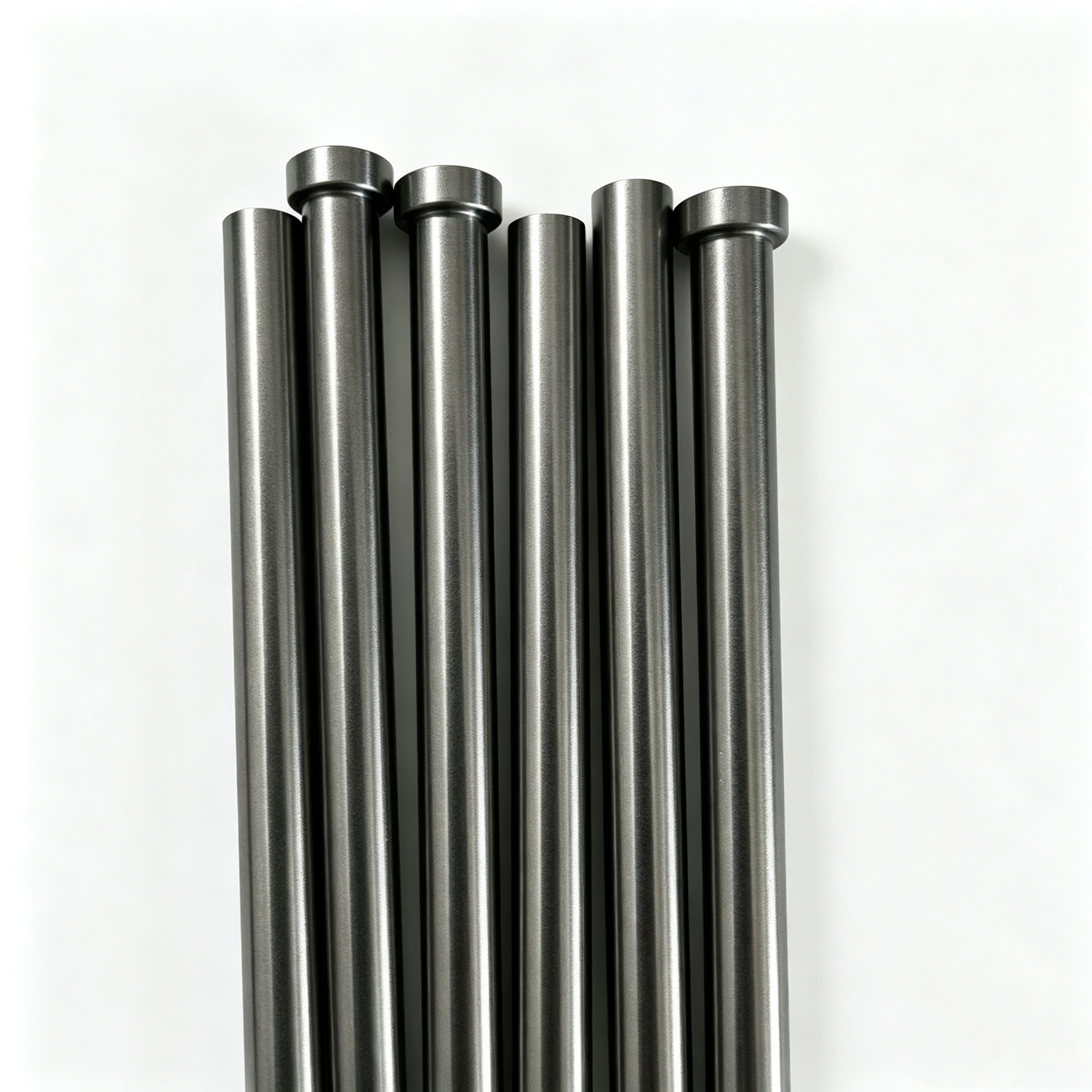

Mirror Polished Standard Graphite Rod

▍Packaging and Shipping Instructions

Graphite is a brittle carbon material. It is shipped using graded protective packaging: small, individual support rods are wrapped separately in foam, while long support rods are packed in dedicated cardboard tubes. For bulk shipments, the outer layer consists of a reinforced cardboard box filled entirely with bubble wrap, with reinforced corners to prevent impact damage, thereby eliminating the risk of chipped corners, breakage, or scratches to the polished surface during transit.

• Comprehensive logistics solutions: We can provide customs clearance documentation for exports to minimize the risk of damage throughout the entire shipping process.

• Port of Departure: Port of Qingdao / Port of Shanghai / Port of Tianjin (FOB by default)

• Shipping Methods: Full Container Load (FCL) / Less than Container Load (LCL) by sea, Air Freight (for urgent orders), Rail, Road Freight / Yunda (domestic)

• Trade Terms: EXW, FOB, CIF, DDP, and CFR are all supported

• Lead Time:

1. Standard Specifications: 15–25 business days

2. Custom Processing: 25–40 business days

3. Rush Orders: 10–15 business days (30% rush fee applies)

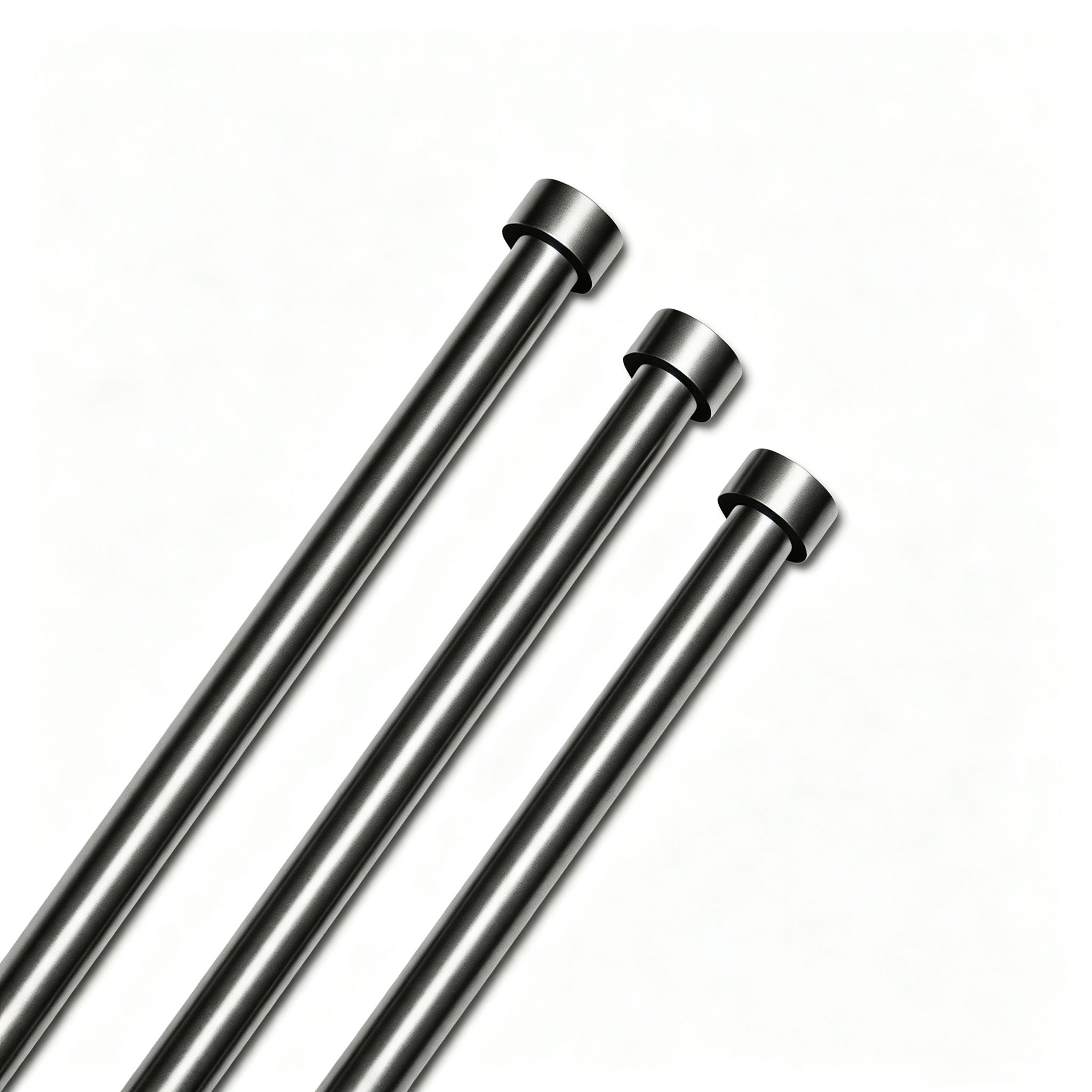

3pcs Polished Graphite Support Rod

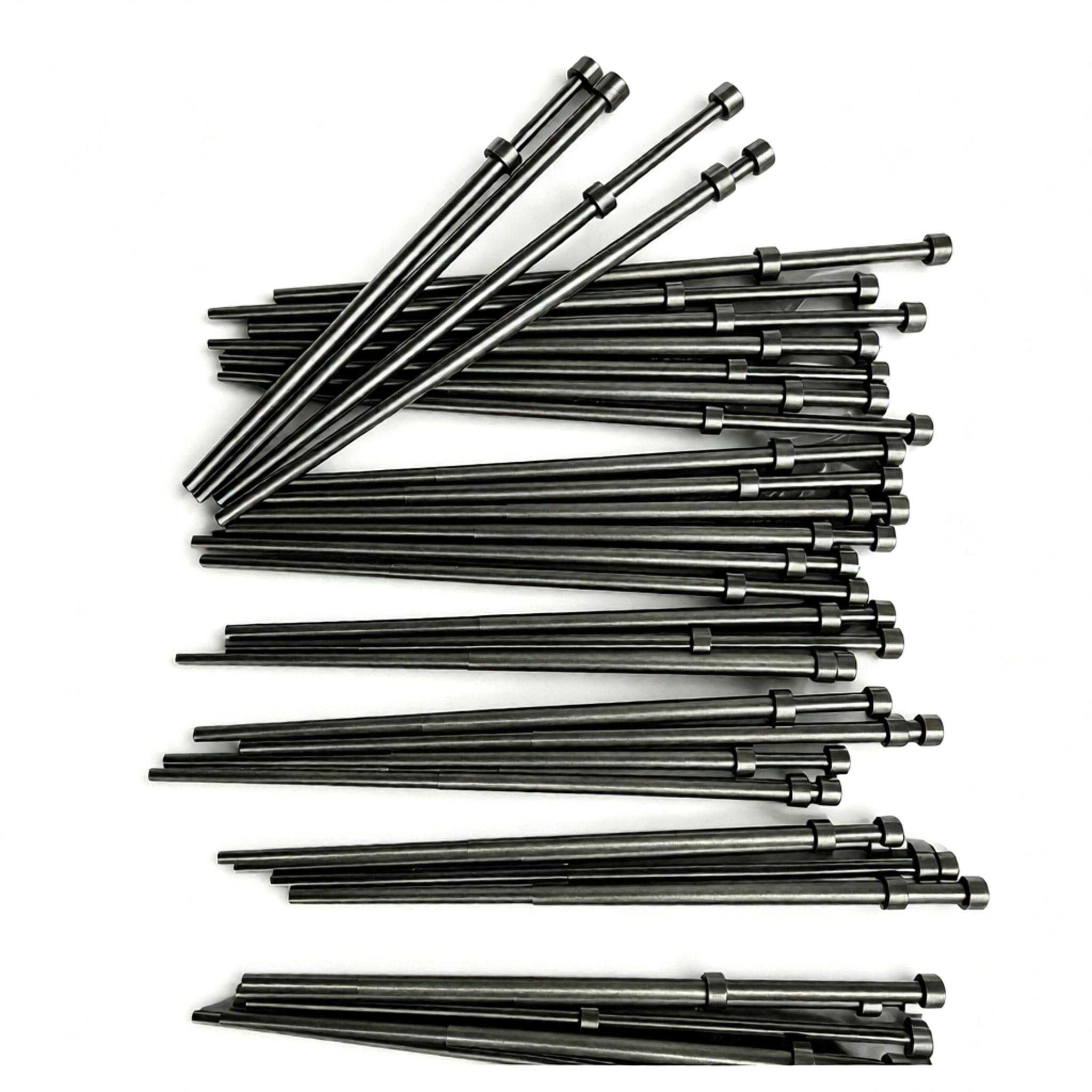

Bulk Step Flange Graphite Rod

Matte Black Ball Head Graphite Support Bar

▍FAQ

• Q1: What are the advantages of your graphite support rods compared to metal support rods?

  A1: Metal support rods are highly prone to “thermal expansion” at high temperatures above 600°C, which can cause structural deformation of the equipment and make them difficult to remove after cooling. Our graphite support rods have an extremely low coefficient of thermal expansion, maintaining precise dimensions even at high temperatures. Furthermore, graphite does not undergo cold welding or sintering with the metal components inside the furnace, making removal extremely convenient.

• Q2: Will using graphite support rods in a single-crystal furnace contaminate the silicon ingots?

  A2: Our graphite support rods designed specifically for photovoltaic applications are made from high-purity graphite with an ultra-low ash content of 10 ppm. The raw materials have extremely low levels of heavy metal impurities, so no impurities will leach into the molten silicon at high temperatures, preventing issues such as black spots on the ingots or abnormal resistivity.

• Q3: What is the fundamental difference between graphite support rods and graphite screws?

  A3: Their functions are completely different. Graphite screws are used solely for threaded fastening of small parts; they are short in length and do not bear loads. Graphite support rods, on the other hand, feature a long-shaft structure. Their primary function is to support heavy-duty crucibles and fixtures while facilitating lifting and rotational motion. They must withstand continuous mechanical loads and serve as core load-bearing structural components of the furnace; the two cannot be used interchangeably.

• Q4: How do I select the appropriate material grade for graphite support rods based on my furnace model?

  A4: Please provide the following information, and our engineers will provide selection recommendations within 4 hours:

1. Maximum operating temperature and atmosphere (vacuum/argon/nitrogen/air?)

2. Load capacity and type of stress (static/dynamic?)

3. Are there any purity requirements (e.g., semiconductor grade <50 ppm)?

4. Dimensions or drawings

• Q5: Can a broken graphite support rod be repaired?

  A5: Graphite is a brittle material; welding is not recommended after breakage (graphite has extremely low weld strength). However, we can quickly machine replacement parts based on the dimensions of the old component. We recommend that customers keep 1–2 sets of spare parts on hand to avoid downtime losses.

• Q6: Is the prototyping fee for the first order expensive? What is the lead time?

  A6: Since graphite support rods require precision machining, we will evaluate the manufacturing process based on the drawings. We support prototyping for first-order samples; the fees are transparent and reasonable, and the prototyping fee can be credited toward a bulk order. The prototyping lead time for standard specifications is approximately 3–5 days.

• Q7: Are graphite support rods prone to breaking after prolonged use at high temperatures?

  A7: Monolithic isostatic pressed graphite support rods have uniform internal density and excellent thermal shock resistance. Under normal vacuum and high-temperature operating conditions, their service life is 3–5 times longer than that of high-temperature alloy shafts. Breakage occurs only under conditions of excessive temperature in oxidizing environments or sudden, severe impact; combining them with anti-oxidation treatment can further extend their service life.

• Q8: Can graphite support rods be used in chemical furnaces subject to acid and alkali corrosion?

  A8: They are fully compatible. Graphite is highly chemically inert and reacts almost not at all with strong acids, strong alkalis, or high-temperature corrosive fumes. Unlike metal shafts, they do not rust, suffer from pitting, or develop perforations, making them the preferred support components for high-temperature chemical equipment.
