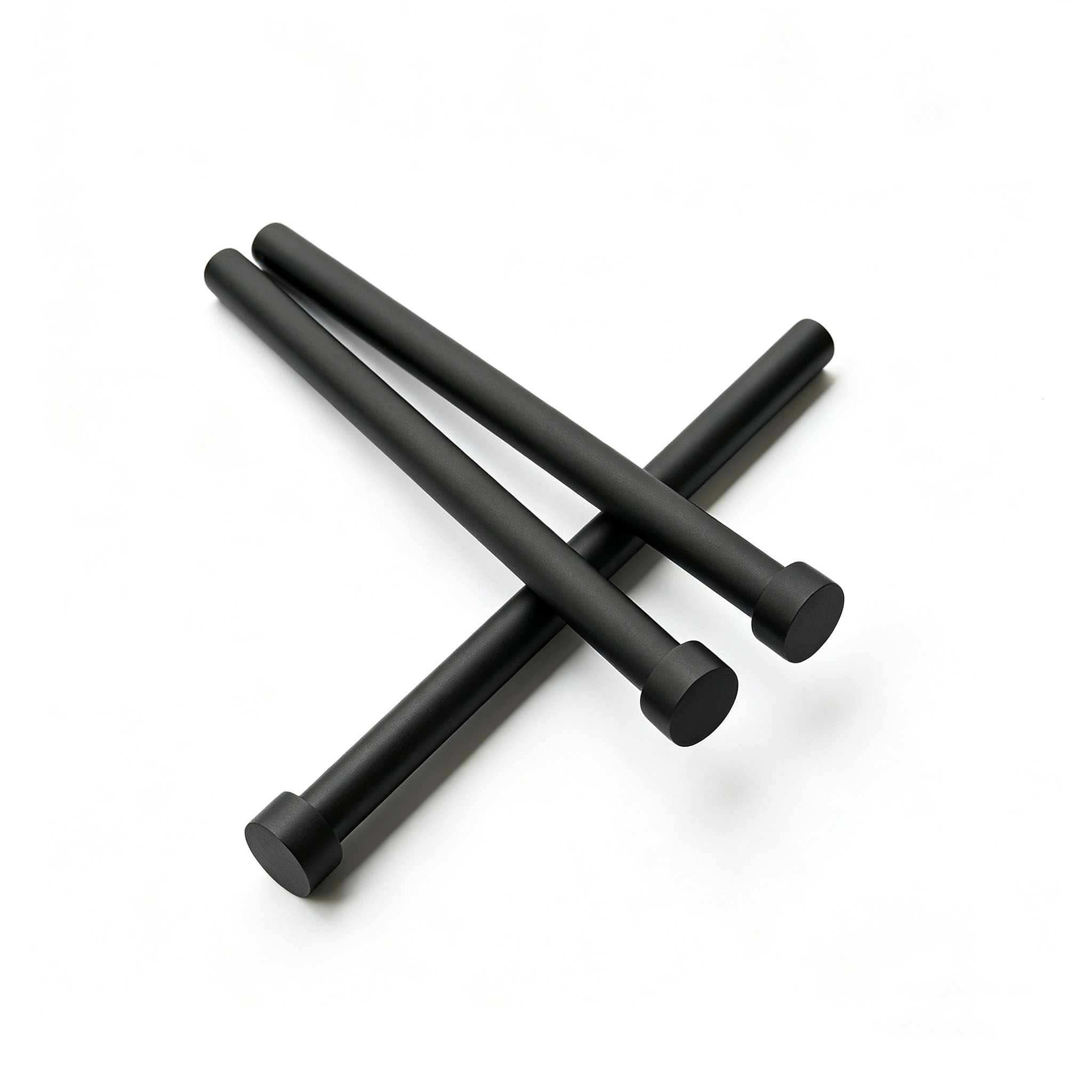

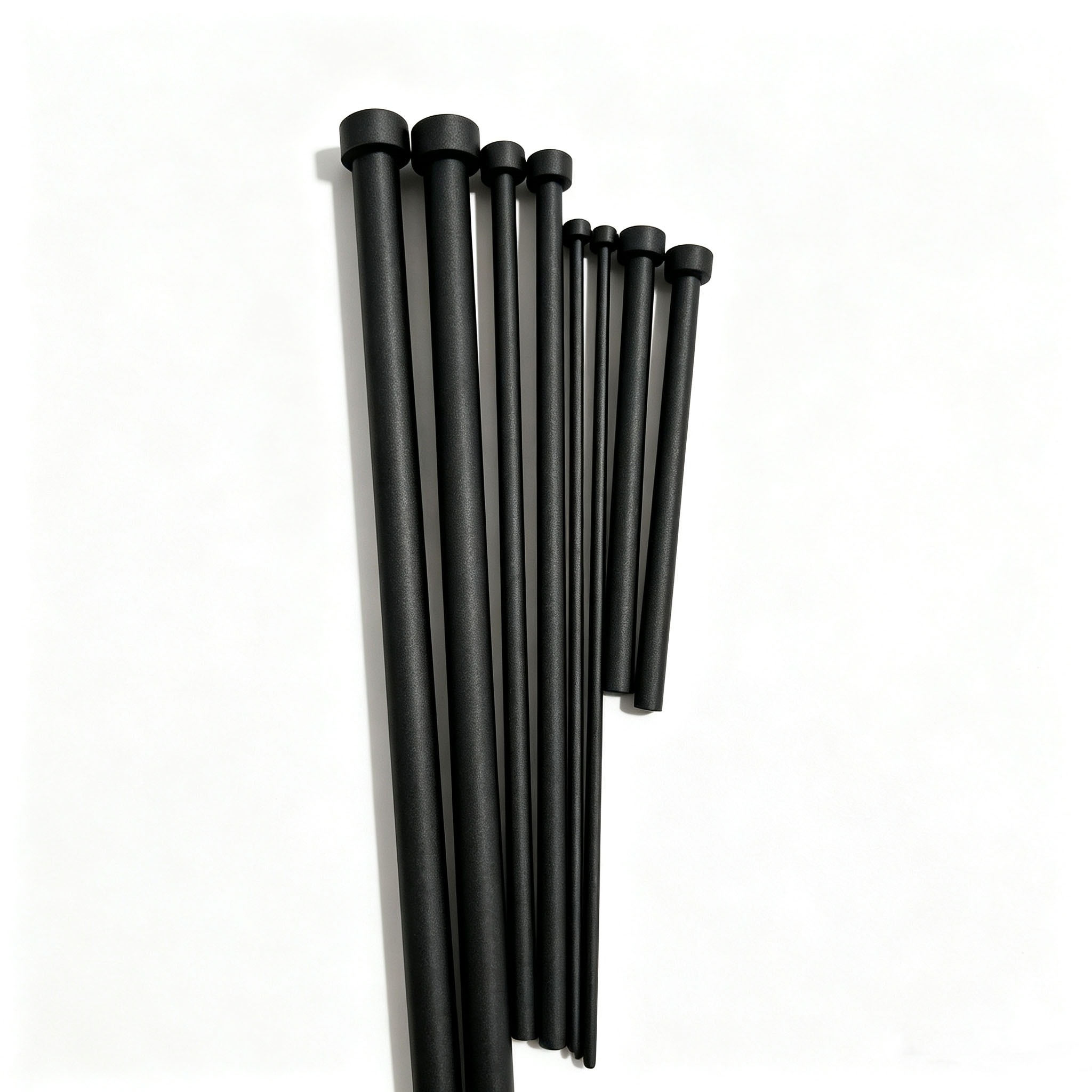

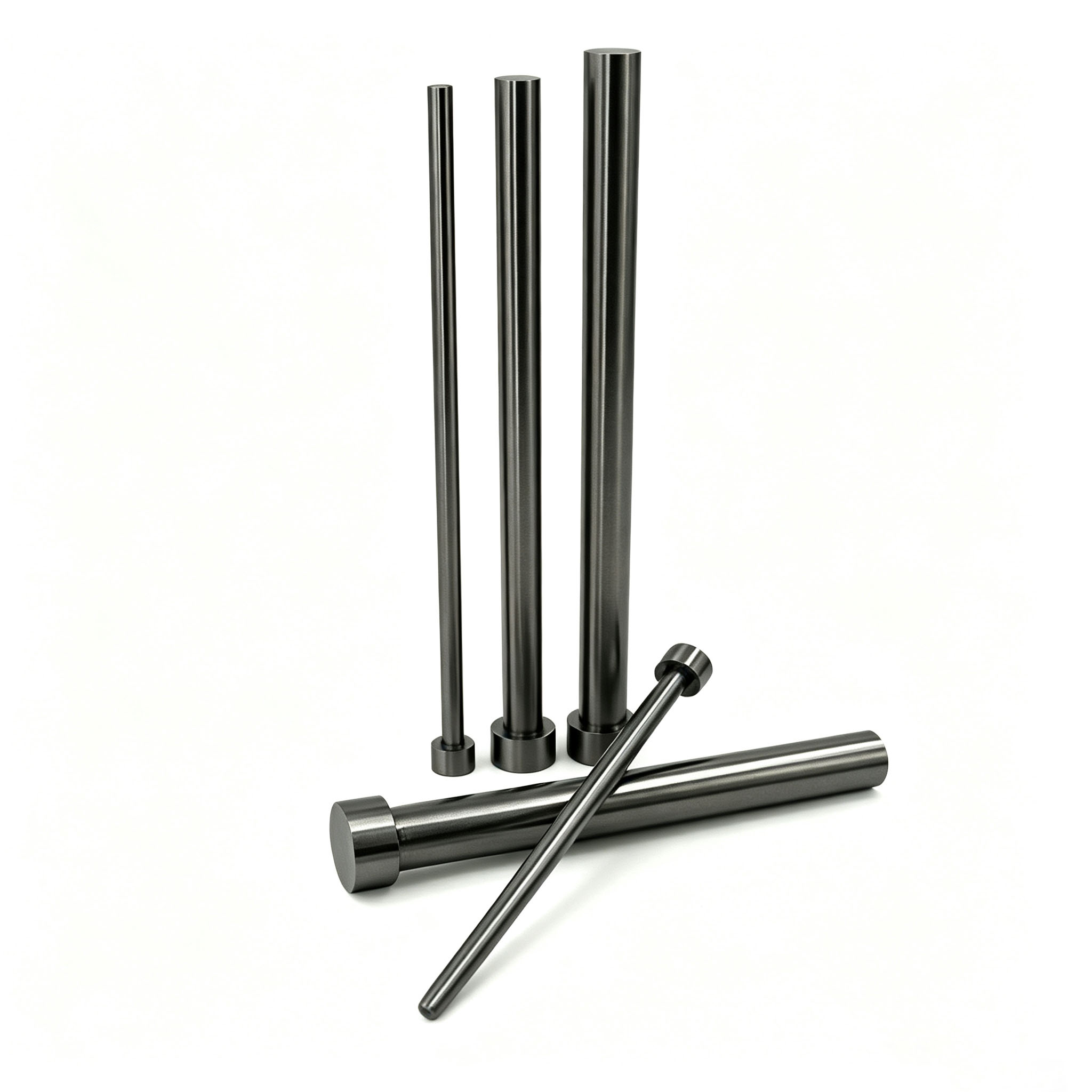

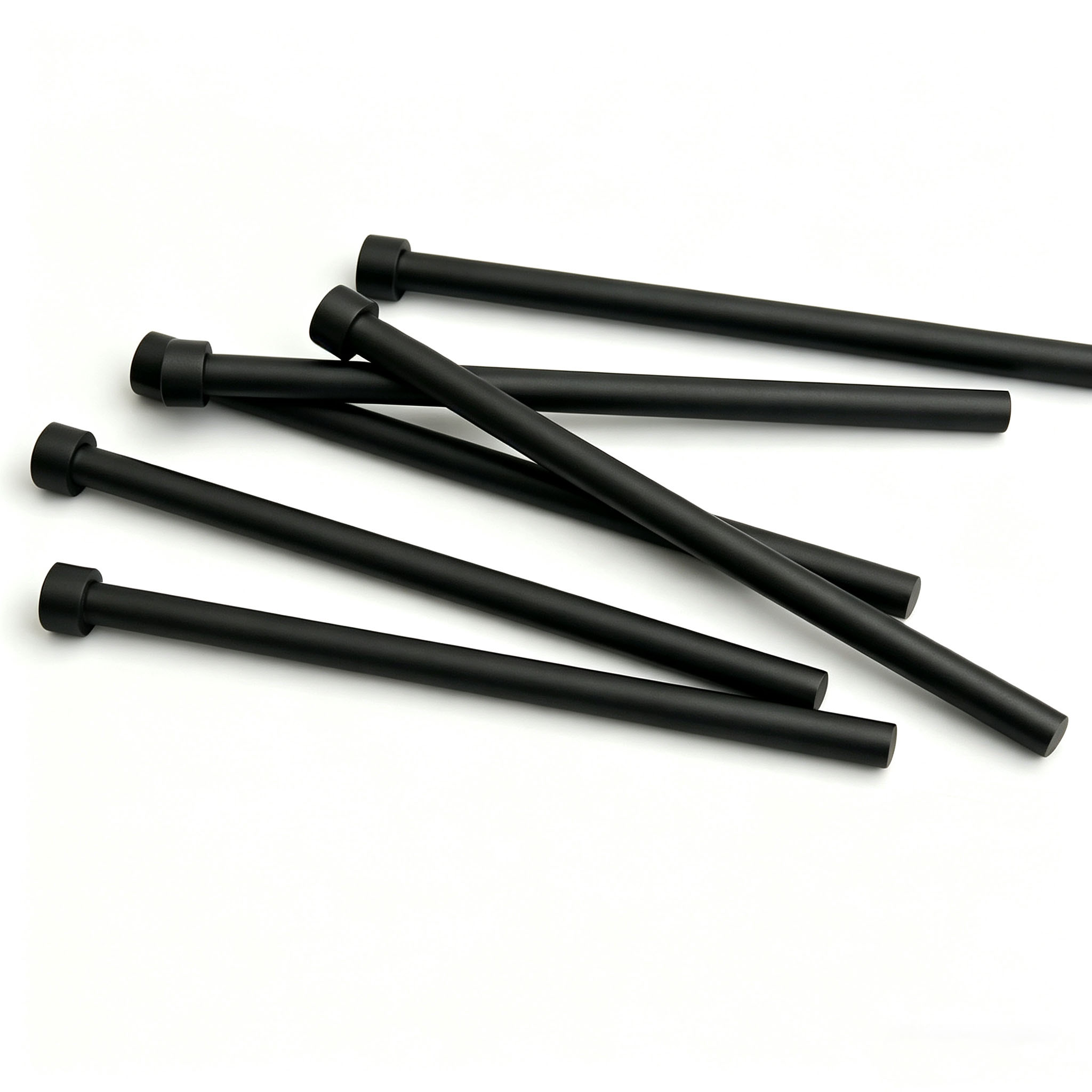

Graphite support rods are long-shaft load-bearing components precision-machined via CNC from a single piece of high-purity graphite produced by isostatic pressing. Unlike graphite fasteners, which are used solely for securing small parts, these rods play a central role in lifting, rotating, and supporting the load transmission of quartz crucibles, sintering molds, and tooling fixtures within high-temperature furnaces. Traditional stainless steel and high-temperature alloy metal support shafts are highly prone to thermal expansion and bending, oxidation and flaking, and creep fracture under high-temperature cycling conditions above 1,000°C. Metal impurities can also contaminate silicon feedstock and precision alloy workpieces, forcing companies to frequently shut down operations to replace parts, thereby increasing production losses and O&M costs. In contrast, graphite support rods, leveraging the stable physical and chemical properties of graphite, maintain their structural strength without degradation even in ultra-high-temperature environments of 2,200°C under vacuum or inert gas conditions. They serve as core components in high-temperature thermal fields across the photovoltaic, semiconductor, vacuum heat treatment, chemical, and metallurgical industries.
In high-end manufacturing fields such as single-crystal silicon pulling, vacuum heat treatment, and powder metallurgy sintering, the stability of the thermal field system directly determines product quality. As the “skeleton” of the thermal field, support rods must maintain their mechanical strength and dimensional accuracy over extended periods in non-oxidizing environments at temperatures above 2000°C.
Although traditional metal support components (molybdenum and tungsten rods) offer high strength, they suffer from three critical flaws:
High-Temperature Oxidation and Embrittlement: Molybdenum alloys oxidize rapidly in oxygen-containing environments above 600°C, forming volatile oxides on the surface that lead to continuous cross-sectional thinning and a precipitous drop in strength. Even trace amounts of residual oxygen (<10 ppm) in a vacuum furnace can significantly shorten the service life of molybdenum rods.
Thermal expansion mismatch: Molybdenum’s coefficient of thermal expansion (5.2×10⁻⁶/°C) is approximately twice that of graphite. During heating from room temperature to 1450°C, the linear expansion of a molybdenum rod is twice that of a graphite rod, leading to severe thermal stress mismatch with components such as quartz crucibles and graphite heaters, which can cause crucible rupture or heater deformation.
Risk of Metal Contamination: At high temperatures, molybdenum rods release trace amounts of molybdenum ions. For the growth of semiconductor-grade monocrystalline silicon (which requires metal impurities <0.1 ppb), this level of contamination is unacceptable. A photovoltaic company once suffered direct losses exceeding one million yuan due to abnormal resistivity in an entire batch of silicon material caused by contamination from molybdenum support columns.
In contrast, high-purity graphite support rods, with their three core advantages—ultra-high-temperature stability, extremely low thermal expansion, and zero metal contamination—have become the standard configuration in the global semiconductor and high-end heat treatment industries.
Stable and distortion-free across an ultra-wide temperature range: Isostatic-pressed graphite features uniform internal density and an extremely low coefficient of thermal expansion. It can operate continuously at 2,200°C for extended periods in vacuum or argon-protected environments. Repeated thermal shock cycles will not cause cracking or bending, significantly reducing equipment downtime for maintenance and extending the service life of the furnace’s thermal field by 3–5 times.
Ultra-low ash content and zero contamination, suitable for precision manufacturing: The graphite support rods specifically designed for the photovoltaic and semiconductor industries are made from raw materials with an ultra-low ash content of 10 ppm. They do not leach heavy metal impurities, ensuring that the crystal pulling and wafer annealing processes do not contaminate the silicon melt or chip substrates. This effectively reduces the defect rate of finished products and fully meets cleanroom production standards.
Naturally Self-Lubricating, Maintenance-Free, and Cost-Effective: The layered crystal structure of graphite provides inherent self-lubrication. The support rod rotates and moves up and down smoothly with the graphite sleeve and nut without jamming, eliminating the need for additional lubricant. This prevents contamination of workpieces caused by high-temperature oil evaporation and reduces long-term labor and maintenance costs.
High Resistance to Acid and Alkali Corrosion, Suitable for Complex Chemical Processes: Graphite is highly chemically inert and can withstand strong acids, strong alkalis, high-temperature corrosive fumes, and molten metal erosion. It will not rust, suffer pitting, or perforate during long-term use in chemical processing, smelting, and non-ferrous metal sintering furnaces, extending the overhaul cycle by several times compared to metal shafts.
Balanced thermal and electrical conductivity, optimizing furnace energy consumption: The material’s uniform and stable thermal and electrical conductivity helps balance the temperature distribution within the furnace, preventing localized overheating and scrap of workpieces. At the same time, it ensures stable electrical current conduction, reducing energy consumption during industrial furnace heating and improving the production efficiency of the entire production line.
Incorrect selection is the primary cause of premature failure in graphite support rods. Ningheda New Material recommends following this four-step decision-making process for selection:
Temperature Range | Recommended Atmosphere | Available Material Grades | Important Notes |
<400°C | Air | Grade C (Extruded Graphite) | No coating required |
400–1600°C | Air | Grade B/C + SiC Anti-Oxidation Coating | The coating lasts approximately 6–12 months |
<2200°C | Vacuum/Ar/N₂ | Grade A/B (Isostatic Pressing/Mold Pressing) | Best Value-for-Money Range |
2200–3000°C | Vacuum/Ar | Grade A (High-Purity Isostatic Pressing) | The sublimation rate must be taken into account |
Static loads (e.g., crucible supports): Select based on compressive strength, with a safety factor of ≥2.
Dynamic loads (e.g., push-rod drives): Select based on flexural strength, with a safety factor of ≥3, and verify fatigue life.
Thermal stress (frequent temperature cycling): Give priority to Class A materials with a low coefficient of thermal expansion (CTE).
General Industry: Ash content < 600 ppm; cost is the top priority
Photovoltaic/LED: Ash content < 300 ppm; balance cost and performance
Semiconductor/Aerospace: Ash content < 50 ppm; performance is the top priority, followed by cost
Ningheda New Material' processing capabilities cover:
Parameters | Scope | Tolerance |
Diameter | Φ5mm – Φ300mm | ±0.02mm |
Length | ≤2500mm | ±0.5mm |
Straightness | — | ≤0.05mm/1000mm |
Thread | M6–M64, UNC/UNF | 6g class |
Inner diameter | Φ≥20mm | Depth-to-diameter ratio ≤ 50:1 |
Jiangxi Ningheda New Material has nearly 10 years of experience in precision machining of carbon and graphite materials, specializing in the production of graphite components for the thermal fields of high-temperature industrial furnaces. Compared to our competitors, we possess five core competitive advantages:
Raw Material Quality Control: We have our own procurement channels for high-purity graphite billets and test each batch for density and ash content to eliminate porous, impure, or substandard base materials;

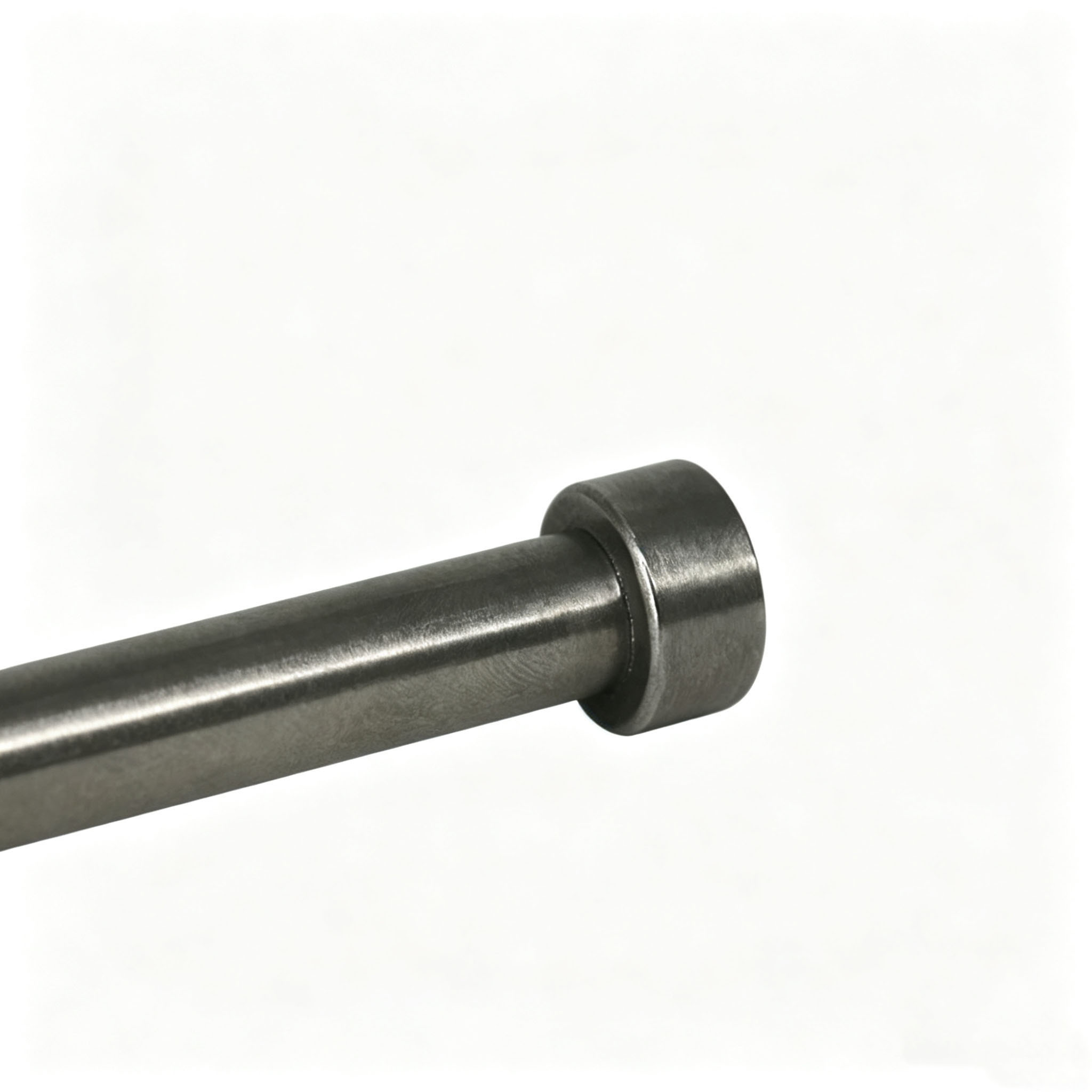

Precision Machining Workshop: Equipped with multi-axis CNC machining centers, we produce complex stepped and ball-head structures in a single piece, eliminating the need for secondary assembly and ensuring more stable load-bearing capacity;
End-to-End Quality Inspection: Each finished product is individually inspected for dimensional accuracy, surface finish, and internal crack-free integrity, and is shipped with a material test report;
Dedicated Technical Support: Engineers provide free consultation to recommend optimal graphite material and support rod dimensions based on the customer’s furnace chamber temperature, vacuum level, and load capacity;
Global Export and Delivery: Products are exported to photovoltaic and heat treatment facilities in Europe, the Americas, and Southeast Asia. We support sea, air, and rail shipping, provide complete customs clearance documentation, and offer free sample shipping for testing.
A1: The two are not interchangeable in function. Graphite screws are used exclusively for threaded fastening of small parts; they are short in length and do not bear heavy loads. Graphite support rods, on the other hand, are long, load-bearing structural components that play a central role in the lifting, rotation, and transmission of crucibles and tooling. They must continuously bear heavy mechanical loads and are core structural components of the furnace.
A2: Under vacuum, nitrogen, or argon inert protective atmospheres, they can operate continuously and stably at 2200°C for extended periods; in unprotected, air-oxidizing environments, the recommended operating temperature is ≤600°C. For oxidizing conditions, models with anti-oxidation coatings can be customized to extend service life.
A3: Models specifically designed for photovoltaic applications use ultra-low-ash, high-purity graphite (10 ppm), with extremely low levels of heavy metal impurities. No impurities leach into the molten silicon at high temperatures, so they will not cause abnormal resistivity in the ingots or black spot defects.

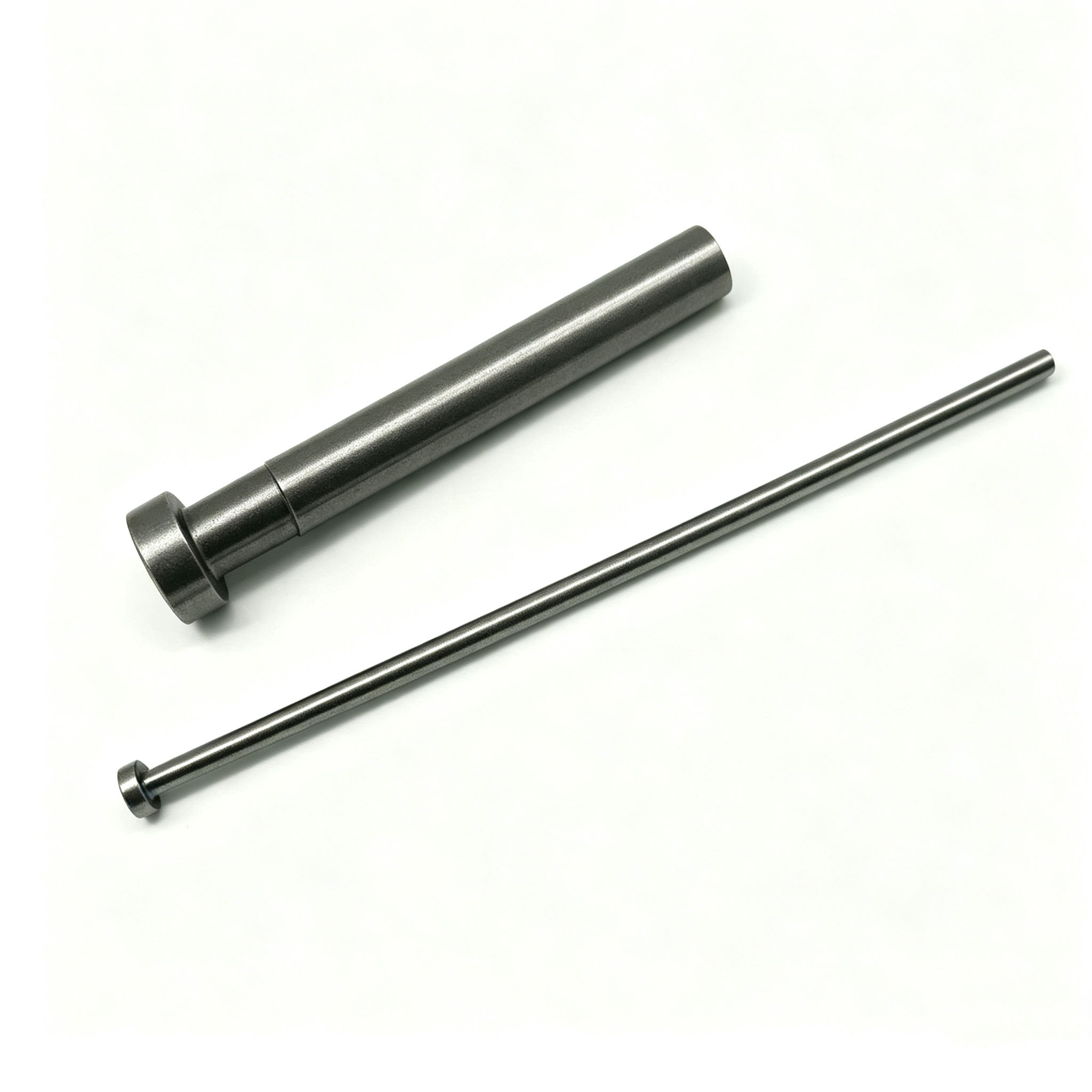

A4: We support full-drawing custom manufacturing for non-standard designs, including stepped shafts, ball-head designs, and multi-step irregular-shaped graphite support rods. We also provide complete sets of accessories, such as matching graphite sleeves and support bases.
A5: Ningheda New Material’ products have been exported to more than 20 countries, including Germany, the United States, Thailand, South Korea, Canada, Russia, and Brazil. We have extensive experience in export customs clearance and logistics.
If you are looking for durable, low-contamination, long-life load-bearing transmission components for single-crystal pulling furnaces, vacuum heat treatment furnaces, or metallurgical sintering equipment—and if traditional metal support shafts frequently deform and become scrap, driving up production costs—please provide the following information, and we will provide a detailed quote and technical solution within 24 hours:
Operating temperature and atmosphere (vacuum/Ar/N₂/air?)
Support rod dimensions (diameter × length) or technical drawings
Load requirements (static load? Are there any impact loads?)
Purity requirements (general <500 ppm / high purity <50 ppm / ultra-high purity <10 ppm?)
Purchase quantity and delivery destination
