Industrial-Grade Graphite Guide Rollers (Graphite Guide Wheels) | Guide Rollers Specifically Designed for Glass Fiber Drawing | Reduce Wire Breakage and Extend Service Life

▍Product Description

Ningheda graphite cluster wheels are manufactured in strict accordance with high-end industrial production standards, with rigorous quality control throughout the entire process—from raw material selection to final product shipment. Utilizing high-pressure molding technology to create a dense internal structure, combined with a finely tuned and optimized formulation, these products significantly enhance overall performance. Unlike ordinary graphite wheels on the market, our graphite bundle wheels balance strength with flexibility, ensuring stable operation even under harsh production conditions involving continuous high-temperature operation and frequent thermal cycling.

With extremely low levels of internal impurities, the product will not contaminate or damage glass fibers or various types of wire during production or use. This effectively reduces fiber breakage rates and improves the overall yield rate of finished fiber products. In addition to supplying standard-specification graphite cluster wheels, we offer one-on-one custom manufacturing services tailored to our clients’ on-site equipment parameters, production conditions, and specific requirements. We also provide our partners with industry-specific technical guidance and production optimization solutions to comprehensively address any challenges they may face.

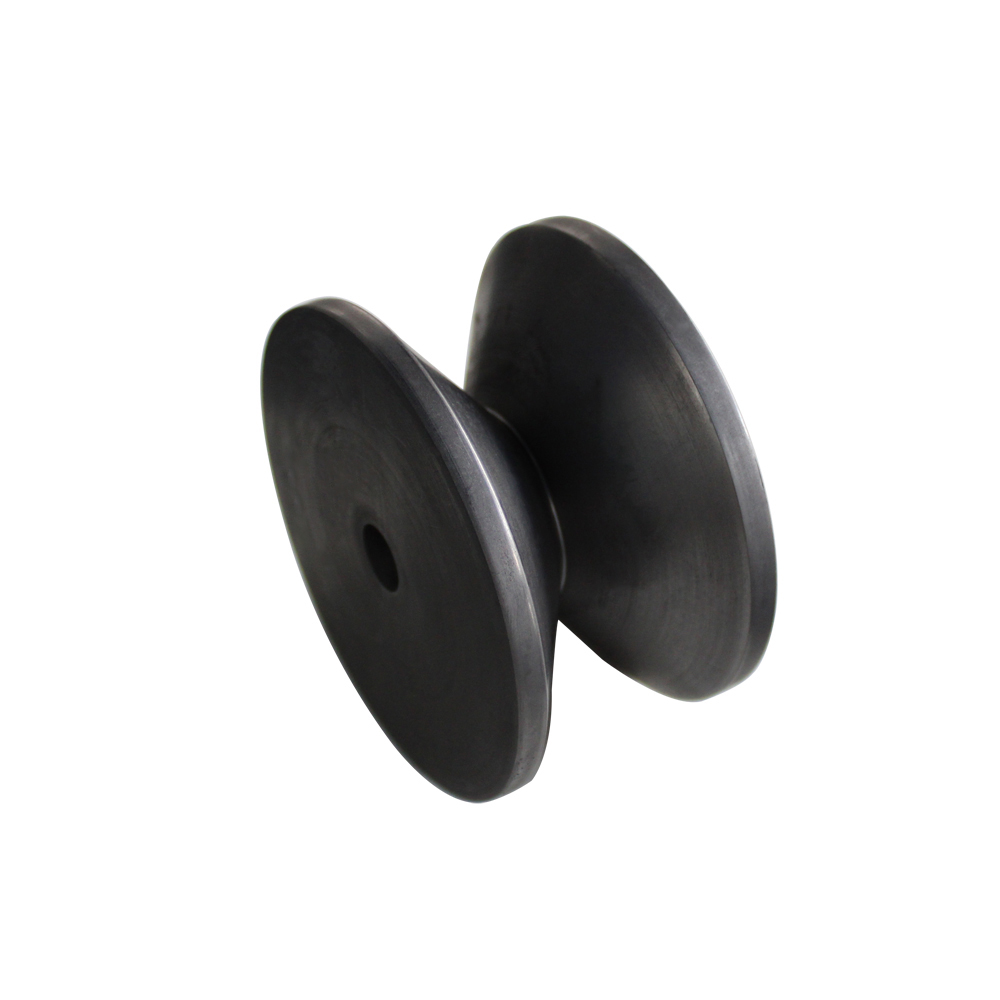

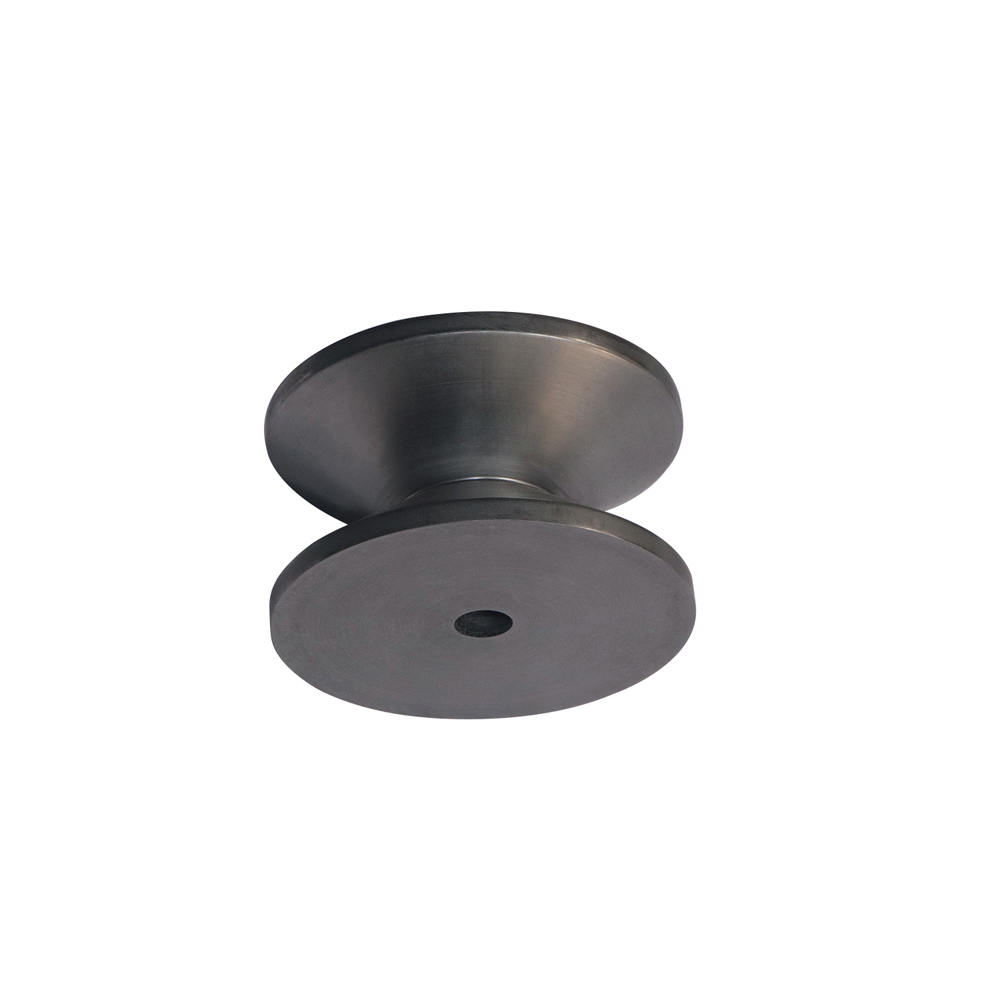

Compact-V-Groove-Roller

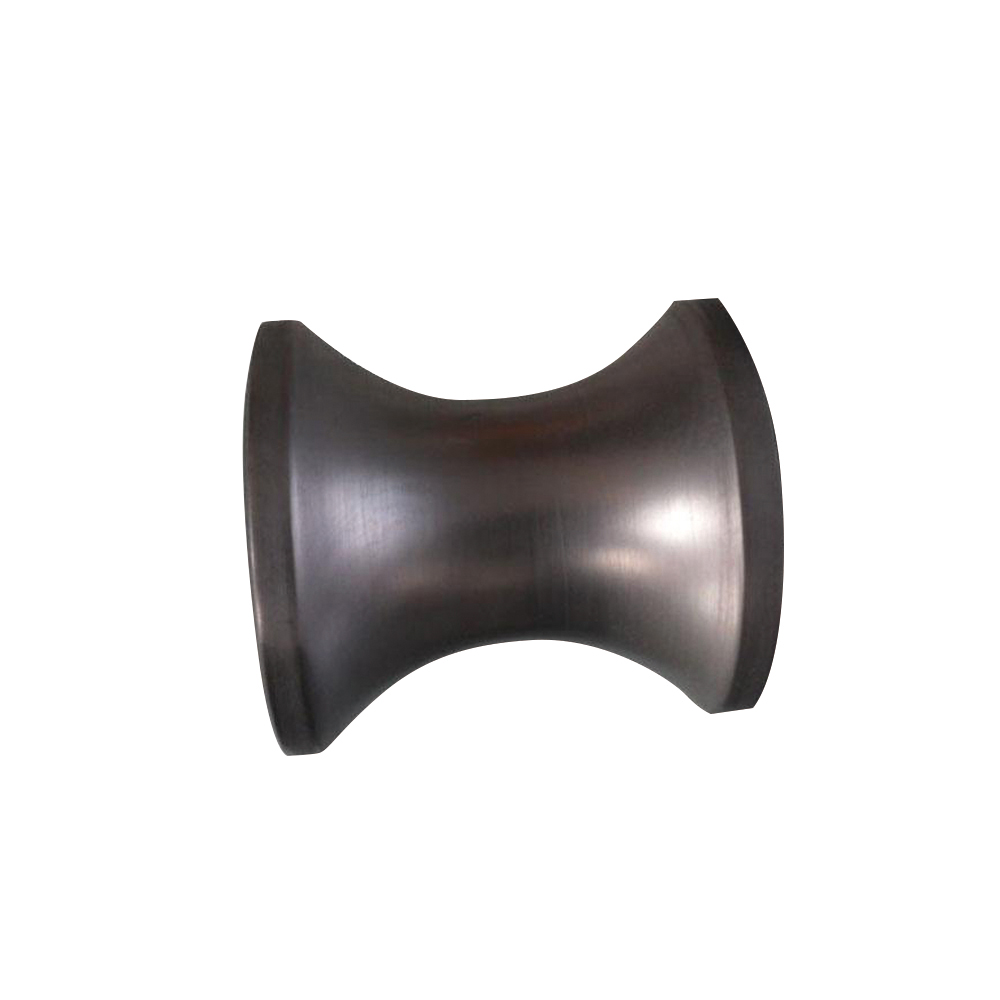

Deep-V-Groove-Guide-Wheel

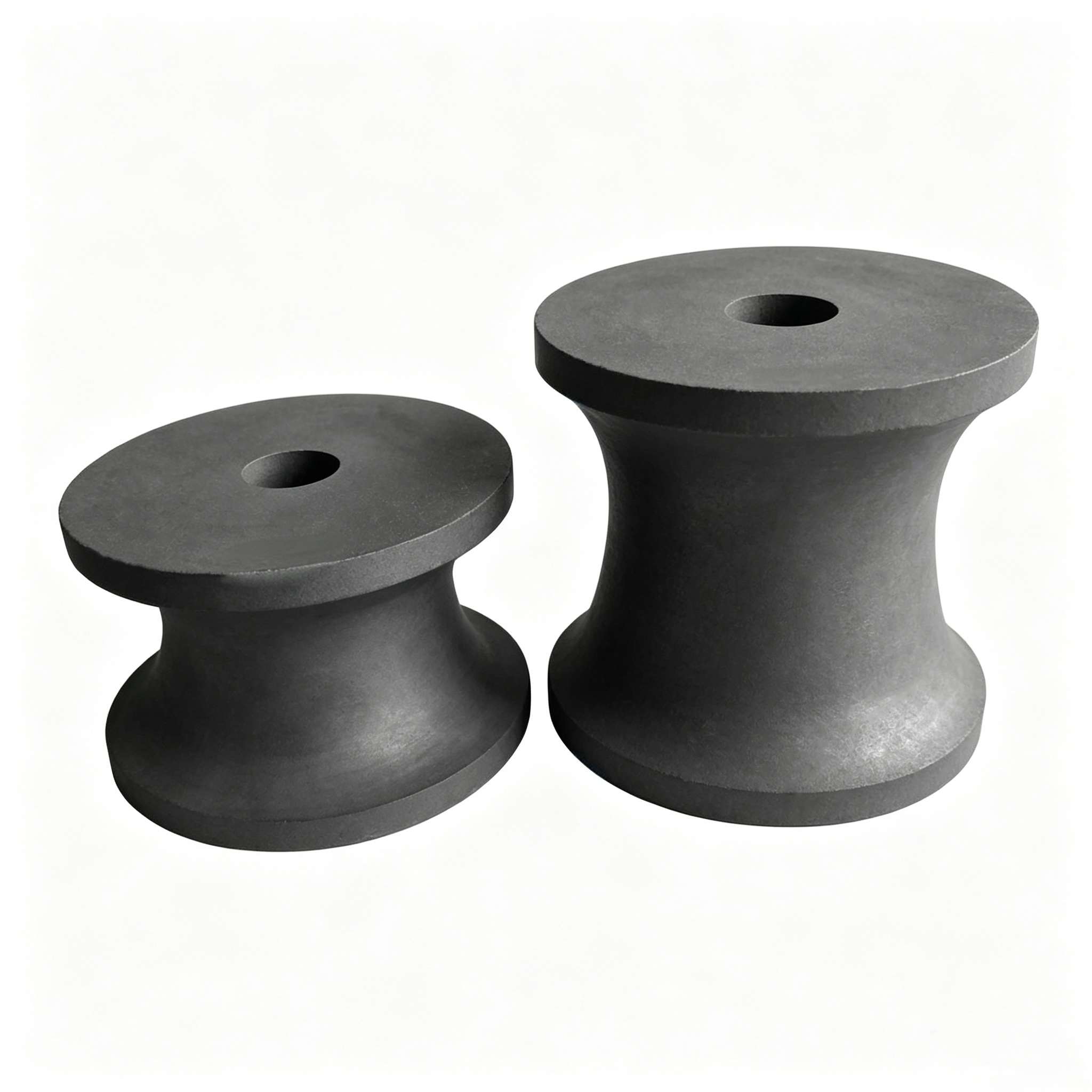

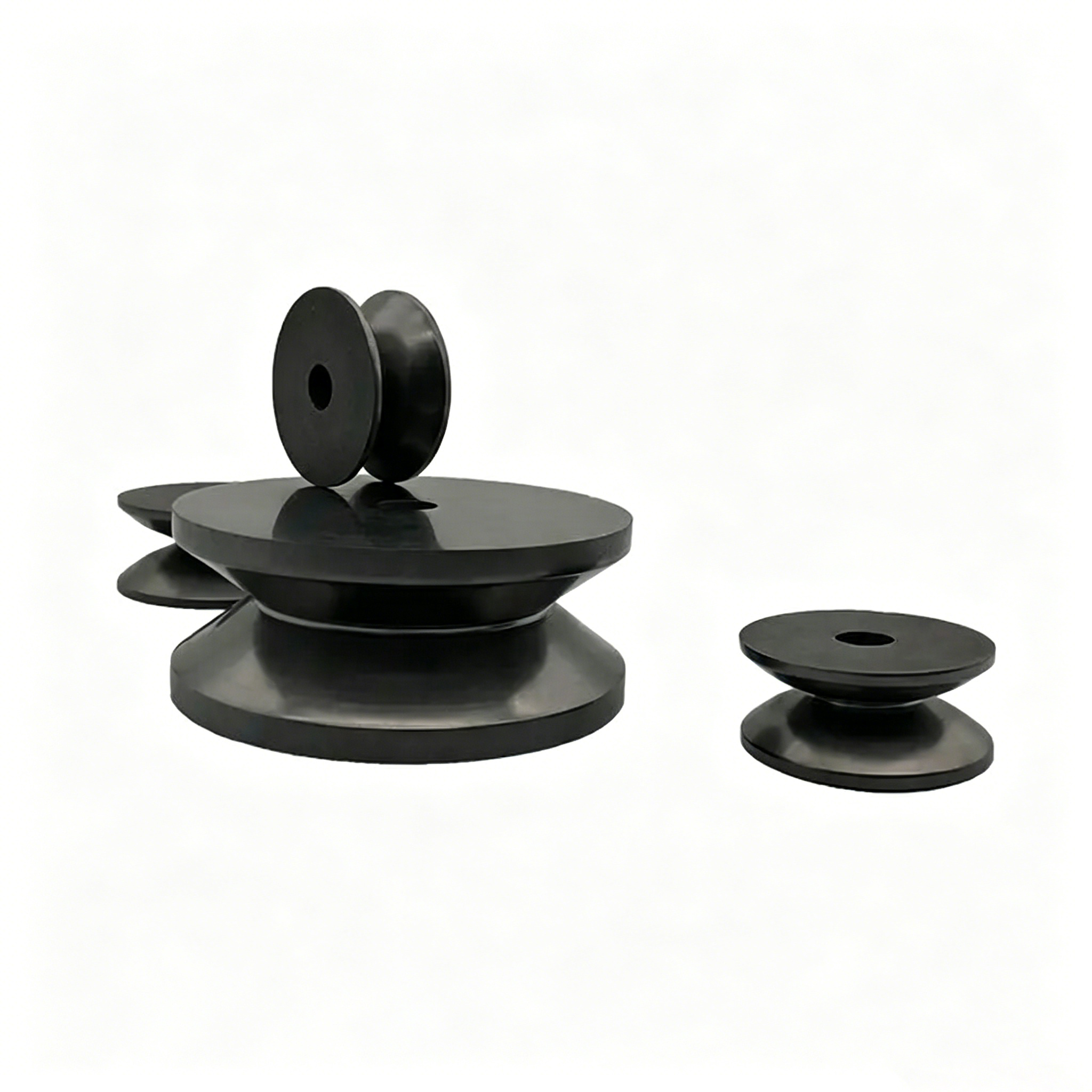

Mixed-Size-Comparison-Set

▍Product Specifications

Customizable dimensions:

·Outer diameter: 50–500 mm

·Groove width: 2–50 mm

·Groove depth: Customized based on fiber diameter

·Inner diameter: 10–100 mm

·Total thickness: 20–120 mm

Double-Layer-Fiber-Separator

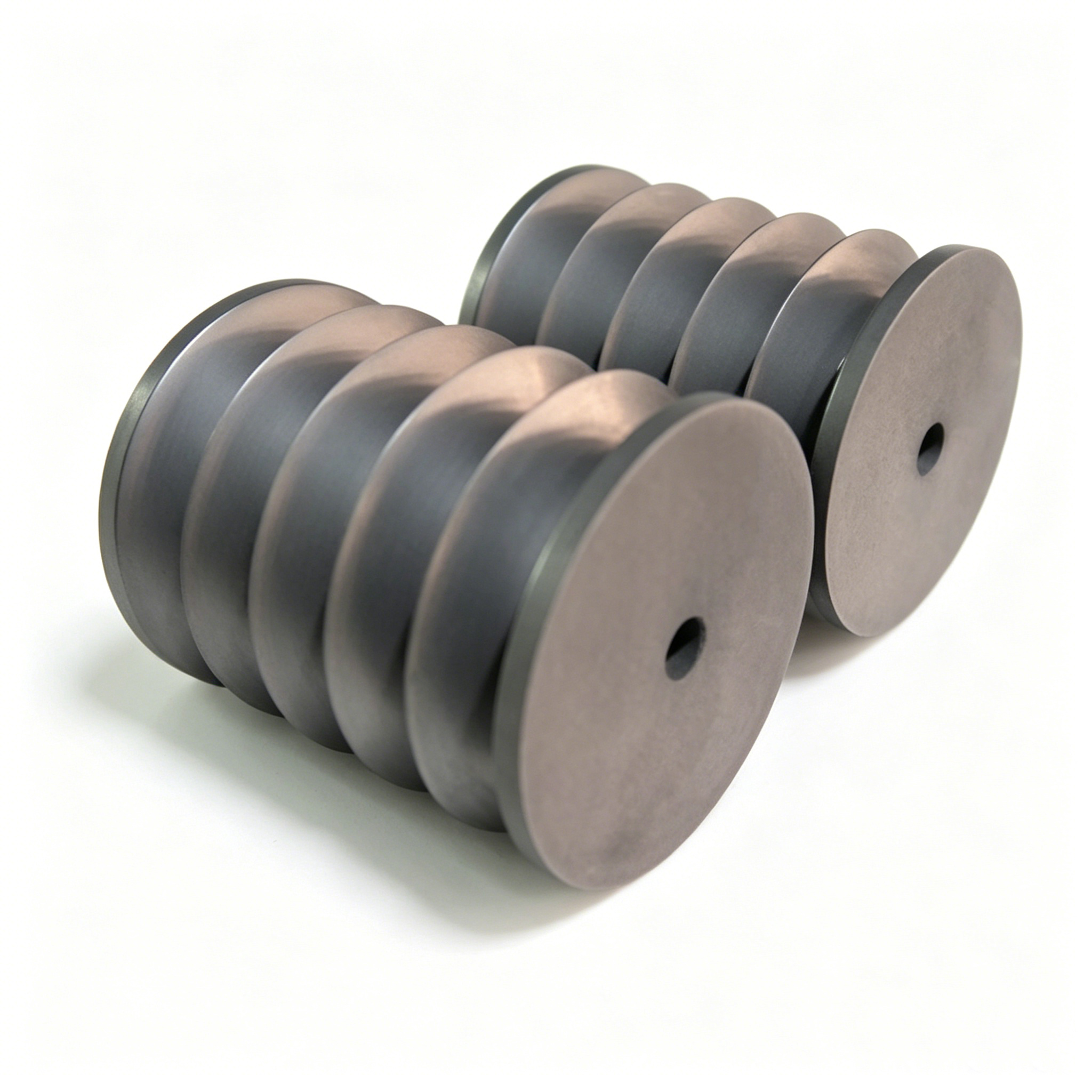

Five-Channel-Bunching-Wheel

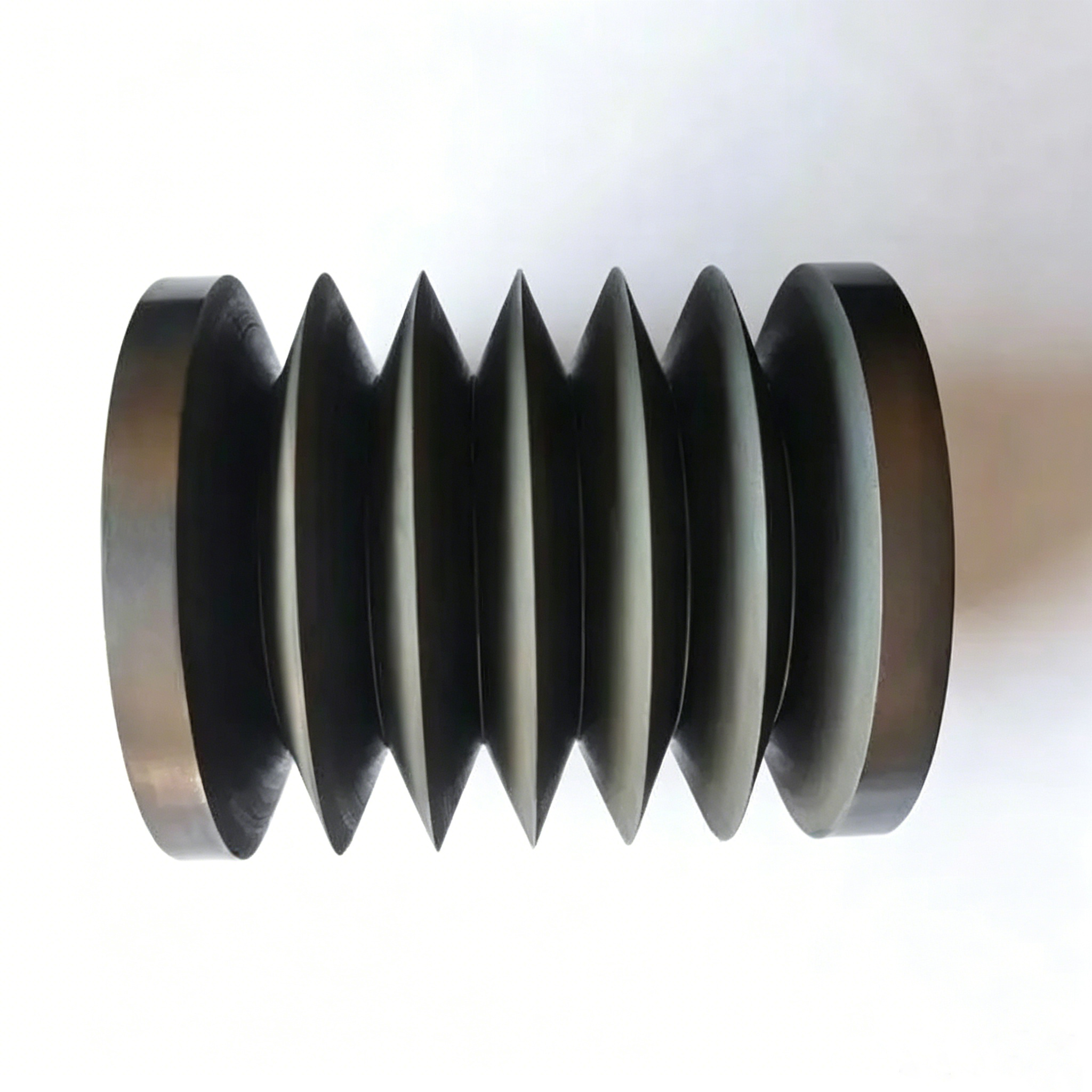

Sharp-Tooth-Multi-Strand-Guide

▍Key Features of the Product

Compared to standard products on the market, our graphite cluster wheels have been extensively optimized in the following five areas:

1. The surface has undergone a fine mirror-finish polishing process, resulting in a smooth, burr-free finish that ensures smooth wire movement without scratching the fiber cables.

2. Excellent self-lubricating properties eliminate the need for additional lubricants, simplifying the production process.

3. High overall density and compact texture ensure slow wear and tear, extending the replacement cycle.

4. High machining precision allows for precise customization of groove profiles, hole diameters, and outer diameters, making it compatible with the vast majority of mainstream production equipment.

5. Lightweight yet highly durable, it is easy to install and suitable for use on various automated production lines.

▍Main Application Scenarios and Their Benefits

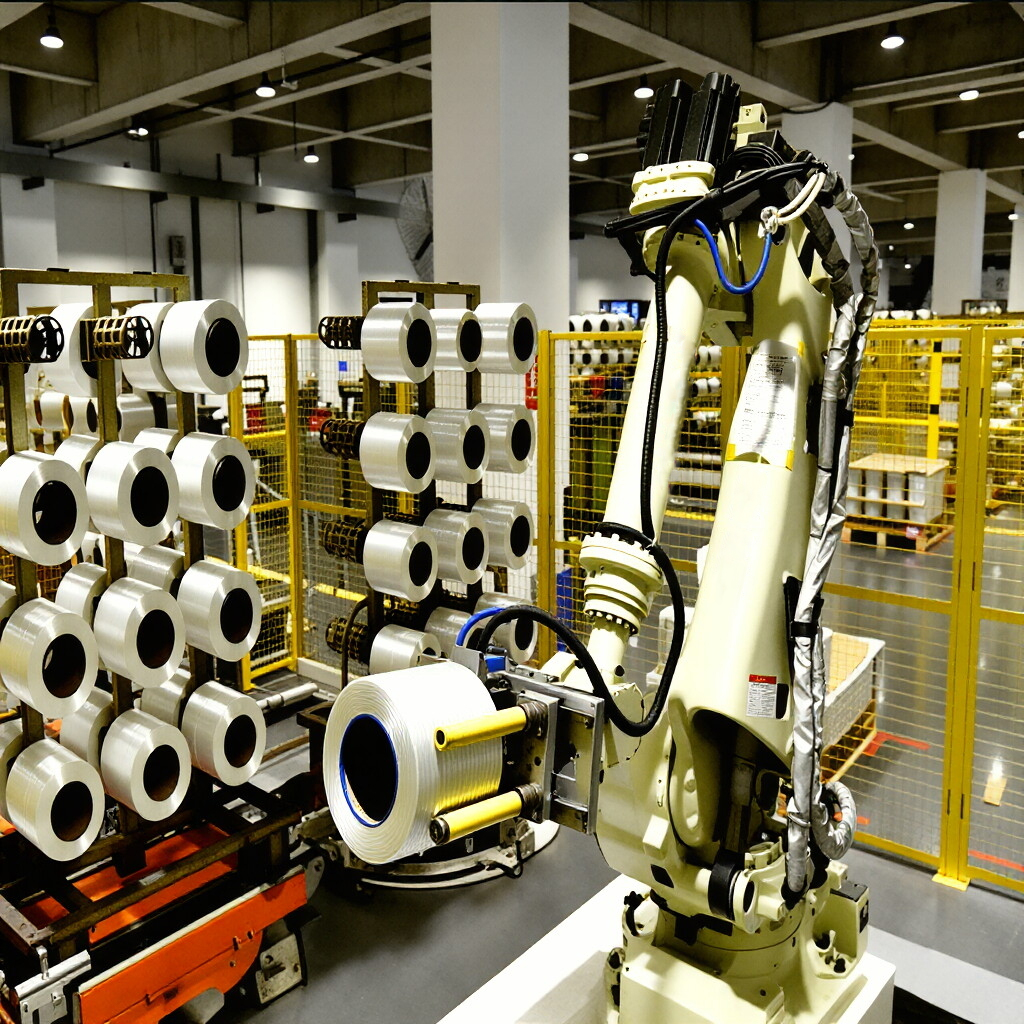

Glass Fiber Production

Metal Wire Processing

Precision Electronic Manufacturing

Solar & New Energy Industry

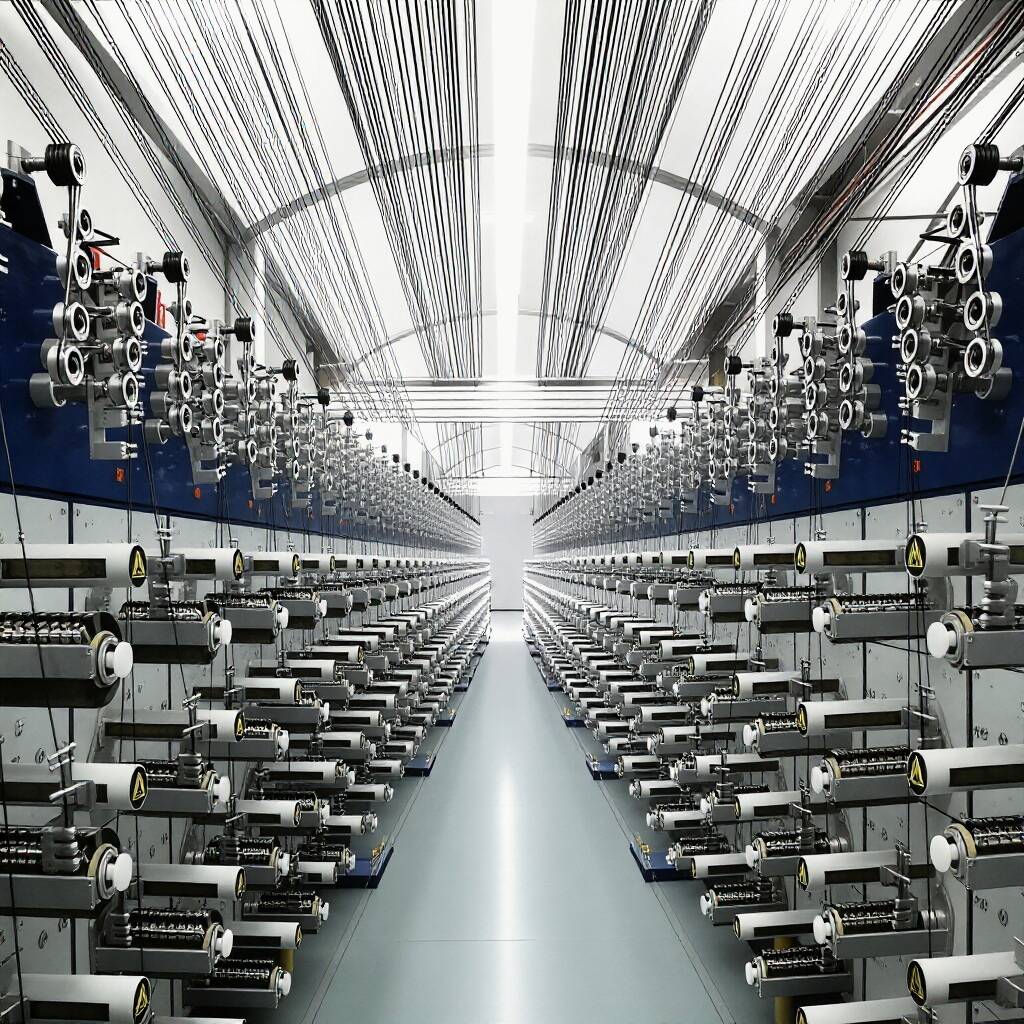

Chemical Fiber Spinning

▍Business Support Services

In addition to its full range of standard graphite cluster wheels, Jiangxi Ningheda New Material Co., Ltd. also supplies a comprehensive selection of graphite products, including industrial graphite molds, graphite components, and graphite electrodes. We also provide value-added services to our partners, including industry-specific application technical support, production line adaptation and optimization solutions, and technical support for process upgrades. From product supply to technical assistance, we offer a one-stop service dedicated to helping our customers achieve stable production, reduce costs, and improve efficiency. For any procurement or customization needs regarding graphite products, please feel free to contact us online at any time for consultation and discussion.

▍FAQ

• Q1: What is the typical service life of your graphite cluster wheels?

  A: Service life depends on specific operating conditions, including temperature, rotational speed, and ambient atmosphere. With proper maintenance, our graphite cluster wheels offer a service life that is at least 30% longer than that of standard products. Please provide details of your operating conditions so we can conduct a detailed assessment for you.

• Q2: Do you offer customization based on non-standard drawings?

  A: Yes, Jiangxi Ningheda New Material Co., Ltd.  has a professional machining workshop and supports customization based on provided drawings or samples. Whether it involves special bore diameters, groove profiles, or outer diameter dimensions, we can machine them with precision.

• Q3: Do graphite cluster wheels require regular maintenance during use?

  A: They possess inherent self-lubricating properties, so daily maintenance simply involves keeping the surface clean. No frequent maintenance is required, making them hassle-free and effortless to use.

• Q4: Does the impurity content of your products meet export standards?

  A: We strictly control impurity levels in all products to ensure compliance with foreign trade export quality inspection requirements. Our products meet the industrial production standards of many countries overseas.

• Q5: What is the main difference between high-purity and standard grades? How do their applications differ?

  A: The key differences lie in purity and density. High-purity grade (≥99.95%) has extremely low impurity levels and is primarily used in applications with extremely high cleanliness requirements, such as electronic-grade glass fiber and aerospace fibers. Standard grade (≥99.5%) offers better value for money and is suitable for general industrial applications, such as standard industrial glass fiber and construction-grade glass fiber. If customers are unsure, we recommend first providing the application area of the final product so we can assist in determining the appropriate grade.
