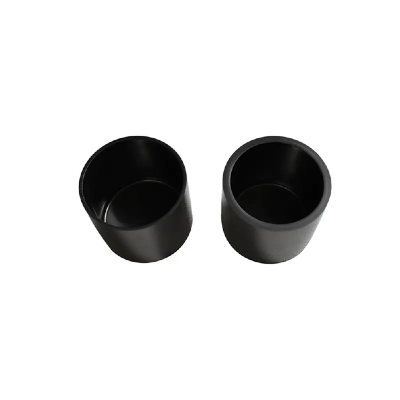

When engineers or procurement managers evaluate options for thin film deposition, one of the most decisive factors is the choice of graphite crucible. A well-specified Vacuum Evaporation Graphite Crucible directly impacts film purity, deposition yield, and long-term operating cost. At Jiangxi Ningheda New Material Co., Ltd., we have worked with industries from optics to packaging to supply reliable graphite crucible for evaporation applications. This guide breaks down the main considerations so you can specify the right crucible with confidence.
Choosing the right graphite crucible is not just about size—it is about ensuring the crucible matches your evaporation method, compatible materials, and operating conditions. Before issuing a purchase order, confirm the following key points.
The evaporation method dictates which crucible geometry and grade will perform best. For example:
E-beam evaporation often requires crucibles that can withstand focused high-energy beams without cracking.
Thermal or resistive evaporation needs crucibles that conduct heat evenly to achieve uniform melt.
Flash or high-rate evaporation calls for crucibles optimized for rapid heating and cooling cycles.
Selecting the crucible according to the evaporation source ensures stable process conditions and prevents unnecessary downtime.
Every deposition material interacts differently with a graphite crucible. Metals such as aluminum or silver may wet the crucible walls, while oxides and fluorides may require liners to prevent reaction. A compatibility chart from the vendor is worth checking, especially if you plan to use the same crucible for multiple materials. A mismatch between crucible and deposition material often leads to short crucible lifespan or unpredictable coating quality.
The crucible must tolerate the maximum thermal load in your vacuum chamber. For example, aluminum evaporation requires temperatures around 1200 °C, while refractory metals may demand higher thresholds. Confirm the maximum continuous temperature rating of the crucible grade you order, and always include a margin above your expected working range for safety and reliability.
Laboratory-scale trials may accept small capacity crucibles, while batch or continuous production lines require stable thermal cycling and longer crucible lifespan. Define your production scale early to match crucible design to real-world workload. A pilot-line crucible may perform perfectly in R&D but prove inefficient in mass production if the capacity is too limited.
There are multiple grades of graphite used in crucibles. The two most common are:
Isotropic graphite: Fine-grained, excellent strength, highly uniform properties. Preferred in demanding optical and semiconductor evaporation processes.
Molded graphite: Economical option, good thermal shock resistance, widely used in general evaporation.
Isotropic graphite generally costs more but is ideal for applications where coating consistency and yield are critical. Molded graphite remains popular for less demanding applications where cost control is important.
Impurities such as iron, silicon, aluminum, sodium, potassium, or lead can contaminate thin films. When specifying a crucible, ask for impurity levels in ppm and request a certificate of analysis. High-purity crucibles help avoid issues such as pinholes, cloudiness, or unwanted color in the deposited layer.
Film contamination not only lowers yield but can also cause defective optical properties or reduced barrier strength in packaging. By selecting a high-purity graphite crucible, engineers minimize risk of film discoloration, particle defects, and unwanted dopants in metallic or dielectric films. For industries like semiconductors and optics, purity is directly tied to product performance.
Geometry influences how vaporized material spreads across substrates.
Straight-wall crucibles deliver consistent evaporation rates.
Tapered or conical designs promote better material utilization.
Angled mouths control vapor plume direction, improving uniformity on large substrates.
Choosing the right geometry can reduce wasted material and achieve the uniformity demanded by high-specification thin films.
A general rule is to fill crucibles only 60–80% of their volume. Overfilling risks spillage, while underfilling wastes energy. For example, a 50 ml crucible should not exceed 40 ml of charge material. Correct fill level ensures stable melt behavior, predictable deposition, and longer crucible life.
Liners such as boron nitride (BN), copper, or specialized coatings provide a protective barrier between crucible and evaporation material.
Pros: Minimize contamination, extend crucible lifespan, improve wetting behavior.
Cons: Added cost, potential liner cracking at high temperature, reduced capacity.
For aluminum evaporation and other reactive metals, liners are often recommended. For organic materials, a bare graphite crucible for evaporation is usually sufficient.
Graphite crucibles transfer heat differently compared to metallic hearths. The thermal conductivity of graphite ensures rapid and uniform heating, which stabilizes evaporation rates. Stable heating translates into improved film uniformity and controlled deposition thickness.
Graphite crucibles allow flexible power ramping. A slow ramp prevents material splatter, while controlled ramp profiles extend crucible life. For example, when evaporating aluminum or gold, ramping power gradually helps prevent sudden bursts that could lead to defects in the deposited film.
Energy efficiency is often overlooked. A properly specified graphite crucible lowers power consumption and shortens cycle times. For continuous production of metallized film or metallic yarn, this can translate into significant cost savings across hundreds of cycles. Selecting a crucible with the right thermal profile ensures higher throughput and reduces unplanned shutdowns.
Always request certificates of analysis, ideally based on ICP or other spectroscopic methods, to confirm impurity levels. Quality vendors provide these proactively, giving engineers confidence in film quality before production begins.
Graphite crucibles are consumables—delays can halt production. Work with vendors who can provide safety stock or quick turnaround on standard sizes. For specialized geometries, confirm lead times and tooling requirements in advance to avoid bottlenecks.
A reliable vendor offers not only warranty but also technical guidance for first-time installation. Upon delivery, test crucibles with a small charge material to confirm performance before committing to full production runs. A structured incoming inspection prevents costly errors downstream.
Choosing the right graphite crucible for vacuum evaporation means balancing material grade, purity, geometry, and thermal performance to match your application. At Jiangxi Ningheda New Material Co., Ltd., we provide Vacuum Evaporation Graphite Crucible solutions designed for precision thin film deposition, metallized packaging, and electronic applications. Our experience in graphite processing ensures that each crucible delivers stability, efficiency, and high yield in demanding environments. If you are preparing your next project and need reliable graphite crucible for evaporation, contact us today for technical guidance and product specifications.
