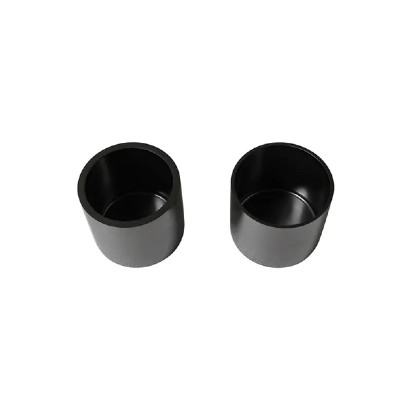

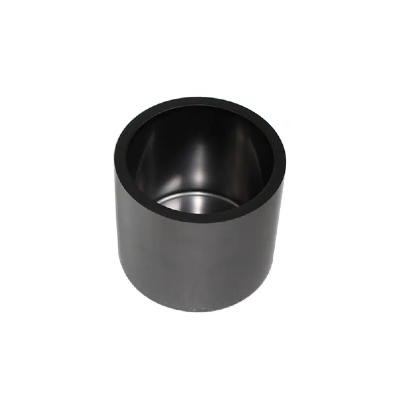

Graphite Crucible for Aluminum Evaporation — How To Avoid Wetting, Overflow And Contamination

Aluminum evaporation presents unique challenges compared with other metals, and choosing the right graphite crucible for aluminum evaporation is key to stable, clean results. Because molten aluminum readily wets graphite surfaces, engineers need to control loading, fill levels, and liner choices to prevent overflow and contamination during vacuum deposition. At Jiangxi Ningheda New Material Co., Ltd., a subsidiary of Jiangxi Ningxin New Materials, we provide precision-engineered graphite crucibles for evaporation processes that help laboratories and production lines avoid these pitfalls. This guide explores practical solutions for handling aluminum in graphite crucibles, from filling strategies to liner options and contamination controls.

Why Aluminum Needs Special Treatment in Graphite Crucibles

Wetting behavior and effect on melt profile

When aluminum melts inside a graphite crucible, it tends to spread and “wet” the crucible walls instead of forming a stable pool. This wetting alters the shape of the melt, raising the risk of overflow if the crucible is overfilled. Unlike materials such as gold or silver, aluminum’s wetting behavior can also create uneven evaporation zones, reducing film uniformity on substrates. The wetting effect is more pronounced at higher temperatures, so operators must carefully regulate power input and crucible geometry.

Oxide formation and vapor species that affect film purity

Aluminum oxidizes rapidly in air, and even in vacuum systems trace oxygen can lead to oxide formation on the melt surface. During evaporation, aluminum oxide can break apart into vapor species, resulting in inclusions or dark spots in deposited films. These impurities compromise film purity and adhesion, especially for applications like metallized films, reflective coatings, or electronic packaging. Oxide particles also change the effective deposition rate because they evaporate differently than pure aluminum. Maintaining a clean vacuum environment and using oxide-free aluminum shots are two key steps in reducing this issue.

Vapor pressures and handling notes specific to aluminum

Aluminum’s vapor pressure increases sharply once the melt reaches operational temperatures around 1200°C. A sudden rise in vapor pressure can generate micro-explosions or splattering inside the crucible. This makes controlled ramping essential: heating too quickly causes localized boiling and spitting, while a slower ramp promotes a stable pool and consistent evaporation. Engineers often program multi-step ramps, with intermediate dwell times, to let the aluminum surface stabilize before moving to full evaporation power.

Loading and the 70% Fill Rule

How to compute weight and volume for a given crucible

Correct loading begins with matching the crucible’s internal volume to the density of aluminum. Engineers should calculate:

Crucible internal volume (π × radius² × height for cylindrical types).

Multiply by aluminum’s density (2.7 g/cm³).

Apply the 70% rule for safe fill level.
For example, a crucible with 100 cm³ volume holds 270 g of aluminum at maximum, but only about 190 g should be loaded for safe operation. For large-scale production, software tools or in-house calculators can simplify this process, ensuring repeatability.

Why aluminum fill is commonly limited to 70%

Because aluminum wets the walls and climbs higher than its apparent level, overfilling often leads to overflow during heating. Limiting the fill to roughly 70% provides a margin for expansion and wetting effects. This practice reduces the chance of splatter inside the chamber, which could contaminate substrates or damage the evaporation system. Experienced operators know that even small deviations from this rule can dramatically increase chamber cleaning frequency and reduce overall uptime.

Filling tips to avoid air pockets

Packing density matters as well. Engineers should break larger aluminum feedstock into smaller pieces and distribute them evenly in the crucible. Avoiding large gaps prevents sudden collapse during melting, which can cause splashes. Preheating the feedstock to remove surface moisture also lowers the risk of contamination. In some cases, pelletizing aluminum into uniform shapes helps achieve more predictable melting behavior.

Liners, Coatings and Alternate Crucible Materials for Aluminum

When BN or metal liners help

One common solution to aluminum wetting is the use of liners, especially boron nitride (BN). BN provides a non-wetting surface, ensuring that aluminum pools smoothly without creeping up the crucible walls. However, BN liners are consumables: they add cost and must be replaced after several cycles. Metal liners, such as molybdenum or tantalum, offer similar benefits but may react differently depending on deposition temperature. The choice depends on whether the priority is longer lifetime or maximum film purity.

Alternatives for different evaporation setups

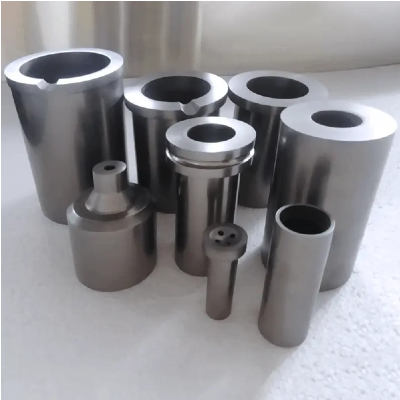

In electron beam evaporation, copper or custom boat-style liners may be used. These reduce direct interaction between aluminum and graphite, extending crucible life. However, trade-offs exist: thermal evaporation setups may prefer BN coatings, while e-beam processes tolerate metallic liners better. Engineers must balance cost, liner durability, and desired film purity when selecting the best option. Additionally, crucibles with specially machined grooves or contoured interiors are sometimes used to control melt behavior and reduce wetting.

Process Controls to Reduce Contamination

Pre-bake and degassing procedures

Before loading aluminum, it is good practice to pre-bake graphite crucibles to drive out residual gases. Degassing at moderate temperature under vacuum prevents trapped gases from escaping later and introducing contamination during deposition. Ramp rates should be gradual, giving both the crucible and aluminum time to stabilize. This is especially important when crucibles are reused multiple times, as absorbed moisture and hydrocarbons build up between runs.

Vacuum level targets and deposition rate control

Aluminum evaporation requires maintaining a base pressure in the 10⁻⁵ Torr range or lower. At higher pressures, residual gases interact with the vapor stream, creating oxides and inclusions. Engineers must also control deposition rates: too fast leads to stress and rough films, while too slow reduces efficiency. A steady rate around 1–3 Å/s is typically recommended for many coating applications. Advanced systems may use quartz crystal monitors to dynamically adjust deposition rate, ensuring consistency across multiple batches.

Monitoring and simple QC checks

Quality control is crucial in aluminum evaporation. Simple test films on witness substrates can be examined for dark spots, uneven thickness, or poor adhesion. Advanced QC methods include X-ray fluorescence (XRF) or energy dispersive spectroscopy (EDS) to detect contamination. Regular monitoring ensures early detection of crucible degradation or feedstock impurity. Some production facilities keep historical logs of film defects correlated with crucible usage cycles, helping optimize replacement schedules and reduce downtime.

Troubleshooting Table: Symptom, Cause, Fix

Overflow or splatter

Likely cause: Overfilled crucible or heating too fast.
Fix: Reduce fill level to 70% and ramp temperature more gradually.

Dark spots or inclusions

Likely cause: Oxidized or impure aluminum feedstock, or crucible contamination.
Fix: Replace liner, use higher-purity feedstock, and pre-bake crucibles.

Uneven deposition across substrate

Likely cause: Poor source geometry or shutter misalignment.
Fix: Re-align crucible mouth or adjust shutter timing to ensure uniform coverage.

Low film adhesion

Likely cause: Residual moisture or poor substrate preparation.
Fix: Improve substrate cleaning, extend pump-down time, and verify degassing cycle.

Rapid crucible wear

Likely cause: Excessive wetting or incompatible liner material.
Fix: Switch to BN liner or specialized crucible design tailored to aluminum.

Practical Example: Scaling From Lab to Production

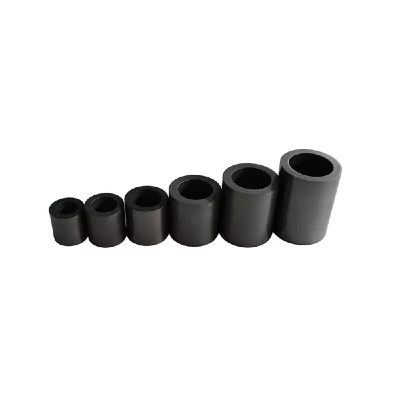

Small-scale R&D systems often tolerate minor inefficiencies, but when scaling aluminum evaporation to industrial production, the margin for error narrows. A laboratory may run with a 20 ml crucible filled with a few grams of aluminum, while production lines use multi-hundred ml crucibles holding kilograms of material. At this scale, a single overflow event could halt production for hours, leading to costly downtime. Using precision-machined graphite crucibles for evaporation, paired with liners and pre-bake cycles, helps ensure that scaling up does not introduce new failure points.

Conclusion

Choosing the right graphite crucible for aluminum evaporation requires more than just picking a container—it means understanding how aluminum behaves under heat and vacuum, applying correct fill strategies, and using liners or coatings where necessary. At Jiangxi Ningheda New Material Co., Ltd., backed by the expertise of Jiangxi Ningxin New Materials, we supply high-quality graphite crucibles for evaporation processes, helping industries achieve cleaner films and longer equipment life. If you are looking for reliable solutions tailored to aluminum evaporation, contact us today to learn more.
