Can The Graphite Crucible Improve Metallized Film Quality?

Decisions made at the evaporation source can significantly influence metallized film quality, affecting uniformity, adhesion, and overall production yield. Among the critical factors, the graphite crucible used for vacuum evaporation stands out as a key contributor to process stability and film consistency. Jiangxi Ningheda New Material Co., Ltd., a subsidiary of Jiangxi Ningxin New Materials Co., Ltd., offers advanced graphite crucibles and technical support designed to optimize metallized film production in packaging, optical, and specialty applications. By carefully selecting crucible material, geometry, and handling methods, engineers can achieve reliable deposition, minimize defects, and improve product performance.

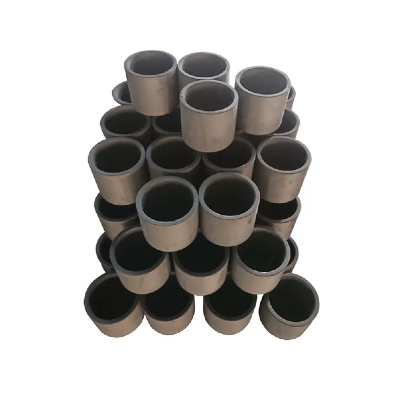

How Crucible Choice Affects Film Uniformity

Source Morphology and Angular Distribution of Evaporant

The graphite crucible directly affects the morphology of the evaporant source and the angular distribution of the vapor cloud. High-quality graphite offers uniform thermal conductivity and excellent chemical stability, which supports even evaporation of metals like aluminum. Uneven source surfaces or inconsistent material feed can produce angular deviations in vapor flux, resulting in streaks or non-uniform coverage on metallized films. By using crucibles with smooth internal surfaces, consistent density, and uniform wall thickness, engineers can maintain predictable evaporation patterns and achieve films with highly consistent optical or reflective properties. Careful attention to source preparation and crucible quality reduces variability, which is particularly important in high-speed roll-to-roll production where even minor fluctuations can translate into significant waste.

Mouth Diameter, Height, and Coating Profile

The geometry of the crucible—including mouth diameter, wall height, and taper—plays a vital role in shaping the deposition profile. Wider mouths can lower the risk of localized overheating but may increase the angular spread of evaporant, potentially causing thinner edges or uneven coverage. Taller crucibles help focus the vapor stream for more concentrated deposition but can also lead to condensation along the crucible walls, affecting material utilization. Optimizing these dimensions for the specific vacuum chamber, substrate width, and deposition rate allows for a more uniform thickness across the film and reduces the likelihood of defects. Engineers often conduct simulations or small-scale trials to determine the optimal crucible dimensions for their processes, using graphite crucibles’ predictable thermal properties as a foundation for these studies.

Designing Source-to-Substrate Geometry

Even the best graphite crucible cannot fully compensate for poor source-to-substrate geometry. Maintaining proper alignment, adjusting substrate rotation speed, and controlling the source-to-substrate distance are essential to achieve uniform deposition. Graphite crucibles’ consistent thermal and chemical behavior allows engineers to fine-tune these parameters with confidence, ensuring even deposition across the entire roll of film. Implementing automated substrate movement and real-time monitoring can further enhance deposition uniformity, minimizing edge effects and thickness variations.

Material Compatibility for Metallized Films

Which Films Work Well with Graphite Crucibles

Graphite crucibles are ideal for evaporating aluminum and aluminum-based compounds such as aluminum fluoride (AlF3). Their high melting point and chemical inertness make them suitable for producing packaging films, reflective optical coatings, barrier layers, and other specialty films. However, highly reactive metals or certain silver alloys may require lined crucibles or alternative materials to prevent chemical interactions that could degrade the crucible or contaminate the film. Choosing the appropriate crucible material ensures chemical compatibility and helps maintain the long-term stability of both the source material and the deposition process.

Recommended Crucible Types for Common Film Materials

Aluminum films benefit from standard graphite crucibles specifically designed for aluminum evaporation, providing excellent uniformity and minimal contamination. Aluminum fluoride requires crucibles with protective liners to prevent reactions between the crucible surface and the evaporant. Titanium deposition works best in graphite crucibles lined with ceramics to avoid carbide formation. Silver and silver alloy films may need high-purity graphite or metal-lined crucibles to prevent penetration or contamination. Selecting the right crucible material for each film type is crucial for maintaining consistent morphology, optical clarity, and adhesion, and it minimizes defect rates that could compromise packaging or optical performance.

Minimizing Contamination for Optical and Packaging Films

Clean Handling and Pre-Treatment

Contamination is a leading cause of defects in metallized films. Pre-treating crucibles through thorough cleaning, drying, and controlled handling reduces the risk of foreign particles entering the deposition process. Operators should avoid direct contact with internal surfaces and use only non-abrasive tools for loading materials. Additional steps, such as nitrogen purging during handling and storage, can further reduce contamination risks. Consistent pre-treatment procedures support stable evaporation conditions, improving both film quality and reproducibility across production batches.

Bake-Out, Chamber Filtration, and Lint Control

Pre-baking crucibles at appropriate temperatures removes adsorbed moisture and volatile residues, preventing unwanted interactions during evaporation. Combined with efficient vacuum chamber filtration and stringent lint control, these practices reduce haze, surface roughness, and other defects on metallized films. Maintaining clean chamber conditions also prolongs crucible life and supports repeatable high-quality deposition. Advanced setups may include multi-stage filtration, in-line monitoring, and controlled airflow to further minimize contamination, especially for high-value optical films or packaging layers where clarity and barrier properties are critical.

Quality Control Metrics

Haze, adhesion, and surface roughness remain the key metrics for assessing metallized film quality. Graphite crucibles’ predictable thermal and chemical behavior allows engineers to achieve tight QC tolerances. Consistent evaporation conditions translate to uniform optical density, stable adhesion, and smooth surfaces. Implementing routine inspections and sample testing during production helps identify issues early, preventing large-scale defects and ensuring films meet customer specifications for optical, reflective, or barrier applications.

From Lab to Roll-to-Roll Production

Continuous Evaporation Challenges

Scaling from lab trials to roll-to-roll production introduces challenges such as dripping, spattering, and uneven refill rates. Graphite crucibles specifically designed for continuous evaporation reduce these risks by maintaining stable vapor output and thermal uniformity. Properly designed crucibles ensure efficient material utilization, minimize defects, and support high-speed production lines without compromising film quality.

Replacement Schedule, Monitoring, and Automation

A planned crucible replacement schedule prevents unexpected downtime and production losses. Real-time monitoring combined with automated material feeding systems reduces manual handling and enhances process stability. Engineers can establish preventive maintenance schedules based on crucible wear patterns, evaporation volume, and material type, extending crucible lifetime while maintaining consistent film quality. Automation not only reduces labor costs but also minimizes human errors that could introduce defects or contamination.

Economic Considerations

While high-quality graphite crucibles may have a higher upfront cost, they reduce scrap rates and improve overall yield, offering long-term economic advantages. Balancing crucible cost against operational efficiency, production volume, and product quality is critical in large-scale metallized film production. Optimized crucible use reduces downtime, improves consistency, and supports higher customer satisfaction by delivering reliable, defect-free films.

Conclusion

Graphite crucibles play an essential role in achieving high-quality metallized films. Proper selection of crucible material and geometry, combined with effective contamination control and careful handling, significantly improves uniformity, adhesion, and surface quality. Jiangxi Ningheda New Material Co., Ltd., a subsidiary of Jiangxi Ningxin New Materials Co., Ltd., provides a comprehensive range of vacuum evaporation graphite crucibles, including specialized crucibles for aluminum and metallized films, designed to meet industrial production requirements. Engineers can maximize yield and maintain consistent film quality by implementing preventive maintenance, pre-treatment, and monitoring protocols while selecting the most suitable crucible for each material. For detailed product specifications, technical guidance, and inquiries, contact us at Jiangxi Ningheda New Material Co., Ltd. to explore the full range of graphite crucibles optimized for metallized film production.
