High-Purity Double-Ring Graphite Crucibles | Thermal Shock-Resistant Containers Specifically Designed for Precious Metal Smelting | Custom-Made by NHD

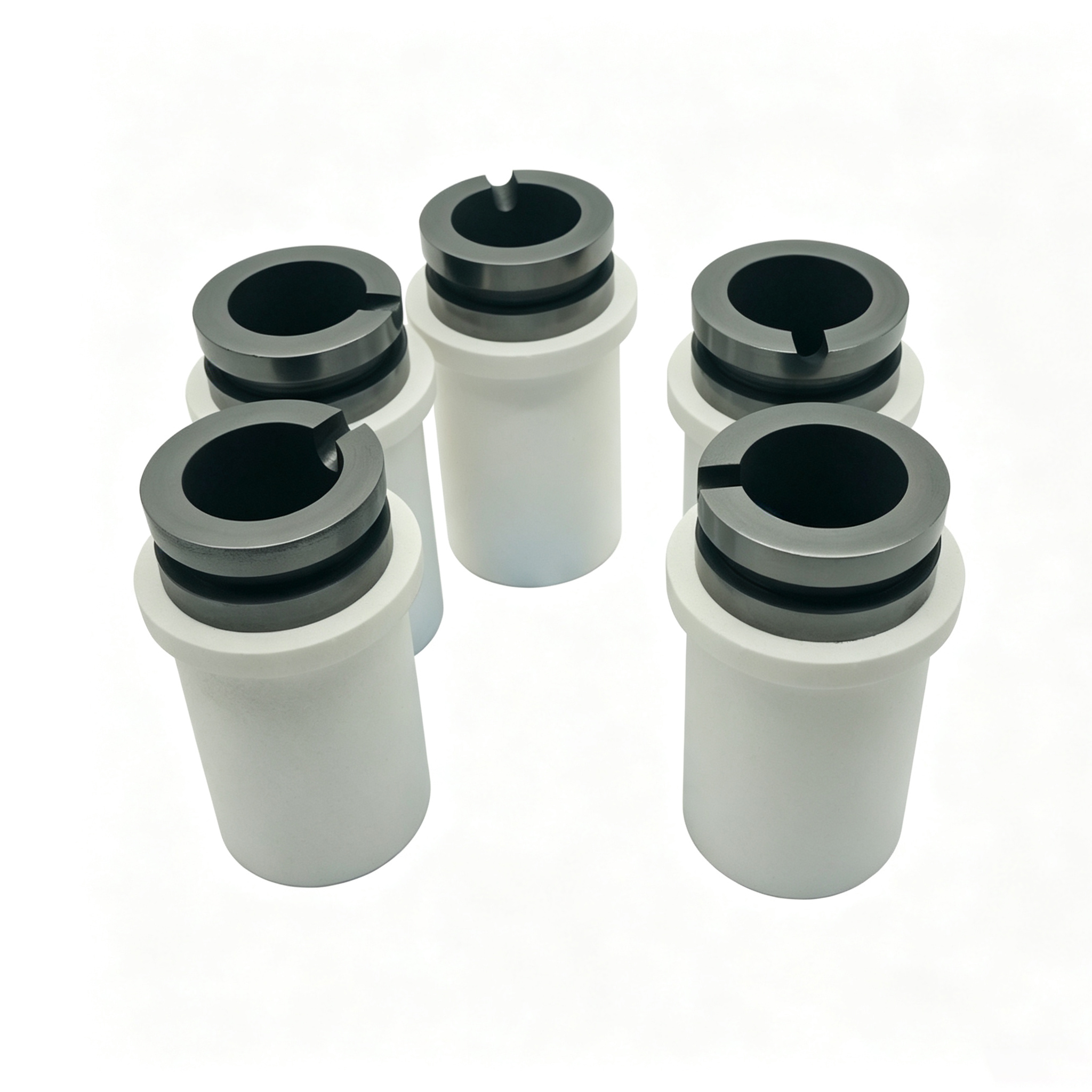

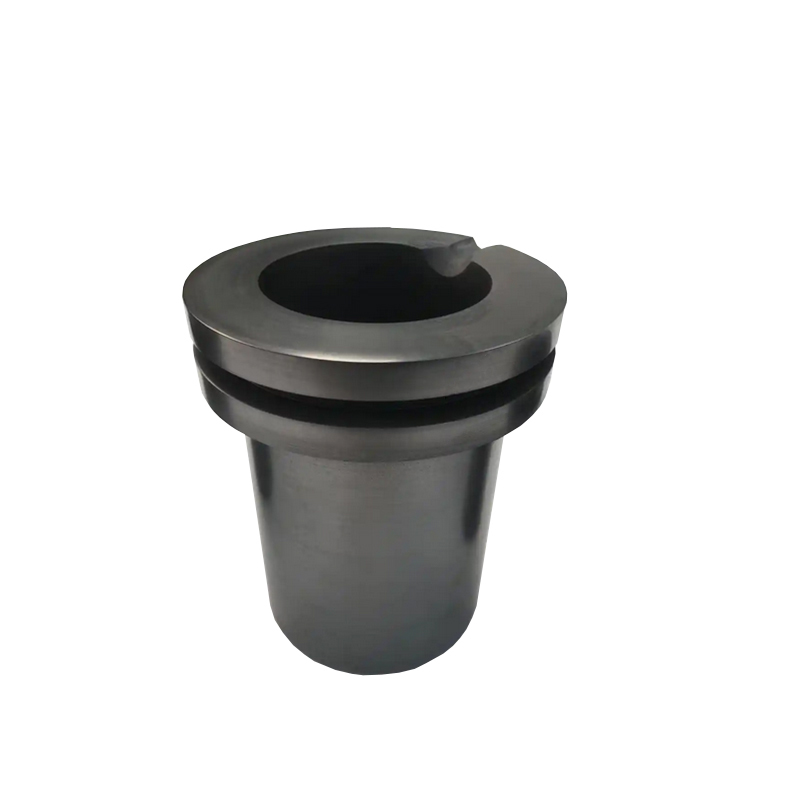

▍Product Description: What is a double-ring graphite crucible?

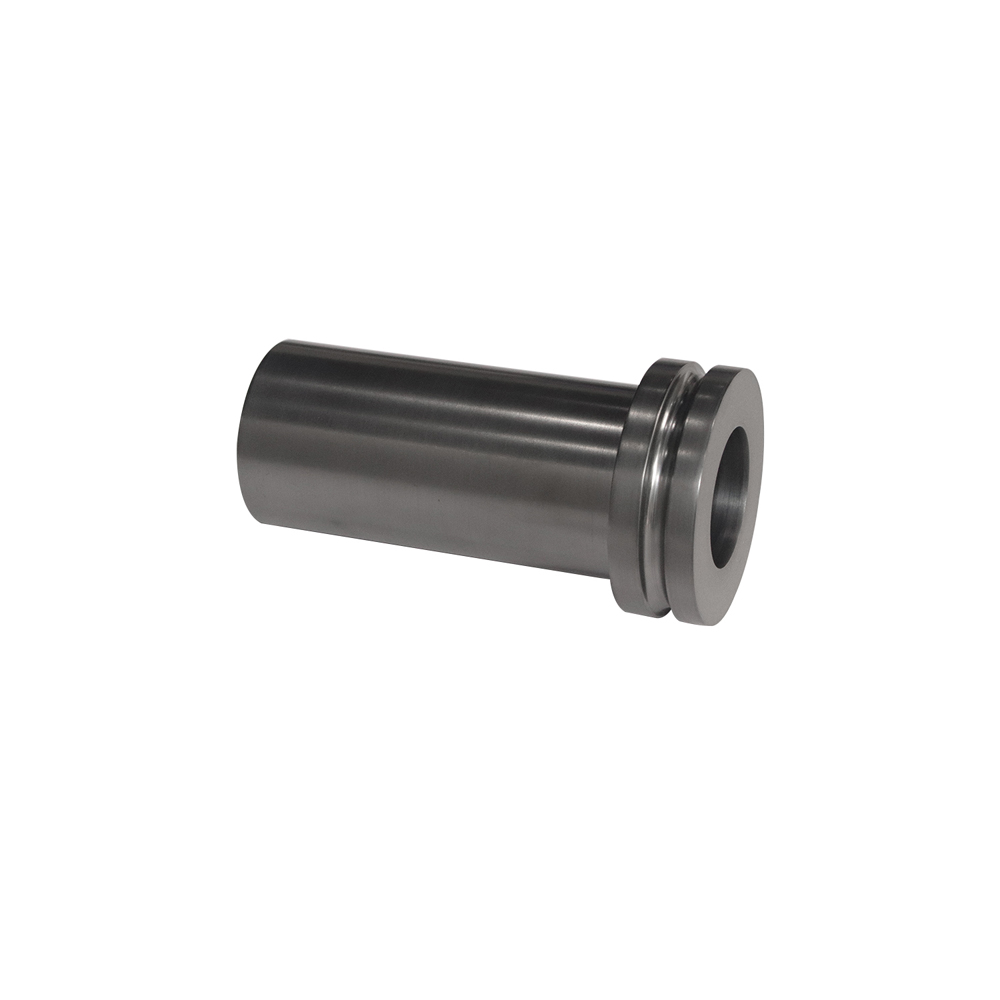

The double-ring graphite crucible is a smelting vessel with a structurally optimized design based on the traditional single-ring crucible. Its name derives from its unique “double-ring” design: an outward-protruding stop ring (pouring ring) at the top and a support ring (base ring) at the bottom, with the smelting chamber located between the two rings. This structure is not merely a cosmetic improvement but an engineered design addressing practical operational challenges encountered during the smelting of precious metals.

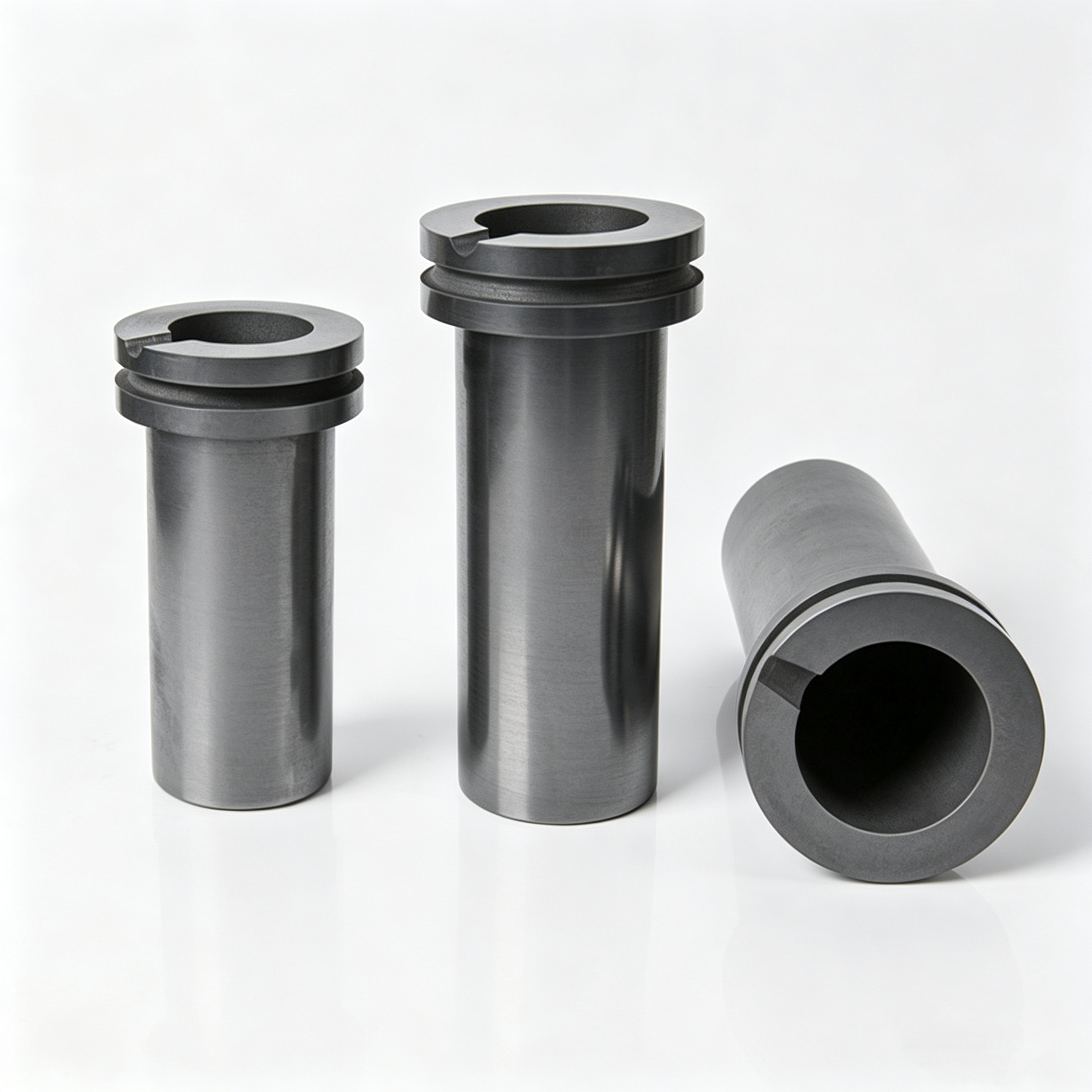

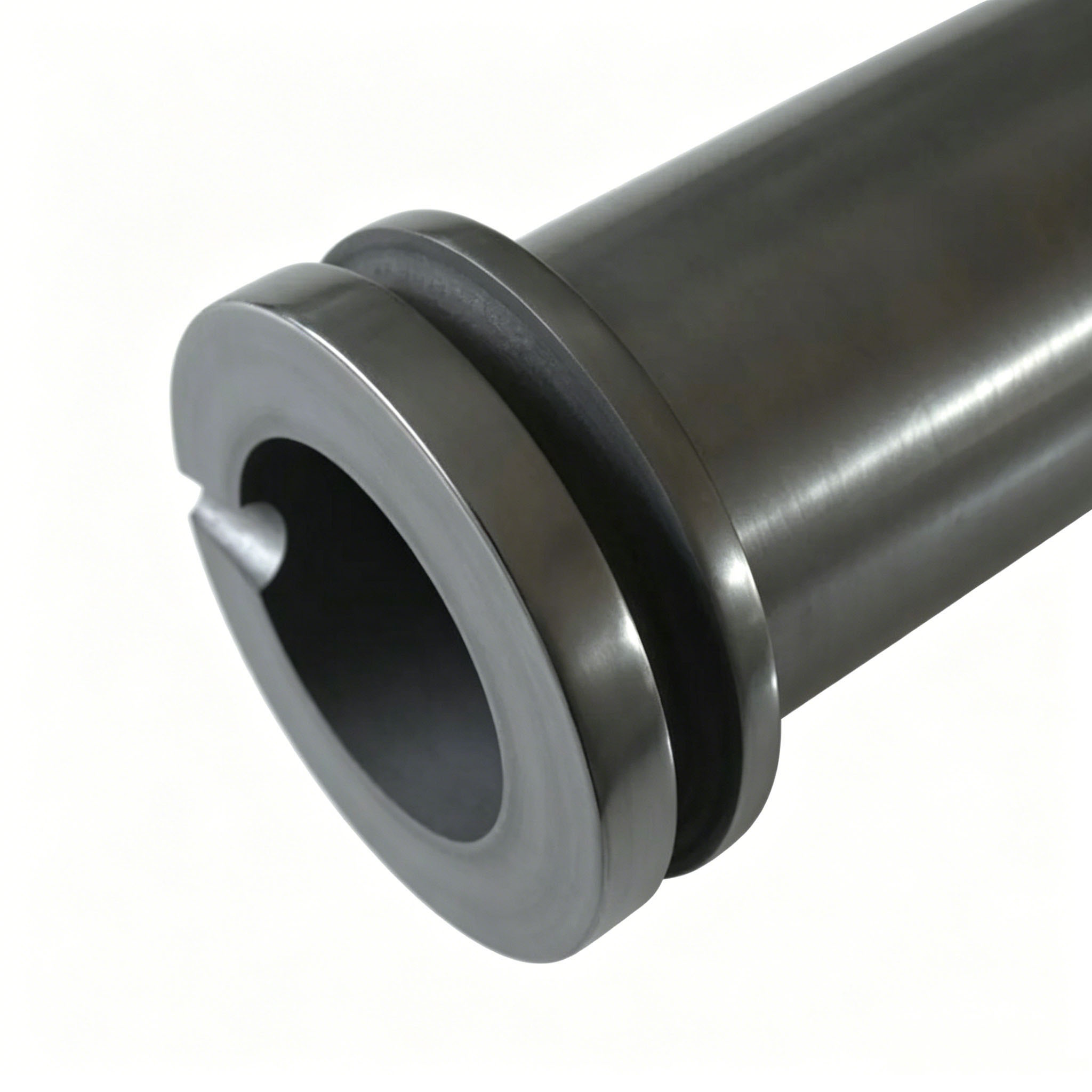

Functions of the upper retaining ring:

·Provides a stable gripping surface when pouring molten metal, allowing for safe operation with standard crucible tongs

·Prevents molten metal from flowing down the outer wall, reducing metal loss and safety hazards

·Serves as a positioning reference inside the furnace, ensuring the crucible remains centered during heating

Functions of the lower support ring:

·Expands the bottom support area, lowers the center of gravity, and prevents the crucible from tipping over during pouring

·Creates a stable electromagnetic coupling zone within the induction furnace, improving heating efficiency

·Absorbs thermal expansion stresses at the bottom, reducing the risk of bottom cracking caused by rapid cooling and heating

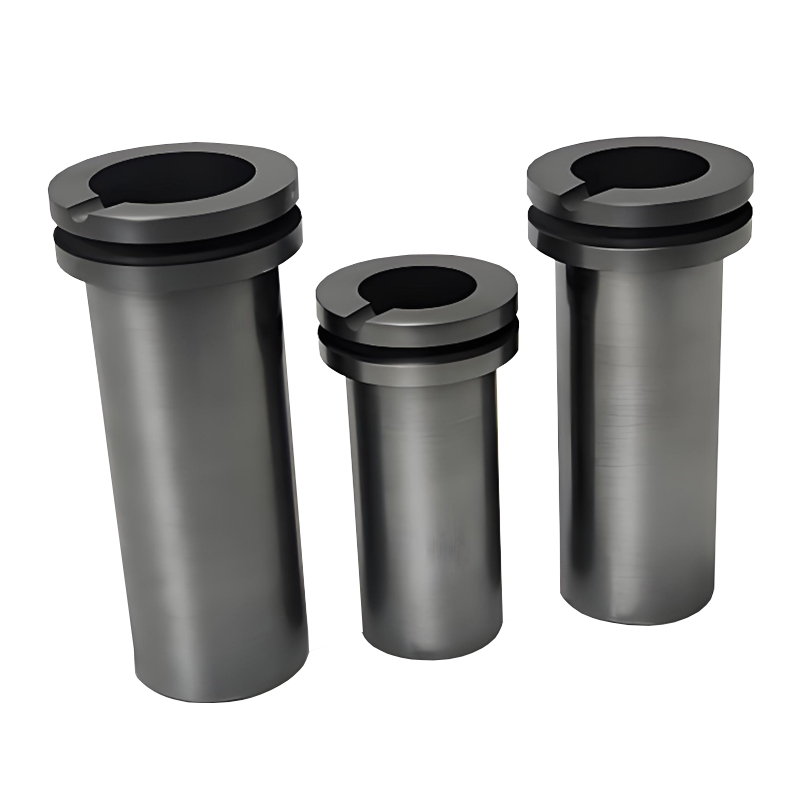

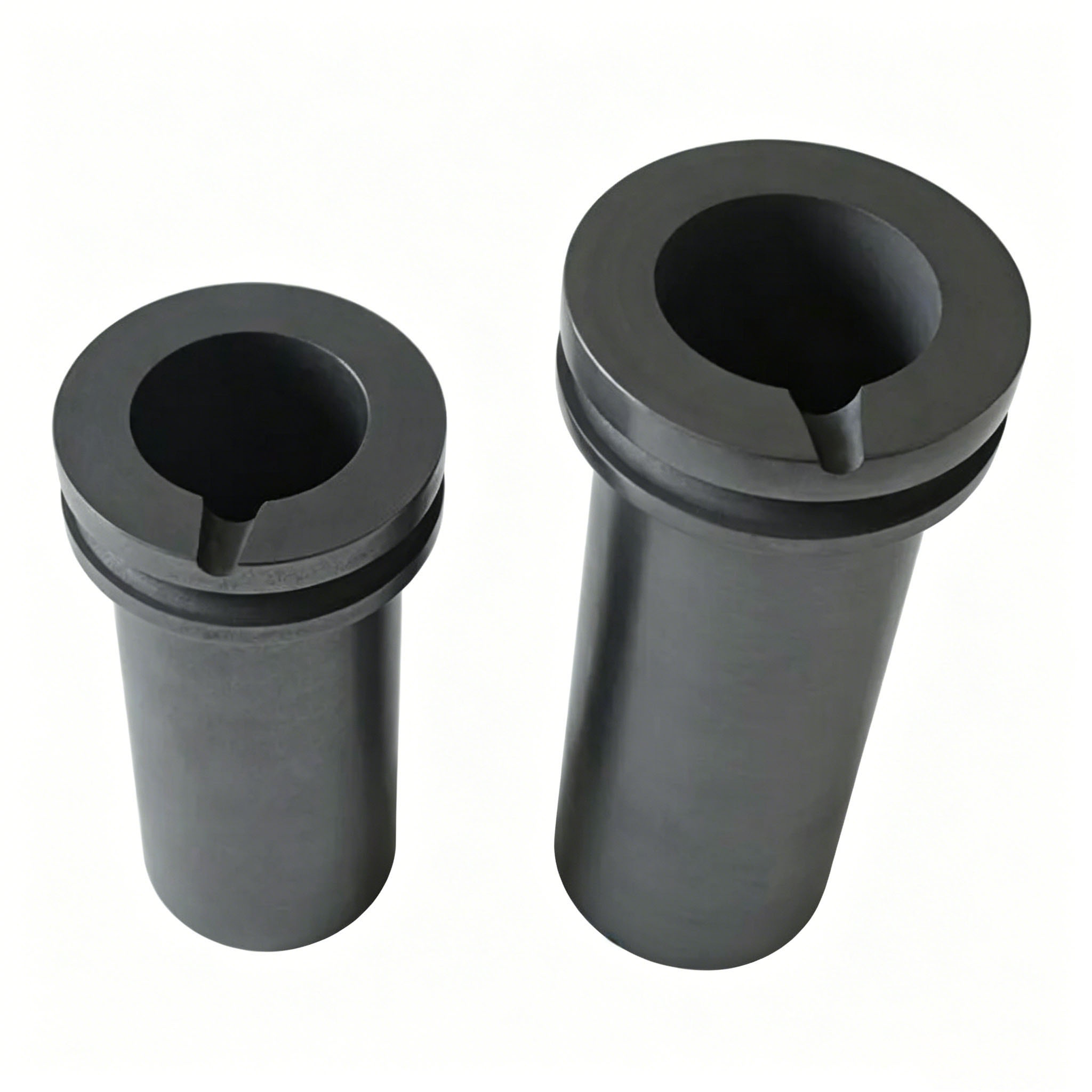

1kg Graphite Crucible

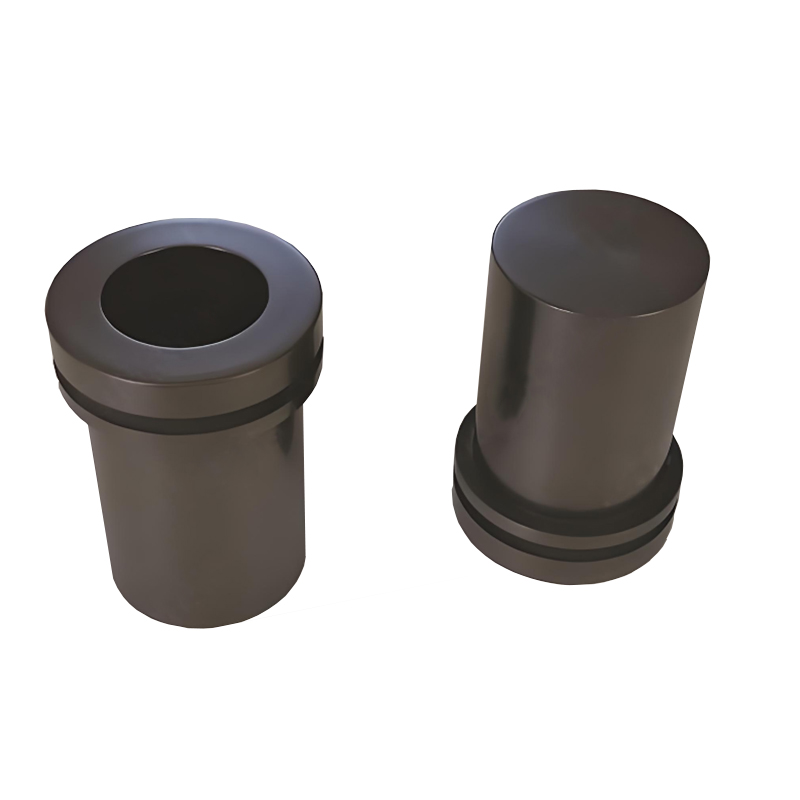

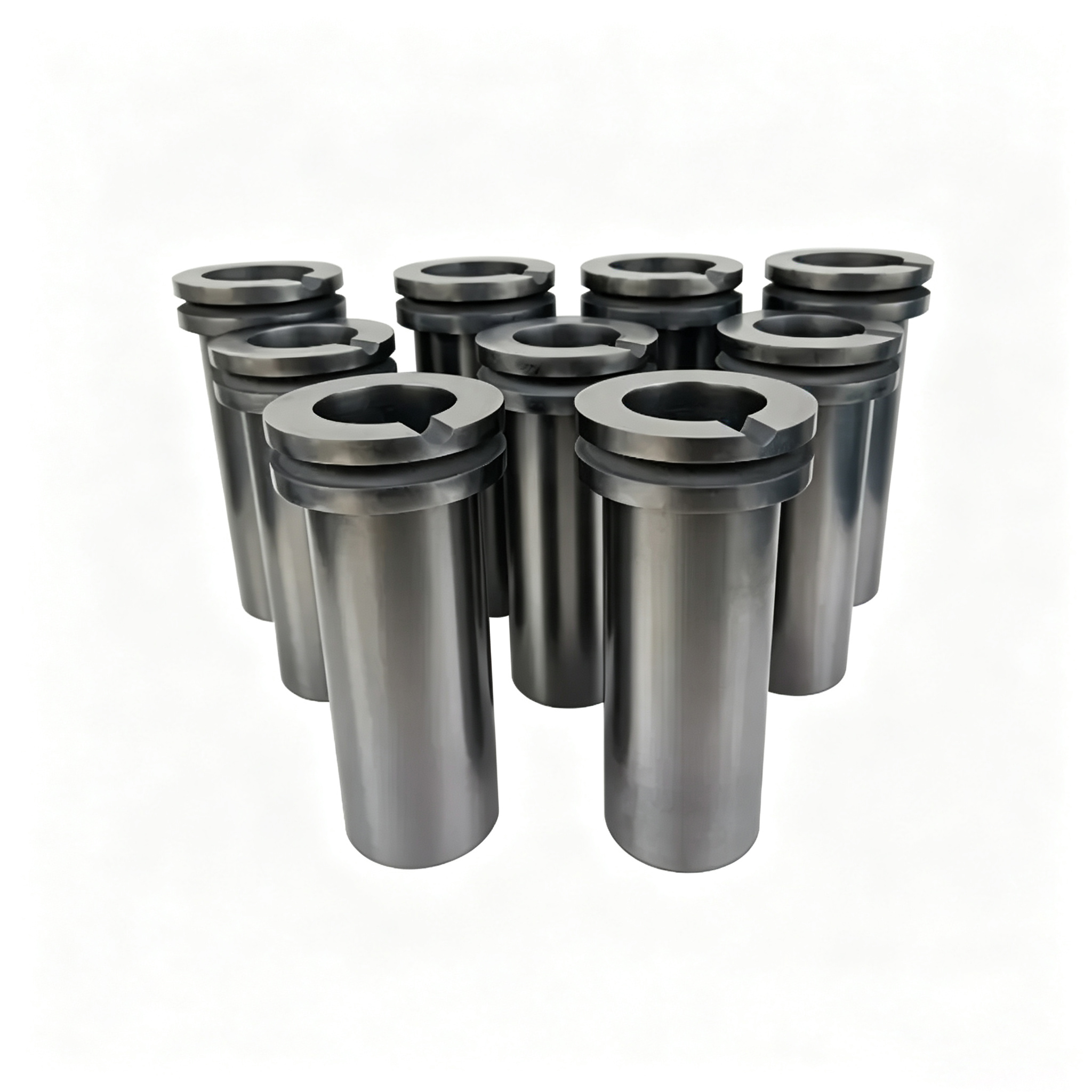

Double Ring Crucible Set

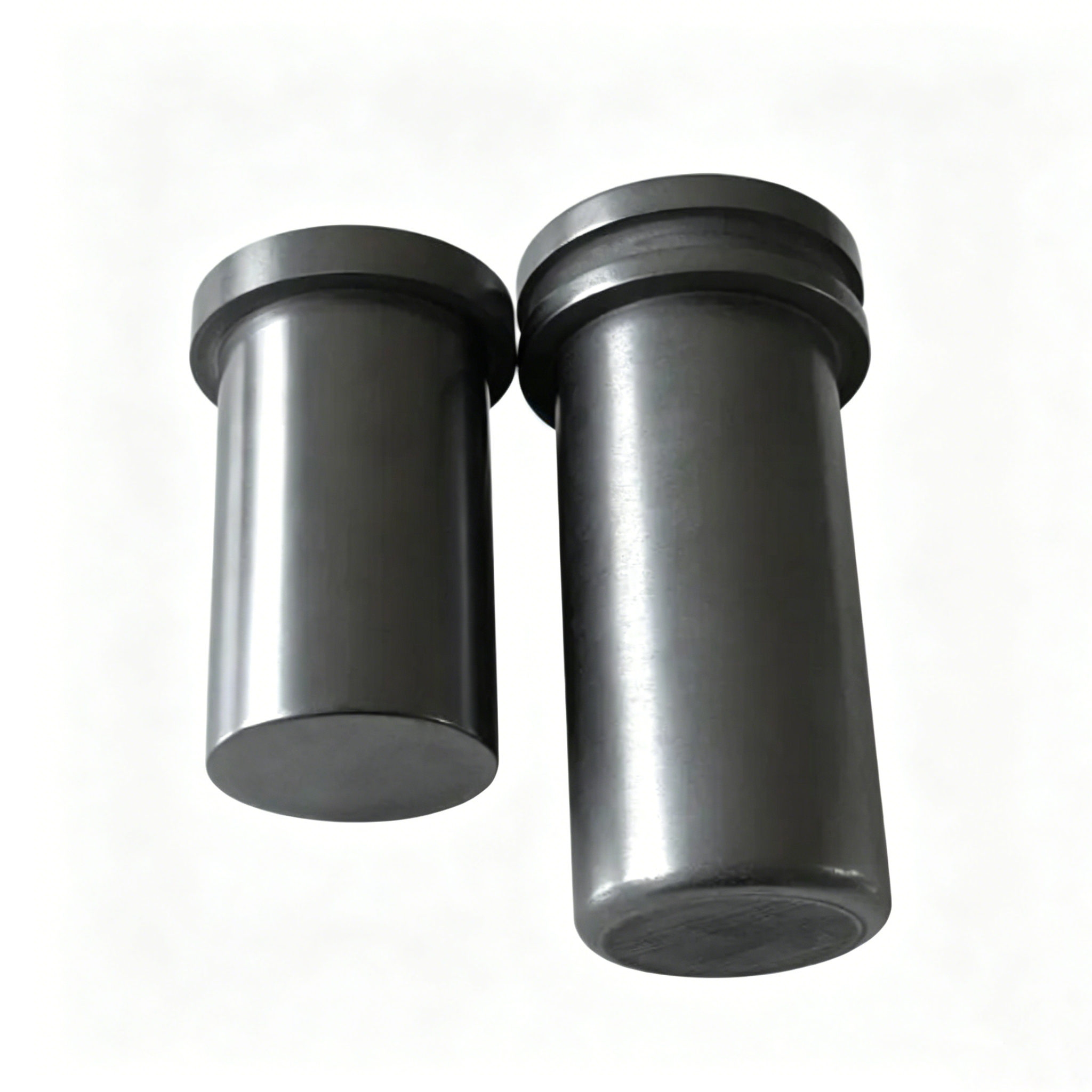

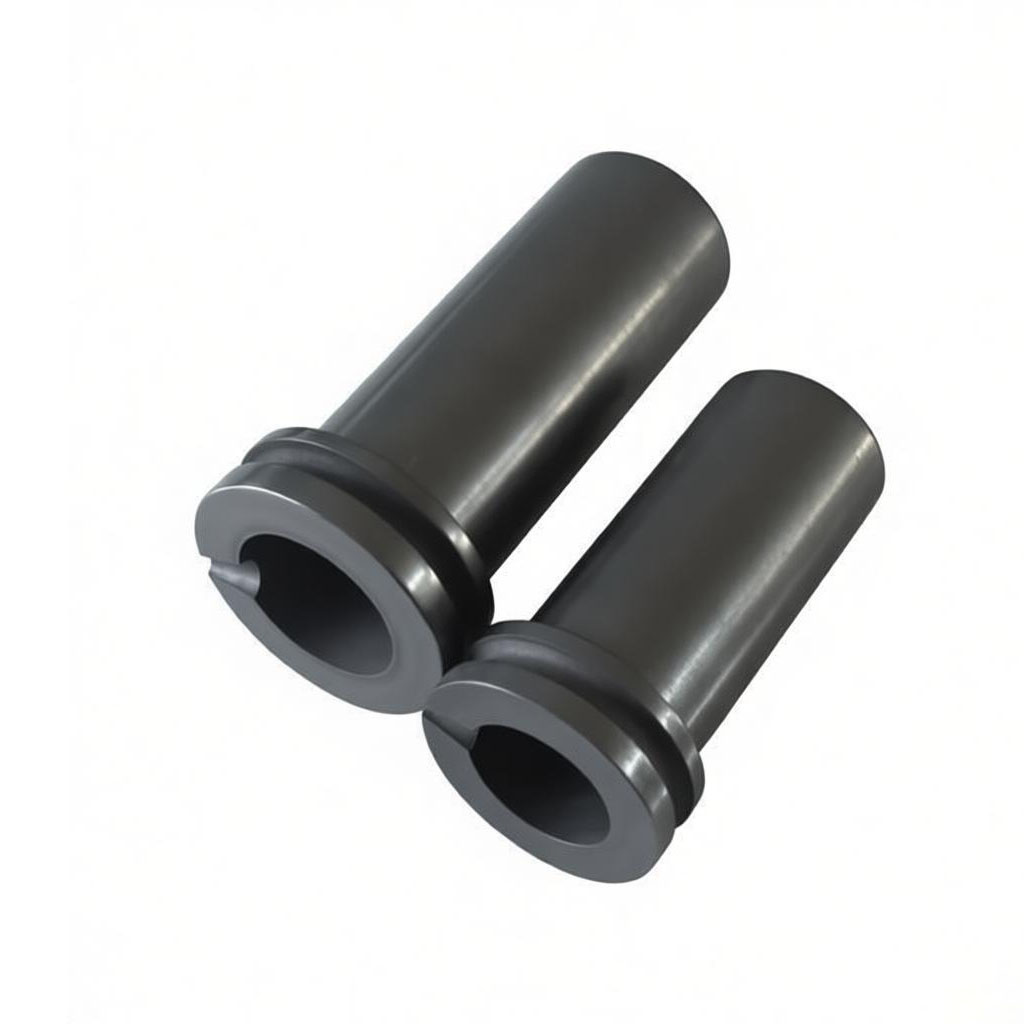

2pcs Graphite Crucible

▍Product Advantages: Six Reasons to Choose Ningheda Double-Ring Graphite Crucibles

① Structural Advantages: Dual-ring design for safer operation. The dual-ring structure lowers the crucible’s center of gravity and provides more stable support, reducing the risk of tipping when pouring molten metal by more than 60%. The upper retaining ring provides a standardized clamping surface, eliminating the need for specialized fixtures and lowering the operational threshold.

② Material Advantages: High-Purity Graphite for Zero-Contamination Smelting. Manufactured from high-quality petroleum coke and needle coke with a sulfur content of <0.5%, which undergoes graphitization at 2800°C, with an ash content of ≤0.1%, ensuring no impurities are introduced during smelting and meeting the requirements for high-purity precious metal refining.

③ Performance Advantages: High-temperature resistance and thermal shock resistance. Temperature resistance up to 2500°C in an inert atmosphere; safe operating temperature of 500–600°C in an oxidizing atmosphere.  Excellent thermal shock resistance; withstands rapid cooling and heating cycles from room temperature to 1100°C without cracking.

④ Process Advantages: Isostatic pressing ensures uniform density. Premium-grade products are manufactured using cold isostatic pressing (CIP, pressure 200 MPa), offering superior density uniformity compared to  compression molding and preventing premature failure caused by localized stress concentration.

⑤ Customization Advantages: Flexible response, fast delivery. Ample stock of standard specifications; 1 kg–5 kg sizes delivered in 10–15 days;  Custom orders are supported based on CAD drawings, with delivery within 20–25 days.

⑥ Service Advantages: Direct from the Manufacturer, Controlled Quality. Jiangxi Ningheda is a manufacturing facility that independently controls the entire process—from raw material blending, forming, and graphitization to precision machining and is equipped with a professional laboratory for density, strength, and purity testing, issuing test reports for every batch of products.

Bulk Graphite Crucibles

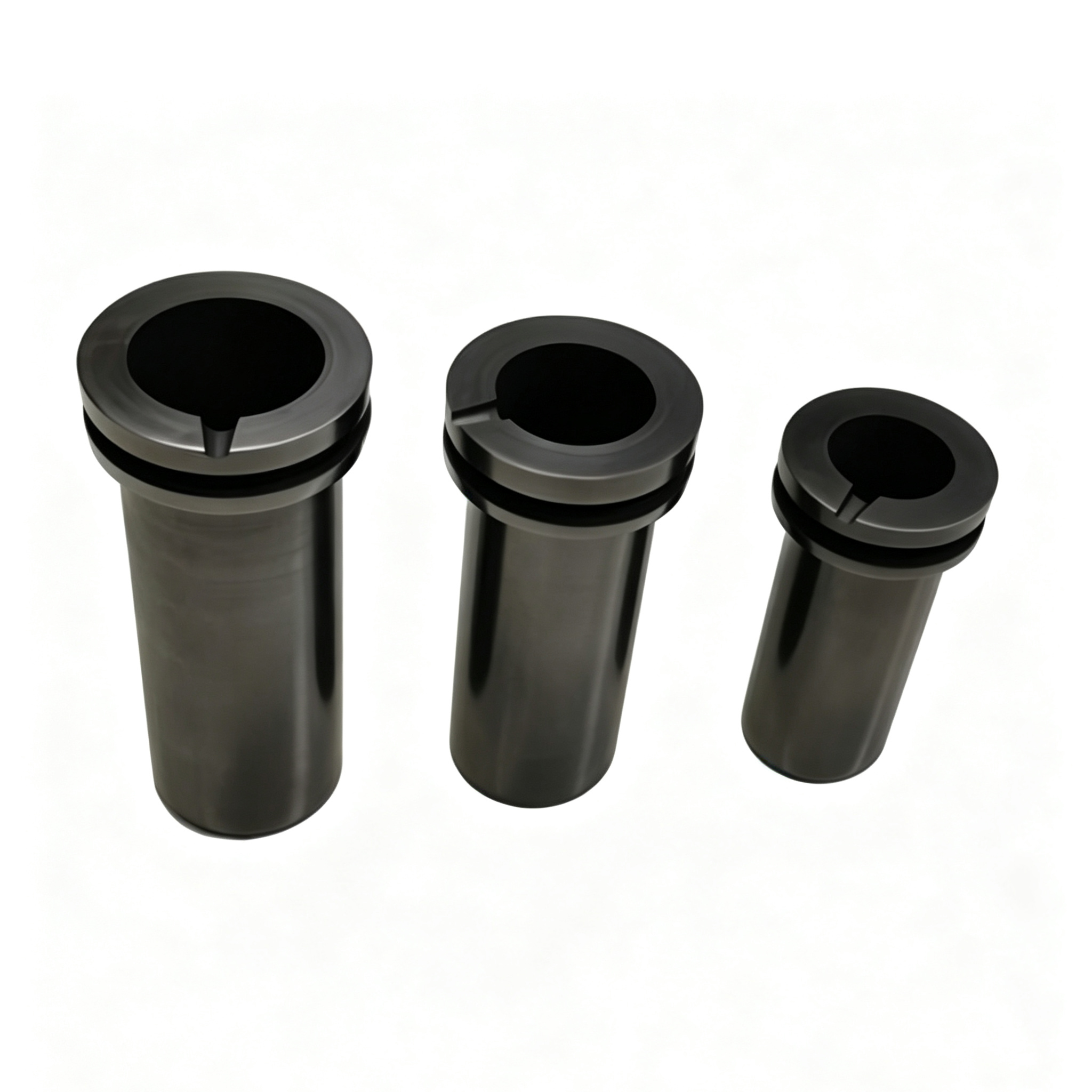

3 Size Crucible Kit

High Purity Crucible

▍Key Product Features

Feature 1: Excellent High-Temperature Resistance

 Graphite has an extremely high melting point (approximately 3652°C). Our double-ring graphite crucibles can operate stably for extended periods at temperatures between 2000 and 2200°C in an inert atmosphere (nitrogen, argon, or vacuum), with short-term peak temperatures reaching up to 2500°C. Even in an oxygen-containing environment, the surface anti-oxidation coating raises the safe operating temperature to 600–800 °C, meeting the operational requirements of most medium-frequency induction furnaces and gas-fired furnaces.

Feature 2: Outstanding Thermal Conductivity

The thermal conductivity of graphite (120–140 W/m·K) is far higher than that of traditional refractory materials (such as alumina ceramics, which have a thermal conductivity of approximately 30 W/m·K). This means: • Rapid heating during smelting, shortening the processing time per batch by approximately 20–30% • Uniform heat distribution, preventing segregation of metal components caused by localized overheating • Reduced energy consumption, leading to significant savings on electricity or gas costs over the long term.

Feature 3: Exceptional Chemical Stability

At smelting temperatures, graphite does not react chemically with precious metals such as gold, silver, or platinum, nor does it react with most acidic or alkaline solutions. This property ensures: • The purity of the smelted metal is not compromised by contamination from the crucible material • No additional acid washing or purification processes are required, reducing post-processing costs • Suitability for smelting a wide range of metals and their alloys, offering high versatility.

Feature 4: Low Coefficient of Thermal Expansion

Graphite’s coefficient of thermal expansion (1.5–4.5 × 10⁻⁶/°C) is far lower than that of metallic materials. It exhibits minimal dimensional changes during frequent heating and cooling cycles. Combined with a dual-ring structure designed to buffer stress, this effectively suppresses the formation of thermal fatigue cracks.

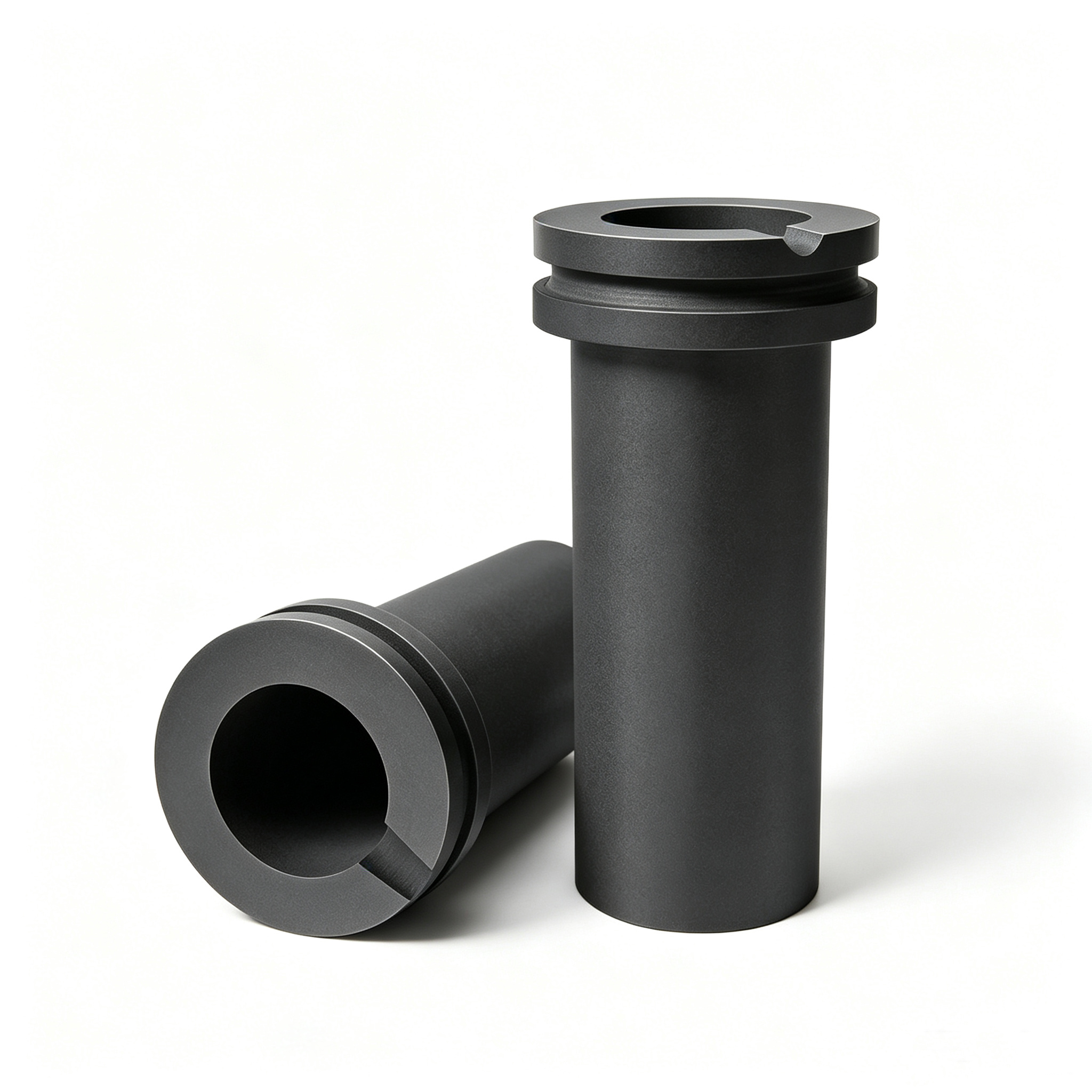

Feature 5: Smooth Inner Wall for Easy Demolding

Precision CNC machining ensures a smooth inner wall surface, promoting good fluidity of molten metal and minimizing residue after casting. The metal recovery rate per smelting cycle is ≥99.5%, reducing precious metal loss.

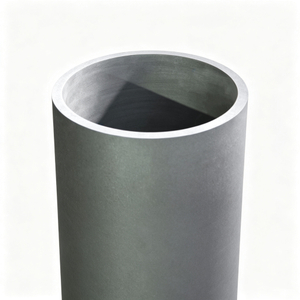

Small Graphite Crucible

Side View Crucible

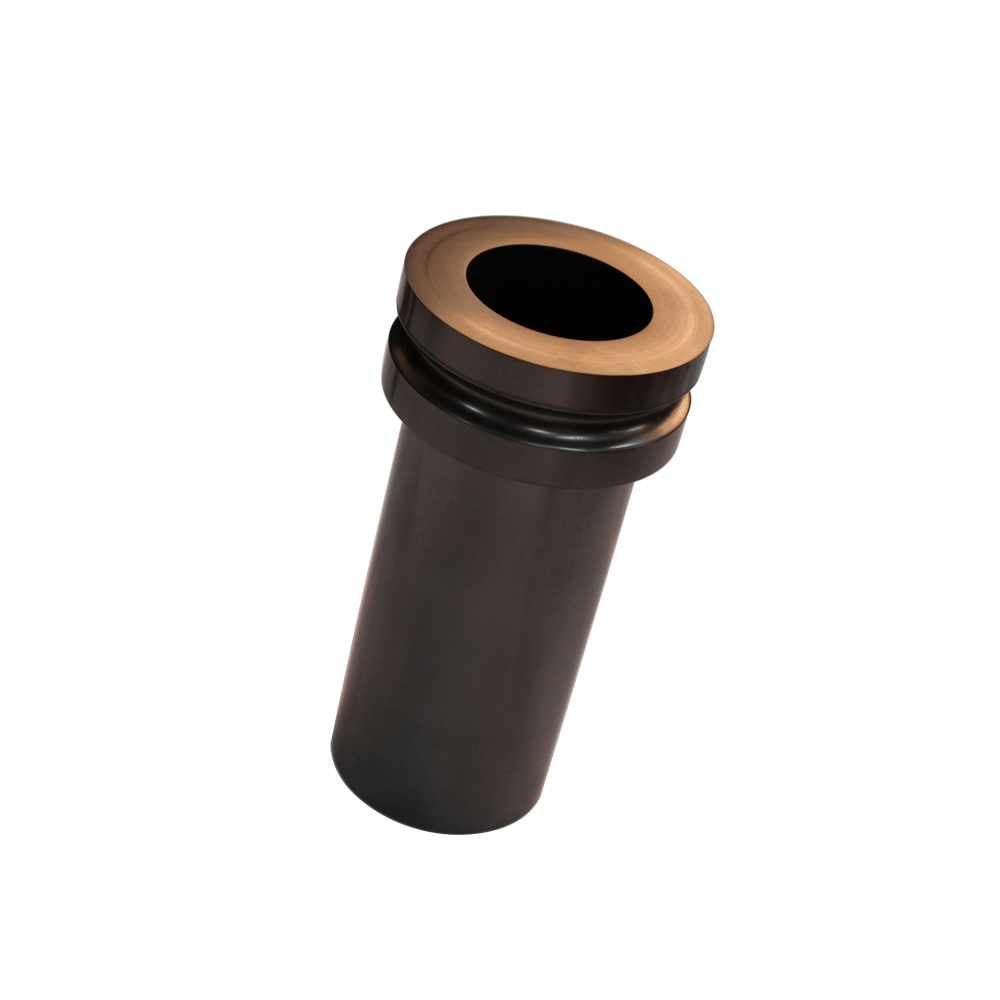

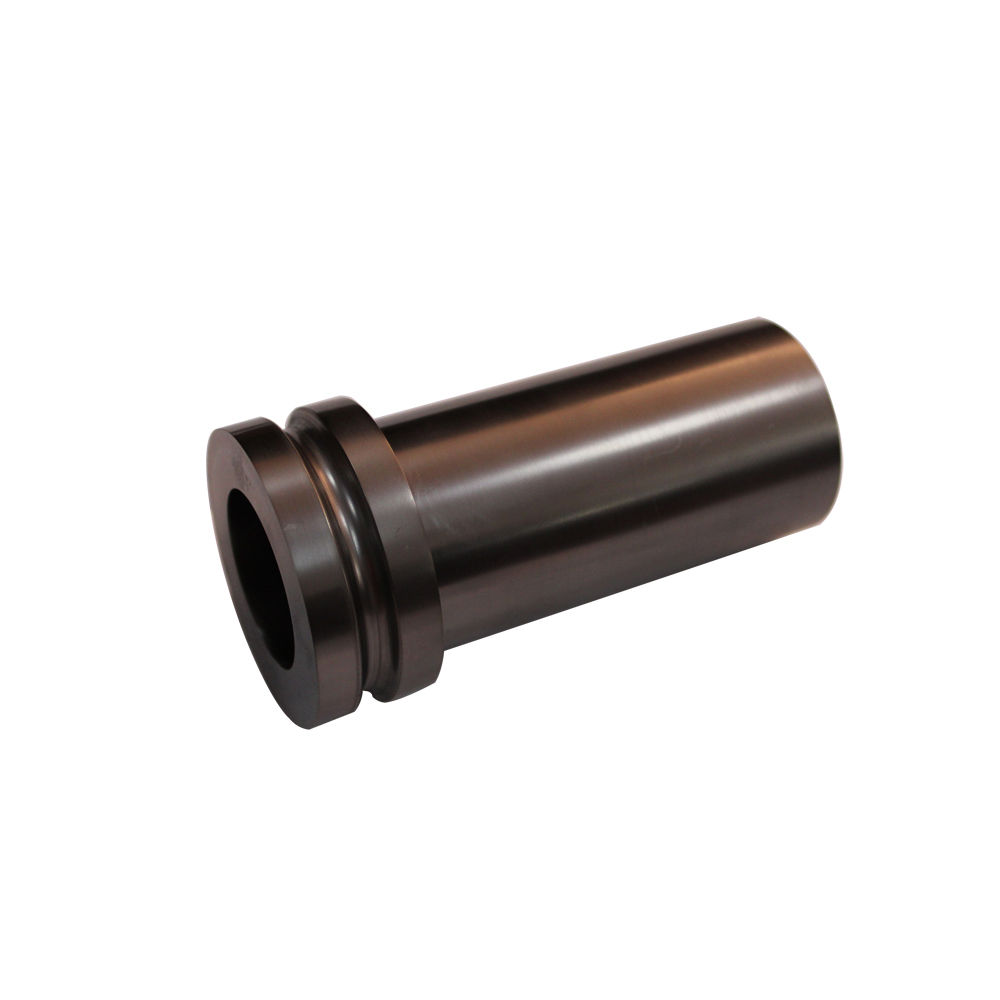

Polished Crucible

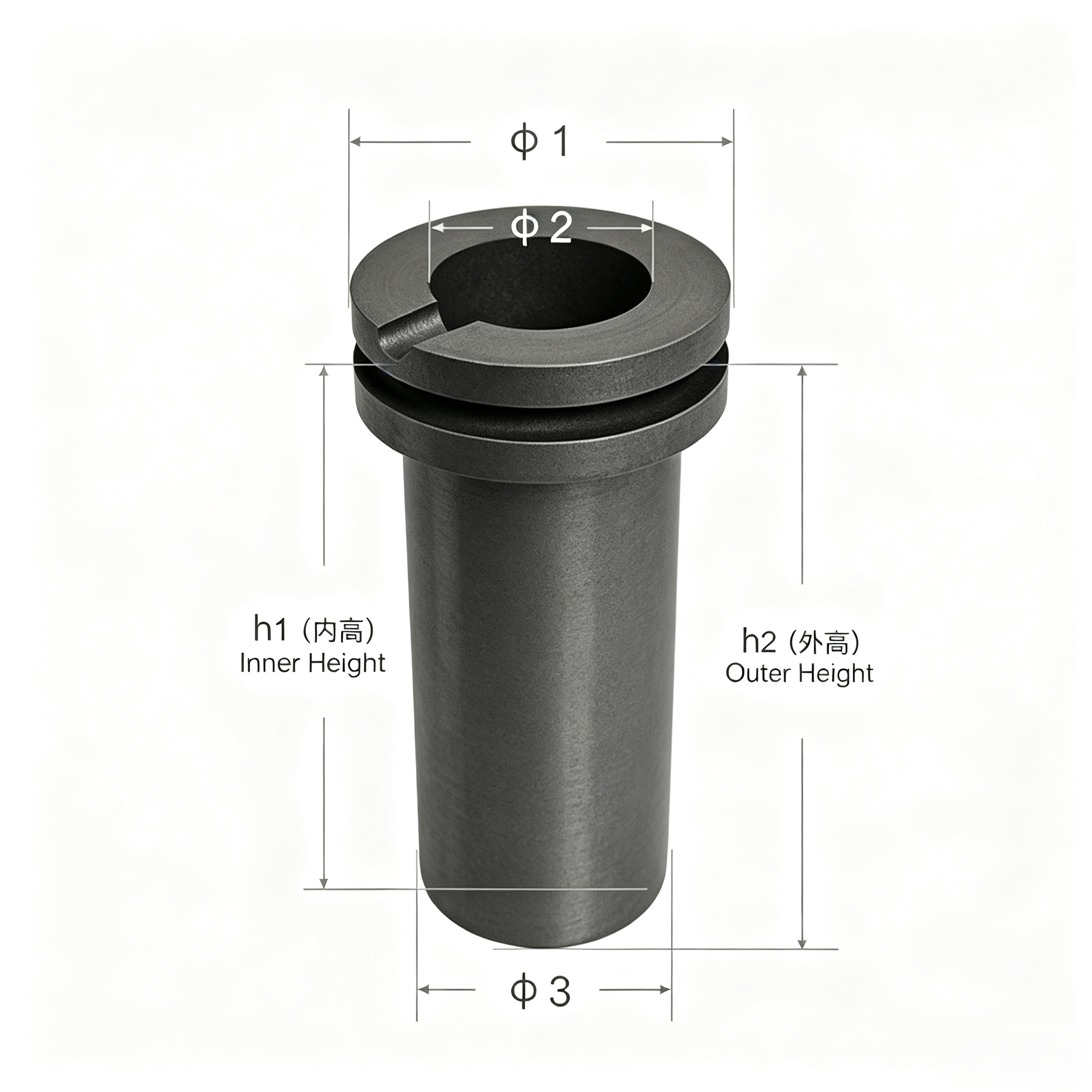

▍Specifications Table

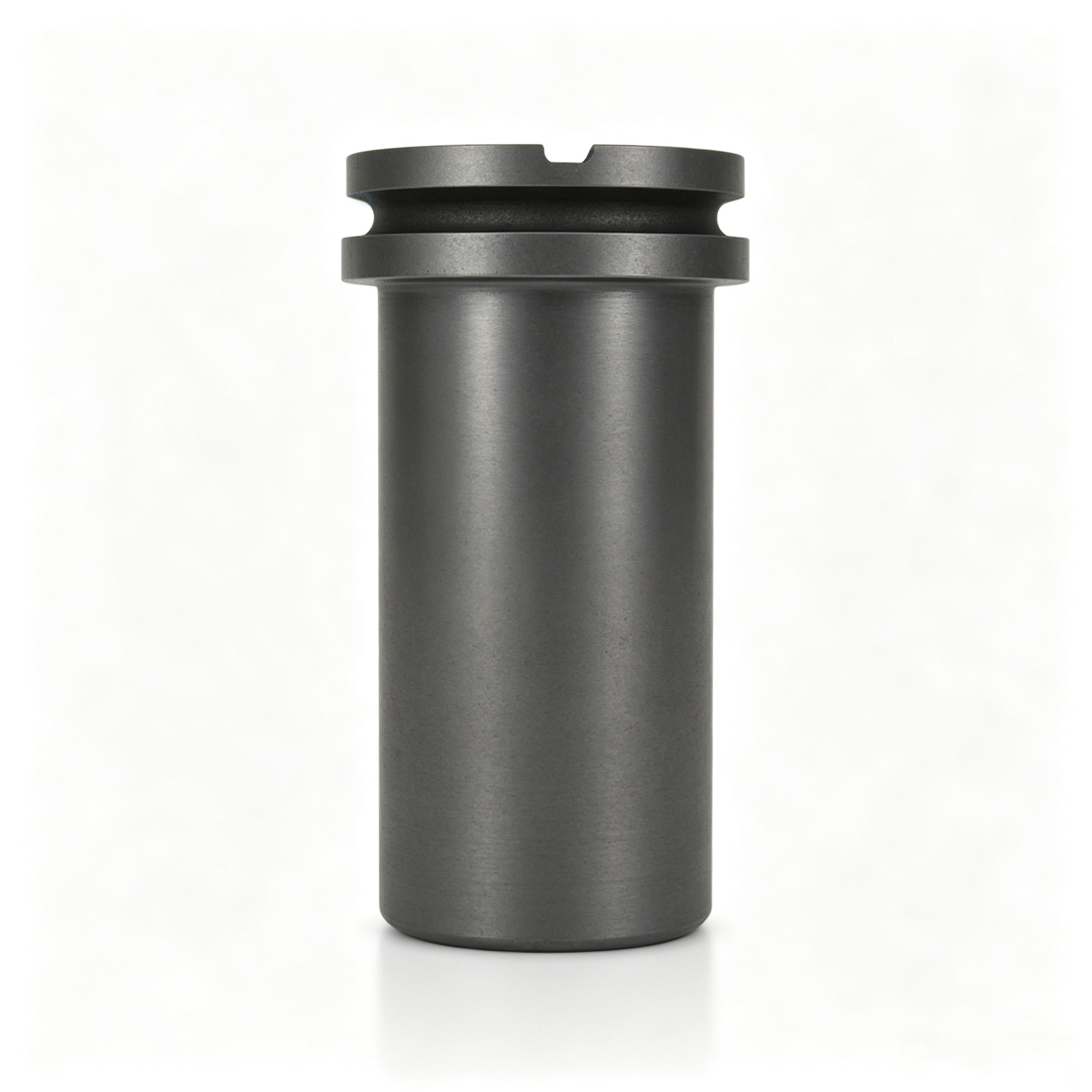

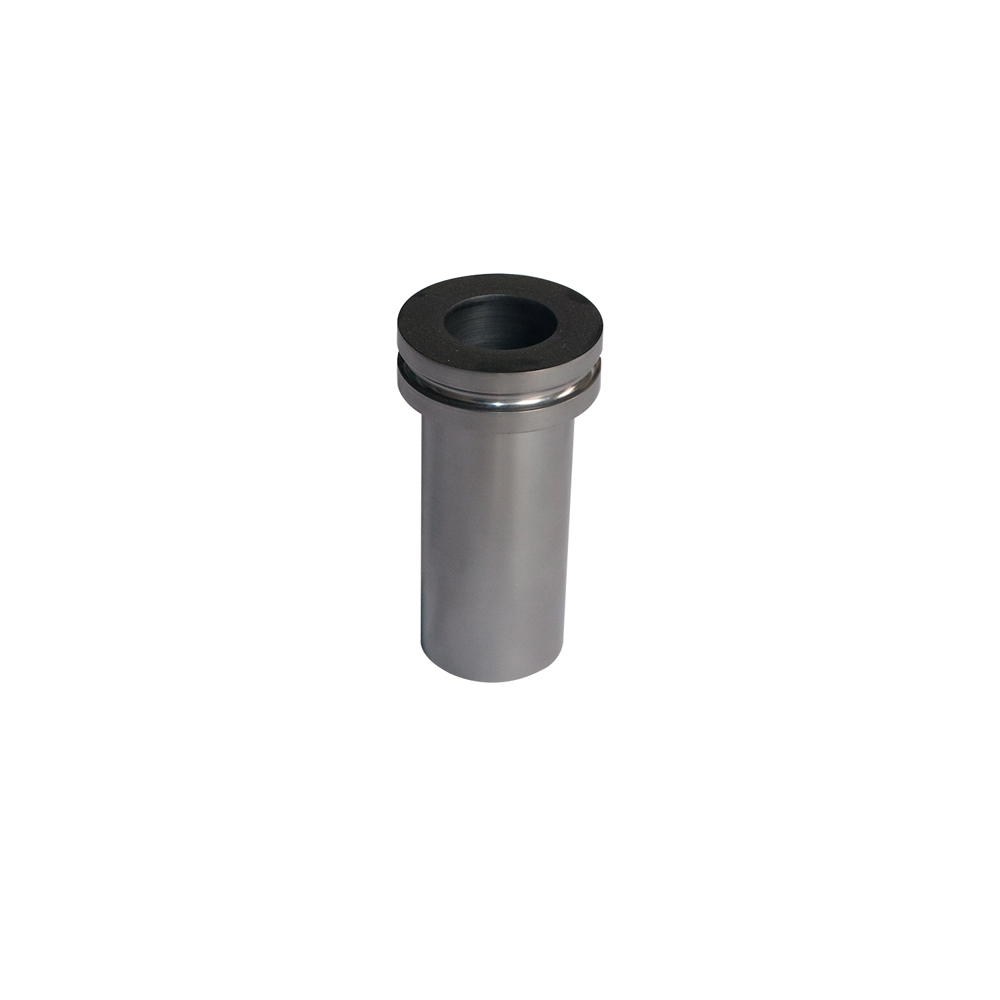

Single Ring Crucible

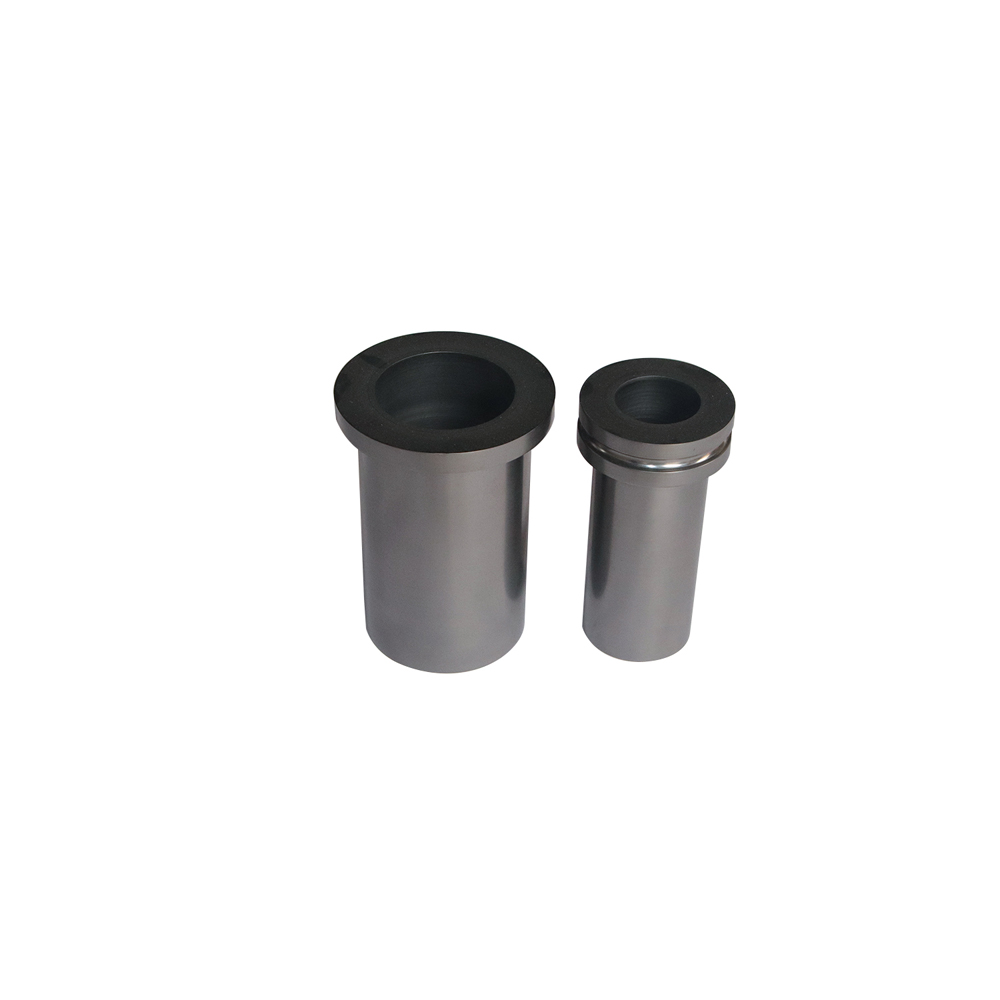

Dual Ring Crucible

Mini Crucible Pair

▍User Guide and Maintenance

Instructions for Proper Use

[Preparation Before Use]

⑴ Visual Inspection: Before use, carefully inspect the inner and outer walls of the crucible for cracks, chips, or severe wear. Crucibles with cracks deeper than 2 mm or where wall thickness has worn down by more than 30% of the original thickness must be immediately discarded.

⑵ Preheating (Critical Step): New crucibles or those that have been out of use for more than 72 hours must be heated in the following stages:

Stage 1: Room temperature → 300°C, hold for 60 minutes (Purpose: To slowly release moisture adsorbed inside the crucible and prevent cracking caused by rapid vaporization of moisture)

Stage 2: 300°C → 800°C, hold for 120 minutes (Purpose: To allow any residual binder from the forming process to fully decompose and volatilize)

Stage 3: 800°C → operating temperature, hold for 60 minutes (Purpose: To allow the crucible to reach thermal equilibrium throughout, preventing localized stress concentration)

⑶ Loading Specification:

·Keep the charge volume between 60% and 80% of the crucible’s capacity; do not exceed 80%

·The minimum charge volume must not be less than 20% of the capacity to prevent damage to the crucible walls caused by dry firing

·Metal ingots should be placed slowly; do not drop them directly into the crucible. It is recommended to use a graphite guide rod to direct them

·After loading, the top of the metal ingots must be at least 50 mm below the rim of the crucible to prevent molten metal from boiling over

⚠️ Never skip the preheating step and proceed directly to high-temperature heating! This is the primary cause of premature cracking in crucibles.

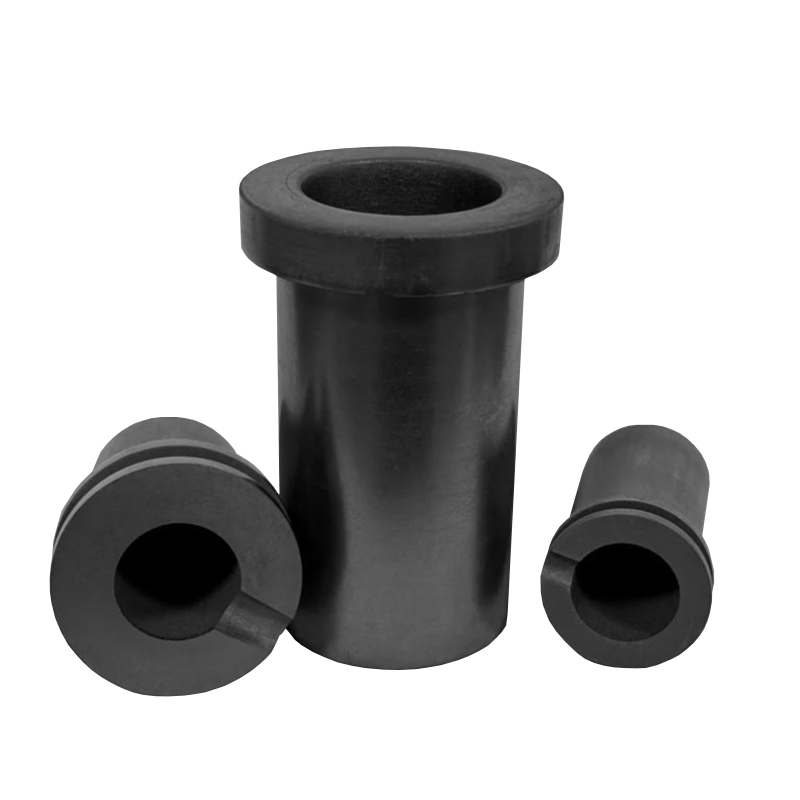

Crucible Family Set

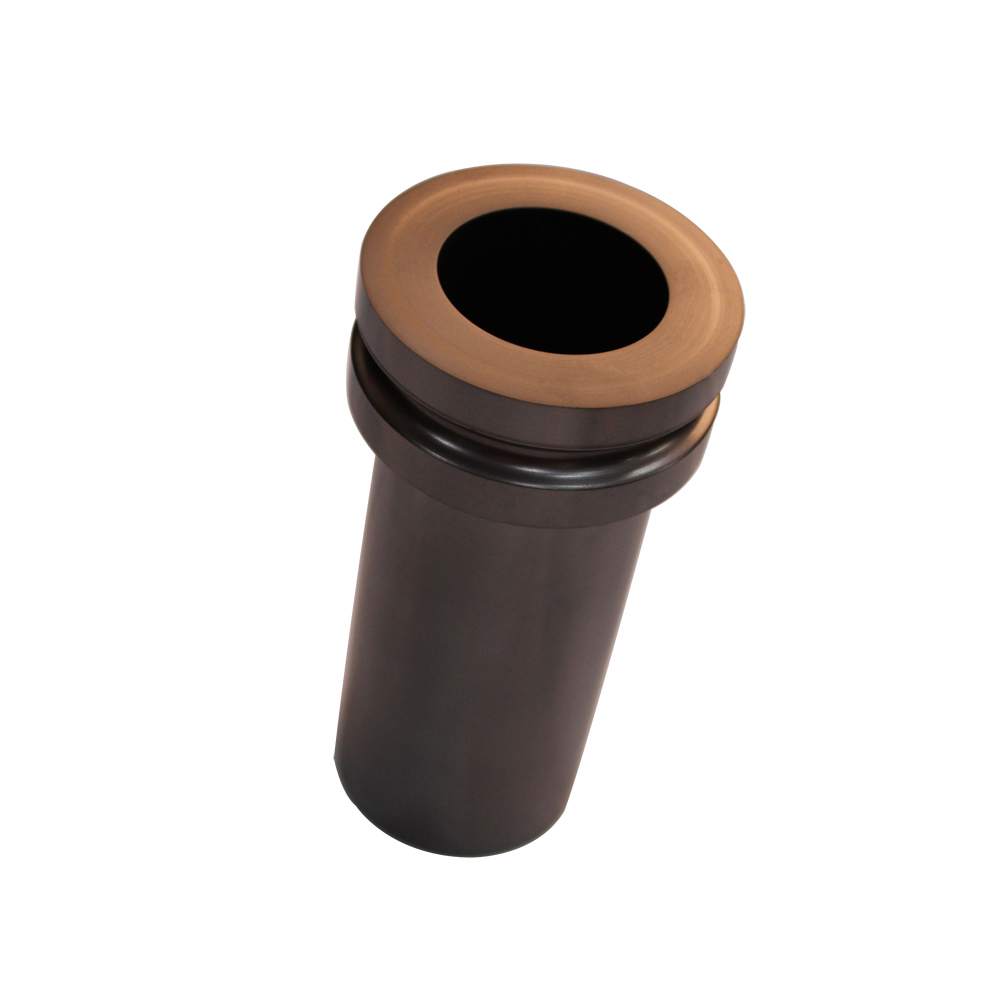

Horizontal Crucible

Mirror Finish Crucible

[Precautions During Use]

·Temperature Control: In air or an oxidizing atmosphere, the temperature must not exceed 500°C (Standard Grade) or 600°C (Premium Grade). If higher temperatures are required in an oxidizing environment, please select products with an oxidation-resistant coating.

·Avoid thermal shock: After smelting is complete, never allow a hot crucible (wall temperature > 600°C) to come into direct contact with cold water or be placed on a cold metal surface. Allow it to cool naturally inside the furnace to below 300°C before removing it.

·Prevent metal splashes: During melting, avoid splashing molten metal onto the outer wall of the crucible. Metal adhering to the outer wall can cause surface cracks due to differences in the coefficients of thermal expansion as it cools.

·Chemical compatibility: Although graphite has good chemical stability, direct contact with strong oxidizing agents (such as concentrated nitric acid, potassium permanganate, etc.) should be avoided.

[Post-Use Maintenance]

① Cleaning:

·While the crucible is still warm, use a soft brass brush or wooden scraper to remove residual slag from the inner walls.

·Do not use tools harder than graphite (such as steel brushes or sharp objects) to scrape the inner walls.

·The depth of any scratches made during cleaning should not exceed 0.5 mm.

·For deep cleaning, wipe with a dry cloth; soaking in strong acid or alkali solutions is not recommended.

② Storage:

·Storage Environment: Dry, well-ventilated, dust-free, with a temperature of 5–25°C and relative humidity <60%.

·Store different sizes separately to prevent deformation or damage caused by stacking or compression.

·Before long-term storage, it is recommended to dry the crucibles in an oven at 120°C for at least 24 hours

·The storage area should be kept away from corrosive substances such as acids and alkalis

③ Regular Inspection:

·Check the wall thickness weekly using an ultrasonic thickness gauge and record any wear

·Conduct monthly visual inspections, focusing on the double-ring joints and the bottom for cracks

·Maintain a usage log recording the number of uses, maximum temperature, and types of metals melted for each crucible

[Tips for Extending Service Life]

·Maintain continuous use as much as possible; frequent long-term interruptions accelerate thermal fatigue

·Use dedicated crucibles for different metals to avoid cross-contamination

·If minor cracks (<2 mm) are found, try repairing them with graphite powder and a carbon-based adhesive. After curing at 300°C for 2 hours, approximately 80% of the strength can be restored; however, repaired crucibles are not recommended for smelting high-value precious metals

·Consider purchasing an anti-oxidation coating service; the coating can extend the service life by 2–3 times

▍Use Cases and Corresponding Solutions

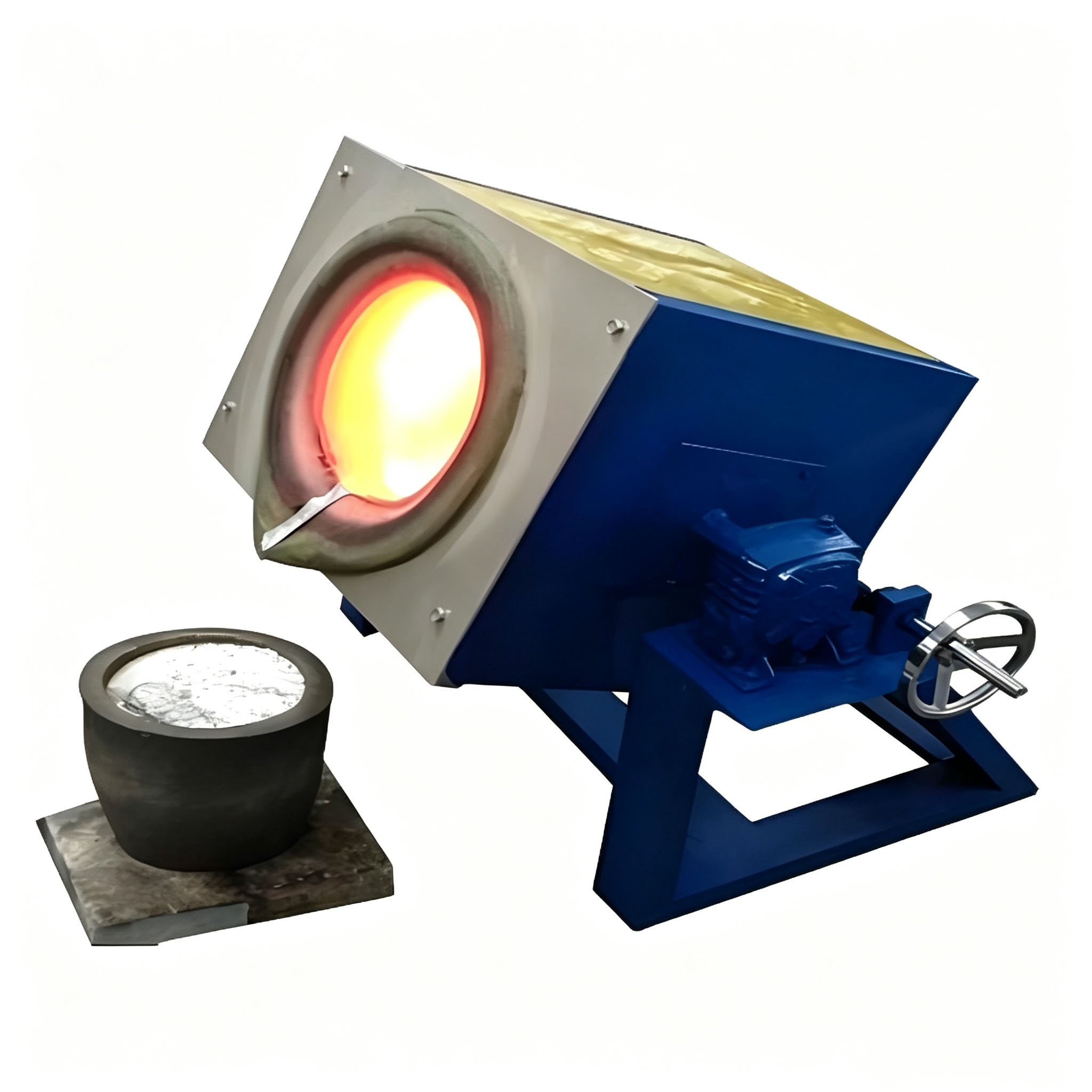

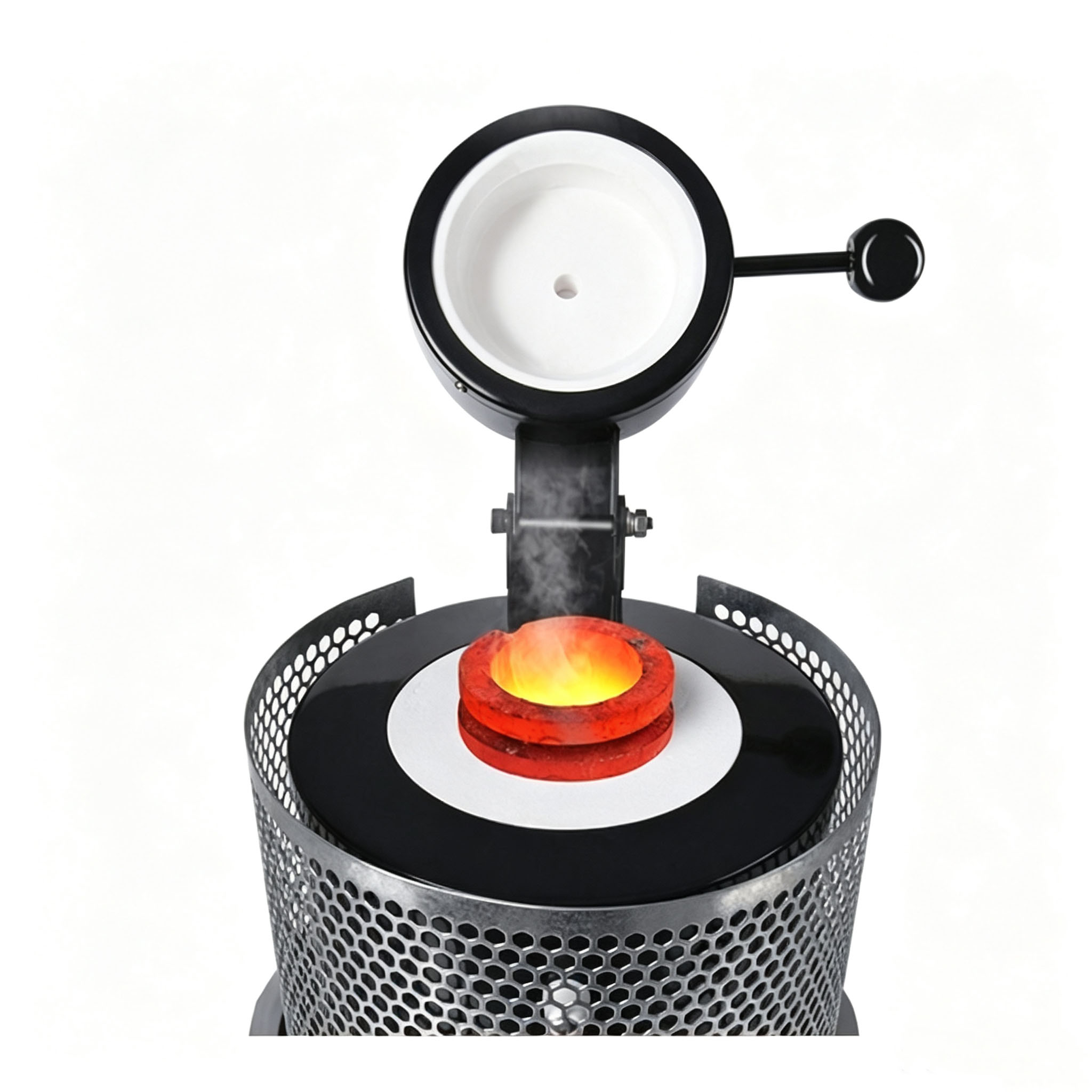

Jewelry Melting Furnace

Induction Furnace

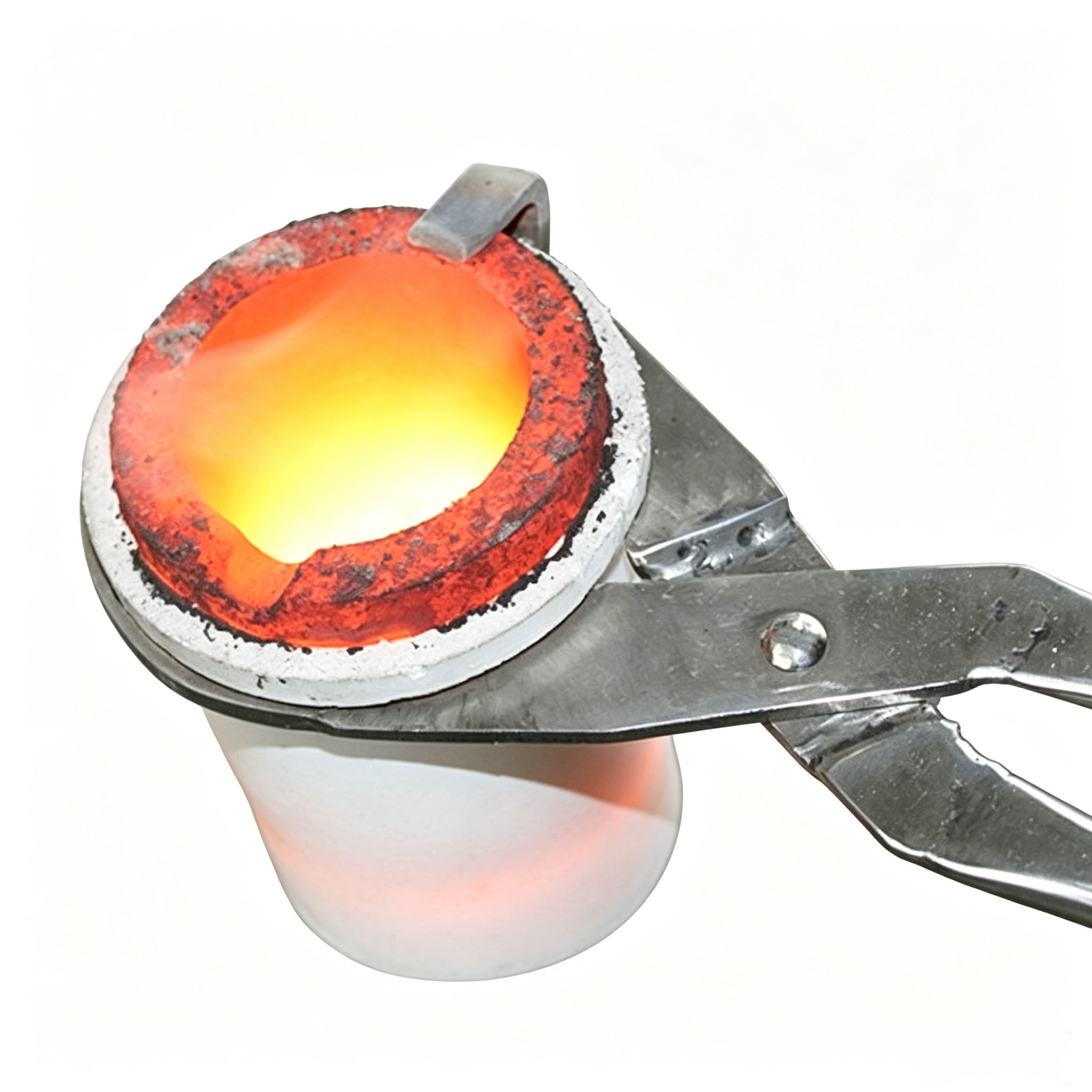

Molten Metal Pouring

【Scenario 1】

Jewelry Manufacturing (1 kg–3 kg Capacity) Suitable Metals: Gold (Au), Silver (Ag), Karat Gold, Platinum (Pt)

Application Benefits:

• The 1 kg–3 kg capacity is compatible with small gold melting furnaces, and the single-melt volume meets daily production needs.

• The double-ring structure facilitates pouring into jewelry molds, reducing metal splash loss.

• High-purity graphite does not contaminate precious metals, ensuring a pure luster in the finished product.

• Smooth inner walls allow for good flow of molten metal, making it suitable for precision casting Typical Customers: Jewelry processing plants, jewelry workshops, goldsmith shops.

【Scenario 2】

Precious Metal Recycling and Refining (3 kg–12 kg sizes) Suitable Materials: Scrap jewelry, electronic waste, catalysts, industrial waste liquids

Application Benefits:

·Large-capacity sizes support batch processing, improving recovery efficiency.

·Chemical inertness ensures recovered metals are not subject to secondary contamination, with purity reaching 99.95% or higher.

·High-temperature resistance supports integrated high-temperature calcination and smelting operations.

·The double-ring structure provides high stability during frequent pouring operations, reducing breakage rates Typical customers: Precious metal recycling companies, electronic waste processing plants, refineries.

【Scenario 3】

Laboratory Analysis and Fire Assay (0.5 kg–2 kg sizes) Applicable Scenarios: Ore grade analysis, metal composition testing, new materials R&D

Application Benefits:

·Small sizes are compatible with laboratory electric furnaces, enabling precise temperature control.

·Thermal shock resistance supports rapid heating and cooling, shortening the experimental cycle.

·Low ash content and high purity ensure accurate and reliable analytical results.

·Standardized dimensions facilitate compatibility with laboratory equipment Typical Customers: Geological laboratories, testing institutions, university research teams.

▍FAQ

• Q1: What is the difference between a double-ring graphite crucible and a single-ring graphite crucible?

  A1: A double-ring crucible adds an upper retaining ring and a lower support ring to the single-ring design.

  There are three main differences:

  ① Stability: The double-ring structure has a lower center of gravity, making it less likely to tip over when tilted, which is particularly suitable for frequent tilting operations;

  ② Thermal Stress Management: The double-ring design disperses thermal expansion stresses, offering better thermal shock resistance and a service life typically 30–50% longer than that of single-ring crucibles;

  ③ Ease of Operation: The upper ring provides a standardized clamping surface, allowing for safe operation without the need for specialized fixtures. For occasional use or fixed-position single-melting applications, single-ring crucibles offer better value for money; for applications requiring frequent pouring and continuous operation, double-ring crucibles are the better choice.

• Q2: What is the purity of your graphite crucibles? Will they contaminate the melted metal?

  A2: Our standard-grade products have a carbon purity of ≥99.9% and ash content of ≤0.1%; our premium-grade products have a carbon purity of ≥99.99% and ash content of ≤0.05%. Graphite is chemically stable at smelting temperatures; it does not react with precious metals such as gold, silver, or platinum, and therefore does not introduce metallic impurities that could cause contamination. For semiconductor-grade ultra-high-purity applications, we can also provide custom products that have undergone further purification.

• Q3: How many times can a graphite crucible be used? What is its typical service life?

  A3: Service life depends on several factors: operating temperature, frequency of temperature changes, type of metal being melted, and adherence to operating procedures.

  Under normal operating conditions (temperature < 2000°C, with proper preheating and cooling):

  • Standard Grade: Approximately 10–15 melting cycles • Premium Grade: Approximately 15–25 melting cycles

  • With anti-oxidation coating: Can be extended to 30–50 cycles. Due to relatively lower temperatures and more precise operations, the service life for precious metal melting is typically longer than for non-ferrous metal melting.

• Q4: How do I select the appropriate crucible specifications for my gold melting furnace?

  A4: Three main factors should be considered when selecting specifications:

  ① Furnace chamber dimensions: The crucible’s outer diameter should be 20–30 mm smaller than the furnace chamber’s inner diameter to ensure uniform heat radiation around the crucible;

  ② Single-melting capacity: Select the capacity based on daily production needs; it is recommended to calculate 60–80% of the metal’s density;

  ③ Heating method: Induction furnaces place higher demands on the uniformity of crucible material; we recommend using premium-grade crucibles. Standard-grade crucibles are sufficient for gas or resistance furnaces. If you are unsure, please provide your furnace model and melting requirements, and our technical staff will recommend the most suitable specifications for you.

• Q5: Can you customize special sizes or shapes?

  A5: Absolutely.We support customization based on customer drawings or samples, including:

  • Non-standard capacities and dimensions

  • Special shapes (conical, boat-shaped, rectangular, spouted, etc.)

  • Special material requirements (higher purity, SiC additions, etc.)

  • Surface treatments (anti-oxidation coatings, polishing, etc.) The minimum order quantity for custom products is typically 100 pieces, subject to negotiation based on complexity. The prototyping cycle is approximately 7–10 days.

• Q6: What type of company are you? Are you a manufacturer or a trading company?

  A6: Jiangxi Ningheda New Material Co., Ltd. is a manufacturing facility located in Jiangxi Province, with full-process production capabilities ranging from raw material processing, molding, and graphitization to precision machining. We are not a trading company; all products are manufactured in-house, ensuring controllable quality and competitive pricing. Our factory is certified under the ISO 9001:2015 Quality Management System, and we welcome customers to visit our facility.
