High-Performance Graphite Heaters | Designed for Vacuum Furnaces and Semiconductor Processes

Product Overview

This product series is specifically designed for extreme high-temperature environments and serves as the core component of vacuum sintering furnaces and monocrystalline/polycrystalline silicon growth furnaces. Unlike standard carbon products, our graphite heaters are precision-machined from high-purity, fine-grained isostatic graphite (purity ≥99.9%).

Compared to metal heating elements, graphite heaters offer significant advantages in terms of maximum temperature resistance, thermal uniformity, and thermal shock resistance, making them an ideal choice for high-end industrial furnaces. Featuring an advanced graphite heating zone design, these heaters focus on three core requirements: “high-efficiency heat transfer, uniform temperature control, and adaptability to extreme environments.” Through structural optimization and material upgrades, they provide an ideal solution for industrial processes with stringent requirements for heating stability and consistency. Their innovative design not only meets modern industrial standards but also delivers both performance breakthroughs and long-term value.

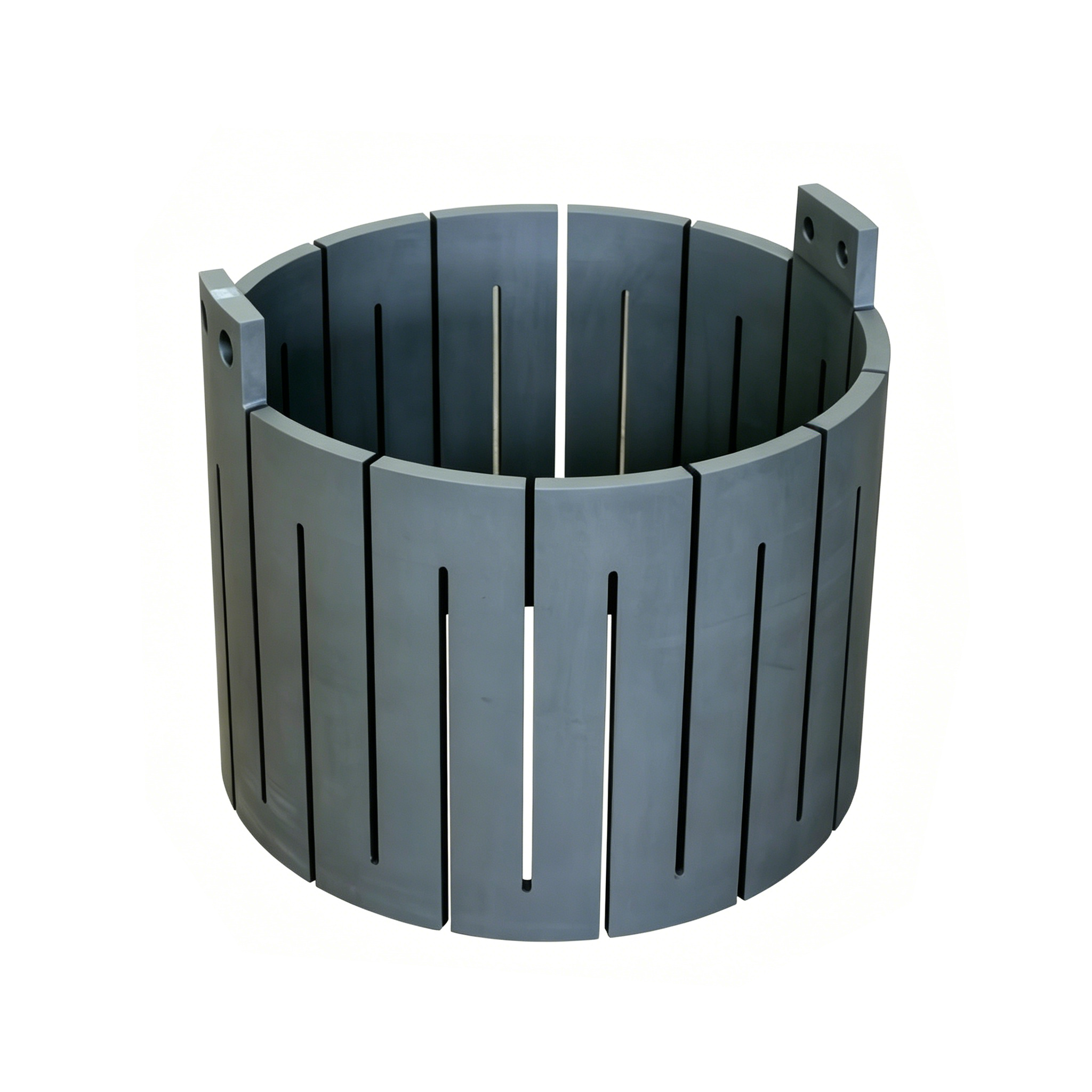

Split Slotted Graphite Heater with Mounting Lugs

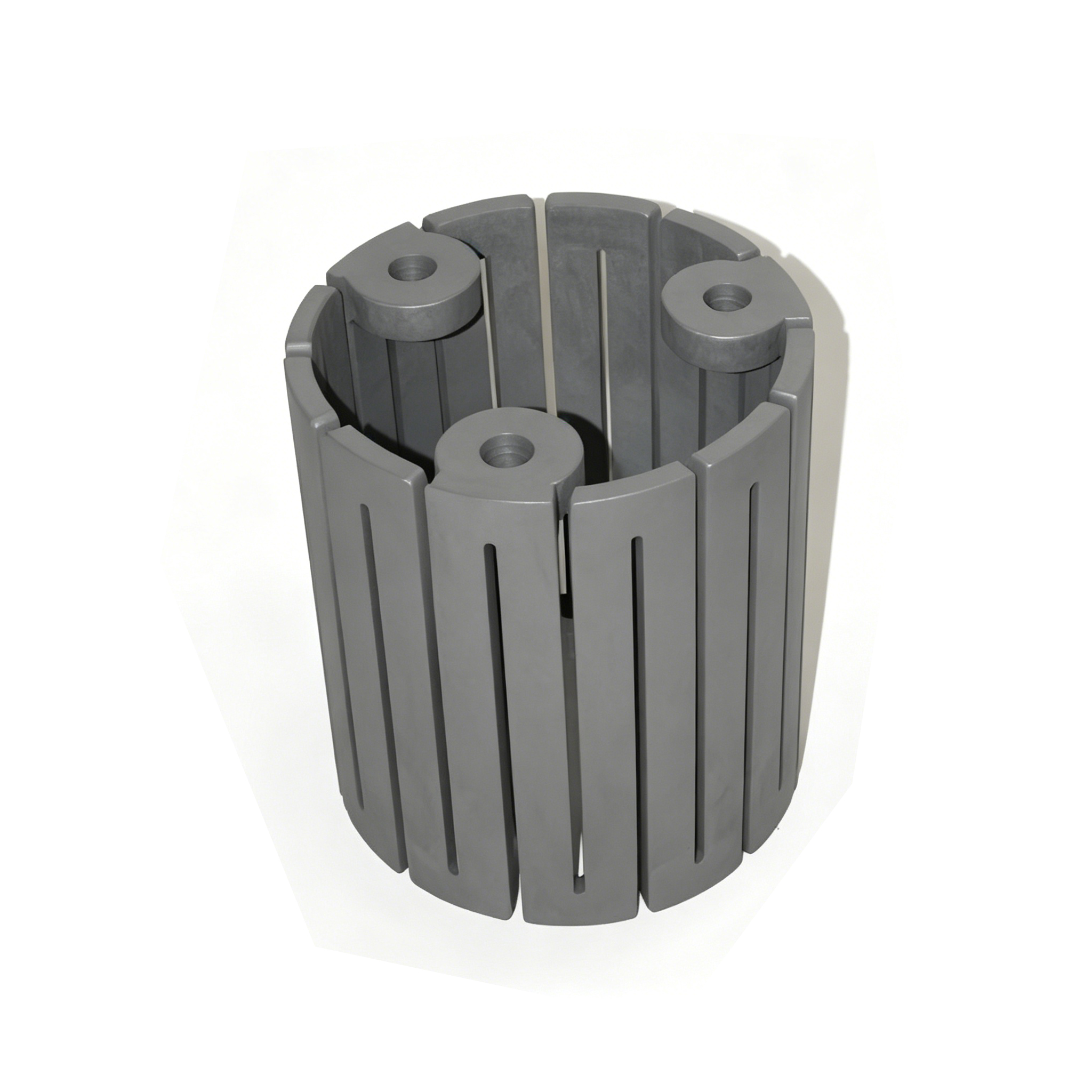

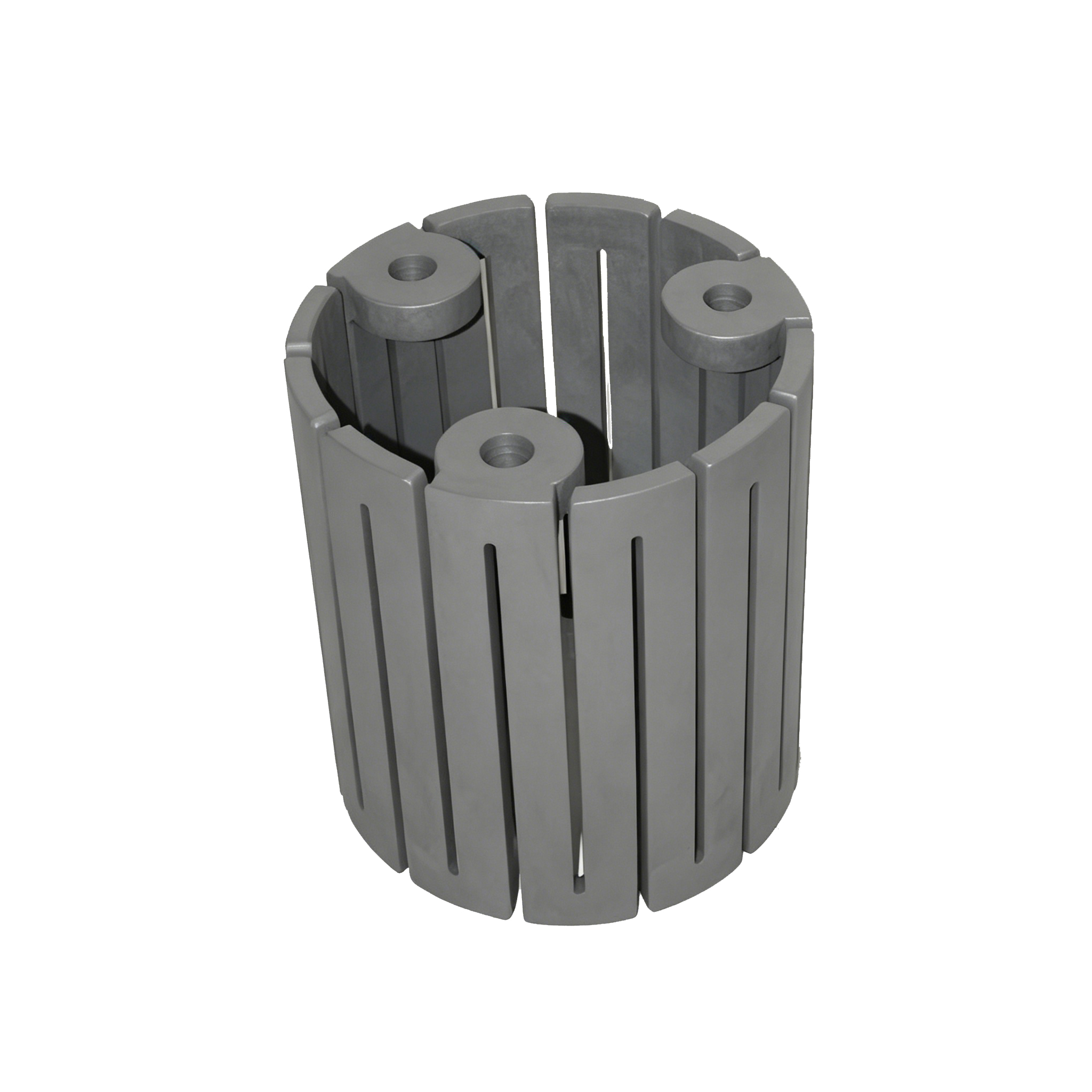

Multi-Piece Graphite Heater Cylinder with Positioning Pins

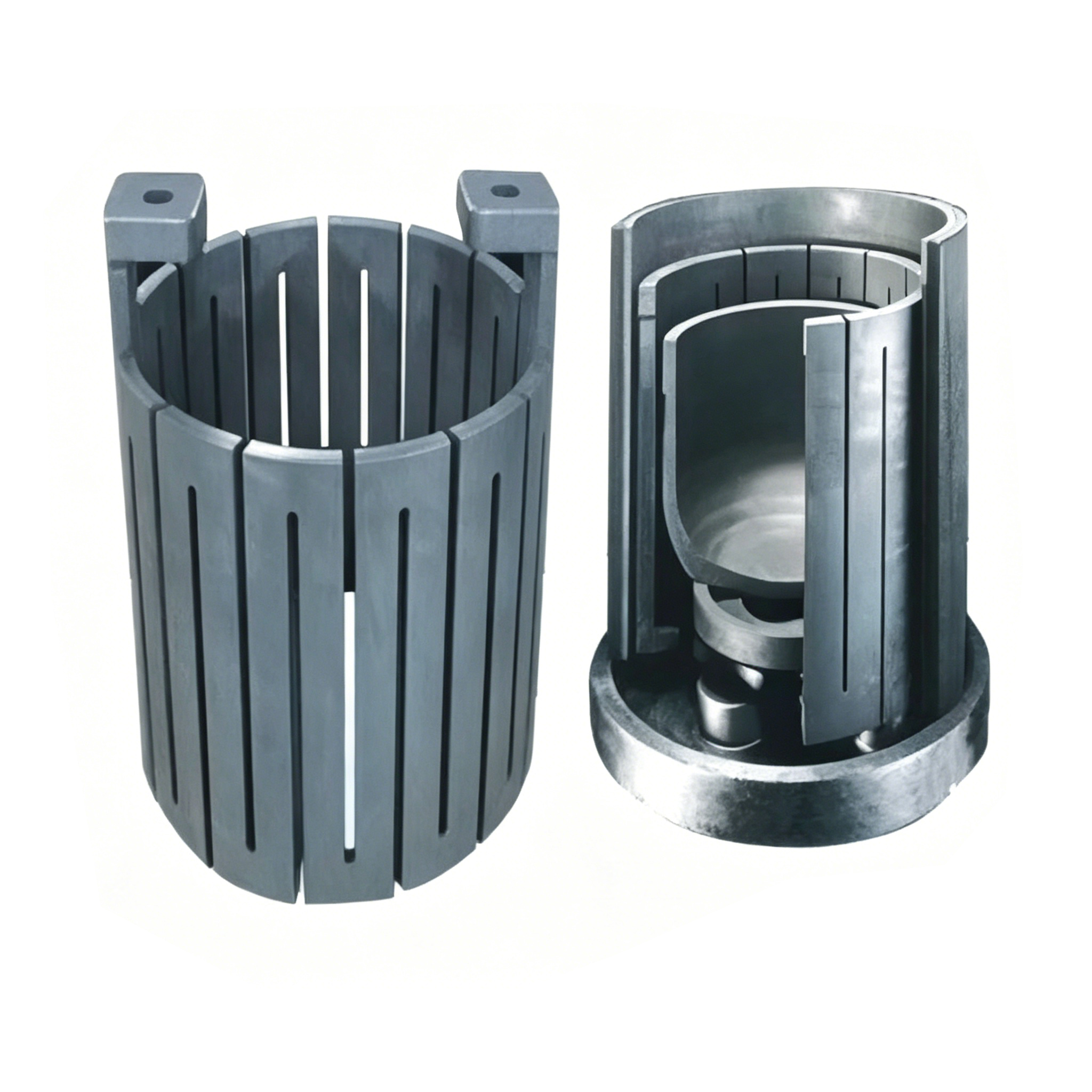

Graphite Heater Assembly with Crucible for Vacuum Furnace

Technical Features and Specifications

The following are typical technical parameter ranges for this series of graphite heaters; these are not standard values (they can be customized to meet specific requirements):

Key Performance Advantages

1. Exceptional thermal field uniformity:The structurally optimized graphite heating element effectively improves the temperature distribution within the furnace. Even in the furnace door area, where there are no heating elements, the optimized radiation angle helps raise the temperature, significantly reducing temperature variations on the workpiece surface and ensuring consistent sintering quality throughout the entire batch.

2. Excellent thermal shock resistance:Thanks to graphite’s low coefficient of thermal expansion, this heater exhibits exceptional dimensional stability in environments subject to rapid temperature changes. Compared to metal materials, it can withstand extreme temperature fluctuations without cracking, significantly extending its service life.

3. Strength Increases Rather Than Decreases at High Temperatures:While ordinary metals soften at temperatures above 2000°C, the mechanical strength of high-purity graphite increases as the temperature rises below 2500°C. This means that even under ultra-high-temperature conditions, our heaters maintain structural rigidity and reliability.

4. High Efficiency and Energy Savings:Thanks to graphite’s extremely high thermal conductivity and electrical-to-thermal conversion efficiency, the heater responds quickly to heating commands, reducing thermal inertia and thereby lowering the energy consumption of industrial furnaces.

Diverse application scenarios

Thanks to its outstanding overall performance, this graphite heater has a wide range of applications and plays a pivotal role in everything from traditional industry to high-end manufacturing:

Semiconductor Manufacturing

Our graphite heaters are widely used in semiconductor wafer processing, providing high-purity, contamination-free thermal environments for crystal growth, annealing, and epitaxial processes. With precise temperature control up to ±1℃ and low impurity release, they ensure consistent product quality and yield in advanced chip manufacturing.

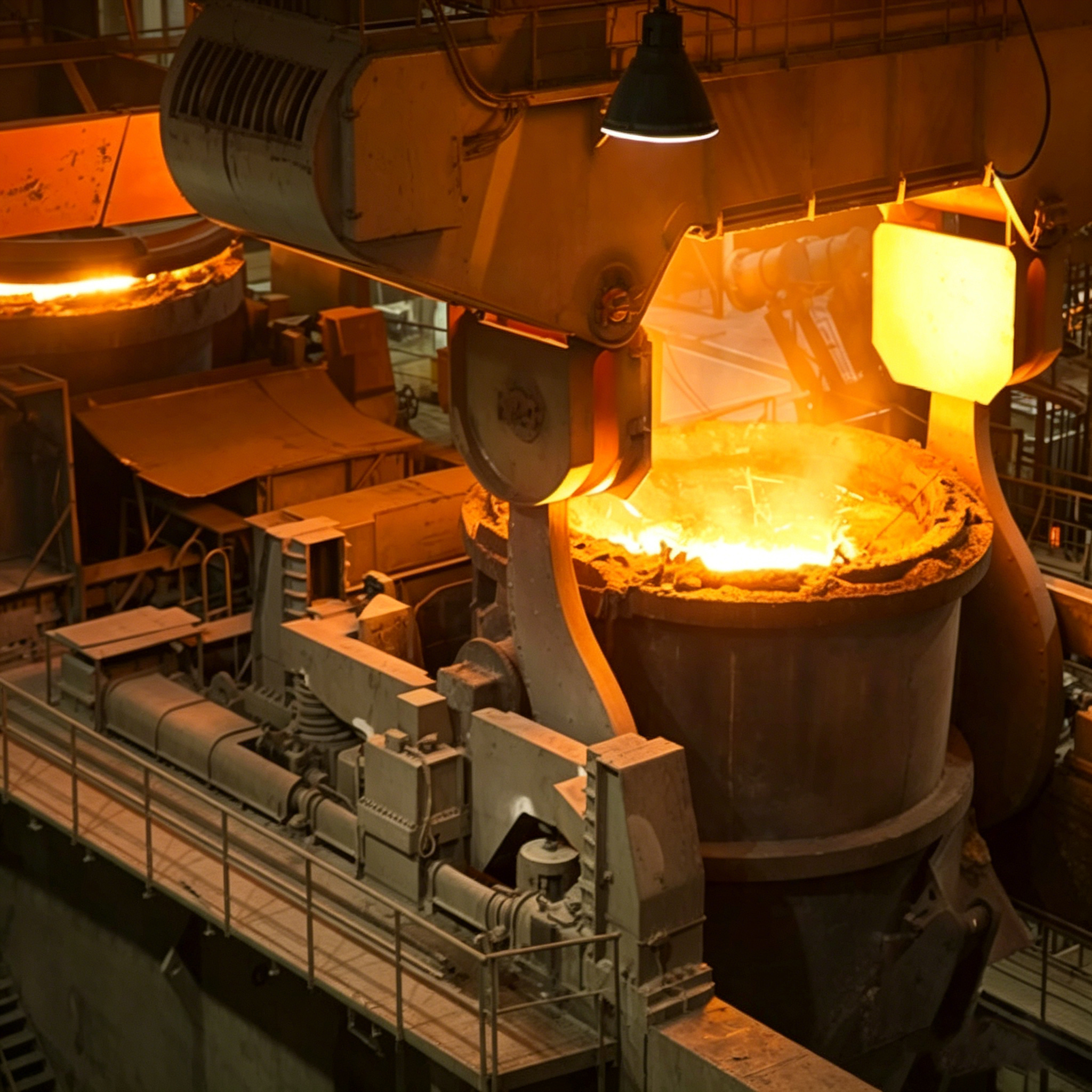

Metal Processing & Metallurgy

For metal melting, heat treatment, and vacuum sintering processes, our graphite heaters offer excellent thermal shock resistance and uniform heating. They operate stably at extreme temperatures, reducing workpiece deformation and oxidation, and improving the purity and mechanical properties of finished metal products.

Photovoltaic & Sintering Industry

Our graphite heaters are ideal for photovoltaic silicon ingot casting and high-temperature sintering furnaces. With high thermal conductivity and low thermal expansion, they shorten production cycles, reduce energy consumption, and maintain long-term stable operation in continuous high-temperature environments.

By choosing this graphite heater, you gain a high-temperature heating solution that combines durability, reliability, and efficiency. Its performance not only fully meets modern industrial standards but also surpasses them in multiple aspects, providing a solid foundation for enhancing production efficiency and ensuring product quality under demanding operating conditions.

Product Shipping and Packaging

Since graphite heaters are fragile, high-value, and moisture-sensitive precision components, our company follows the standard packaging and shipping procedures outlined below to ensure the safety of the products throughout the entire process, from shipment to installation.

• Domestic Shipping: We typically use logistics providers such as Yunda and SF Express, and offer door-to-door delivery.

• International Shipping: We support sea freight, air freight, or international express services (such as DHL), and will select the optimal solution based on the customer’s location and urgency.

• All exported products come with a complete packing list, commercial invoice, and certificate of origin (if required), and we assist with customs clearance procedures.

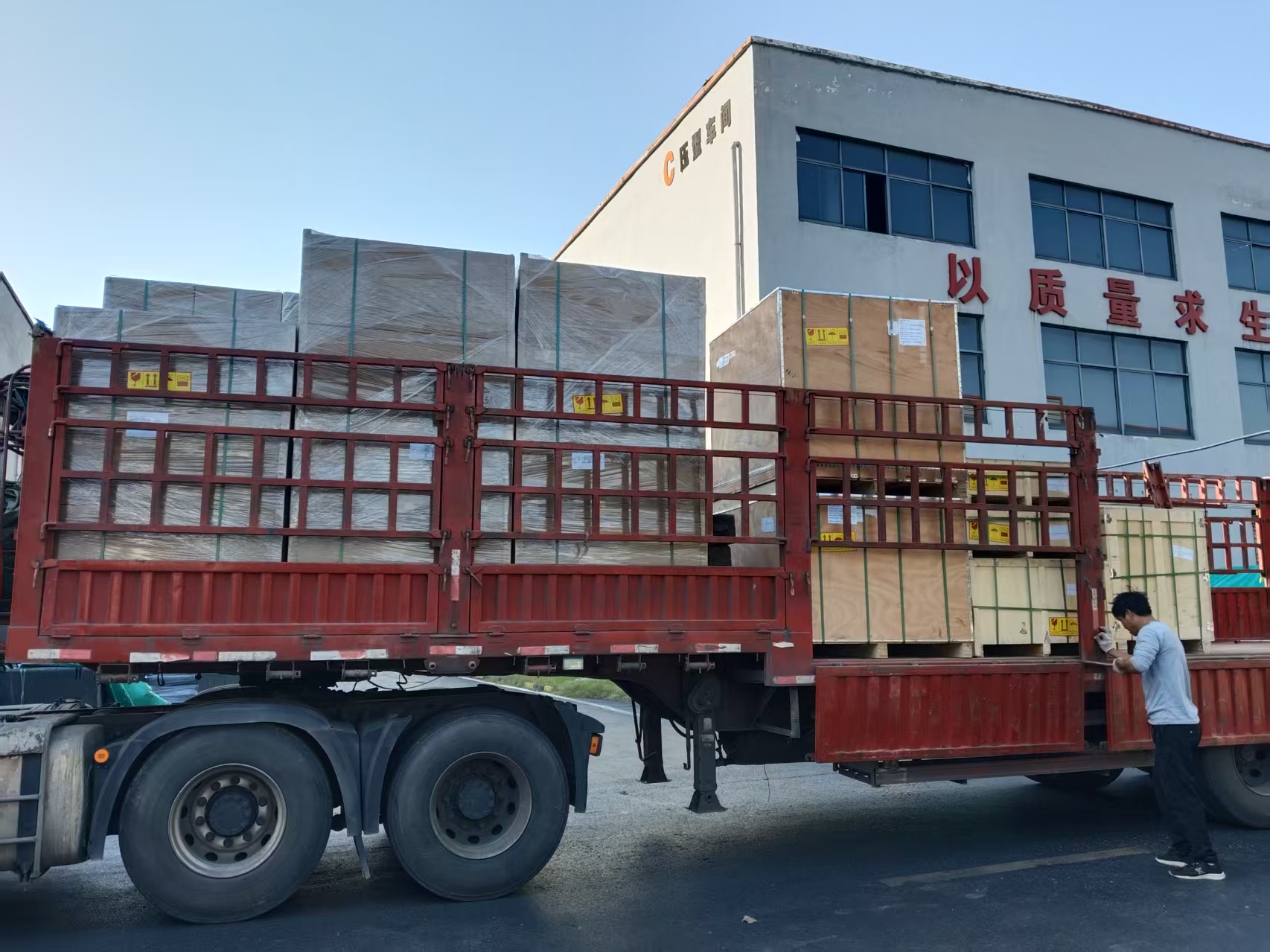

Panoramic view of loading

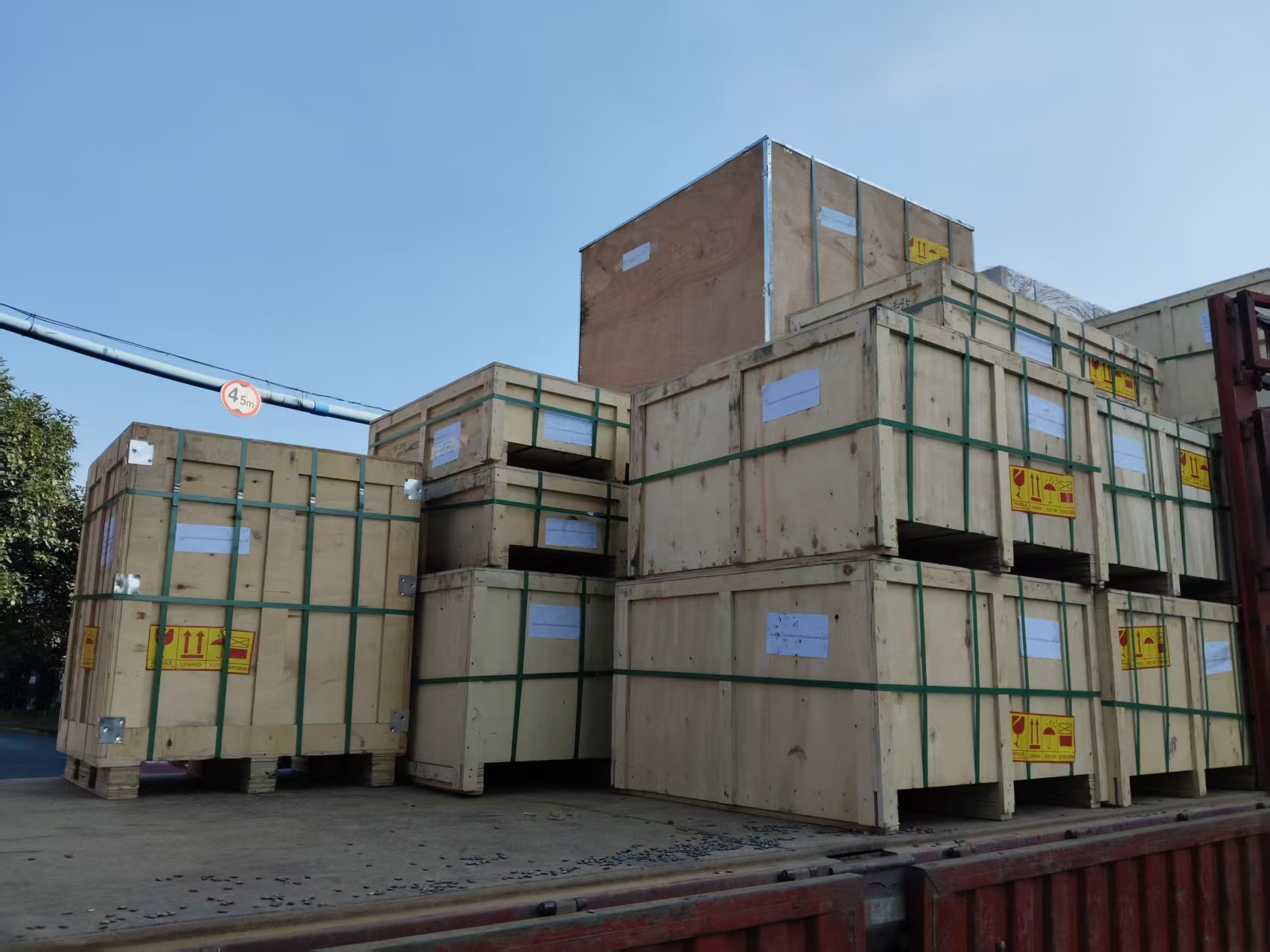

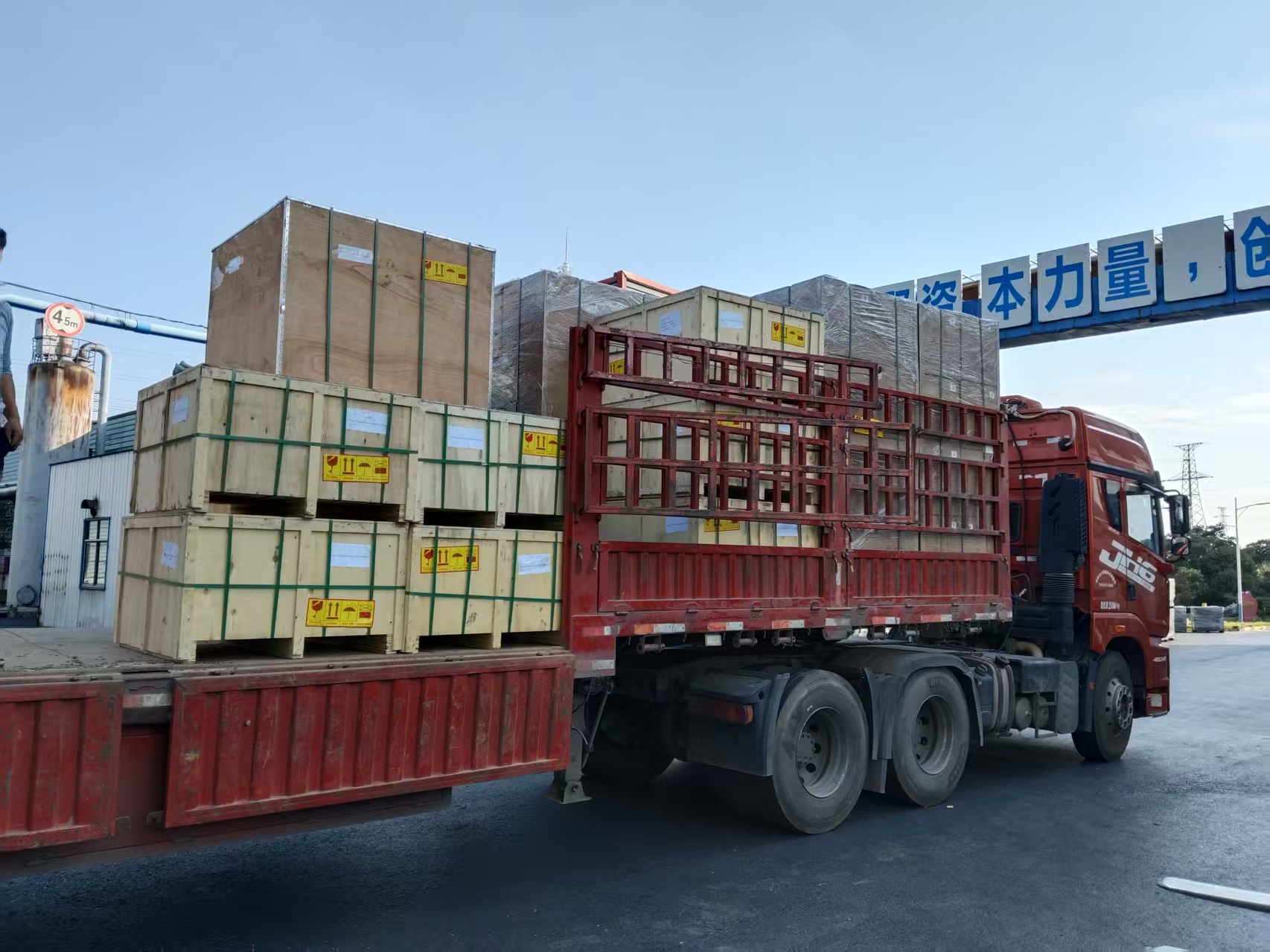

Close-up of stacked wooden crates

Side loading

The boxes are labeled with instructions such as “Fragile,” “Keep Dry,” and “This Side Up.”

FAQ：

• Q: Does the temperature uniformity of graphite heaters decrease with prolonged use? How should they be maintained?

  A: After prolonged, frequent use involving high-temperature cycling, temperature uniformity may deteriorate slightly. This is primarily due to changes in the microstructure of the graphite, aging of the heating elements, or sensor drift. It is recommended to perform an inspection every six months using an infrared thermal imager or a multi-point temperature probe. If the uniformity deviation exceeds ±2°C, recalibrate the temperature control system or replace aged heating components. After routine use, allow the furnace temperature to drop below 100°C before shutting off the protective atmosphere to minimize thermal stress damage.

• Q: What is the typical service life of a graphite heater? What factors affect its service life?

  A: Under normal operating conditions (in a vacuum or protective atmosphere, and within the rated temperature range), the continuous operating life can exceed 10,000 hours. Key factors affecting service life include: operation at excessive temperatures (exceeding 3,000°C in a protective atmosphere or 2,300°C in a vacuum), frequent and drastic temperature fluctuations, oxidation caused by air ingress into the furnace, and mechanical impact or uneven stress during installation. Adhering to operating procedures can effectively extend service life.

• Q: Do you offer custom graphite heaters in different sizes and configurations? How long does the customization process take?

  A: We fully support customization. We can customize products with various structures—such as tubular, plate-type, and split-slotted designs—and in any dimensions (diameter: 10 mm–2000 mm; length: 50 mm–5000 mm) based on furnace chamber dimensions, heating power, and temperature uniformity requirements. For customization, please provide detailed drawings or operating parameters. The lead time for samples is approximately 15 days, and approximately 60 days for bulk orders; these times may vary depending on the complexity of the customization.

• Q: Does moisture affect the performance of graphite heaters? How should they be stored?

  A: Exposure to moisture can severely affect performance and may cause issues such as cracking or shattering during heating. Storage requirements are as follows: the warehouse must be dry and well-ventilated, with a temperature of 5°C–25°C and a relative humidity of 50%–60%. Products must be placed on wooden shelves at least 20 cm above the floor to avoid direct contact with brick, soil, or concrete surfaces. Unopened products must remain in their original vacuum-sealed packaging, and any opened but unused products must be promptly sealed in moisture-proof bags.
