Comparison of Graphite Boat Hardness with Other Furnace Materials
How Hardness Affects the Durability and Performance of Graphite Boats

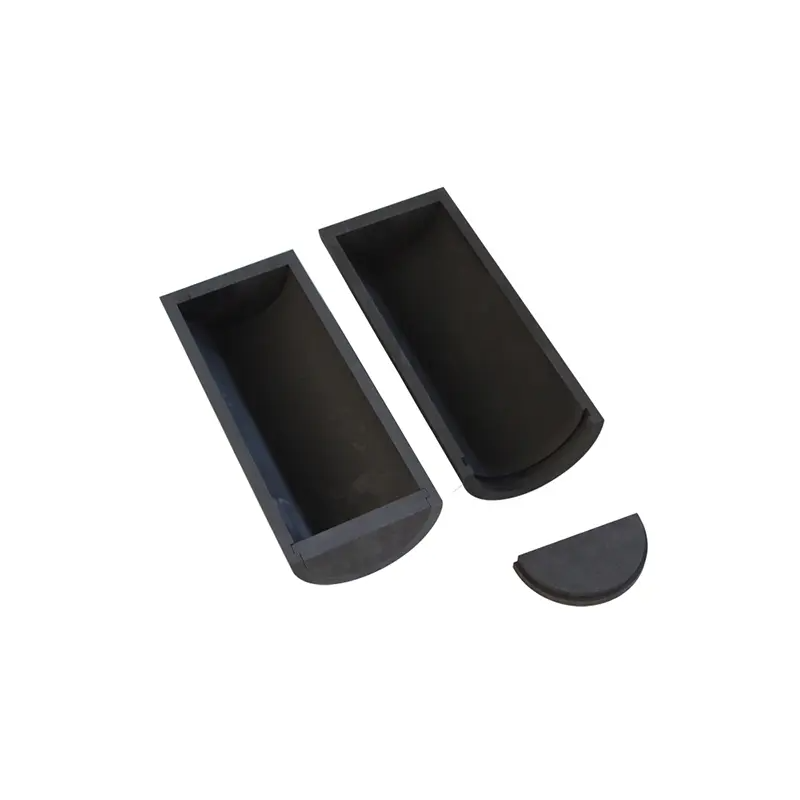

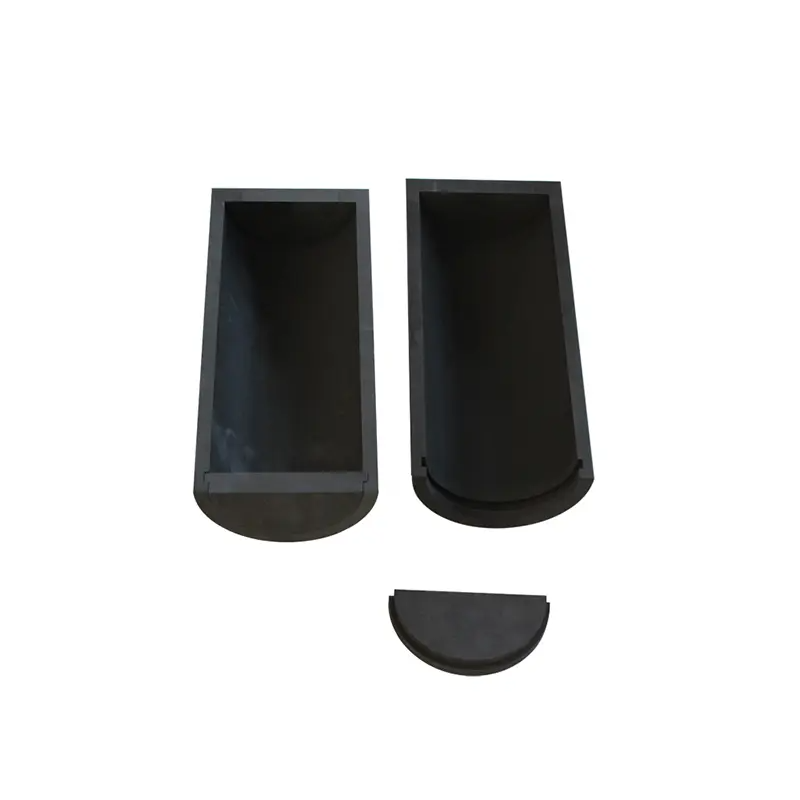

Graphite boats are crucial components used in a variety of high-temperature furnaces, such as sintering furnaces, vacuum quenching furnaces, and brazing furnaces. These boats serve as containers for materials that need to be subjected to extreme temperatures, facilitating processes like sintering, brazing, and ion nitriding. When it comes to graphite boats, understanding their physical properties, particularly hardness, is essential for selecting the right boat for specific applications.
The hardness of a graphite boat is one of the key characteristics that determines its suitability for different high-precision processes. A graphite boat must possess the right balance of hardness to withstand intense heat, resist wear, and maintain its structural integrity throughout its service life. In this article, we will explore what defines the hardness of a graphite boat, the factors influencing it, and how it affects the performance of the boat in various industrial settings.
The hardness of a graphite boat refers to its ability to resist deformation, scratching, or penetration when subjected to external forces. This is a critical characteristic for any material used in high-temperature applications, as graphite boats often endure conditions that subject them to intense heat, mechanical stress, and wear. In general, graphite is a relatively soft material compared to metals such as steel or titanium, but it can vary significantly in hardness depending on its composition, manufacturing process, and the specific grade of graphite used.
In the context of graphite boats, hardness is important for ensuring the boat's longevity and performance during the sintering or brazing processes. A softer graphite boat may wear out faster or break under stress, while a harder one will offer better resistance to such conditions.
Hardness in graphite is typically measured using standardized tests, with the Shore hardness scale and the Mohs hardness scale being the most commonly employed. However, the actual hardness values for graphite boats will depend on the type of graphite used, as well as any additives or coatings designed to improve durability and resistance.
Several factors influence the hardness of graphite boats, and understanding these factors is crucial for choosing the right material for specific industrial applications. Here are the primary factors:
Graphite Type: The type of graphite used in manufacturing the boat significantly affects its hardness. There are two primary types of graphite used in boat production: natural graphite and synthetic graphite. Synthetic graphite tends to be denser and more uniform, often leading to higher hardness levels compared to natural graphite, which may have more irregularities.
Purity of Graphite: Higher-purity graphite typically has better mechanical properties, including greater hardness. Impurities can weaken the graphite structure and reduce its ability to resist wear and deformation.
Manufacturing Process: The way a graphite boat is produced, such as through isostatic pressing or vibrating compaction, can affect its density and, consequently, its hardness. Isostatically pressed graphite is known to offer superior hardness and uniformity compared to other production methods.
Additives and Coatings: Additives, such as silicon carbide (SiC) or boron carbide (B4C), can be mixed with graphite to enhance its hardness and thermal resistance. These materials improve the boat’s overall mechanical strength, making it more resistant to high-temperature environments.
Temperature and Sintering Conditions: The conditions under which the graphite boat is used can also affect its hardness. For example, exposure to extremely high temperatures can alter the microstructure of the graphite, potentially reducing its hardness over time.
The composition of a graphite boat plays a direct role in determining its hardness. Typically, graphite boats are made from pure or blended graphite, often combined with reinforcing agents like silicon carbide or ceramics to improve both hardness and wear resistance.
| Material Composition | Hardness Impact | Characteristics |
|---|---|---|
| Pure Graphite | Lower hardness | Soft, good thermal conductivity, but more prone to wear |
| Graphite with Silicon Carbide | Increased hardness | Improved wear resistance and durability |
| Graphite with Boron Carbide | Very high hardness | Excellent high-temperature resistance, ideal for high-wear applications |
| Graphite with Ceramic Coating | Moderately increased hardness | Enhanced mechanical strength, resistant to oxidation |
As seen in the table above, the addition of materials like silicon carbide or boron carbide significantly increases the hardness of a graphite boat, making it more durable and capable of enduring harsher conditions in high-precision sintering furnaces or other demanding environments.
In high-temperature applications, such as tantalum-niobium smelting furnaces or vacuum quenching furnaces, the hardness of a graphite boat is critical. At elevated temperatures, graphite can become softer and more prone to wear. However, a harder graphite boat will perform better in these environments, offering superior resistance to thermal shock and wear.
A graphite boat with the right level of hardness helps maintain its structural integrity during repeated heating and cooling cycles. This makes it suitable for long-term use in demanding environments like sintering furnaces, where materials are subjected to extreme heat and mechanical stress.
Moreover, high-hardness graphite boats are more capable of maintaining their shape and resisting deformation when used in ion nitriding furnaces or similar applications. This ability ensures that the boat can support materials over extended periods without compromising its mechanical properties.
When compared to other materials used in high-temperature furnaces, graphite boats offer unique advantages in terms of thermal conductivity and resistance to high temperatures. However, in terms of hardness, materials like silicon carbide and boron carbide are generally harder than graphite.
| Material | Hardness Level | Suitability for High-Temperature Applications |
|---|---|---|
| Graphite | Low to Medium | Excellent thermal conductivity, but softer |
| Silicon Carbide | High | High hardness, better wear resistance |
| Boron Carbide | Very High | Exceptional hardness, ideal for extreme conditions |
| Tungsten | Very High | Extremely hard, but more expensive and heavy |
While silicon carbide and boron carbide are much harder than graphite, graphite boats remain preferred for certain applications due to their ability to withstand high temperatures without cracking or deteriorating. For instance, in sintering furnaces, graphite boats provide a good balance between thermal resistance and mechanical properties, making them ideal for applications that don’t demand the highest hardness levels.
The hardness of a graphite boat directly influences its durability and performance in various industrial processes. A harder graphite boat will exhibit better resistance to wear, which is essential in applications like vacuum quenching furnaces where repetitive heating cycles are common. Moreover, boats with higher hardness are better at resisting abrasion, which can cause the boat to break down prematurely under mechanical stress.
In addition to wear resistance, hardness also plays a role in thermal shock resistance. Harder graphite boats tend to have more uniform properties, making them less prone to cracking when subjected to rapid temperature fluctuations. This is particularly important in high-precision sintering furnaces, where precise temperature control is required.
Testing the hardness of a graphite boat is an important step in ensuring its suitability for specific applications. Several methods can be employed to measure the hardness of graphite, including:
Shore Hardness Test: Measures the material’s resistance to indentation using a durometer.
Mohs Hardness Test: Determines the material’s ability to withstand scratching by comparing it to reference minerals.
Vickers Hardness Test: Involves applying a known force to the material and measuring the size of the indentation left behind.
The choice of testing method depends on the specific application and the precision required in evaluating the graphite boat's hardness.
The hardness of a graphite boat is an essential property that significantly impacts its performance and durability in high-temperature applications. The right hardness ensures that the boat can withstand harsh environments, resist wear, and maintain its integrity during extended use. Factors such as the type of graphite, purity, additives, and manufacturing methods all contribute to the overall hardness of the boat.
For industries requiring high-precision sintering furnaces or vacuum quenching furnaces, selecting a graphite boat with the right level of hardness can make the difference between efficient, long-lasting operation and premature failure.
1. What is the typical hardness of a graphite boat?
The typical hardness of a graphite boat ranges from 40 to 70 on the Shore hardness scale, depending on the material composition and manufacturing process.
2. How does hardness affect the performance of graphite boats in furnaces?
A harder graphite boat offers better wear resistance, thermal shock resistance, and durability in high-temperature furnaces, ensuring longer service life and better overall performance.
3. Can the hardness of a graphite boat be improved?
Yes, by incorporating additives like silicon carbide or boron carbide, the hardness of a graphite boat can be significantly increased.
4. How is the hardness of a graphite boat measured?
The hardness of a graphite boat can be measured using various methods such as the Shore hardness test, Mohs hardness test, or Vickers hardness test.
