In industrial settings where high-temperature environments and precise control over material properties are essential, the role of specialized equipment is undeniable. Graphite boat trays are one such indispensable tool used across a variety of furnaces and smelting processes. Their durability, resistance to extreme conditions, and thermal conductivity make them a valuable asset in applications ranging from metal smelting to sintering. This article will explore what a graphite boat tray is, its key features, and why it is the preferred choice in many industries.

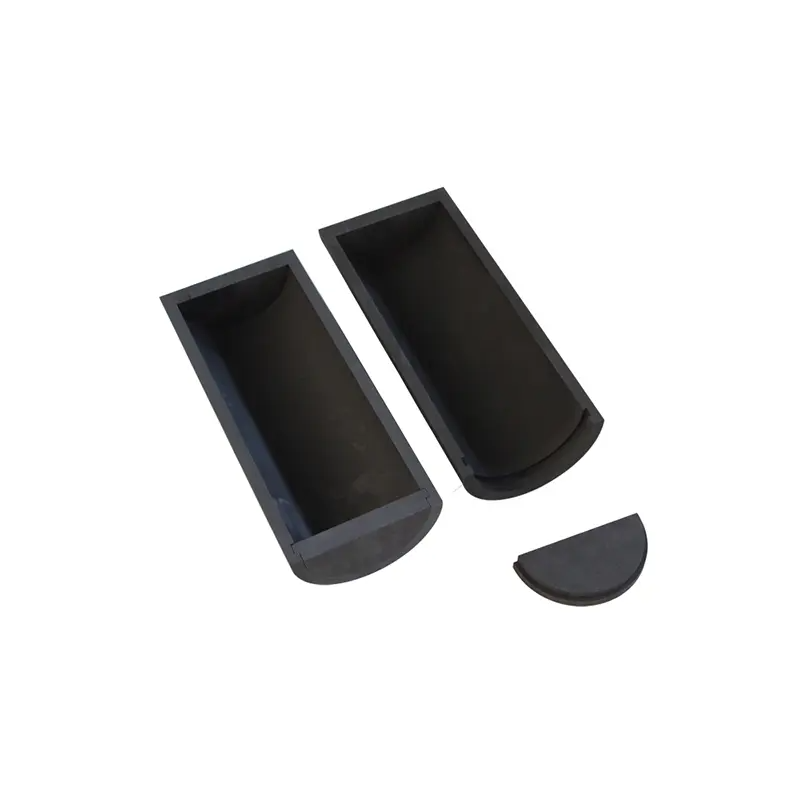

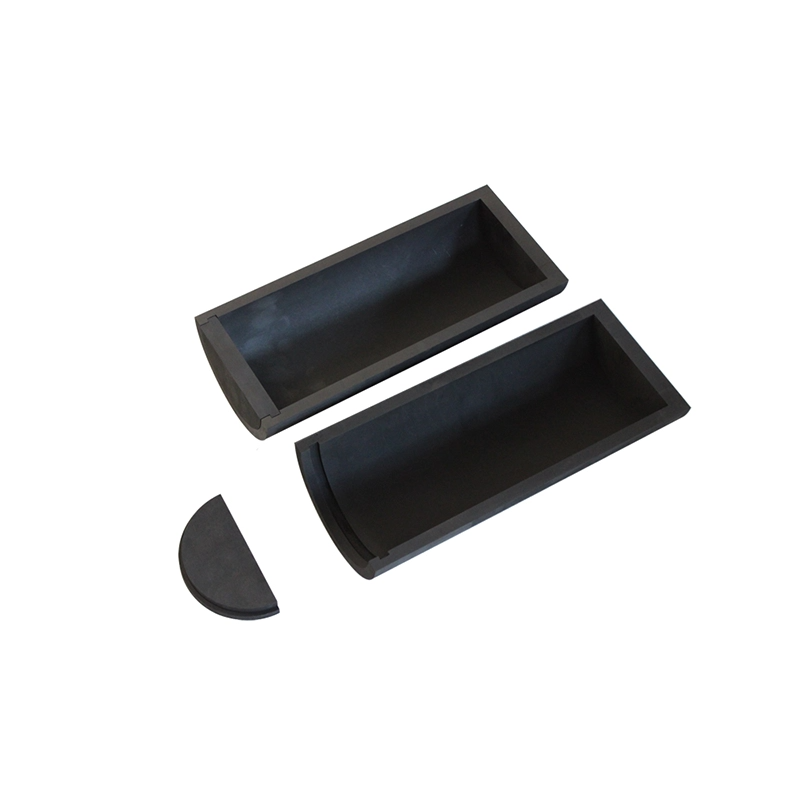

A graphite boat tray is a container made from high-purity graphite used primarily in high-temperature applications, such as those found in vacuum furnaces, induction furnaces, and sintering furnaces. These trays serve as holding vessels for materials during various heating or sintering processes, offering excellent resistance to thermal stress and wear. Graphite itself is a naturally occurring form of carbon known for its unique properties, including high melting points and outstanding thermal conductivity, making it an ideal material for trays used in extreme heat environments.
In high-precision sintering furnaces, where precise control of temperature and atmosphere is crucial, graphite boat trays ensure that the materials inside undergo uniform heating. Due to their high durability and resistance to both thermal shock and corrosion, graphite boat trays are critical for maintaining product integrity during processes like metal smelting, brazing, and ion nitriding.
One of the defining characteristics of graphite boat trays is their ability to withstand extremely high temperatures without deteriorating. These trays can maintain their structural integrity even when exposed to temperatures of up to 3000°C (5432°F), depending on the type of graphite used. This property is particularly vital in processes such as tantalum-niobium smelting or other applications requiring stable performance in environments where temperatures fluctuate dramatically.
In industrial environments, materials that come into direct contact with various chemicals or molten metals need to exhibit a high level of corrosion resistance. Graphite boat trays excel in this regard, as graphite is naturally resistant to most acids and alkaline substances. This makes them ideal for use in environments that involve corrosive gases or molten metals, such as ion nitriding furnaces or vacuum quenching furnaces.
Additionally, the material's ability to absorb and dissipate heat efficiently grants it thermal shock resistance, allowing the trays to survive sudden temperature changes without cracking or deforming. This feature ensures that the trays can handle the rigors of industrial processes that require frequent heating and cooling cycles.
Graphite boat trays are commonly used in industries where high-temperature processes are integral to material processing. For example, in sintering furnaces, high-precision sintering furnaces, and vacuum resistance furnaces, these trays serve as the primary method for holding materials during heating processes. In high-temperature applications, where the precision of material properties is essential, graphite boat trays help maintain the integrity of the materials, ensuring even heat distribution.
In induction furnaces, which rely on electromagnetic energy to heat materials, graphite boat trays are essential for the smooth operation of the furnace. The tray acts as a stable and heat-resistant platform, allowing for accurate and consistent melting or sintering of metals.
Graphite boat trays are widely used across multiple industries due to their unique properties. Below are some of the most common applications:
| Application | Description |
|---|---|
| Vacuum Resistance Furnaces | Used to hold materials in a vacuum environment, maintaining high thermal conductivity and stability. |
| Induction Furnaces | Essential in holding materials during the melting process, especially in metal casting or smelting operations. |
| Sintering Furnaces | Ideal for creating high-precision sintering environments, helping to form dense materials in a controlled atmosphere. |
| Brazing Furnaces | Used to hold parts during brazing processes, ensuring uniform temperature distribution for strong and precise joints. |
| Tantalum-Niobium Smelting | Crucial in holding rare metals like tantalum or niobium in high-temperature furnaces without degradation or contamination. |
| Vacuum Quenching Furnaces | Employed in quenching processes to cool metals rapidly while maintaining a vacuum environment for the prevention of oxidation or contamination. |
Using graphite boat trays in sintering and induction furnaces offers several key benefits:
High Durability and Wear Resistance: Graphite is well-known for its wear resistance. In the high-stress environment of sintering furnaces, where continuous heating and cooling cycles take place, graphite boat trays can endure significant wear over time.
Corrosion Resistance: As mentioned earlier, graphite is naturally resistant to corrosion, making it perfect for use in environments where molten metals or chemical reactions could potentially cause damage to the equipment.
Efficient Heat Distribution: Graphite possesses excellent thermal conductivity, which helps maintain uniform temperatures across the tray. This uniformity is critical for ensuring that materials undergo the desired transformations in high-precision sintering furnaces.
Customization: Many manufacturers offer customized graphite boat trays to meet specific requirements such as size, shape, or material composition, ensuring they fit the exact needs of the furnace or application.
Cost-Effective: Despite the high initial cost of graphite boat trays, their longevity and the quality of results they provide often make them a more cost-effective choice in the long run, especially when compared to alternative materials.
The demand for customized graphite boat trays has risen in industries where precision and specific material requirements are paramount. The ability to tailor graphite boat trays in terms of size, shape, and specific material composition enables manufacturers to meet the unique needs of each industrial process. Whether it is a particular high-temperature application or a requirement for a vacuum quenching furnace, customization ensures the most efficient and effective use of these essential tools.
Most manufacturers use advanced machining techniques and high-precision manufacturing methods to produce graphite boat trays that meet stringent specifications. This allows industries to use the trays with confidence, knowing that their materials will be processed under the ideal conditions.
In conclusion, graphite boat trays are an essential component in numerous high-temperature industrial applications. From sintering furnaces to induction furnaces, these trays provide unparalleled high-temperature resistance, corrosion resistance, and wear resistance. Their ability to maintain structural integrity under extreme conditions and provide consistent, efficient heat distribution makes them a preferred choice across various industries. The option for customization further enhances their appeal, allowing companies to get precisely what they need for their specific operations. As industries continue to push the boundaries of materials processing, the role of graphite boat trays will only become more critical in achieving optimal results.
1. What is the primary material used for making graphite boat trays?
Graphite boat trays are typically made from high-purity graphite, which is known for its excellent thermal conductivity, high melting point, and resistance to both thermal shock and corrosion.
2. In which industries are graphite boat trays commonly used?
Graphite boat trays are widely used in industries such as metal smelting, brazing, sintering, ion nitriding, and vacuum quenching, among others.
3. How does graphite perform in high-temperature environments?
Graphite performs exceptionally well in high-temperature applications, withstanding temperatures up to 3000°C (5432°F) while maintaining structural stability and preventing material degradation.
4. Can graphite boat trays be customized for specific furnace requirements?
Yes, many manufacturers offer customized graphite boat trays tailored to specific furnace sizes, shapes, and material requirements, ensuring the best fit for each industrial application.
