In various high-temperature industrial processes, the need for durable, reliable, and high-performance materials is essential. Graphite boats have become a critical component in several industries due to their exceptional properties and versatility. Used in processes like sintering, brazing, and vacuum quenching, these graphite-based structures are designed to hold materials securely at elevated temperatures without undergoing degradation or contamination. This article delves into the critical aspects of graphite boats, exploring their role, characteristics, and various applications in different industrial settings.

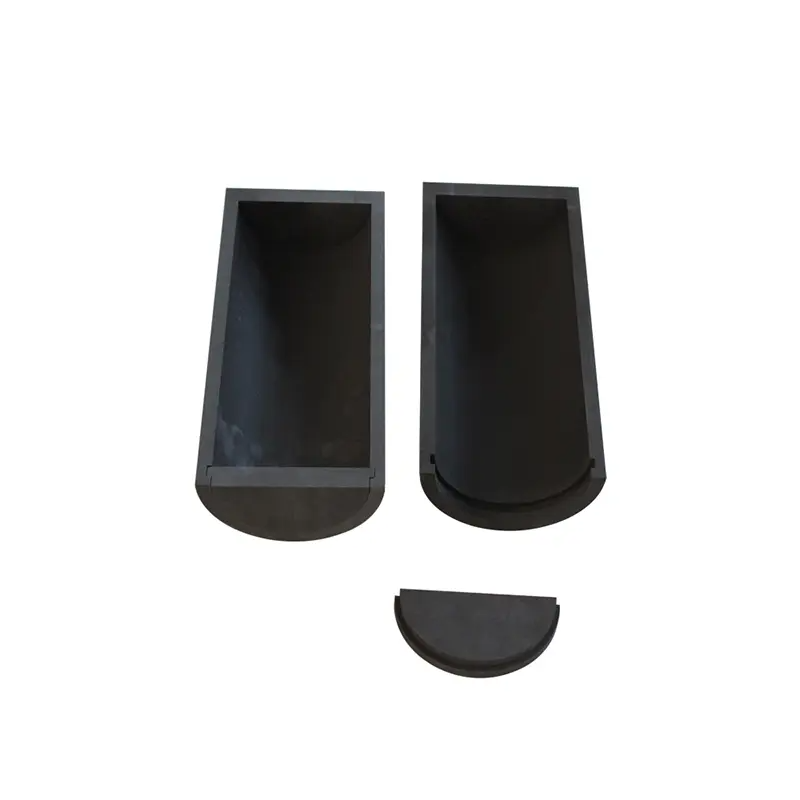

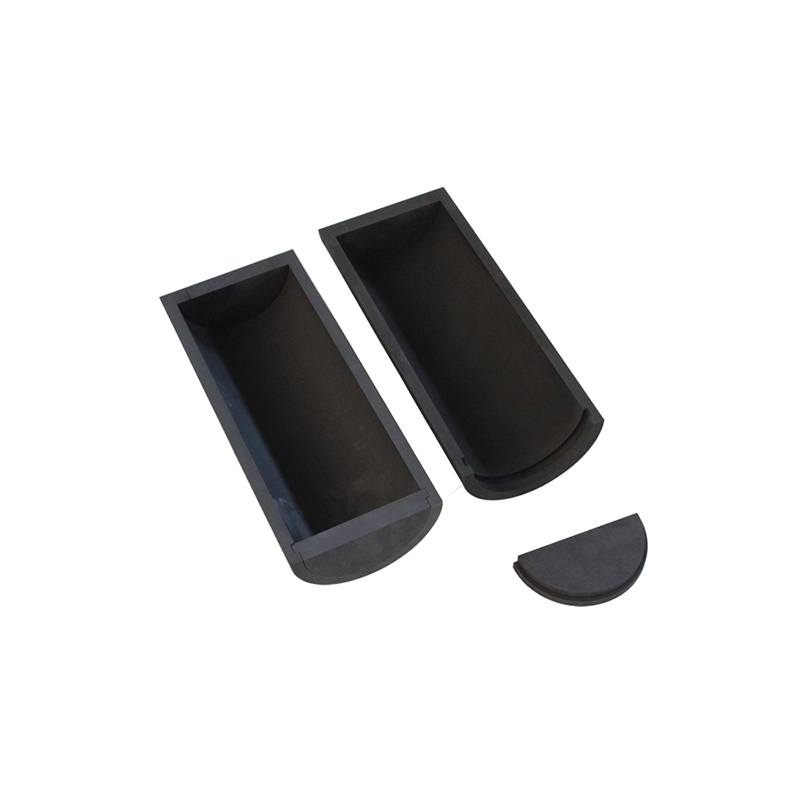

A graphite boat is a specially designed, high-performance container used primarily in various furnaces and industrial processes. It is made from high-purity graphite, a material known for its excellent thermal stability, electrical conductivity, and mechanical strength, especially at high temperatures. Graphite boats are used to hold materials during heat treatment processes, ensuring uniform heating and preventing contamination. These boats are often exposed to extreme conditions like rapid temperature fluctuations, corrosive gases, and mechanical stress.
The design of graphite boats typically involves a shallow, boat-like shape, allowing for efficient handling of materials. They are used in industries such as metal smelting, sintering, brazing, and vacuum quenching, among others. In each application, graphite boats must withstand intense temperatures and harsh environments while maintaining their structural integrity.
Professional-grade material designed for high-temperature applications.
Durable structure to withstand thermal shock and extreme conditions.
Corrosion-resistant, ensuring longevity and performance in a variety of environments.
High wear resistance, making them ideal for repeated use in industrial processes.
The applications of graphite boats span a wide range of industries, each with specific requirements for heat treatment, sintering, or smelting. Here are some of the most common uses of graphite boats:
Sintering Furnaces: Graphite boats are ideal for holding materials during the sintering process, where powdered metals or ceramics are heated to a temperature below their melting point to bond the particles together.
Induction Furnaces: In these high-temperature environments, graphite boats are used to contain metal during the melting process, withstanding high electrical currents and heat.
Brazing Furnaces: During the brazing process, graphite boats securely hold materials while they are heated to a temperature that allows a filler metal to join them.
Ion Nitriding Furnaces: Graphite boats play an essential role in ion nitriding, where metal parts are heated and exposed to nitrogen plasma to improve their surface hardness.
Vacuum Quenching Furnaces: These furnaces require graphite boats to hold materials while they undergo rapid cooling in a vacuum environment.
These applications emphasize the versatility and importance of graphite boats in high-precision and high-temperature environments.
One of the most significant advantages of graphite boats is their high-temperature resistance. Graphite has a melting point of around 3,600°C, which makes it ideal for use in processes where temperatures can exceed 1,000°C, such as in sintering, brazing, and induction furnaces. The high-temperature resistance ensures that the boat maintains its structural integrity and doesn't deform or melt during intense heating cycles.
Graphite boats are highly corrosion-resistant when exposed to a variety of chemicals and gases commonly found in industrial furnaces. Unlike other materials, graphite does not rust or degrade when exposed to most acids, making it suitable for use in chemical processing and metal smelting environments. The ability to resist corrosion extends the lifespan of the boat, reducing the need for frequent replacements.
Due to the nature of many industrial heating processes, rapid temperature changes are common. Graphite boats exhibit excellent thermal shock resistance, meaning they can endure sudden temperature shifts without cracking or breaking. This property is especially important in environments where materials are heated to high temperatures and then cooled rapidly, such as in vacuum quenching furnaces.
Graphite boats also offer high wear resistance, making them ideal for handling materials in abrasive environments. This characteristic is crucial in processes like sintering and brazing, where materials are subjected to mechanical stress or friction. Over time, graphite boats maintain their shape and functionality, even in high-wear conditions.
The choice to use graphite boats in industrial applications is often based on the material’s unique combination of properties that make it ideal for high-precision and high-temperature operations. Here are several reasons why graphite boats are the preferred option:
Reliability: Graphite boats provide consistent performance over many cycles in extreme temperatures, ensuring high product quality and process stability.
Cost-Effective: While the initial investment in graphite boats may be higher than alternative materials, their durability, corrosion resistance, and wear resistance often result in lower overall maintenance and replacement costs.
Customizable: Many suppliers offer customized graphite boats tailored to specific furnace designs or applications, ensuring optimal fit and performance.
Non-reactivity: Graphite boats do not react with the materials being processed, which ensures there is no contamination of the product.
One of the key advantages of graphite boats is their ability to be customized to meet specific industrial requirements. Manufacturers can produce graphite boats in various sizes, shapes, and designs, depending on the process and furnace type. Customization ensures that the graphite boat fits perfectly within the furnace, optimizing heat distribution and enhancing efficiency.
Additionally, graphite boats can be manufactured with specific properties, such as increased wear resistance or enhanced corrosion resistance, depending on the conditions they will be exposed to. Some boats may even be coated with a layer of another material to further enhance their performance in highly specialized processes.
Graphite boats are versatile and can be used in various furnace types, each with unique characteristics and requirements. Here’s a breakdown of how graphite boats function in some of the most common types of furnaces:
| Furnace Type | Graphite Boat Role | Key Requirements |
|---|---|---|
| Sintering Furnace | Holds materials during sintering, preventing contamination and ensuring uniform heating | Thermal stability, uniform heat distribution |
| Induction Furnace | Holds molten metal, ensuring stability under electrical currents and extreme heat | Electrical conductivity, high heat tolerance |
| Brazing Furnace | Supports materials while heating them to a temperature that facilitates bonding | Corrosion resistance, precision |
| Vacuum Quenching Furnace | Holds metal parts during rapid cooling, preventing deformation | Thermal shock resistance, durability |
In summary, graphite boats are indispensable components in a variety of industrial processes that require high-temperature stability, corrosion resistance, and wear resistance. Their unique properties make them ideal for use in furnaces such as sintering, brazing, and induction furnaces, as well as in specialized applications like ion nitriding and vacuum quenching. The customization options available further enhance their utility, ensuring that each boat can meet the specific demands of a given application.
Q1: Can graphite boats be used for all types of heat treatment?
Yes, graphite boats are highly versatile and can be used in various types of heat treatment processes, including sintering, brazing, and induction heating. They are suitable for most high-temperature applications due to their superior high-temperature resistance and thermal shock resistance.
Q2: How long do graphite boats last?
The lifespan of a graphite boat depends on the specific application and operating conditions. However, due to their high wear resistance and corrosion resistance, they typically last longer than many other materials in similar environments.
Q3: Are graphite boats customizable?
Yes, many manufacturers offer customized graphite boats tailored to meet specific size, shape, and performance requirements. Customization is available for various furnace designs and specialized applications.
Q4: Are graphite boats cost-effective?
Although the initial investment may be higher than alternative materials, graphite boats tend to be more cost-effective in the long run due to their durability and low maintenance requirements.
