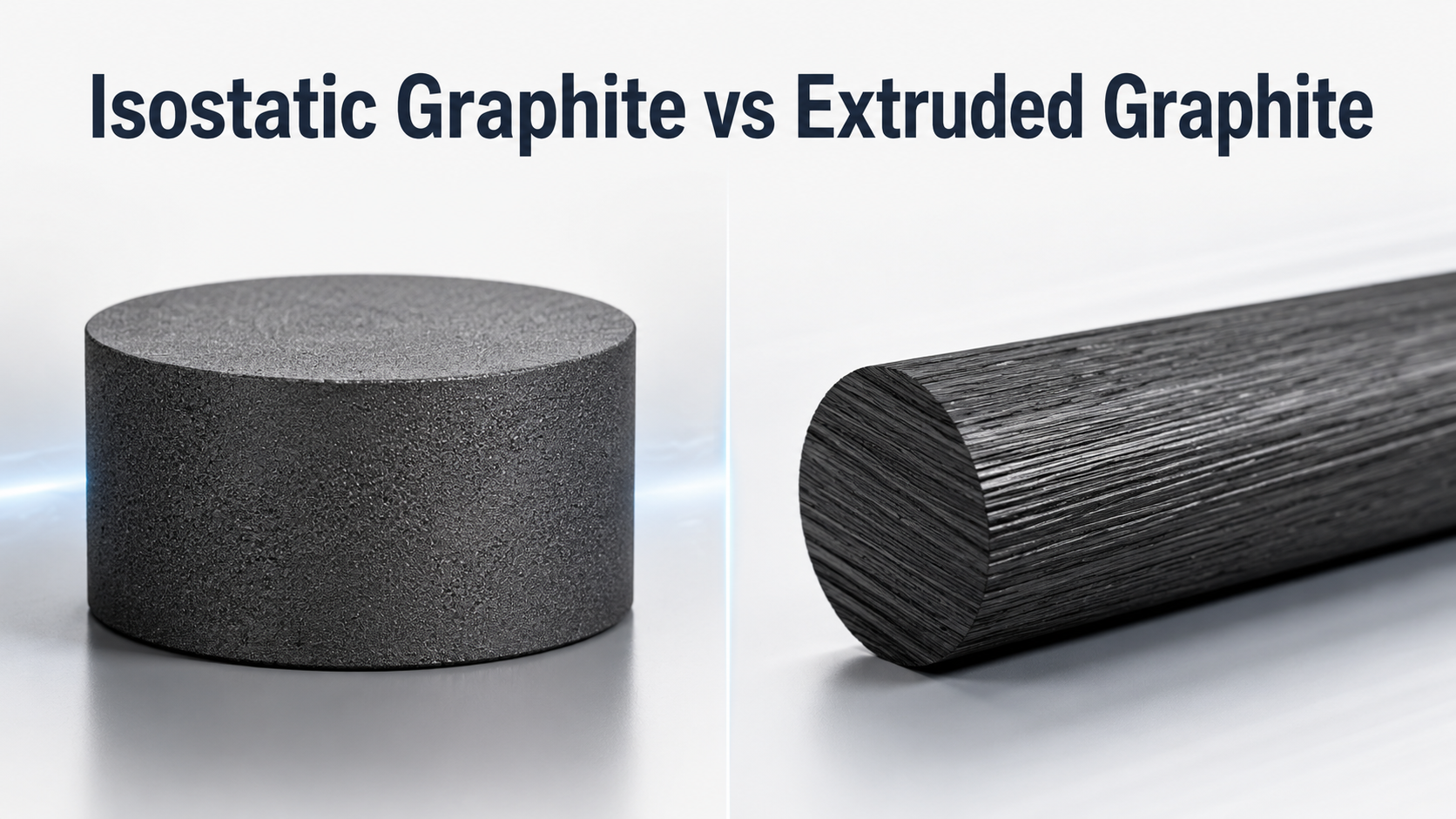

Isostatic Graphite vs Extruded Graphite: What Is the Difference?

Engineers frequently face a critical crossroad when designing high-temperature industrial components. Selecting the wrong synthetic graphite can trigger premature component failure. This misstep often ruins precision machining tolerances and drives up procurement costs unnecessarily. You must understand the material foundation before committing to a purchase. Both isostatic and extruded variations begin as high-purity synthetic carbon materials. However, their unique forming processes dictate fundamentally different physical, thermal, and electrical properties down to the microscopic level. We aim to provide procurement managers and engineering teams with a clear, evidence-based framework. In this guide, you will learn exactly how to evaluate these two graphite types against each other. We break down the structural outcomes, performance metrics, and sourcing trade-offs so you can confidently match the right grade to your specific industrial applications.

Key Takeaways

• Forming Process dictates structure: Isostatic graphite is formed under equal pressure from all directions (Cold Isostatic Pressing), yielding uniform (isotropic) properties. Extruded graphite is forced through a die, creating directional (anisotropic) properties.

• Grain size and precision: Isostatic graphite features ultrafine grain sizes, making it ideal for complex, high-tolerance machining. Extruded graphite has a coarser grain, suited for bulk structural applications.

• Cost vs. Performance: Extruded graphite is significantly more cost-effective for large-scale operations. Isostatic graphite commands a premium, justified by its superior density, strength, and thermal consistency.

• Application divide: Choose isostatic for semiconductors, fine-detail EDM, and continuous casting. Choose extruded for large furnace parts, smelting electrodes, and high-volume metallurgy.

1. Manufacturing Processes and Structural Outcomes

The Cold Isostatic Pressing (CIP) Process

Manufacturers create isostatic graphite using a sophisticated technique called Cold Isostatic Pressing (CIP). They place fine carbon powder mixtures into a flexible mold. They submerge this mold inside a high-pressure fluid chamber, often utilizing specialized oil or treated water. The system applies immense, equal pressure from every single direction simultaneously, sometimes reaching up to 30,000 PSI.

This uniform pressure produces an isotropic structure. In practical terms, the material behaves exactly the same regardless of your measurement angle. Mechanical strength, electrical conductivity, and thermal expansion remain identical across all axes. The CIP process eliminates internal stress points. It also achieves exceptional material density. You get a highly reliable block perfectly suited for demanding, high-heat environments.

The Extrusion Process

Extrusion relies on a completely different forming mechanism. Producers mix petroleum coke and pitch binders into a thick paste. A massive hydraulic press forces this viscous mixture through a steel extrusion die to form continuous, long shapes.

This linear force aligns the carbon particles parallel to the direction of travel. As a result, extruded graphite develops an anisotropic structure. Its physical properties change entirely based on the grain direction. Thermal expansion and electrical resistivity differ depending on whether you measure parallel or perpendicular to the extrusion path. Despite this directional variance, extrusion offers unmatched manufacturing efficiency. It remains highly scalable for producing massive bulk components quickly.

2. Key Evaluation Dimensions: Evaluating Performance Metrics

Isotropy vs. Anisotropy in Thermal Management

Thermal management separates these two materials immediately. Isostatic grades provide highly predictable thermal expansion in all directions. You can heat these components to extreme temperatures without warping. They maintain strict dimensional stability. For example, if a semiconductor wafer carrier warps during a heating cycle, it will ruin an entire batch of expensive silicon. Isotropic materials prevent this catastrophic outcome.

Extruded grades require careful design compensation. Because they expand differently along their grain, engineers must account for directional thermal expansion. If you ignore this anisotropy, complex components may warp or crack under rapid heating and cooling cycles.

Grain Size, Porosity, and Machinability

Grain size directly impacts your ability to machine fine details. Isostatic grades feature ultra-fine grains. These particles often measure under 20 microns. Such tight grain structures allow machinists to cut sharp edges and complex geometries. You achieve superior surface finishes easily. This trait proves critical when manufacturing Electrical Discharge Machining (EDM) electrodes. Furthermore, minimal porosity prevents rapid oxidation. This extends the component lifespan significantly in open-air furnace environments.

Extruded materials utilize medium to coarse grains, frequently measuring in millimeters rather than microns. They cannot hold ultra-fine details during CNC machining. Thin walls may chip or break effortlessly. However, these coarser grains provide plenty of structural integrity for massive, straightforward structural components.

Density and Mechanical Strength

The forming pressure dictates the final mechanical strength. The CIP process packs particles tightly together. This uniform compression yields significantly higher flexural and compressive strength compared to standard extruded grades. A denser material naturally resists physical wear and abrasive forces much better over time.

To illustrate these technical differences clearly, review the properties comparison below:

3. Cost-to-Outcome Analysis and Sourcing Trade-Offs

Capitalizing on Extruded Graphite Economies of Scale

Extruded graphite serves as the commercial workhorse of the heavy metallurgy industry. The continuous forming process keeps manufacturing costs low. You can produce massive volumes rapidly. It serves perfectly for applications lacking strict micro-structural requirements. Common uses include aluminum smelting components, large industrial heating elements, and run-out tables. When you need sheer volume over microscopic precision, extruded materials win on budget every single time.

Justifying the Premium of Isostatic Graphite

Isostatic options command a noticeable price premium up front. However, enhanced operational performance easily justifies this higher initial purchase cost. High-density structures drastically reduce machine wear during CNC operations. Machinists experience fewer tool breakages and better spindle longevity. When used as EDM electrodes, the ultra-fine grain lowers spark wear and reduces costly scrap rates. In continuous casting applications, the superior density extends the die's operational lifespan. You swap out parts less frequently, which minimizes costly production downtime. These direct performance and yield benefits quickly offset the higher raw material price.

Size Limitations

Physical constraints influence sourcing decisions heavily. The high-pressure vessels used in CIP systems have hard dimensional limits. You cannot press infinitely large blocks. Manufacturers must work strictly within the maximum diameter and depth of the isostatic chamber.

Conversely, extrusion presses face very few length restrictions. You can force material through the die continuously. This continuous scalability produces massively long electrodes, such as the colossal cylinders required for heavy-duty electric arc furnaces.

4. Implementation Risks and Quality Control

Material Inconsistency Risks

Lower-tier suppliers sometimes cut corners during the baking and graphitization phases. This negligence creates hidden voids or inconsistent density within the graphite block. If you deploy flawed graphite in high-heat operations, the material may suffer catastrophic spalling or cracking under thermal shock. You risk destroying entire production runs if an electrode or susceptor shatters mid-cycle.

Verifying Specifications

Never buy industrial graphite based purely on a generic marketing spec sheet. We highly recommend requesting detailed material test reports (MTRs) before bulk procurement. You must verify the actual grain size, shore hardness, and flexural strength of the specific batch you intend to buy.

• Ask for density distribution maps across the block if available.

• Confirm the exact micron size of the particle grain using lab-verified data.

• Check for certified flexural strength test results from recent batches.

• Ensure the porosity levels align with your oxidation resistance requirements.

Machining and Handling Considerations

Graphite dust behaves differently depending on the grade you process. High-density isostatic blocks require sharp, specialized carbide or diamond-coated tooling. They cut cleanly but demand highly rigid machine setups to prevent chatter. Extruded grades contain coarser particles. Machining them generates significantly more abrasive dust. You must implement aggressive vacuum dust extraction systems to protect your CNC spindle bearings, sensitive electronics, and operator respiratory health.

5. Shortlisting Logic and Decision Framework

Specify Isostatic Graphite when:

• The application involves semiconductor manufacturing, including susceptors, epitaxial barrels, and boat trays.

• You require fine-detail Electrical Discharge Machining (EDM) to produce intricate plastic injection molds.

• The component acts as a continuous casting die needing high wear resistance and perfectly smooth surface finishes.

• Dimensional stability under extreme, fluctuating heat is absolutely non-negotiable.

Specify Extruded Graphite when:

• Designing large-scale vacuum furnace components, heavy structural supports, or massive brazing fixtures.

• Sourcing standard electrodes for electric arc furnaces or heavy smelting operations.

• Budget constraints demand a highly cost-effective solution for non-precision, high-temperature resistance.

• You need continuous, unbroken lengths exceeding typical CIP pressure vessel capacities.

Next-Step Actions

Follow this structured framework to integrate the correct material into your engineering supply chain confidently:

1. Prototype with small sample blocks to test machinability on your specific CNC equipment.

2. Run rigorous thermal cycling tests to observe real-world expansion rates in your actual operating environment.

3. Align with your supplier regarding specific grade classifications, tolerances, and quality testing before finalizing the bill of materials.

Below is a quick application selection chart to guide your engineering team:

Conclusion

Neither graphite material stands as universally superior. The correct choice hinges entirely on aligning the material's structural properties with your specific thermal and mechanical demands. Isotropic grades dominate precision machining, semiconductor production, and high-wear environments. Anisotropic extruded grades rule bulk, structural, and heavy-smelting applications.

Always match the grain size directly to your required machining tolerances. Evaluate exactly how directional thermal expansion will impact your high-temperature assemblies. Prioritize verified material test reports to guarantee batch consistency before you execute bulk orders.

We encourage procurement and engineering teams to consult with material specialists early in the design phase. They will help you match specific graphite grades to your exact operational parameters. If you need expert guidance on material selection or engineering tolerances, contact us today to discuss the specifications of your next critical project.

FAQ

Q: Why is isostatic graphite more expensive than extruded graphite?

A: Cold Isostatic Pressing remains a complex, time-intensive manufacturing process. It requires highly refined, ultra-fine raw carbon powders. The machinery must generate massive, uniform fluid pressure inside specialized heavy-duty vessels. This batch-oriented process takes significantly longer than the faster, continuous extrusion method, driving up the final production cost.

Q: Can extruded graphite be used for EDM?

A: Yes, but only for very rough, large-scale EDM cavity sinking. Extruded graphite possesses coarse grains and higher porosity. It cannot hold fine details, sharp edges, or complex geometries during machining. Therefore, it remains entirely unsuitable for standard or fine-finish EDM applications where tight tolerances are required.

Q: How does the grain direction affect extruded graphite?

A: Extrusion forces carbon particles to align parallel to the die's flow. This creates an anisotropic structure. Electrical resistance and thermal expansion change based on direction. Heat and electrical current travel much more efficiently parallel to the grain than they do perpendicular to it.

Q: Are there size limitations for isostatic graphite blocks?

A: Yes. The physical size of the high-pressure fluid vessel used during Cold Isostatic Pressing strictly limits maximum block dimensions. Manufacturers cannot press blocks larger than the chamber's interior volume. In contrast, extrusion processes continuously push material through a die, creating massively long continuous shapes.
