In industries that involve high-temperature applications such as metal casting, sintering, and carbonization, the importance of selecting the right equipment cannot be overstated. One such critical component in these processes is the graphite sagger, which plays a vital role in protecting materials from contamination while withstanding extreme temperatures. The design and material composition of graphite saggers have evolved over time to improve their heat resistance, durability, and overall efficiency. These innovations have revolutionized their application in industries like metallurgy, energy storage, and advanced manufacturing.
This article explores the innovations in heat-resistant graphite sagger design, focusing on the advancements that enhance both durability and efficiency in various high-temperature applications. Additionally, we will discuss how these innovations contribute to reducing operational costs, improving product quality, and meeting the increasingly stringent demands of modern industrial processes.

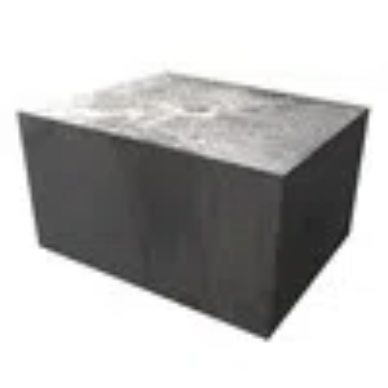

Before delving into the technological innovations, it’s important to understand what a graphite sagger is and why it is so crucial in high-temperature operations. A sagger is essentially a container made from high-quality graphite used to hold and protect materials during processes such as metal melting, sintering, carbonization, or heat treatment. The sagger ensures that the material being processed is not exposed to contamination from external sources, while also maintaining a stable and uniform temperature for effective results.
Graphite is an ideal material for these applications due to its high melting point, thermal conductivity, and resistance to thermal shock. However, even within the realm of graphite materials, there are variations in quality and performance, making the design and production of graphite saggers a crucial factor for successful high-temperature operations.
In high-temperature applications, materials are subjected to extreme conditions that can cause rapid wear and tear. Graphite saggers must endure:
Thermal cycling: The rapid and frequent changes in temperature during processes such as heating, cooling, and re-heating can cause material fatigue and degradation. This is known as thermal shock.
Corrosion and oxidation: The intense heat and chemical exposure from the materials being processed can cause reactions that degrade the sagger material, leading to reduced longevity and performance.
Contamination risks: Impurities in the sagger material can leach into the materials being processed, potentially affecting the quality of the final product.
Pressure and mechanical stress: Graphite saggers are often required to withstand pressure and mechanical stress from the metal or other materials inside them.
Overcoming these challenges requires innovative design solutions that enhance the performance of graphite saggers in high-temperature environments.
The modern graphite sagger has undergone significant advancements to meet the rigorous demands of industrial processes. These innovations focus primarily on improving heat resistance, durability, and efficiency, which are essential for maintaining high standards in production while reducing operational costs.
Thermal shock resistance is one of the most critical factors in the design of a heat-resistant graphite sagger. During the metal melting process, the sagger is exposed to rapid changes in temperature. For instance, the sagger may be exposed to high heat during the initial phase of metal melting and then undergo a sudden cooling phase when it is removed from the furnace.
To address this, manufacturers have developed reinforced graphite composites and high-purity graphite materials that offer superior thermal shock resistance. These materials are engineered to handle the thermal expansion and contraction that occurs during such rapid temperature fluctuations without cracking or deforming. Additionally, advanced layered construction techniques have been introduced, where layers of different grades of graphite are used to optimize thermal resistance and improve the lifespan of the sagger.
The purity of the graphite material used in the sagger plays a crucial role in its performance, particularly in preventing contamination of the materials being processed. Graphite saggers made from high-purity graphite (with minimal impurities) offer several advantages:
Reduced contamination: High-purity graphite minimizes the risk of impurities leaching into the materials being processed, ensuring that the final product meets the highest standards of quality.
Enhanced thermal conductivity: Pure graphite exhibits superior thermal conductivity, ensuring uniform heat distribution and reducing energy consumption during the melting or sintering process.
Increased structural integrity: Higher purity results in stronger graphite, which is less likely to crack or degrade over time.
The innovation in refining the production process of graphite has allowed manufacturers to produce high-purity graphite that is both heat-resistant and durable, providing longer service life for the sagger and higher-quality outcomes for the materials processed inside it.
To further enhance the durability and heat resistance of graphite saggers, modern designs often incorporate specialized coatings and surface treatments. These coatings are applied to the surface of the sagger to provide an additional layer of protection against oxidation, corrosion, and other forms of wear and tear that occur at high temperatures.
Some common types of coatings and treatments used include:
Silicon carbide coatings: These coatings provide an extra layer of heat resistance and enhance the sagger's ability to withstand high temperatures without degrading.
Graphene-based coatings: Graphene is known for its thermal conductivity and chemical resistance, and when applied to graphite saggers, it enhances their performance by providing greater heat retention and preventing material degradation.
Ceramic coatings: Some graphite saggers are coated with ceramic materials to improve their resistance to oxidation and provide an additional layer of protection against high-temperature environments.
These coatings help extend the sagger's lifespan, reduce maintenance costs, and increase overall efficiency in high-temperature operations.
Manufacturers have also advanced the molding and manufacturing techniques used to create graphite saggers. Using precision molding, manufacturers can create highly customized and complex shapes to meet specific application needs. Additionally, new machining techniques such as CNC (Computer Numerical Control) machining have made it possible to produce saggers with more intricate designs, improving their heat resistance and efficiency.
Customizable designs allow for the sagger to be tailored to the unique requirements of each high-temperature application. For instance, in battery material carbonization or metal casting, the graphite sagger can be designed to ensure optimal material placement and heat flow, resulting in better performance and reduced wastage.
As many high-temperature applications involve extreme pressure (for example, during sintering processes), graphite saggers must be able to withstand not only heat but also mechanical stress. Modern innovations in graphite composition and reinforced graphite structures have significantly enhanced the pressure resistance of these saggers.
By using advanced techniques such as multi-layered composites or graphite-fiber reinforced designs, manufacturers have improved the saggers' ability to handle external pressure and mechanical stresses without compromising their structure. This ensures that the sagger retains its shape and function over extended periods, even under challenging operational conditions.
The innovations in heat-resistant graphite sagger design provide numerous benefits that directly impact the efficiency, durability, and overall performance of high-temperature industrial operations:
Extended lifespan: With advanced materials, coatings, and improved thermal shock resistance, modern graphite saggers last longer, reducing the need for frequent replacements and minimizing production downtime.
Improved product quality: The ability to prevent contamination and maintain precise temperature control ensures that the materials processed inside the sagger are of higher quality, meeting stringent industry standards.
Cost savings: Reduced maintenance needs, longer lifespan, and energy-efficient thermal properties help cut operational costs, resulting in better cost-effectiveness in the long term.
Reduced environmental impact: By improving the efficiency of high-temperature processes, the innovations in graphite sagger design can help reduce energy consumption, contributing to more sustainable industrial practices.
Innovations in the design of heat-resistant graphite saggers have significantly improved their performance, durability, and efficiency in high-temperature applications. These advancements provide industries with a crucial tool for ensuring high-quality metal casting, sintering, and carbonization processes. The ability to withstand extreme temperatures, prevent contamination, and resist thermal shock has made high-quality graphite saggers indispensable in various industries, from metallurgy to energy storage.
For companies looking for reliable and advanced graphite sagger solutions, Jiangxi Ningheda New Material Co., Ltd. is a leading provider of high-quality heat-resistant graphite products. With a commitment to innovation and precision, Ningheda offers cutting-edge graphite saggers that meet the rigorous demands of modern industrial processes. Whether it's for metal melting, sintering, or carbonization of advanced materials, Ningheda's graphite saggers are designed to provide superior performance, durability, and efficiency.
