High purity graphite boats are vital components in many high-temperature industrial applications, including sintering furnaces, brazing furnaces, and ion nitriding furnaces. The demand for graphite boats has been increasing due to their excellent thermal conductivity, corrosion resistance, and wear resistance. These properties make them ideal for use in environments requiring high precision and durability, such as high-precision sintering furnaces.
This article delves into the entire process of manufacturing high purity graphite boats. By focusing on the essential aspects of raw materials, molding techniques, and final testing procedures, we aim to provide a comprehensive guide on how to produce high-quality, durable graphite boats that can withstand the extreme conditions in industrial furnaces.

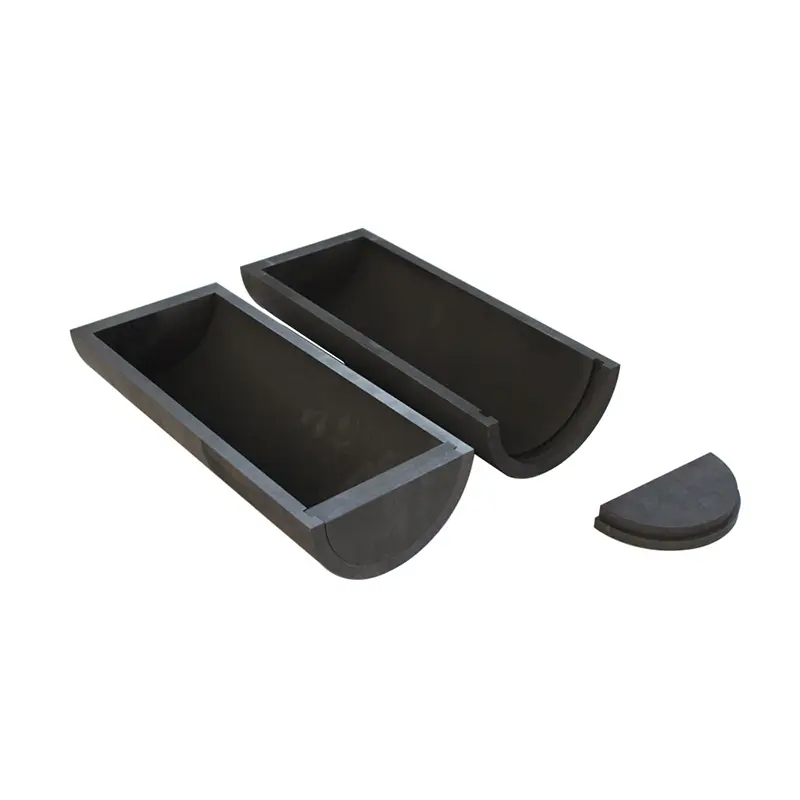

A graphite boat is a specialized container made from high-purity graphite, designed for use in various high-temperature environments. These boats are used to hold materials during processes such as sintering, brazing, and ion nitriding. The unique properties of graphite, such as high-temperature resistance, corrosion resistance, and thermal shock resistance, make graphite boats an indispensable part of industries involved in high-precision processing.
Due to their ability to resist thermal expansion and conduct heat efficiently, graphite boats are ideal for handling materials in vacuum resistance furnaces, induction furnaces, and even tantalum-niobium smelting furnaces.
To manufacture graphite boats that can handle extreme conditions, the purity of the graphite used is crucial. High purity graphite has minimal impurities, which significantly enhances its ability to withstand high temperatures and resist wear and corrosion. These properties are particularly important when the graphite boat is used in environments where even the slightest contamination could compromise the entire process.
The purity of the graphite affects several factors:
Thermal stability: Higher purity allows for better heat conduction and resistance to thermal shock.
Corrosion resistance: Impurities can react with the materials inside the furnace, reducing the longevity of the boat.
Durability: High-purity graphite boats can endure more cycles in the furnace without degrading or losing their structural integrity.
Using high purity graphite ensures that the graphite boat maintains its functionality even under extreme conditions, making it an invaluable asset in industries requiring consistent performance and precision.
The first step in producing high purity graphite boats is sourcing the right materials. The primary raw material is high purity graphite. To maintain the required level of purity, the graphite is usually obtained from reputable suppliers who provide grades specifically suited for high-temperature applications.
| Material | Purpose |
|---|---|
| High Purity Graphite | Provides the base material for the boat. |
| Binders | Helps in shaping the graphite into molds. |
| Additives | Sometimes used to enhance properties like strength and corrosion resistance. |
In some cases, graphite boats may incorporate special additives that further improve their wear resistance, corrosion resistance, or thermal shock resistance. The quality and purity of these materials directly influence the performance of the final product.
The process begins by sourcing high purity graphite from suppliers with high standards. The graphite is typically processed through a purification process to ensure that the level of impurities is kept to a minimum. High-purity graphite has fewer additives and contaminants, which ensures better performance in high-temperature and high-stress environments.
Once the high purity graphite is obtained, the material is shaped into a graphite boat using precision molding techniques. Molding can be done through several methods, including die-pressing or extrusion. The graphite is usually mixed with a binder to provide consistency and ease of shaping. The molds are designed to ensure the graphite boats have the necessary dimensions and shape to fit the specific furnace type and application.
The shaping process is critical to ensure that the graphite boats fit perfectly into the furnace environment and provide maximum performance.
After molding, the graphite boat is subjected to high-temperature sintering. This process involves heating the graphite boat to temperatures ranging from 2500°C to 3000°C in a controlled atmosphere. This stage helps to remove any remaining volatile materials and solidify the structure of the graphite boat. The sintering process enhances the wear resistance and thermal shock resistance of the graphite boat, allowing it to perform effectively under extreme conditions.
Before a graphite boat is sent for use in industrial applications, it undergoes a series of rigorous quality control tests. These tests evaluate the graphite boat’s thermal conductivity, dimensional accuracy, and overall structural integrity. Any defects found during testing are rectified, ensuring that the final product meets industry standards.
The final testing ensures that the graphite boat can perform optimally in a wide range of high-temperature applications.
High purity graphite boats offer a number of benefits that make them essential in various industrial applications:
Thermal Shock Resistance: Capable of handling sudden temperature changes without cracking or deforming.
Corrosion Resistance: Resistant to reactions with aggressive materials inside the furnace.
High Wear Resistance: Long-lasting durability even after repeated use in high-stress environments.
High-Temperature Resistance: Can endure temperatures exceeding 2500°C without losing structural integrity.
Precision Molding: Allows for high-precision sintering furnaces, ensuring that the graphite boat fits perfectly into the furnace.
These characteristics ensure that graphite boats maintain their functionality even under challenging conditions, making them indispensable in various high-temperature applications.
High-purity graphite boats are used in a variety of industries where precise temperature control and high durability are required. Some key applications include:
Sintering furnaces: For materials that require heat treatment at extreme temperatures.
Brazing furnaces: To hold materials in place during brazing processes.
Vacuum quenching furnaces: To cool metals quickly and evenly.
Ion nitriding furnaces: For improving the surface hardness of materials.
Tantalum-Niobium smelting furnaces: For high-temperature metal smelting.
Each of these applications requires a graphite boat that can withstand the extreme conditions inside these specialized furnaces, which is why high purity graphite is crucial in their production.
Manufacturing high purity graphite boats involves selecting the right materials, utilizing precise molding and sintering techniques, and conducting thorough quality control testing. The result is a durable and reliable graphite boat capable of withstanding extreme high-temperature conditions, making it ideal for use in sintering furnaces, vacuum quenching furnaces, and other industrial applications. The purity and quality of the graphite used are paramount to ensuring the longevity and performance of these critical components.
Q: What is the main advantage of using high purity graphite for boats?
A: The main advantage is the high temperature resistance and corrosion resistance of high-purity graphite, which allows the boat to maintain its structural integrity and functionality under extreme conditions.
Q: Can graphite boats be customized for specific applications?
A: Yes, graphite boats can be customized in terms of shape, size, and additional properties like wear resistance and thermal shock resistance to suit particular industrial needs.
Q: How long do high purity graphite boats last?
A: The lifespan of a graphite boat depends on factors such as the temperature it’s exposed to, the material it holds, and the frequency of use. However, high-purity graphite boats typically last longer due to their enhanced resistance to wear and corrosion.
