How To Make A Graphite Mold?

Views: 0     Author: Site Editor     Publish Time: 2025-06-23      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Have you ever wondered how industries create complex, high-precision parts from molten metal or glass? The answer often lies in the versatility and resilience of graphite molds. These molds are widely used for their ability to withstand extreme temperatures and provide exceptional casting results.

In this post, we will discuss the steps involved in making a graphite mold, the types of materials required, and the advantages of using graphite for molding. By the end, you’ll have a clear understanding of how to create a mold that fits your specific needs.


What is Graphite and Why Use It for Molds?

Graphite is a naturally occurring form of carbon with unique properties that make it ideal for use in high-temperature applications. It is known for its excellent thermal conductivity, resistance to high temperatures, and its ability to retain structural integrity even when subjected to extreme heat.

Benefits of Using Graphite for Mold Making

  1. High-Temperature Resistance: Graphite molds can withstand temperatures over 3000°C, making them ideal for metal casting and glass production.

  2. Excellent Thermal Conductivity: The material promotes even heat distribution, ensuring consistent results during the casting process.

  3. Chemical Inertness: Graphite does not react with most molten materials, reducing contamination risks and improving the quality of the final product.

  4. Low Wettability: Molten metals and glass don’t stick easily to graphite, making the mold easier to remove and prolonging its lifespan.

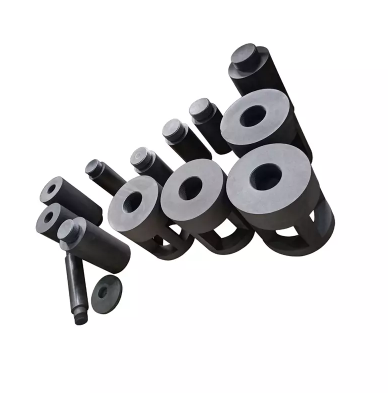

graphite

Materials Needed for Graphite Molds

To make a graphite mold, you will need several essential materials. Below is a list of key components required to get started:

  • Graphite Blocks: You can choose from high-purity graphite blocks or composite materials. High-purity graphite blocks are often preferred for precise, high-quality molds.

  • Cutting Tools: Diamond-coated tools or carbide cutting tools are ideal for shaping and carving graphite due to its abrasiveness.

  • CAD Software: For designing the mold, CAD software like Fusion 360 or SolidWorks is crucial to create precise models and tool paths.

  • CNC Machine: CNC (Computer Numerical Control) machines provide the precision necessary to shape graphite molds accurately.

  • Safety Equipment: Because graphite dust can be harmful to health, proper dust collection systems and respiratory protection are essential.


Step-by-Step Guide to Making a Graphite Mold

Creating a graphite mold involves several key steps. Here’s a detailed breakdown of the process:

Step 1: Choose the Right Graphite Material

The first step in making a graphite mold is selecting the appropriate material. Depending on your application, you can choose between high-purity graphite or composite materials. High-purity graphite offers superior thermal conductivity and durability, making it ideal for casting precious metals and glass. Composite graphite materials, on the other hand, are often used for larger or less critical applications, as they can be more cost-effective while still offering decent performance.

Step 2: Design the Mold Using CAD Software

The next step is designing the mold using CAD software. The design process includes creating a 3D model of the mold and specifying all the necessary dimensions. The software helps you simulate the flow of the molten material to ensure there are no issues during casting. You should also include features such as draft angles for easy removal, parting lines, and venting systems to ensure smooth material flow and prevent air pockets.

Step 3: Set Up the CNC Machine

Once the design is ready, it’s time to transfer it to a CNC machine. The CNC machine will follow the design instructions and carve the graphite block to the specified dimensions. Ensure that the graphite block is properly aligned on the CNC machine bed to avoid any inaccuracies. Additionally, use high-speed spindles and diamond-coated or carbide tools to prevent wear and tear during the cutting process.

Step 4: Machining the Graphite Block

During the machining process, the CNC machine will make several passes to shape the graphite block into the final mold. Start with rough cuts to remove excess material, then proceed with finer cuts to achieve the precise dimensions and finish. It’s important to monitor the machining process closely to ensure the mold is being created to specifications.

Step 5: Finishing and Post-Machining

After the mold is shaped, the next step is finishing. This includes sanding the surface to remove any rough edges and polishing it to achieve a smooth, reflective surface. A smooth surface reduces friction and enhances the mold’s ability to release the cast part. You can also apply a protective coating to the mold to reduce oxidation and improve its durability.

Step 6: Quality Check and Testing

Once the mold is finished, it’s important to perform a quality check. Measure the mold’s dimensions with precision instruments like calipers to ensure they meet the specifications. You should also check for any surface defects such as cracks, voids, or chips. If any issues are found, the mold should be repaired before use.


Common Applications of Graphite Molds

Graphite molds are used in a wide range of industries due to their versatility and durability. Some of the most common applications include:

  1. Metal Casting: Graphite molds are commonly used to cast metals like aluminum, gold, silver, and copper. Their ability to withstand high temperatures makes them ideal for casting processes where other materials might deform.

  2. Glassmaking: In the glass industry, graphite molds are used to shape molten glass into intricate designs. The material’s smooth surface helps produce high-quality glass products.

  3. Jewelry Production: Jewelers use graphite molds to create precise molds for casting rings, necklaces, and other jewelry items. Graphite’s ability to handle precious metals and maintain its shape makes it perfect for this purpose.

  4. Electronics: Graphite molds are used in the production of electronic components, where high precision and durability are essential.


Advantages of Graphite Molds Over Traditional Molds

Graphite molds offer several advantages over traditional molds made from other materials such as metal or ceramic:

  1. Durability: Graphite molds can last for hundreds or even thousands of casting cycles with proper care. Their resistance to thermal shock and high temperatures ensures they maintain their integrity over time.

  2. Cost-Effectiveness: Although high-purity graphite molds can be more expensive initially, their longevity and ability to handle multiple casting cycles make them a cost-effective option in the long run.

  3. Precision: The ability to machine graphite with CNC machines ensures high precision, which is crucial for industries that require intricate shapes and tight tolerances.

  4. Ease of Mold Release: Graphite molds typically allow for easy removal of the cast material due to their low wettability, reducing the chances of material sticking to the mold.


Conclusion

Making a graphite mold is a precise and intricate process that requires careful material selection, design, and machining. By choosing the right graphite material, designing an efficient mold, and using the proper tools and equipment, you can create a high-quality mold that will withstand the test of time and high-temperature applications.

Jiangxi Ningheda New Material Co., Ltd. is a leading supplier of high-quality graphite products, offering customized graphite molds for various industries. Their expertise in graphite material science ensures that customers receive products that meet the highest standards of performance and durability.


FAQs

Q: What materials can I cast with a graphite mold?

A: Graphite molds can be used for casting metals like aluminum, gold, silver, copper, as well as glass and some ceramics. They are highly versatile and durable.

Q: How long do graphite molds last?

A: The lifespan of a graphite mold depends on factors such as the material being cast and the conditions of use. With proper care, graphite molds can last for hundreds to thousands of casting cycles.

Q: Can graphite molds be reused?

A: Yes, graphite molds are reusable. They can be used multiple times as long as they are properly maintained and free from defects.

Q: What is the best type of graphite for making molds?

A: High-purity graphite, with a carbon content of 99% or higher, is the best choice for creating high-performance molds. It offers superior thermal shock resistance and durability.
